Каталог

Европа

Модель

DYNA

VIN

Дата

2019/11

Двигатель

4 литра, дизель

Фрейм

XZU720

КПП

механика МКПП, 5 скоростей

Опции

левый руль 7,5 тонн DOUBLE TIRE GENERAL COUNTRIES IV3 SCB 804W

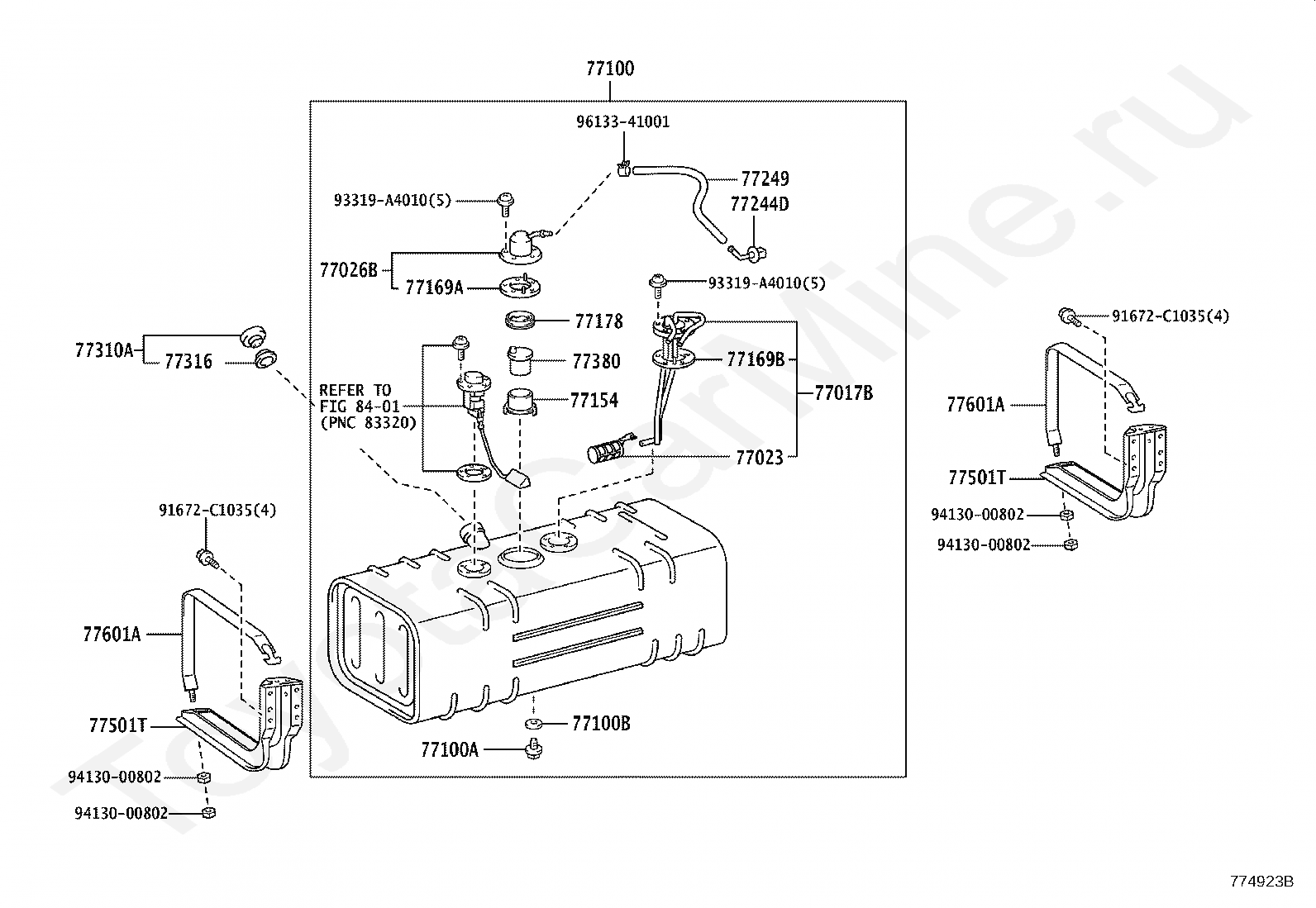

Топливный бак и горловина TOYOTA DYNA

Код

Описание

77017B

TUBE SUB-ASSY, FUEL TANK VENT

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77026B

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77154

PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT

77169A

GASKET, FUEL SUCTION TUBE SET

77169B

GASKET, FUEL SUCTION TUBE SET, NO.1

77178

GASKET, FUEL TANK FILLER PIPE, LOWER

77244D

TUBE, FUEL EVAPORATION BREATHER, NO.1

77249

HOSE, FUEL EMISSION

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77380

VALVE ASSY, FUEL CUT OFF

77501T

BRACKET SUB-ASSY, FUEL TANK

77501T

BRACKET SUB-ASSY, FUEL TANK

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

8401

переход к группе запчастей

91672C1035

Крепеж

91672C1035

Крепеж

93319A4010

Крепеж

93319A4010

Крепеж

9413000802

Крепеж

9413000802

Крепеж

9413000802

Крепеж

9413000802

Крепеж

9613341001

Крепеж

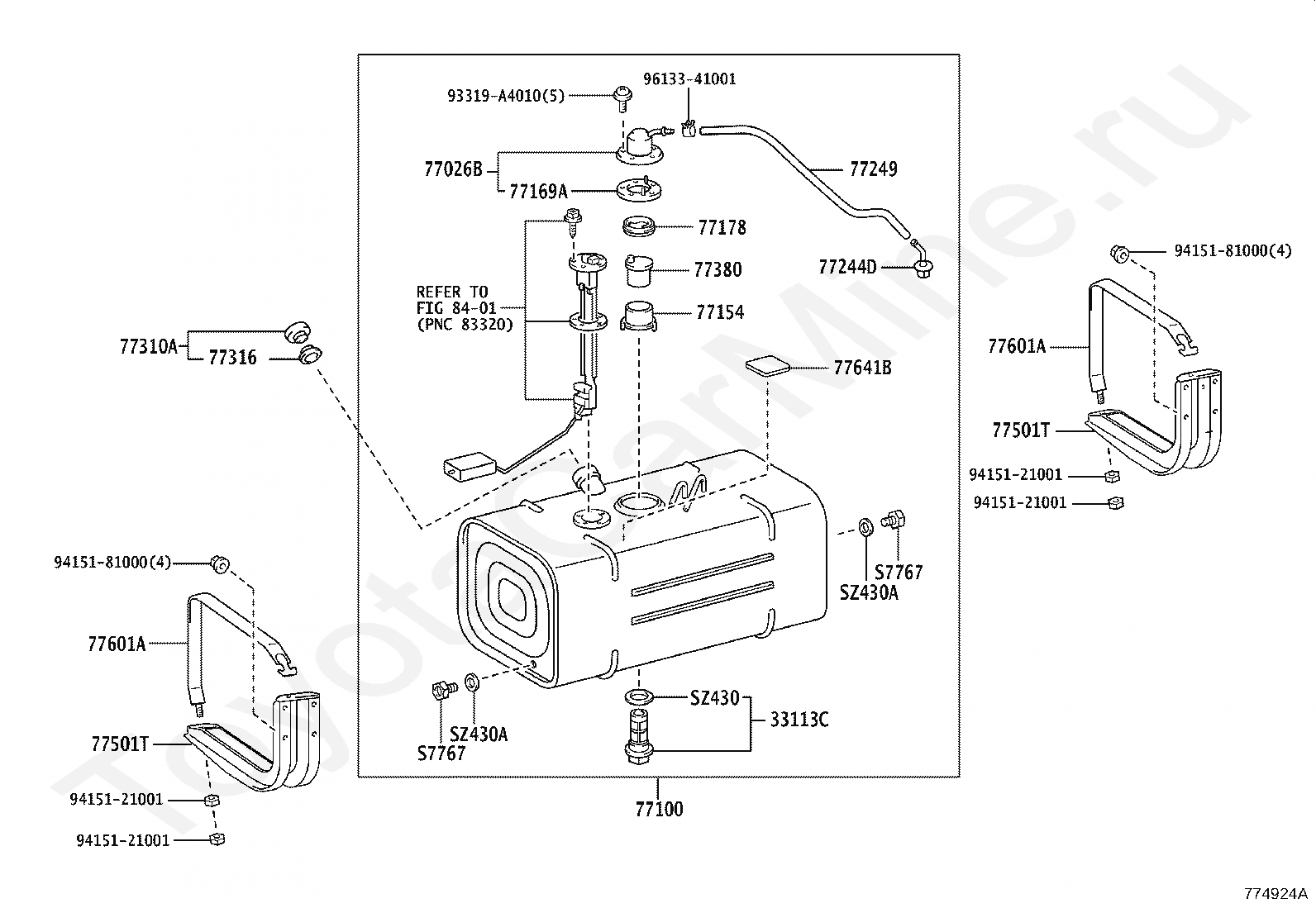

Код

Описание

33113C

PLUG, DRAIN

77026B

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77100

TANK ASSY, FUEL

77154

PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT

77169A

GASKET, FUEL SUCTION TUBE SET

77178

GASKET, FUEL TANK FILLER PIPE, LOWER

77244D

TUBE, FUEL EVAPORATION BREATHER, NO.1

77249

HOSE, FUEL EMISSION

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77380

VALVE ASSY, FUEL CUT OFF

77501T

BRACKET SUB-ASSY, FUEL TANK

77501T

BRACKET SUB-ASSY, FUEL TANK

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77641B

COVER, FUEL TANK

8401

переход к группе запчастей

93319A4010

Крепеж

9415121001

Крепеж

9415121001

Крепеж

9415121001

Крепеж

9415121001

Крепеж

9415181000

Крепеж

9415181000

Крепеж

9613341001

Крепеж

S7767

PLUG, FUEL STRAINER

S7767

PLUG, FUEL STRAINER

SZ430

WASHER, SOFT, NO.1

SZ430A

WASHER, SOFT, NO.2

SZ430A

WASHER, SOFT, NO.2

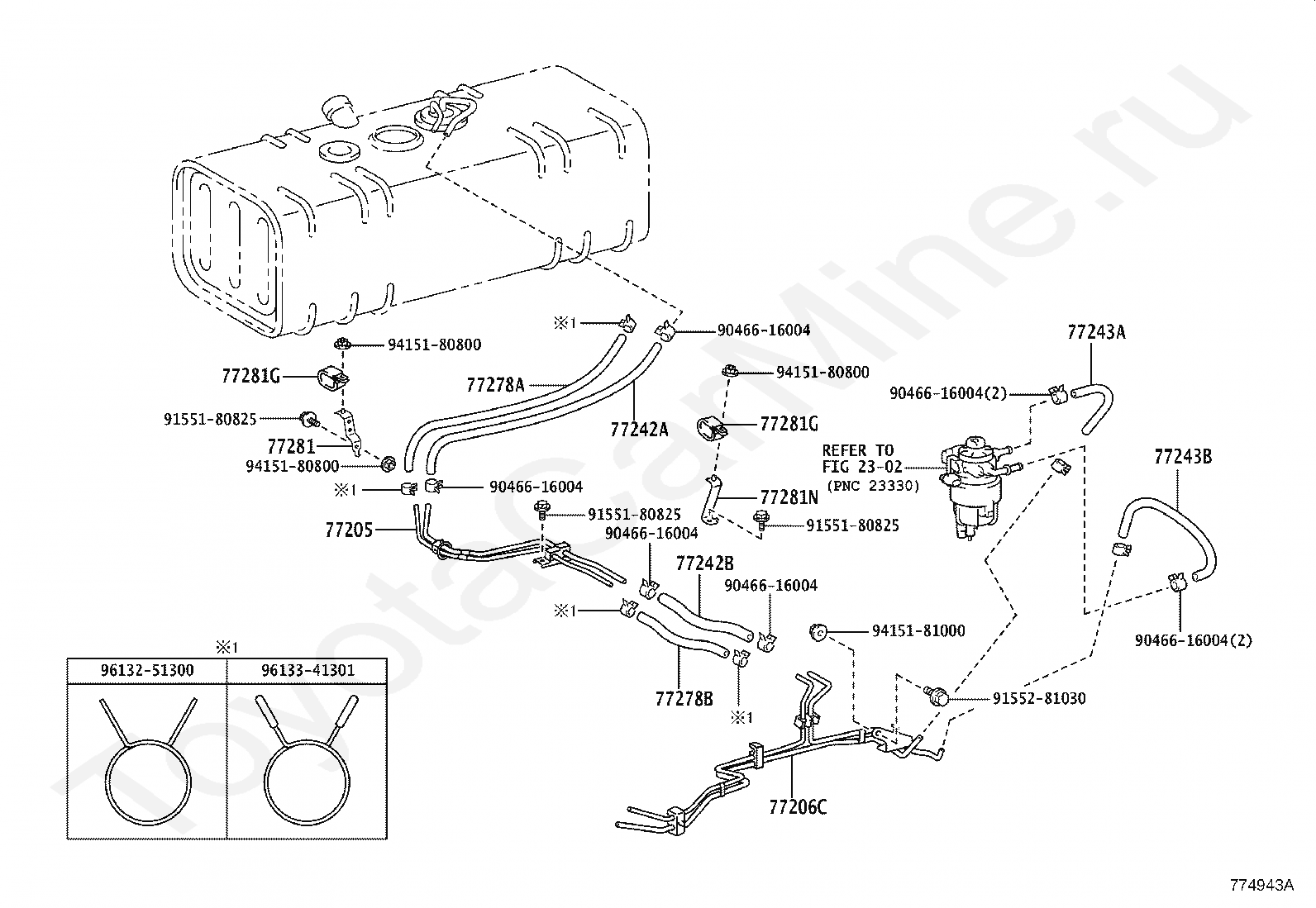

Код

Описание

2302

переход к группе запчастей

77205

TUBE SUB-ASSY, FUEL MAIN

77206C

TUBE SUB-ASSY, FUEL MAIN, NO.2

77242A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)

77242B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)

77243A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)

77243B

HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)

77278A

HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)

77278B

HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)

77281

BRACKET, FUEL MAIN TUBE, NO.1

77281G

CLAMP, FUEL HOSE

77281G

CLAMP, FUEL HOSE

77281N

CLAMP, FUEL HOSE

9046616004

Крепеж

9046616004

Крепеж

9046616004

Крепеж

9046616004

Крепеж

9046616004

Крепеж

9046616004

Крепеж

9155180825

Крепеж

9155180825

Крепеж

9155180825

Крепеж

9155281030

Крепеж

9415180800

Крепеж

9415180800

Крепеж

9415180800

Крепеж

9415181000

Крепеж

9613251300

Крепеж

9613341301

Крепеж
