Каталог

Япония

Модель

DELIBOY

VIN

Дата

1989/07

Двигатель

1,5 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

KXC10

КПП

механика МКПП, 5 скоростей, на руле

Опции

2-местный

Реле и кнопки TOYOTA DELIBOY

Код

Описание

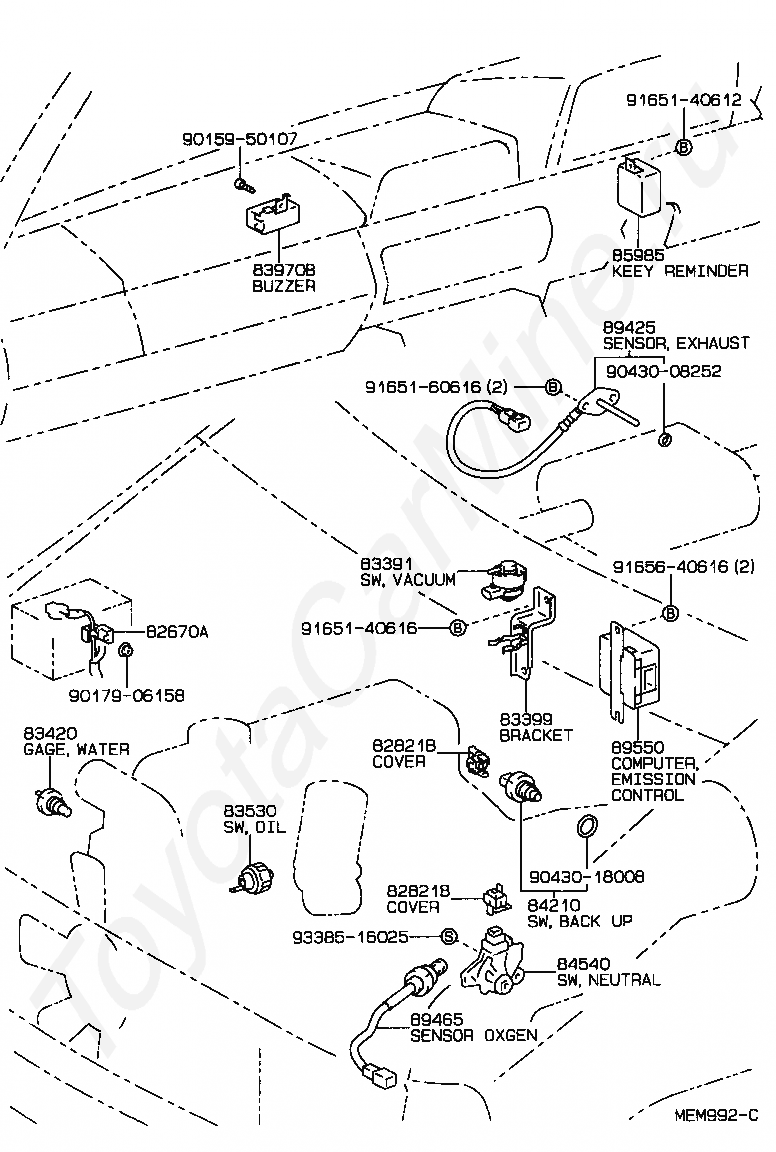

82670A

BLOCK ASSY, JUNCTION, NO.1

82821B

COVER, CONNECTOR

82821B

COVER, CONNECTOR

83391

SWITCH, VACUUM

83399

BRACKET, VACUUM SWITCH

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

83970B

BUZZER ASSY, REVERSE WARNING

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

85985

RELAY, KEY REMINDER

89425

SENSOR, EXHAUST GAS TEMPERATURE

89465

SENSOR, OXYGEN

89550

COMPUTER ASSY, EMISSION CONTROL

9015950107

Крепеж

9017906158

Крепеж

9043008252

Крепеж

9043018008

Крепеж

9165140612

Крепеж

9165140616

Крепеж

9165160616

Крепеж

9165640616

Крепеж

9338516025

Крепеж

Код

Описание

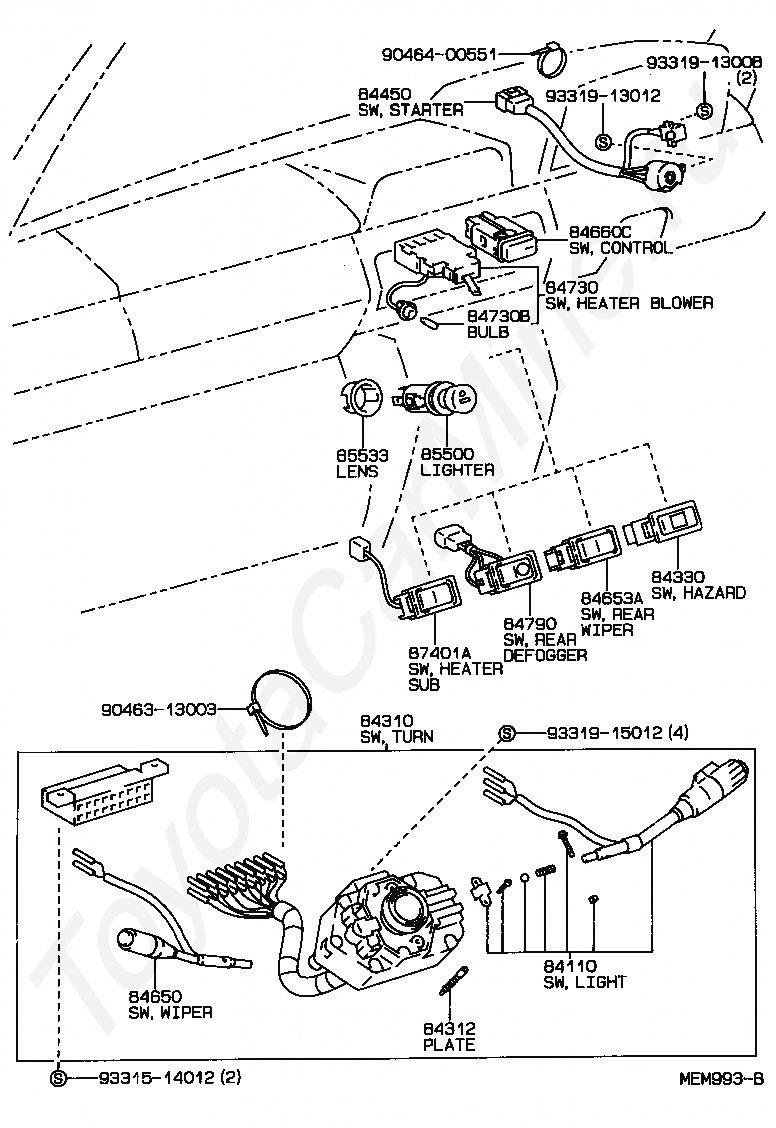

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

84653A

SWITCH, REAR WIPER

84660C

SWITCH, COOLER

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

85500

LIGHTER ASSY, CIGARETTE

85533

LENS, CIGARETTE LIGHTER INDICATOR

87401A

SWITCH SUB-ASSY, HEATER

9046313003

Крепеж

9046400551

Крепеж

9331514012

Крепеж

9331913008

Крепеж

9331913012

Крепеж

9331915012

Крепеж

Код

Описание

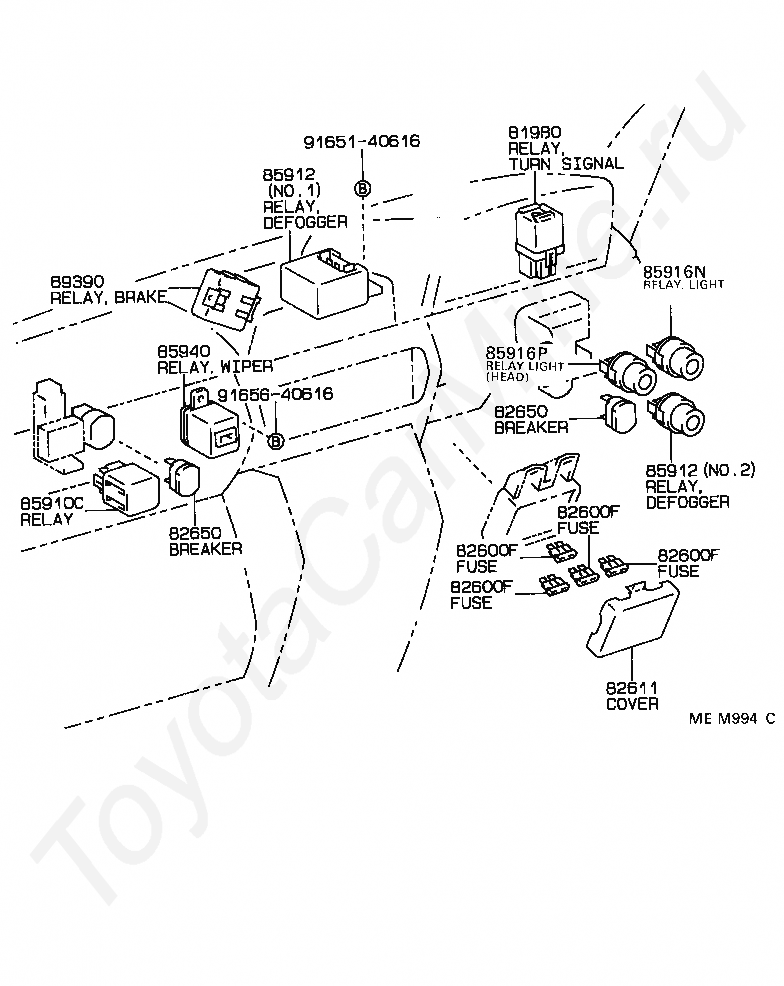

81980

FLASHER ASSY, TURN SIGNAL

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82611

COVER, FUSE BLOCK

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85912

RELAY, DEFOGGER

85912

RELAY, DEFOGGER

85916N

RELAY, TAIL LAMP

85916P

RELAY, HEADLAMP

85940

RELAY ASSY, WINDSHIELD WIPER

89390

RELAY, BRAKE WARNING

9165140616

Крепеж

9165640616

Крепеж

Код

Описание

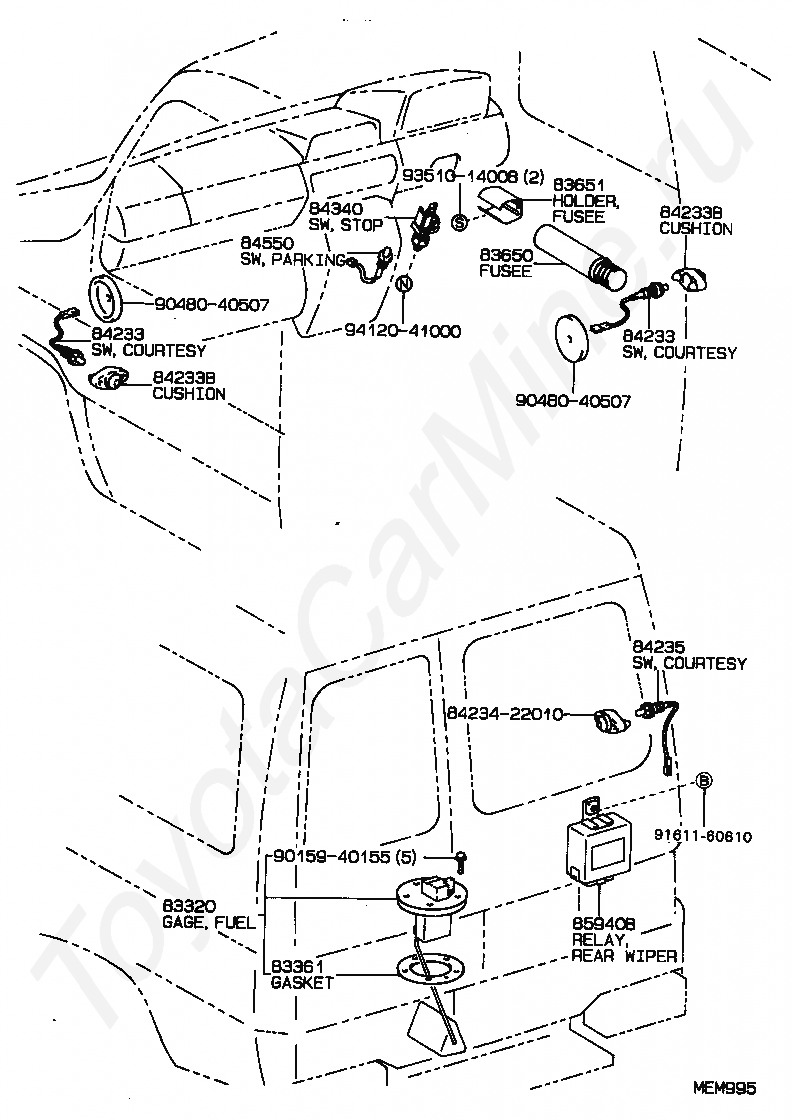

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

83650

FUSEE

83651

CLAMP, FUSEE

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233B

CUSHION, COURTESY SWITCH (FOR FRONT DOOR)

84233B

CUSHION, COURTESY SWITCH (FOR FRONT DOOR)

8423422010

Крепеж

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

85940B

RELAY ASSY, REAR WIPER

9015940155

Крепеж

9048040507

Крепеж

9048040507

Крепеж

9161160610

Крепеж

9351014008

Крепеж

9412041000

Крепеж
