Каталог

Япония

Модель

DELIBOY

VIN

Дата

1989/07

Двигатель

1,5 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

KXC10

КПП

механика МКПП, 5 скоростей, на руле

Опции

2-местный

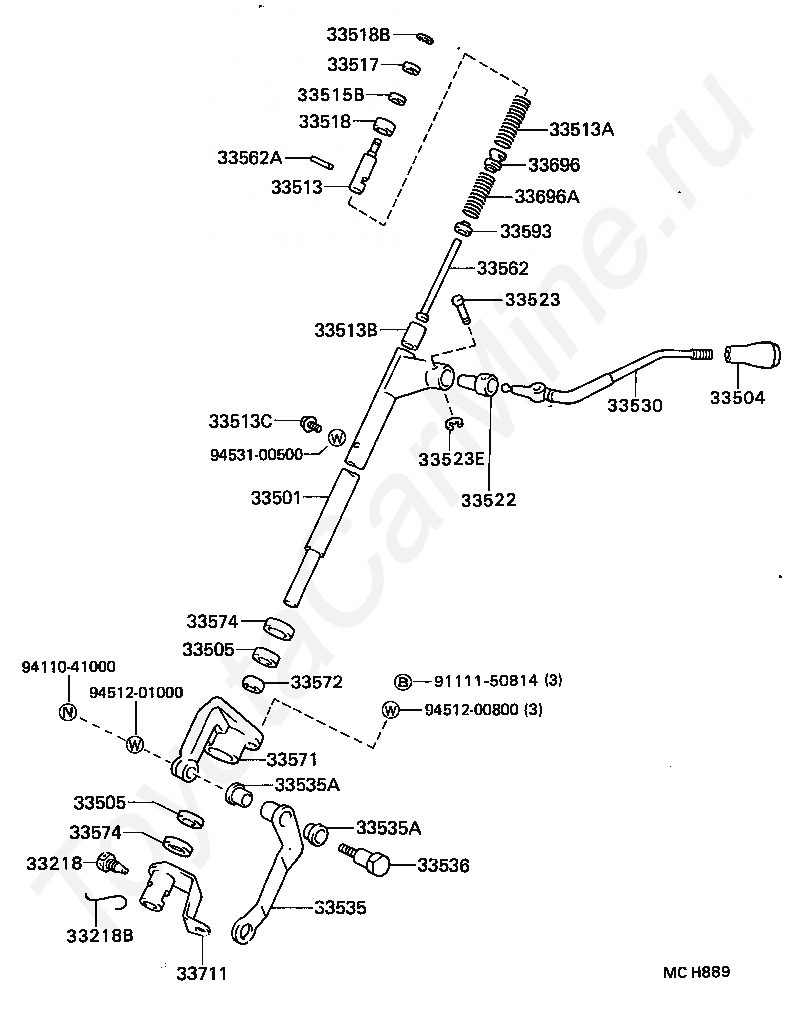

CONTROL SHAFT & CROSSSHAFT TOYOTA DELIBOY

Код

Описание

33218

BOLT, SHIFT LEVER LOCK

33218B

WIRE(FOR SHIFT LEVER LOCK BOLT)

33501

SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

33504

KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

33505

SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

33505

SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

33513

SHAFT, CONTROL SHAFT BRACKET, UPPER

33513A

SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

33513B

SPACER (FOR CONTROL SHAFT BRACKET UPPER SHAFT)

33513C

BOLT (FOR CONTROL SHAFT BRACKET UPPER SHAFT)

33515B

SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT)

33517

RETAINER, CONTROL SHAFT UPPER SPRING

33518

BUSH, UPPER CONTROL SHAFT PIECE

33518B

RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

33522

SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

33523

PIN, SHIFT LEVER (FOR COLUMN SHIFT)

33523E

RING, E (FOR SHIFT LEVER PIN)

33530

LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

33535

LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

33535A

BUSH (FOR CONTROL SELECT LEVER)

33535A

BUSH (FOR CONTROL SELECT LEVER)

33536

SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

33562

STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT

33562A

PIN (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)

33571

BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

33572

BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

33574

RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

33574

RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

33593

HOLDER, SPRING (FOR SELECT LEVER)

33696

SEAT, SELECT SPRING

33696A

SPRING, COMPRESSION

33711

LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

9111150814

Крепеж

9411041000

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9453100500

Крепеж

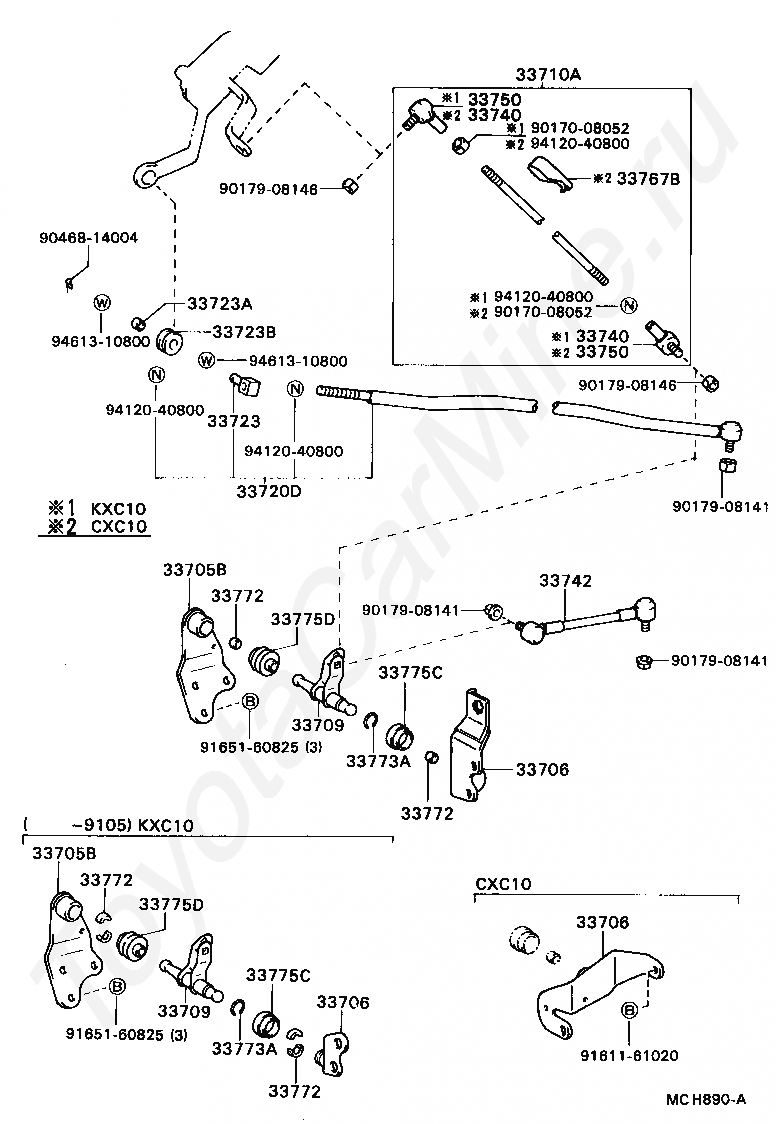

Код

Описание

33705B

SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT)

33705B

SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT)

33706

SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR COLUMN SHIFT)

33706

SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR COLUMN SHIFT)

33706

SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR COLUMN SHIFT)

33709

SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT)

33709

SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT)

33710A

ROD ASSY, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

33720D

ROD ASSY, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

33723

SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

33723A

BUSH (FOR COLUMN SHIFT CONTROL SHAFT)

33723B

GROMMET (FOR COLUMN SHIFT CONTROL SHAFT)

33740

END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)

33740

END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)

33742

ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)

33750

END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT)

33750

END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT)

33767B

INSULATOR, CONNECTING ROD HEAT (FOR COLUMN SHIFT)

33772

BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

33772

BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

33772

BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

33772

BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

33773A

RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)

33773A

RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)

33775C

COVER, CROSS SHAFT DUST, NO.1 (FOR COLUMN SHIFT)

33775C

COVER, CROSS SHAFT DUST, NO.1 (FOR COLUMN SHIFT)

33775D

COVER, CROSS SHAFT DUST, NO.2 (FOR COLUMN SHIFT)

33775D

COVER, CROSS SHAFT DUST, NO.2 (FOR COLUMN SHIFT)

9017008052

Крепеж

9017008052

Крепеж

9017908141

Крепеж

9017908141

Крепеж

9017908141

Крепеж

9017908146

Крепеж

9017908146

Крепеж

9046814004

Крепеж

9161161020

Крепеж

9165160825

Крепеж

9165160825

Крепеж

9412040800

Крепеж

9412040800

Крепеж

9412040800

Крепеж

9412040800

Крепеж

9461310800

Крепеж

9461310800

Крепеж
