Каталог

Япония

Модель

CROWN/HYBRID

VIN

Дата

2013/01

Двигатель

2,5 литра, 16 клапанов DOHC, EFI

Кузов

седан

Класс

ROYAL SALOON TYPE

Фрейм

AWS210

КПП

вариатор

Опции

4 двери двигатель с прямым впрыском топлива 568W

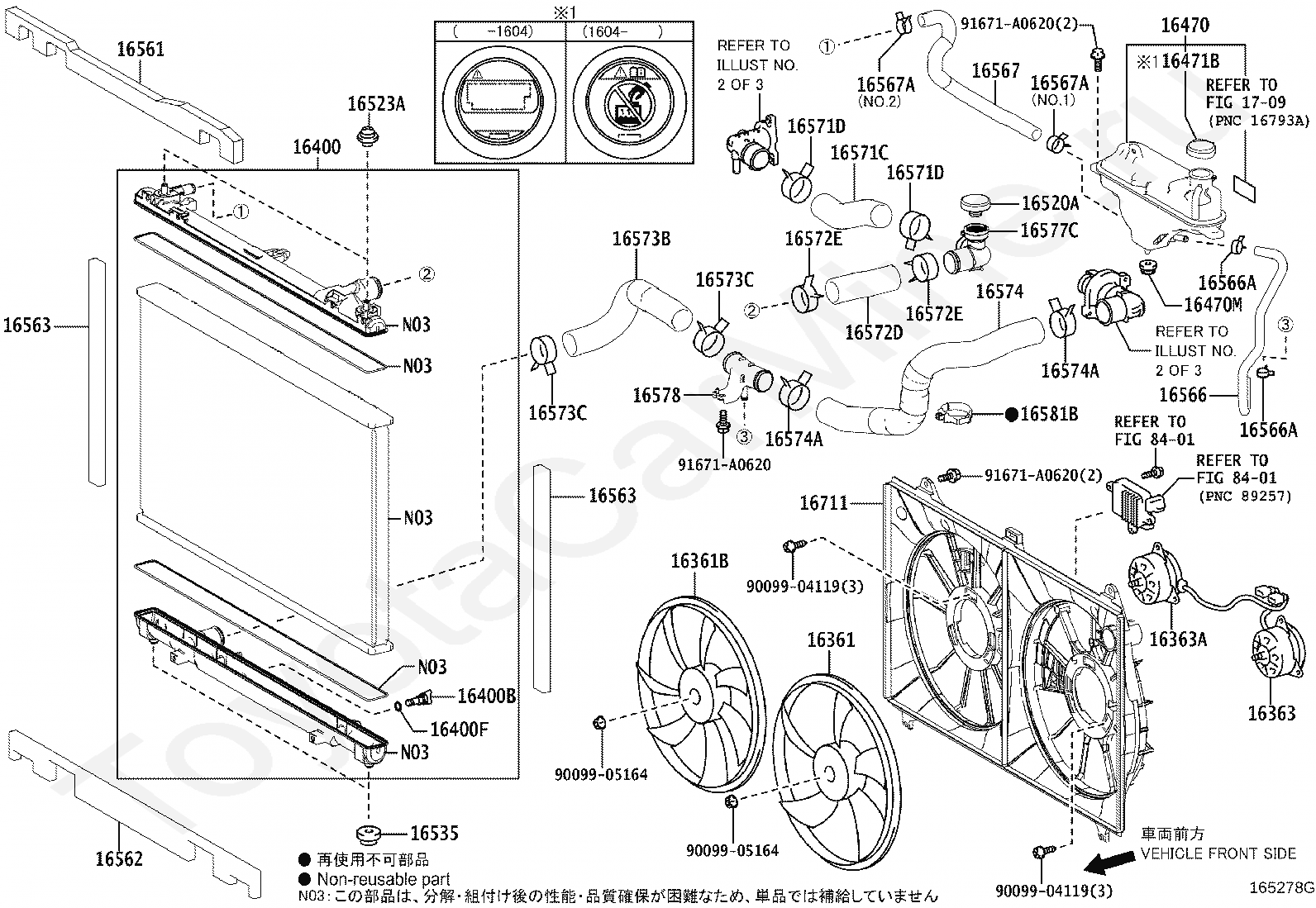

Радиатор и шланги TOYOTA CROWN/HYBRID

Код

Описание

16361

FAN

16361B

FAN, NO.2

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16470

TANK ASSY, RADIATOR RESERVE

16470M

GROMMET

16471B

CAP, RESERVE TANK

16520A

CAP SUB-ASSY, WATER FILLER

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16562

SEAL, RADIATOR TO SUPPORT, NO.2

16563

SEAL, RADIATOR TO SUPPORT, NO.3

16563

SEAL, RADIATOR TO SUPPORT, NO.3

16566

HOSE, RESERVE TANK OUTLET

16566A

CLIP(FOR RESERVE TANK OUTLET)

16566A

CLIP(FOR RESERVE TANK OUTLET)

16567

HOSE(FOR RADIATOR RESERVE TANK)

16567A

CLIP(FOR RADIATOR RESERVE TANK HOSE)

16567A

CLIP(FOR RADIATOR RESERVE TANK HOSE)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16573B

HOSE, RADIATOR, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16574

HOSE, RADIATOR, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16577C

PIPE, RADIATOR

16578

PIPE, RADIATOR, NO.2

16581B

CLAMP, HOSE(FOR RADIATOR HOSE)

16711

SHROUD, FAN

1709

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9009904119

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9009905164

Крепеж

91671A0620

Крепеж

91671A0620

Крепеж

91671A0620

Крепеж

Код

Описание

16361

FAN

16361B

FAN, NO.2

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16470

TANK ASSY, RADIATOR RESERVE

16470M

GROMMET

16471B

CAP, RESERVE TANK

16520A

CAP SUB-ASSY, WATER FILLER

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16562

SEAL, RADIATOR TO SUPPORT, NO.2

16563

SEAL, RADIATOR TO SUPPORT, NO.3

16563

SEAL, RADIATOR TO SUPPORT, NO.3

16566

HOSE, RESERVE TANK OUTLET

16566A

CLIP(FOR RESERVE TANK OUTLET)

16566A

CLIP(FOR RESERVE TANK OUTLET)

16567

HOSE(FOR RADIATOR RESERVE TANK)

16567A

CLIP(FOR RADIATOR RESERVE TANK HOSE)

16567A

CLIP(FOR RADIATOR RESERVE TANK HOSE)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16573B

HOSE, RADIATOR, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16574

HOSE, RADIATOR, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16577C

PIPE, RADIATOR

16578

PIPE, RADIATOR, NO.2

16581B

CLAMP, HOSE(FOR RADIATOR HOSE)

16711

SHROUD, FAN

1709

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9009904119

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9009905164

Крепеж

91671A0620

Крепеж

Код

Описание

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16258C

GASKET(FOR WATER BY-PASS PIPE)

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16268

PIPE, WATER BY-PASS, NO.1

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16288

PIPE, WATER BY-PASS, NO.4

16289

PIPE, WATER BY-PASS, NO.5

16294

HOSE, WATER BY-PASS, NO.11

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16304

OUTLET SUB-ASSY, WATER

16304

OUTLET SUB-ASSY, WATER

16323

HOUSING, WATER INLET

16325A

GASKET, WATER INLET HOUSING

16347D

GASKET, WATER BY-PASS

1709

переход к группе запчастей

1709

переход к группе запчастей

1709

переход к группе запчастей

8404

переход к группе запчастей

9012606029

Крепеж

9012606029

Крепеж

9012606029

Крепеж

9012606029

Крепеж

9012606029

Крепеж

9012610043

Крепеж

9155180620

Крепеж

91552F1055

Крепеж

9167180614

Крепеж

9167180614

Крепеж

9167180614

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415181041

Крепеж

9613641501

Крепеж

9613641501

Крепеж

9676235040

Крепеж

9676235063

Крепеж

Код

Описание

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267D

CLIP(FOR WATER BY-PASS HOSE NO.4)

16267D

CLIP(FOR WATER BY-PASS HOSE NO.4)

16278

PIPE, WATER BY-PASS, NO.2

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16298

HOSE, WATER BY-PASS, NO.12

16299A

HOSE, WATER BY-PASS, NO.13

16299B

CLIP(FOR WATER BY-PASS HOSE NO.13)

16299B

CLIP(FOR WATER BY-PASS HOSE NO.13)

2211

переход к группе запчастей

2211

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

9167180614

Крепеж

9167180820

Крепеж

Радиатор и шланги TOYOTA CROWN/HYBRID
