Каталог

Япония

Модель

CROWN/HYBRID

VIN

Дата

2020/11

Двигатель

3,5 литра, 24 клапана, DOHC

Кузов

седан

Класс

RS ADVANCE TYPE

Фрейм

GWS224

КПП

вариатор

Опции

4 двери HIGH EFFICIENCY TWIN CAM 855W

Кондиционер: охлаждающая система TOYOTA CROWN/HYBRID







Код

Описание

82210K

HARNESS ASSY, AIR CONDITIONER

87050

RADIATOR ASSY, AIR CONDITIONER

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87107A

UNIT SUB-ASSY, HEATER RADIATOR

87114B

COVER, HEATER

87121K

BRACKET, HEATER

87124B

CLAMP, HEATER

87128

GROMMET, HEATER

87130D

BLOWER ASSY

87139C

FILTER, CLEAN AIR

8719387101

Крепеж

87710G

QUICK HEATER ASSY

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88501F

O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

88501G

O-RING, COOLER EVAPORATOR NO.1(SUCTION)

88501H

O-RING, COOLER EVAPORATOR NO.2(DISCHARGE)

88501J

O-RING, COOLER EVAPORATOR NO.2(SUCTION)

88515

VALVE, COOLER EXPANSION

88536

BRACKET, COOLING UNIT, NO.1

88536A

BRACKET, COOLING UNIT, NO.2

88536B

BRACKET, COOLING UNIT, NO.3

88539

HOSE, COOLER UNIT DRAIN, NO.1

88539C

HOSE, COOLER UNIT DRAIN, NO.2

88539G

GROMMET (FOR COOLER UNIT DRAIN HOSE)

88539G

GROMMET (FOR COOLER UNIT DRAIN HOSE)

88539J

HOSE, DRAIN COOLER

88539K

HOSE, DRAIN COOLER

88548B

CASE, AIR FILTER

88578B

PACKING, COOLING UNIT, NO.1

88578C

PACKING, COOLING UNIT, NO.2

88578V

PACKING, COOLING UNIT, NO.3

88578W

PACKING, COOLING UNIT, NO.4

88625

THERMISTOR, COOLER, NO.1

88650N

AMPLIFIER ASSY, AIR CONDITIONER

88710A

TUBE ASSY, AIR CONDITIONER

88891S

COVER, COOLER, NO.1

88892N

COVER, COOLER, NO.2

88897K

GROMMET, (FOR COOLER PIPE)

88897M

GROMMET (FOR HEATER PIPE)

8889944050

Крепеж

88899L

PARTS, COOLING UNIT

88899M

PLATE, COVER(FOR AIR FILTER)

9009900318

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9011906952

Крепеж

9011906952

Крепеж

9015960383

Крепеж

9015960431

Крепеж

9015960431

Крепеж

9015960431

Крепеж

9017906282

Крепеж

Код

Описание

82210K

HARNESS ASSY, AIR CONDITIONER

87050

RADIATOR ASSY, AIR CONDITIONER

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87107A

UNIT SUB-ASSY, HEATER RADIATOR

87114B

COVER, HEATER

87121K

BRACKET, HEATER

87124B

CLAMP, HEATER

87128

GROMMET, HEATER

87130D

BLOWER ASSY

87139C

FILTER, CLEAN AIR

8719387101

Крепеж

87710G

QUICK HEATER ASSY

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88501F

O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

88501G

O-RING, COOLER EVAPORATOR NO.1(SUCTION)

88501H

O-RING, COOLER EVAPORATOR NO.2(DISCHARGE)

88501J

O-RING, COOLER EVAPORATOR NO.2(SUCTION)

88515

VALVE, COOLER EXPANSION

88536

BRACKET, COOLING UNIT, NO.1

88536A

BRACKET, COOLING UNIT, NO.2

88536B

BRACKET, COOLING UNIT, NO.3

88539

HOSE, COOLER UNIT DRAIN, NO.1

88539C

HOSE, COOLER UNIT DRAIN, NO.2

88539G

GROMMET (FOR COOLER UNIT DRAIN HOSE)

88539G

GROMMET (FOR COOLER UNIT DRAIN HOSE)

88539J

HOSE, DRAIN COOLER

88539K

HOSE, DRAIN COOLER

88548B

CASE, AIR FILTER

88578B

PACKING, COOLING UNIT, NO.1

88578C

PACKING, COOLING UNIT, NO.2

88578V

PACKING, COOLING UNIT, NO.3

88578W

PACKING, COOLING UNIT, NO.4

88625

THERMISTOR, COOLER, NO.1

88650N

AMPLIFIER ASSY, AIR CONDITIONER

88710A

TUBE ASSY, AIR CONDITIONER

88891S

COVER, COOLER, NO.1

88892N

COVER, COOLER, NO.2

88897K

GROMMET, (FOR COOLER PIPE)

88897M

GROMMET (FOR HEATER PIPE)

8889944050

Крепеж

88899L

PARTS, COOLING UNIT

88899M

PLATE, COVER(FOR AIR FILTER)

9009900318

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9011906952

Крепеж

9011906952

Крепеж

9015960383

Крепеж

9015960431

Крепеж

9015960431

Крепеж

9015960431

Крепеж

9017906282

Крепеж

Код

Описание

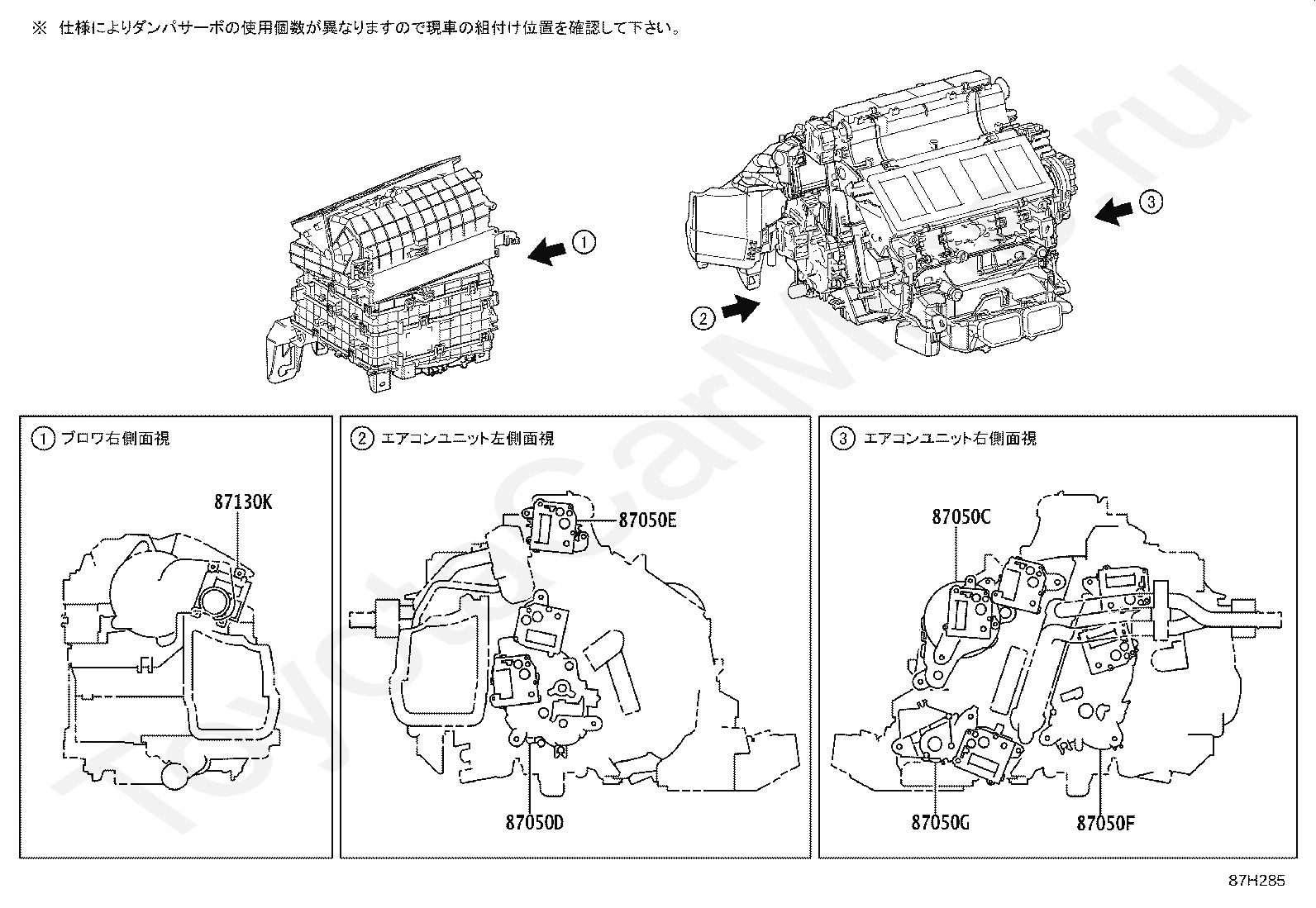

87050C

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

87050D

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

87050E

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

87050F

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4

87050G

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5

87130K

DAMPER SERVO SUB-ASSY, BLOWER, NO.1

Код

Описание

87050C

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

87050D

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

87050E

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

87050F

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4

87050G

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5

87130K

DAMPER SERVO SUB-ASSY, BLOWER, NO.1

Код

Описание

82210L

HARNESS ASSY, AIR CONDITIONER, NO.2

87030A

UNIT ASSY, COOLING, REAR

87103D

MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)

88501R

EVAPORATOR SUB-ASSY (REAR)

88515B

VALVE, REAR COOLING UNIT EXPANSION

88579D

PACKING, COOLING UNIT, NO.6

88688Z

BRACKET

88710B

TUBE ASSY, AIR CONDITIONER

88710H

TUBE & ACCESSORY ASSY, AIR CONDITIONER

88710L

TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

9009900968

Крепеж

9009904492

Крепеж

9009904542

Крепеж

9009914119

Крепеж

9009914120

Крепеж

9009914121

Крепеж

9017906274

Крепеж

9155180625

Крепеж

9167380820

Крепеж

9415180800

Крепеж

Код

Описание

82210L

HARNESS ASSY, AIR CONDITIONER, NO.2

87030A

UNIT ASSY, COOLING, REAR

87103D

MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)

88501R

EVAPORATOR SUB-ASSY (REAR)

88515B

VALVE, REAR COOLING UNIT EXPANSION

88579D

PACKING, COOLING UNIT, NO.6

88688Z

BRACKET

88710B

TUBE ASSY, AIR CONDITIONER

88710H

TUBE & ACCESSORY ASSY, AIR CONDITIONER

88710L

TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

9009900968

Крепеж

9009904492

Крепеж

9009904542

Крепеж

9009914119

Крепеж

9009914120

Крепеж

9009914121

Крепеж

9017906274

Крепеж

9155180625

Крепеж

9167380820

Крепеж

9415180800

Крепеж
