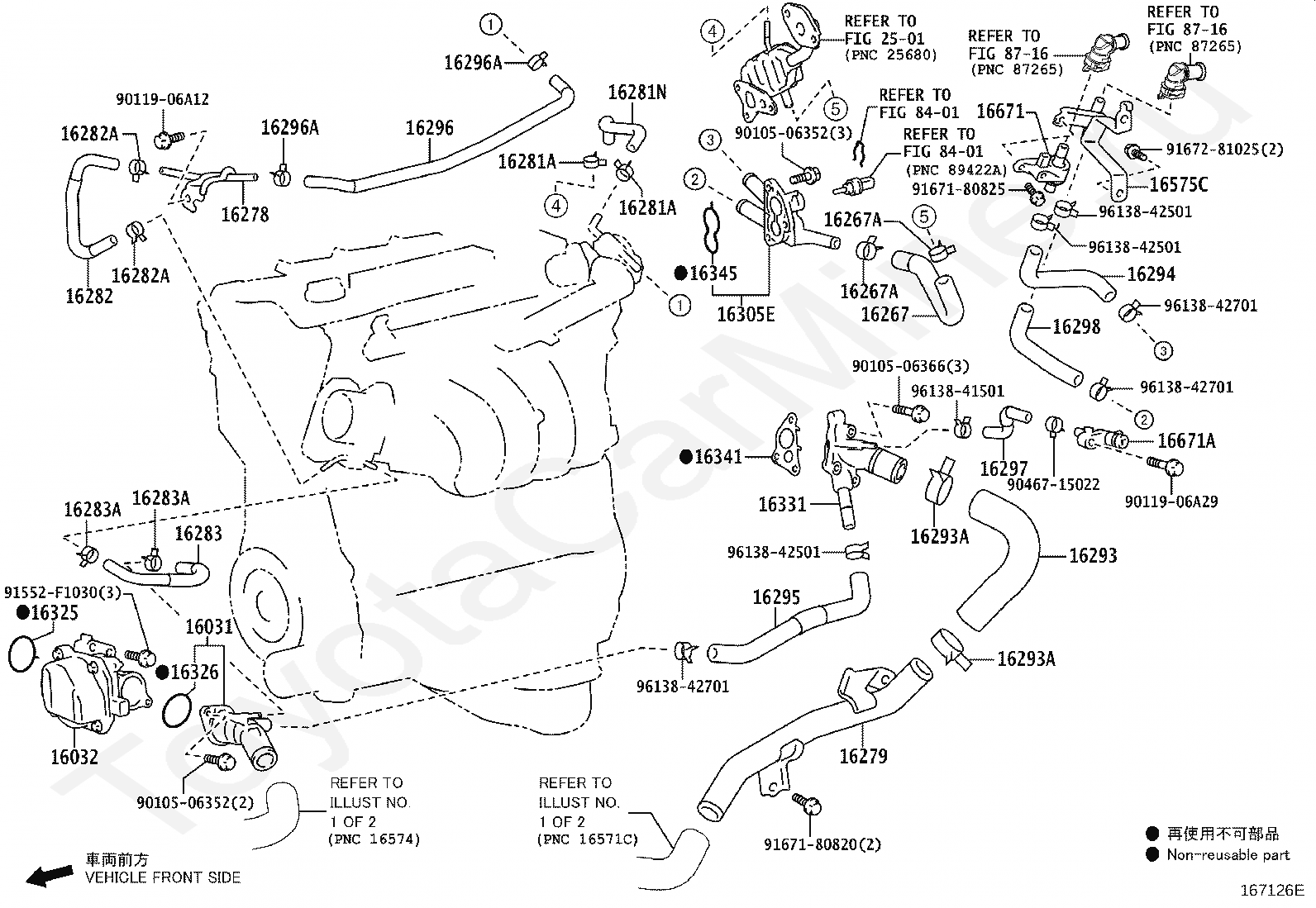

16031
WATER INLET SUB-ASSY, W/THERMOSTAT
16032
HOUSING SUB-ASSY, WATER INLET W/WATER PUMP
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16278
PIPE, WATER BY-PASS, NO.2
16279
PIPE, WATER BY-PASS, NO.3
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16281N
HOSE, WATER BY-PASS, NO.4
16282
HOSE, WATER BY-PASS, NO.5
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16283
HOSE, WATER BY-PASS, NO.6
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16293
HOSE, WATER BY-PASS, NO.10
16293A
CLIP(FOR WATER BY-PASS HOSE NO.10)
16293A
CLIP(FOR WATER BY-PASS HOSE NO.10)
16294
HOSE, WATER BY-PASS, NO.11
16295
HOSE, WATER BY-PASS, NO.7
16296
HOSE, WATER BY-PASS, NO.8
16296A
CLIP(FOR WATER BY-PASS HOSE NO.8)
16296A
CLIP(FOR WATER BY-PASS HOSE NO.8)
16297
HOSE, WATER BY-PASS, NO.9
16298
HOSE, WATER BY-PASS, NO.12
16305E
OUTLET SUB-ASSY, WATER BY-PASS
16325
GASKET, WATER INLET HOUSING, NO.1
16326
GASKET, WATER INLET HOUSING, NO.2
16341
GASKET, WATER OUTLET
16345
GASKET, WATER OUTLET PIPE
16575C
BRACKET, WATER HOSE CLAMP, NO.1
16671A
VALVE, WATER, NO.2
