Япония

Модель

CROWN/HYBRID

VIN

Дата

2020/11

Двигатель

2 литра, 16 клапанов, DOHC, EFI, турбо

Кузов

седан

Класс

задний спойлер

Фрейм

ARS220

КПП

автомат АКПП, 8 скоростей

Опции

4 двери WITH TURBO (HARGER) 855W

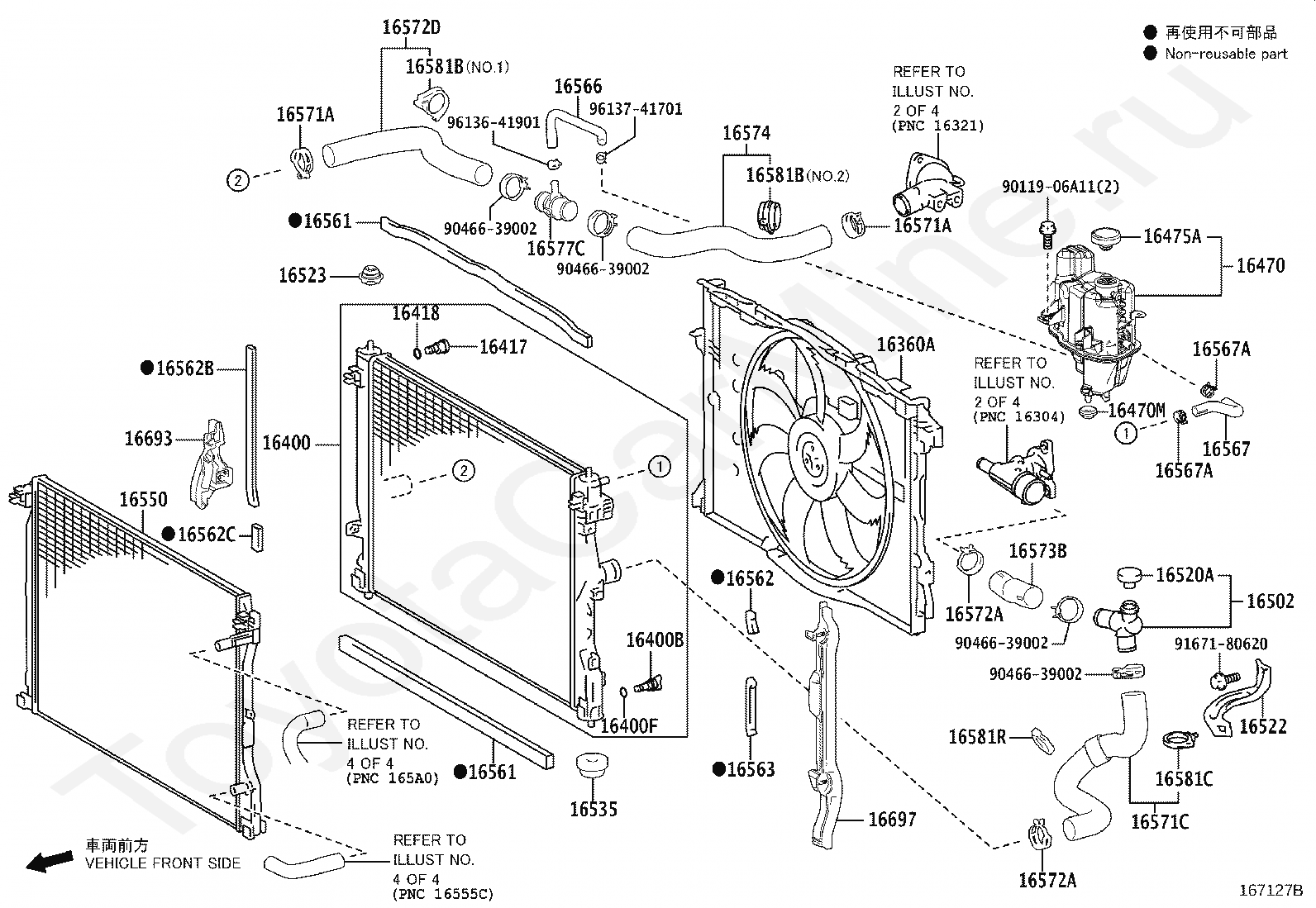

Радиатор и шланги TOYOTA CROWN/HYBRID







Код

Описание

16360A

FAN ASSY, W/MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16417

COCK

16418

PACKING

16470

TANK ASSY, RADIATOR RESERVE

16470M

GROMMET

16475A

CAP, RESERVE TANK

16502

FILLER SUB-ASSY, WATER

16520A

CAP SUB-ASSY, WATER FILLER

16522

BRACKET, WATER FILLER

16523

CUSHION, SUB-RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16550

RADIATOR ASSY, INTERCOOLER COOLING

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16562

SEAL, RADIATOR TO SUPPORT, NO.2

16562B

SEAL, RADIATOR TO SUPPORT, NO.4

16562C

SEAL, RADIATOR TO SUPPORT, NO.5

16563

SEAL, RADIATOR TO SUPPORT, NO.3

16566

HOSE, RESERVE TANK OUTLET

16567

HOSE(FOR RADIATOR RESERVE TANK)

16567A

CLIP(FOR RADIATOR RESERVE TANK HOSE)

16567A

CLIP(FOR RADIATOR RESERVE TANK HOSE)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572D

HOSE, RADIATOR, NO.2

16573B

HOSE, RADIATOR, NO.3

16574

HOSE, RADIATOR, NO.4

16577C

PIPE, RADIATOR

16581B

CLAMP, HOSE(FOR RADIATOR HOSE)

16581B

CLAMP, HOSE(FOR RADIATOR HOSE)

16581C

CLAMP, HOSE(FOR RADIATOR HOSE NO.2)

16581R

CLAMP, HOSE(FOR RADIATOR HOSE NO.3)

16693

PLATE, RADIATOR SIDE AIR GUIDE, RR RH

16697

PLATE, RADIATOR SIDE AIR GUIDE, RR LH

9011906A11

Крепеж

9046639002

Крепеж

9046639002

Крепеж

9046639002

Крепеж

9046639002

Крепеж

9167180620

Крепеж

9613641901

Крепеж

9613741701

Крепеж

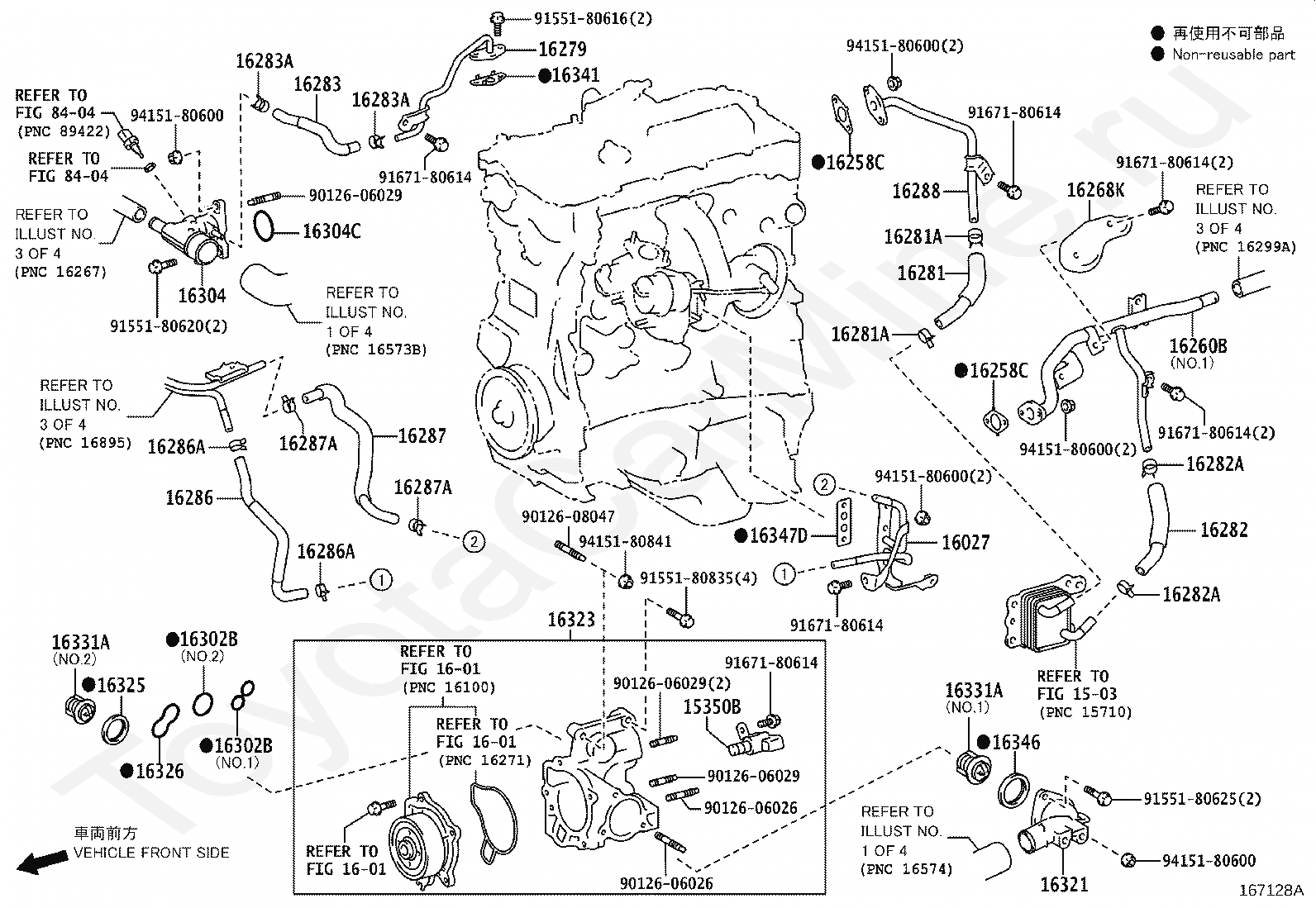

Код

Описание

1503

переход к группе запчастей

15350B

VALVE ASSY, OIL PRESSURE SWITCHING

1601

переход к группе запчастей

1601

переход к группе запчастей

1601

переход к группе запчастей

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16258C

GASKET(FOR WATER BY-PASS PIPE)

16258C

GASKET(FOR WATER BY-PASS PIPE)

16260B

PIPE ASSY, WATER BY-PASS

16268K

INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16286

HOSE, TURBO WATER, NO.3

16286A

CLIP(FOR TURBO WATER HOSE NO.3)

16286A

CLIP(FOR TURBO WATER HOSE NO.3)

16287

HOSE, TURBO WATER, NO.4

16287A

CLIP(FOR TURBO WATER HOSE NO.4)

16287A

CLIP(FOR TURBO WATER HOSE NO.4)

16288

PIPE, WATER BY-PASS, NO.4

16302B

GASKET(FOR WATER INLET HOUSING)

16302B

GASKET(FOR WATER INLET HOUSING)

16304

OUTLET SUB-ASSY, WATER

16304C

RING, O(FOR WATER OUTLET)

16321

INLET, WATER

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16346

GASKET, THERMOSTAT

16347D

GASKET, WATER BY-PASS

8404

переход к группе запчастей

8404

переход к группе запчастей

9012606026

Крепеж

9012606026

Крепеж

9012606029

Крепеж

9012606029

Крепеж

9012606029

Крепеж

9012608047

Крепеж

9155180616

Крепеж

9155180620

Крепеж

9155180625

Крепеж

9155180835

Крепеж

9167180614

Крепеж

9167180614

Крепеж

9167180614

Крепеж

9167180614

Крепеж

9167180614

Крепеж

9167180614

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180841

Крепеж

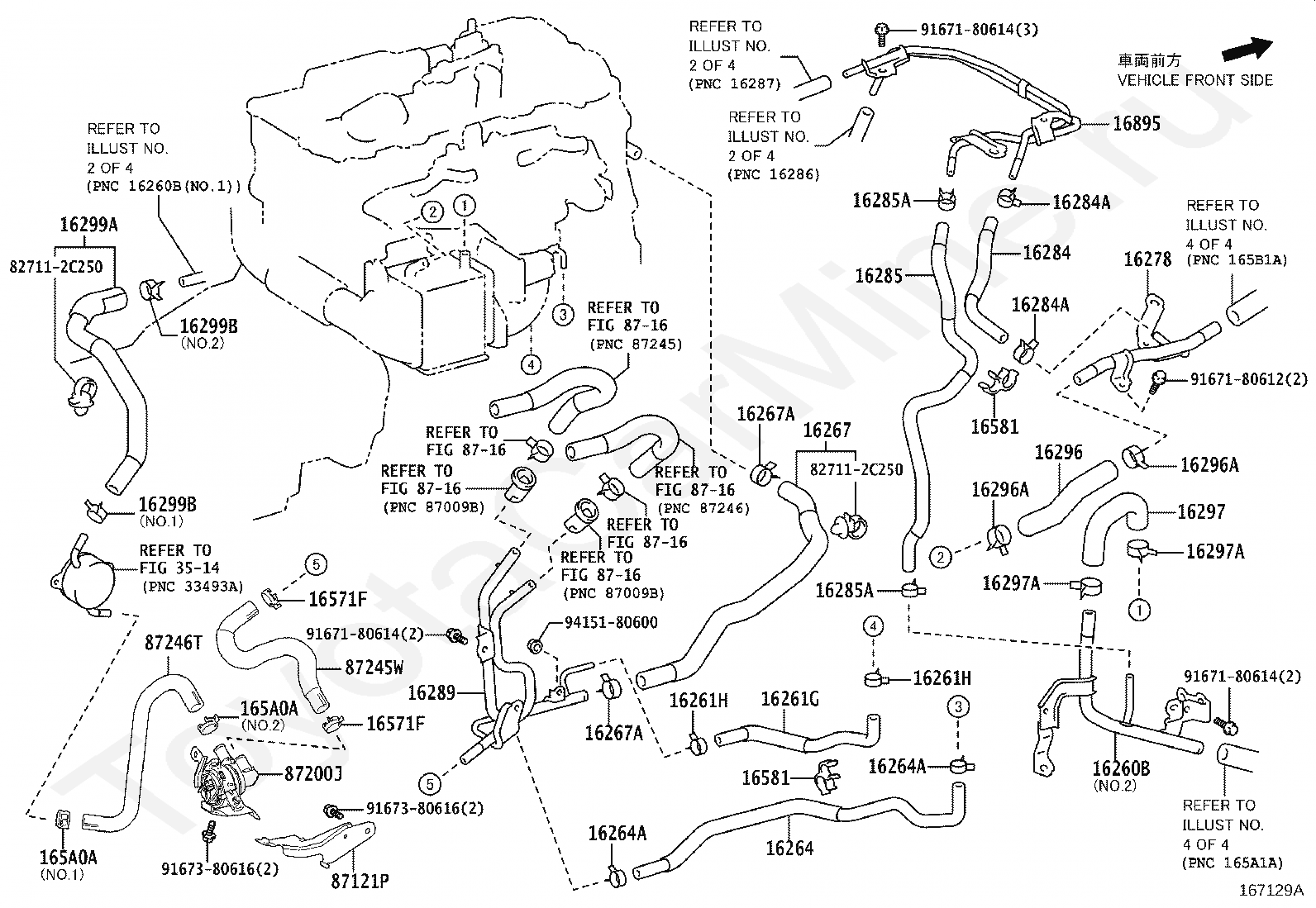

Код

Описание

16260B

PIPE ASSY, WATER BY-PASS

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16278

PIPE, WATER BY-PASS, NO.2

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16285

HOSE, TURBO WATER, NO.2

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16289

PIPE, WATER BY-PASS, NO.5

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16299A

HOSE, WATER BY-PASS, NO.13

16299B

CLIP(FOR WATER BY-PASS HOSE NO.13)

16299B

CLIP(FOR WATER BY-PASS HOSE NO.13)

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16571F

CLAMP OR CLIP(FOR WATER HOSE)

16581

CLAMP, HOSE(FOR WATER HOSE)

16581

CLAMP, HOSE(FOR WATER HOSE)

165A0A

CLIP, HOSE

165A0A

CLIP, HOSE

16895

PIPE, TURBO WATER, NO.1

3514

переход к группе запчастей

827112C250

Крепеж

827112C250

Крепеж

87121P

BRACKET, WATER PUMP

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

87200J

ACCESSORY ASSY, HEATER

87245W

HOSE, WATER

87246T

HOSE, WATER, NO.2

9167180612

Крепеж

9167180614

Крепеж

9167180614

Крепеж

9167180614

Крепеж

9167380616

Крепеж

9167380616

Крепеж

9415180600

Крепеж

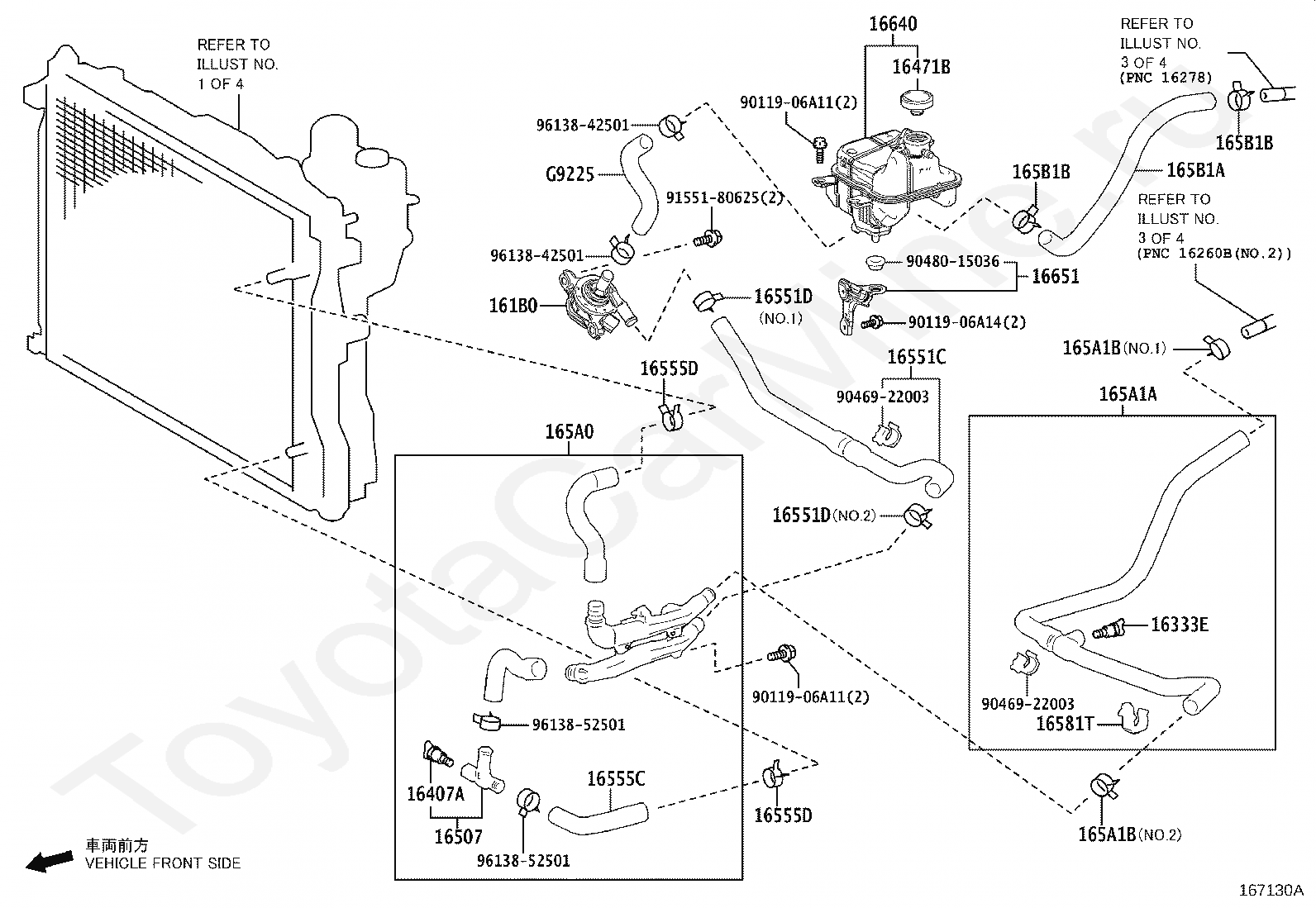

Код

Описание

161B0

PUMP ASSY, ELECTRIC WATER

16333E

PLUG, DRAIN COCK

16407A

COCK SUB-ASSY, RADIATOR DRAIN

16471B

CAP, RESERVE TANK

16507

PIPE SUB-ASSY, RADIATOR

16551C

HOSE, INTERCOOLER COOLING WATER, NO.1

16551D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)

16551D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)

16555C

HOSE, INTERCOOLER COOLING WATER, NO.5

16555D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)

16555D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)

16581T

CLAMP(FOR INTERCOOLER COOLING WATER HOSE)

165A0

HOSE ASSY, INTERCOOLER COOLING WATER, NO.1

165A1A

HOSE, INTERCOOLER COOLING WATER INLET

165A1B

CLIP(FOR INTERCOOLER COOLING WATER INLET HOSE)

165A1B

CLIP(FOR INTERCOOLER COOLING WATER INLET HOSE)

165B1A

HOSE, INTERCOOLER COOLING WATER OUTLET

165B1B

CLIP(FOR INTERCOOLER COOLING WATER OUTLET HOSE)

165B1B

CLIP(FOR INTERCOOLER COOLING WATER OUTLET HOSE)

16640

TANK ASSY, INTERCOOLER RESERVE

16651

BRACKET, INTERCOOLER RESERVE TANK

9011906A11

Крепеж

9011906A11

Крепеж

9011906A14

Крепеж

9046922003

Крепеж

9046922003

Крепеж

9048015036

Крепеж

9155180625

Крепеж

9613842501

Крепеж

9613842501

Крепеж

9613852501

Крепеж

9613852501

Крепеж

G9225

HOSE, INVERTER COOLING, NO.1
