Каталог

Япония

Модель

CROWN COMFORT/SED

VIN

Дата

1995/12

Двигатель

2 литра, сжиженный газ

Класс

STANDARD TYPE

Фрейм

YXS10

КПП

автомат АКПП, 4 ступени, на руле

Опции

CROWN

Спидометр TOYOTA CROWN COMFORT/SED

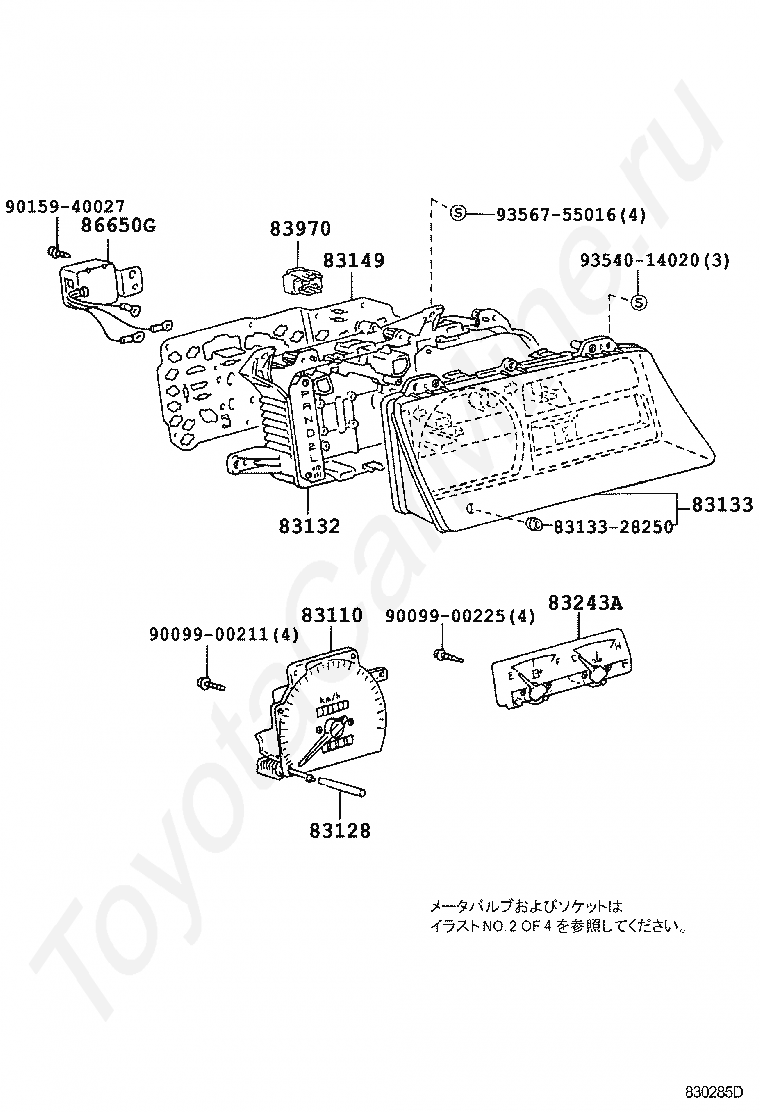

Код

Описание

83110

SPEEDOMETER ASSY

83128

KNOB, TRIP COUNTER

83132

CASE, COMBINATION METER

83133

PLATE, COMBINATION METER, NO.1

8313328250

Крепеж

83149

PLATE, METER CIRCUIT

83243A

GAUGE SUB-ASSY, FUEL RECEIVER

83970

BUZZER ASSY, REVERSE WARNING

86650G

BUZZER ASSY

9009900211

Крепеж

9009900225

Крепеж

9015940027

Крепеж

9354014020

Крепеж

9356755016

Крепеж

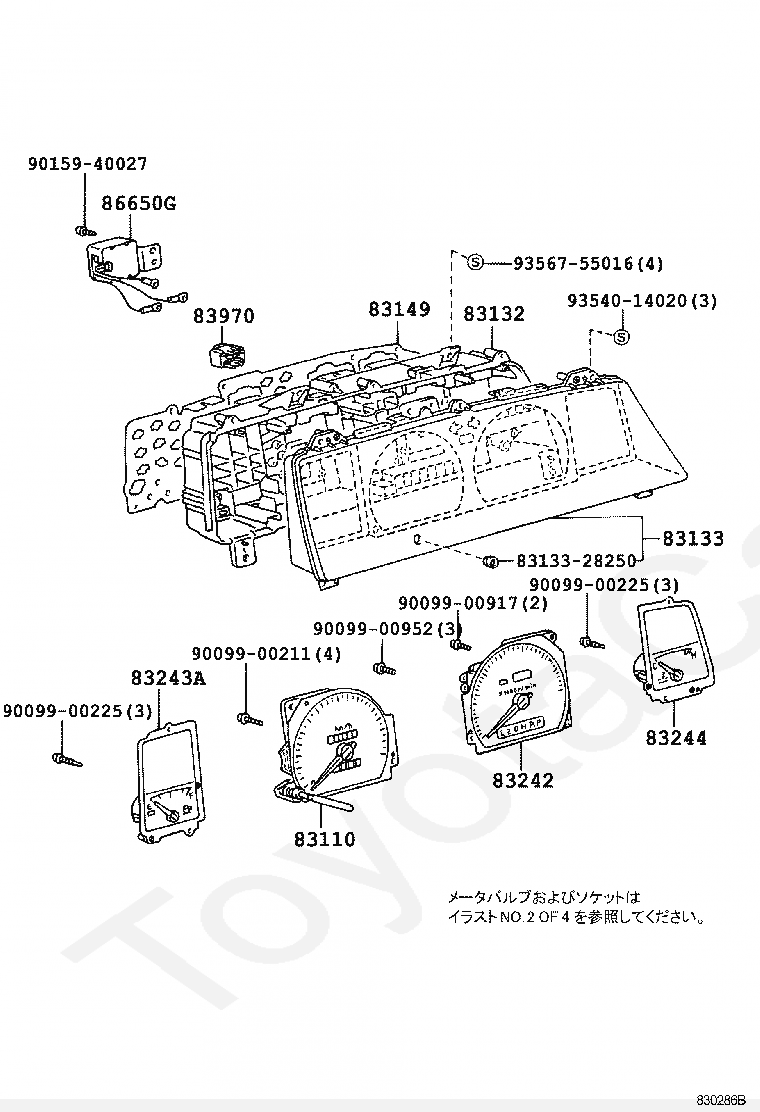

Код

Описание

83110

SPEEDOMETER ASSY

83132

CASE, COMBINATION METER

83133

PLATE, COMBINATION METER, NO.1

8313328250

Крепеж

83149

PLATE, METER CIRCUIT

83242

TACHOMETER ASSY, ENGINE

83243A

GAUGE SUB-ASSY, FUEL RECEIVER

83244

GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

83970

BUZZER ASSY, REVERSE WARNING

86650G

BUZZER ASSY

9009900211

Крепеж

9009900225

Крепеж

9009900225

Крепеж

9009900917

Крепеж

9009900952

Крепеж

9015940027

Крепеж

9354014020

Крепеж

9356755016

Крепеж

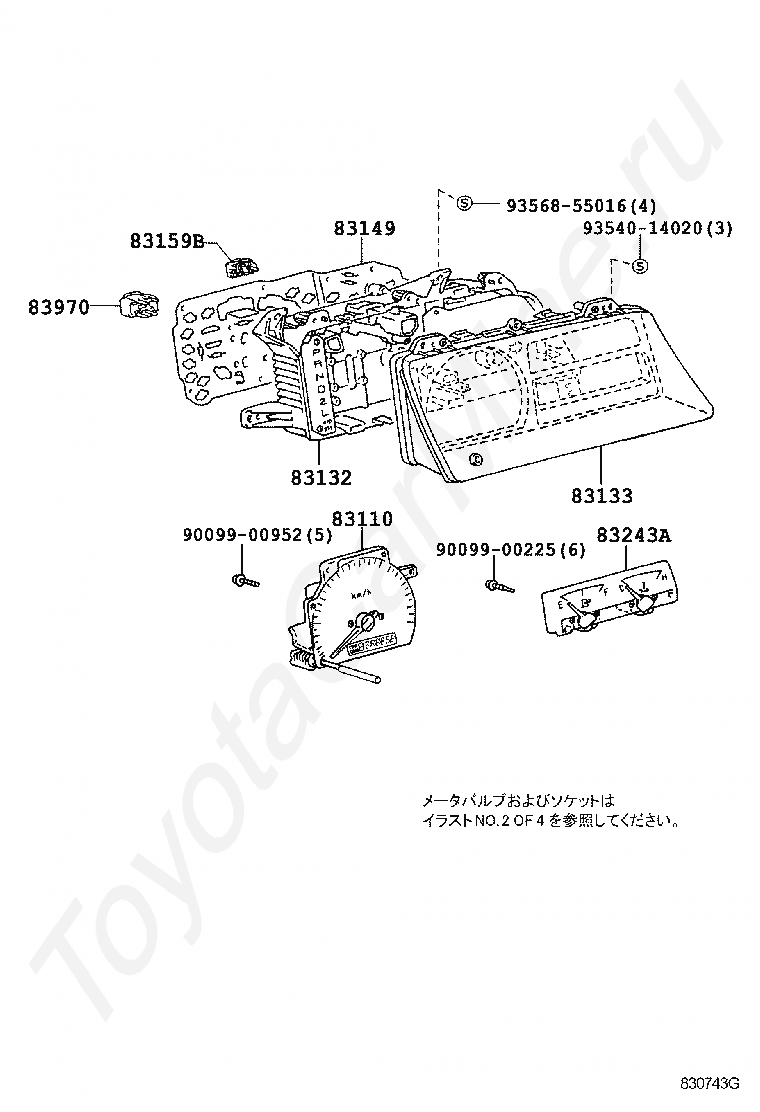

Код

Описание

83110

SPEEDOMETER ASSY

83132

CASE, COMBINATION METER

83133

PLATE, COMBINATION METER, NO.1

83149

PLATE, METER CIRCUIT

83159B

RELAY ASSY, METER

83243A

GAUGE SUB-ASSY, FUEL RECEIVER

83970

BUZZER ASSY, REVERSE WARNING

9009900225

Крепеж

9009900952

Крепеж

9354014020

Крепеж

9356855016

Крепеж

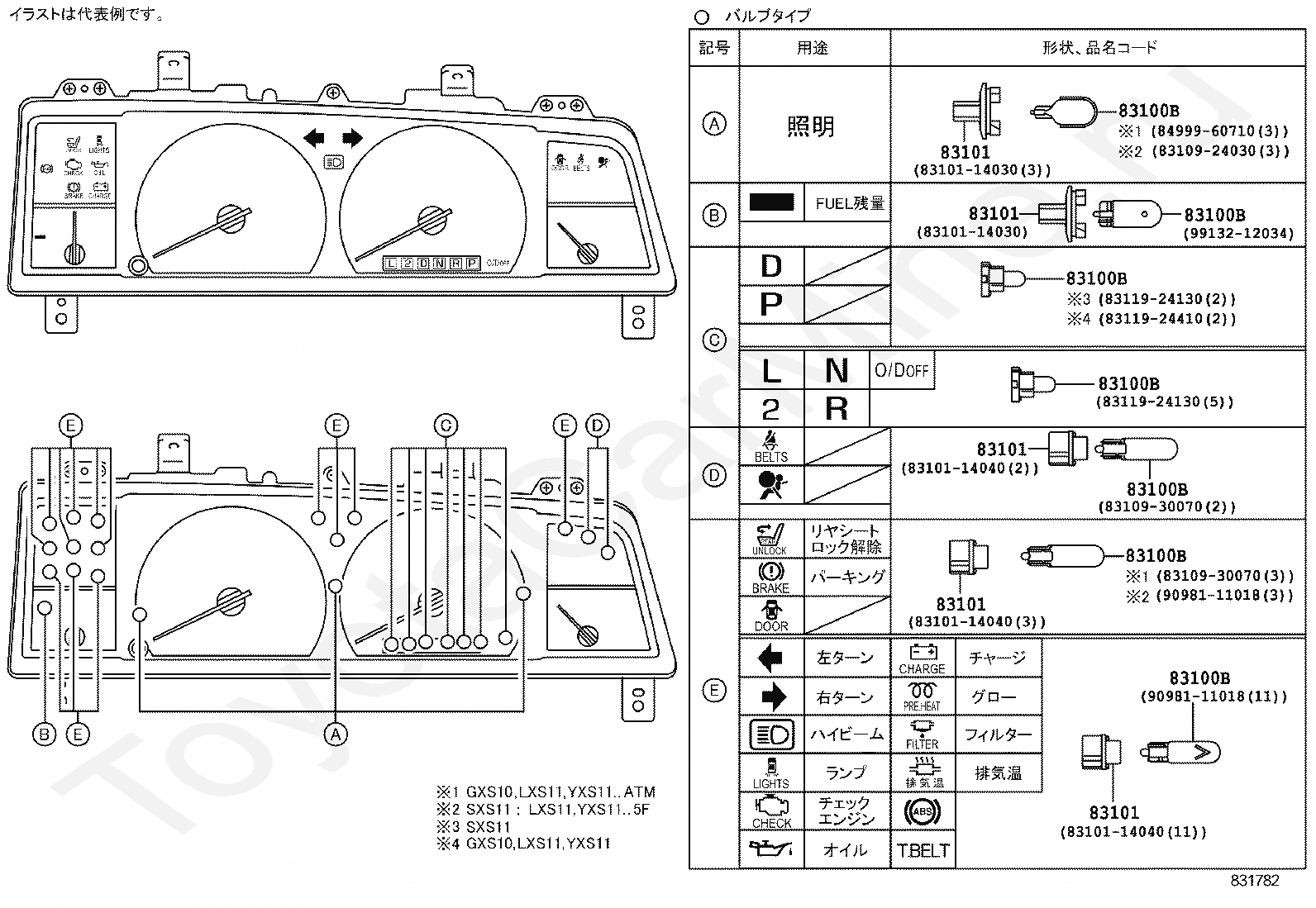

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

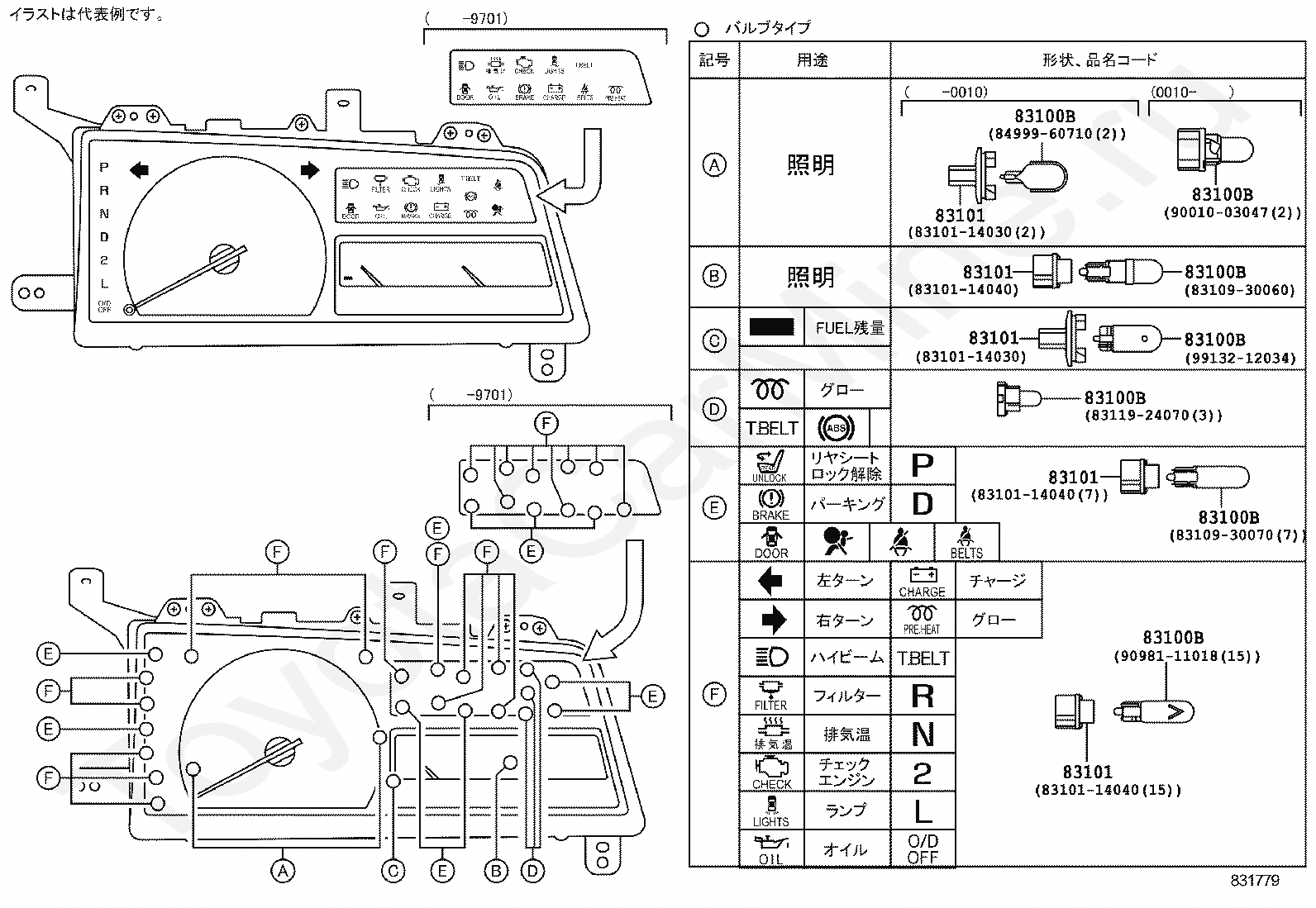

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

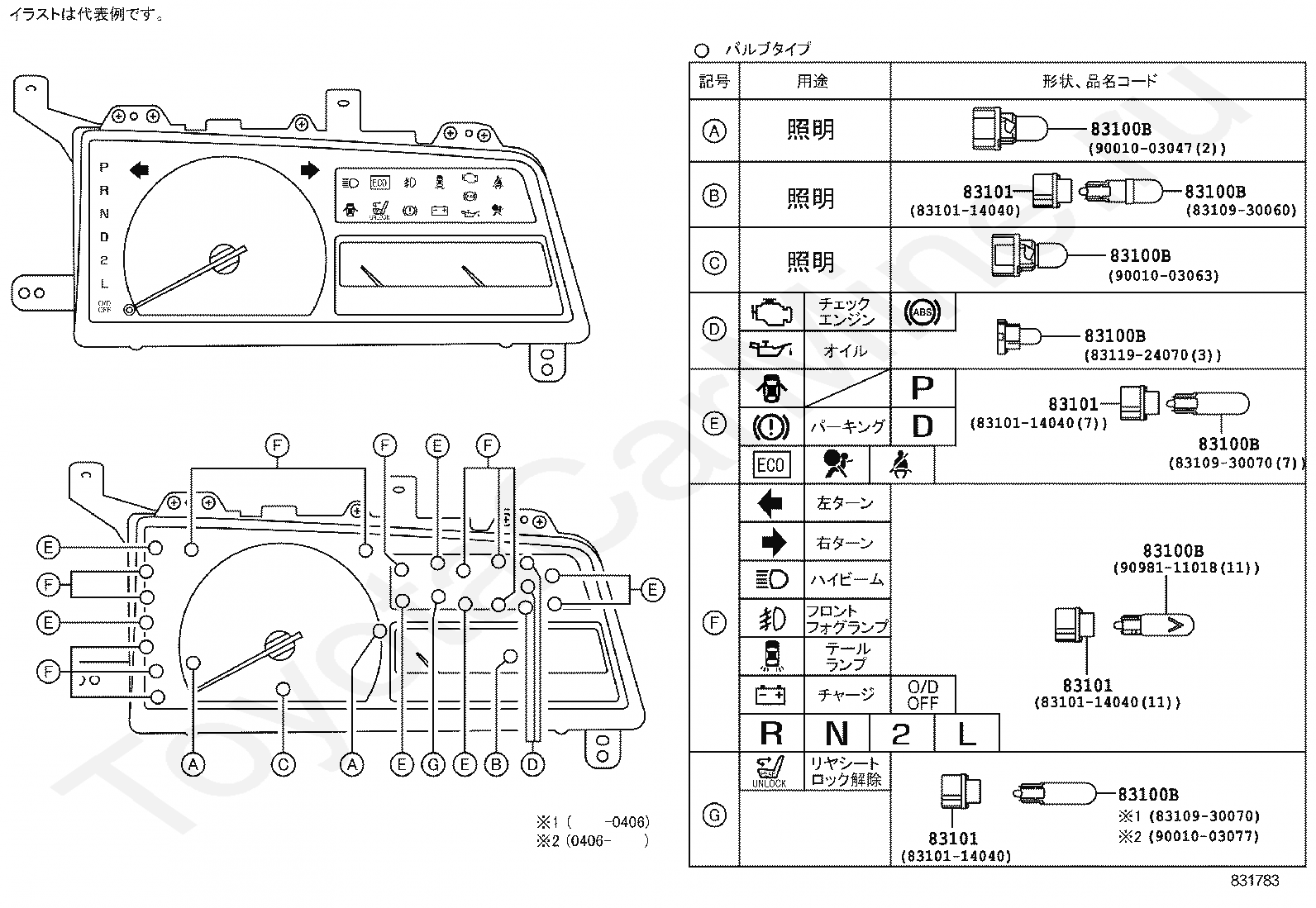

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

Код

Описание

83181A

SENSOR, SPEEDOMETER

83181A

SENSOR, SPEEDOMETER

83181A

SENSOR, SPEEDOMETER

83181A

SENSOR, SPEEDOMETER

83181B

RING, O (FOR SPEEDOMETER SENSOR)

83181B

RING, O (FOR SPEEDOMETER SENSOR)

83181B

RING, O (FOR SPEEDOMETER SENSOR)

83783

KEY, SPEEDMETER SENSOR

83910

CLOCK ASSY

83910

CLOCK ASSY

83910B

BULB, CLOCK INDICATOR

83911C

ORNAMENT, CLOCK

9165140825

Крепеж

9165140825

Крепеж

9356855016

Крепеж
