Каталог

Япония

Модель

CROWN COMFORT/SED

VIN

Дата

1995/12

Двигатель

2 литра, сжиженный газ

Класс

STANDARD TYPE

Фрейм

YXS10

КПП

механика МКПП, 4 ступени, на руле

Опции

CROWN

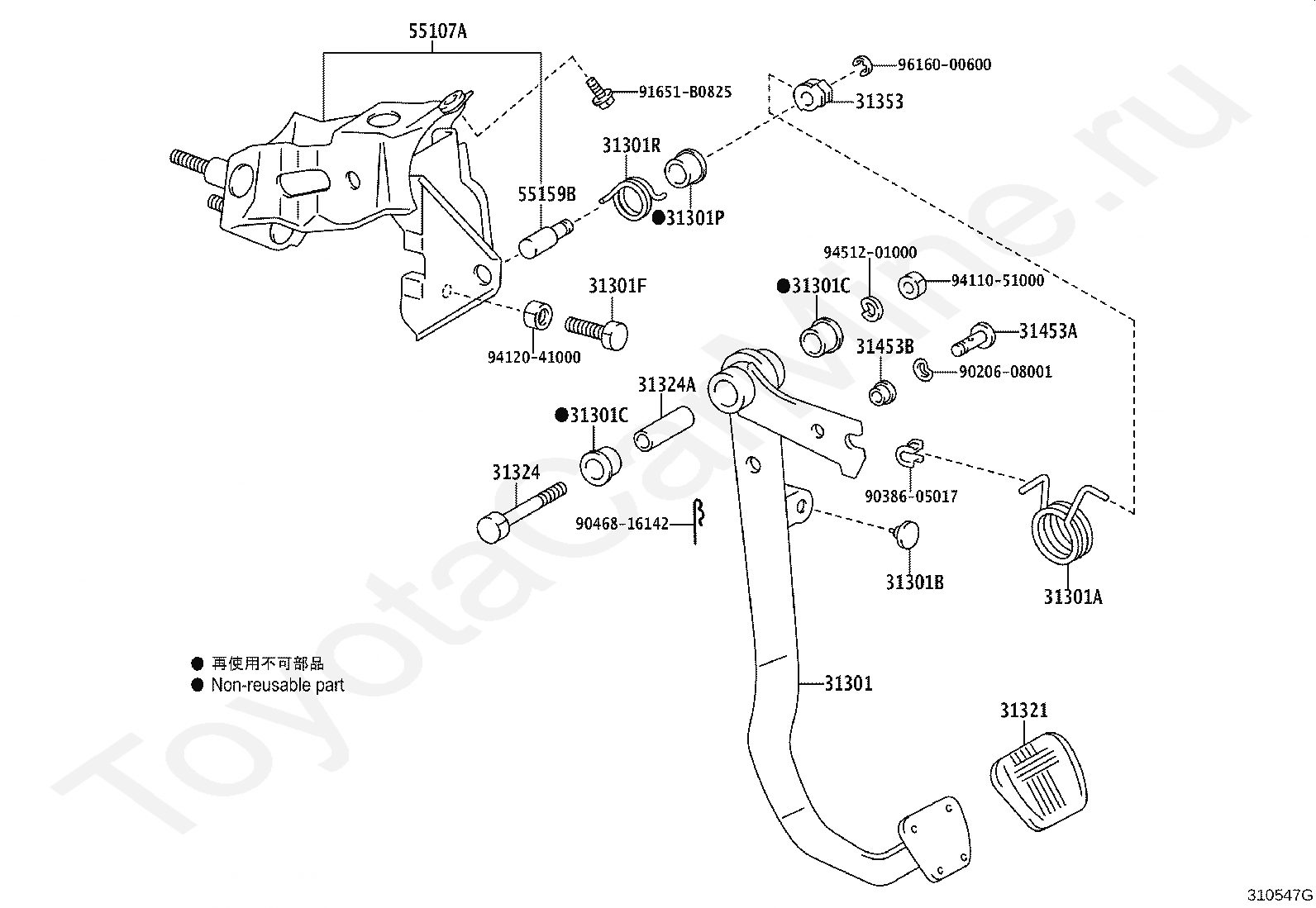

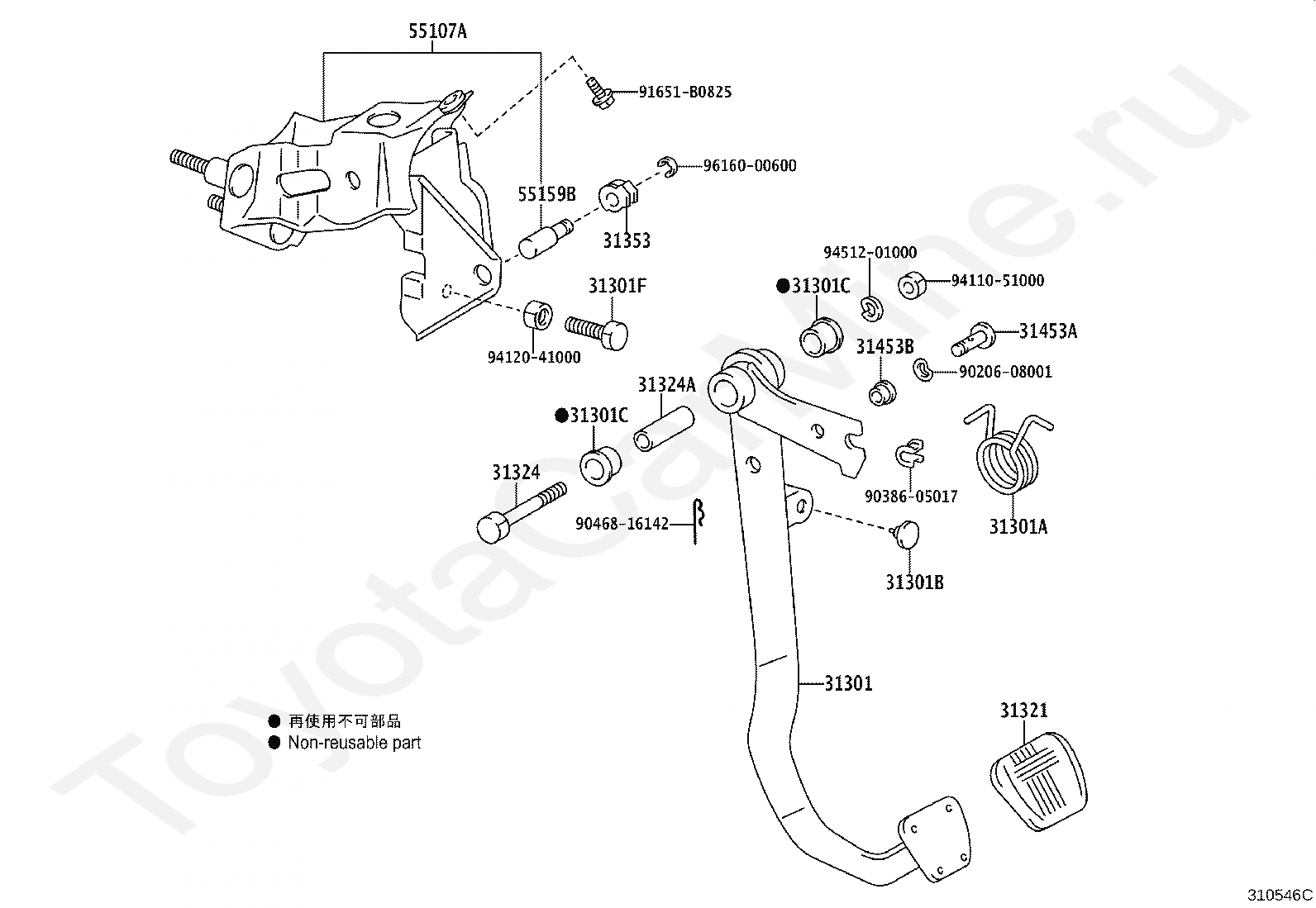

Педаль сцепления TOYOTA CROWN COMFORT/SED

Код

Описание

31301

PEDAL SUB-ASSY, CLUTCH

31301A

SPRING(FOR CLUTCH PEDAL)

31301B

CUSHION, NO.1(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301F

BOLT(FOR CLUTCH PEDAL STOPPER)

31321

PAD, CLUTCH PEDAL

31324

SHAFT, CLUTCH PEDAL

31324A

COLLAR, CLUTCH PEDAL SHAFT

31353

HOLDER, CLUTCH PEDAL SPRING

31453A

PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

31453B

BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

55107A

SUPPORT SUB-ASSY, CLUTCH PEDAL

55159B

PIN, CLUTCH PEDAL TURN OVER SPRING

9020608001

Крепеж

9038605017

Крепеж

9046816142

Крепеж

91651B0825

Крепеж

9411051000

Крепеж

9412041000

Крепеж

9451201000

Крепеж

9616000600

Крепеж

Код

Описание

31301

PEDAL SUB-ASSY, CLUTCH

31301A

SPRING(FOR CLUTCH PEDAL)

31301B

CUSHION, NO.1(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301F

BOLT(FOR CLUTCH PEDAL STOPPER)

31301P

BUSH(FOR CLUTCH PEDAL TURNOVER)

31301R

SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)

31321

PAD, CLUTCH PEDAL

31324

SHAFT, CLUTCH PEDAL

31324A

COLLAR, CLUTCH PEDAL SHAFT

31353

HOLDER, CLUTCH PEDAL SPRING

31453A

PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

31453B

BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

55107A

SUPPORT SUB-ASSY, CLUTCH PEDAL

55159B

PIN, CLUTCH PEDAL TURN OVER SPRING

9020608001

Крепеж

9038605017

Крепеж

9046816142

Крепеж

91651B0825

Крепеж

9411051000

Крепеж

9412041000

Крепеж

9451201000

Крепеж

9616000600

Крепеж

Код

Описание

31301

PEDAL SUB-ASSY, CLUTCH

31301A

SPRING(FOR CLUTCH PEDAL)

31301B

CUSHION, NO.1(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301C

BUSH(FOR CLUTCH PEDAL)

31301F

BOLT(FOR CLUTCH PEDAL STOPPER)

31301P

BUSH(FOR CLUTCH PEDAL TURNOVER)

31301R

SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)

31321

PAD, CLUTCH PEDAL

31324

SHAFT, CLUTCH PEDAL

31324A

COLLAR, CLUTCH PEDAL SHAFT

31353

HOLDER, CLUTCH PEDAL SPRING

31453A

PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

31453B

BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

55107A

SUPPORT SUB-ASSY, CLUTCH PEDAL

55159B

PIN, CLUTCH PEDAL TURN OVER SPRING

9020608001

Крепеж

9038605017

Крепеж

9046816142

Крепеж

91651B0825

Крепеж

9411051000

Крепеж

9412041000

Крепеж

9451201000

Крепеж

9616000600

Крепеж

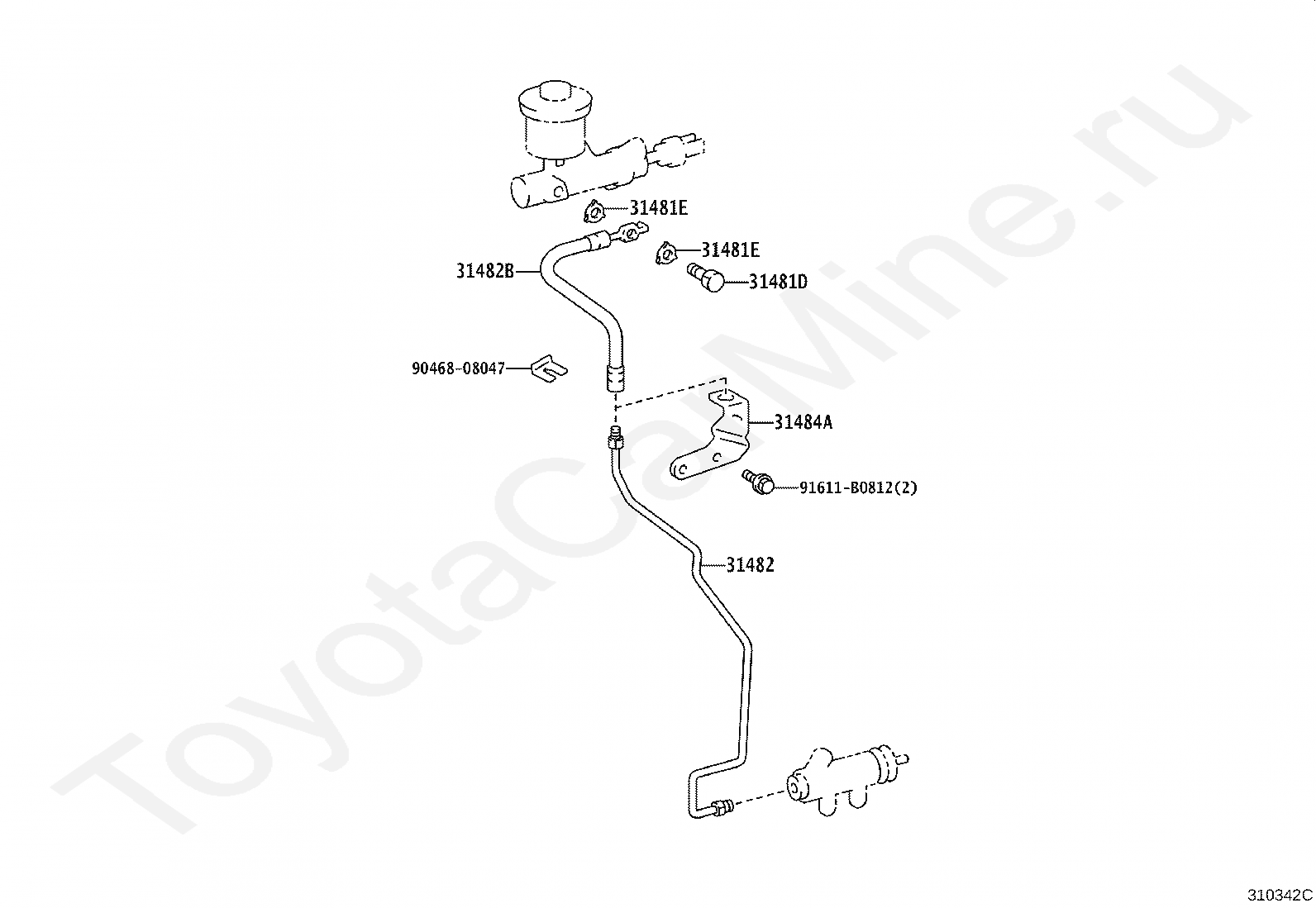

Код

Описание

31481D

BOLT, UNION(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)

31481E

GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

31481E

GASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

31482

TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

31482B

HOSE, CLUTCH, NO.2

31484A

BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)

9046808047

Крепеж

91611B0812

Крепеж

Педаль сцепления TOYOTA CROWN COMFORT/SED
