Каталог

Ближний Восток

Модель

CROWN COMFORT

VIN

Дата

1996/01

Двигатель

2,4 литра, дизель

Фрейм

LXS10

КПП

механика МКПП, 5 скоростей

Опции

правый руль

Реле и кнопки TOYOTA CROWN COMFORT







Код

Описание

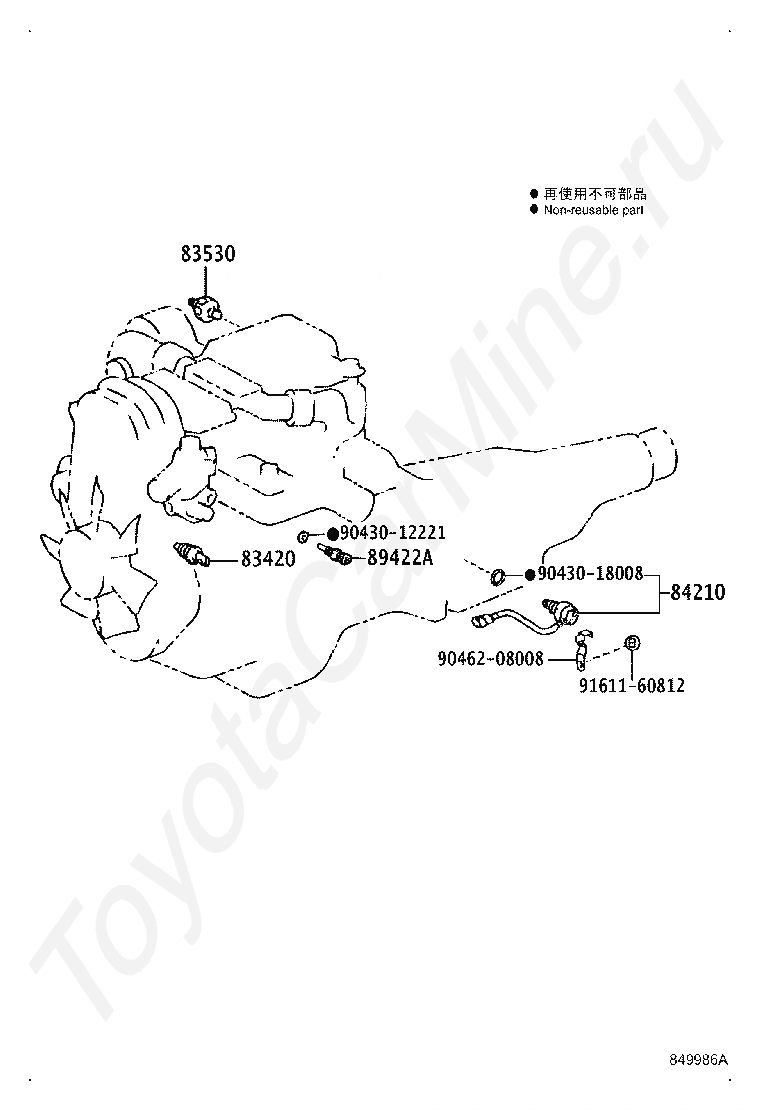

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

89422A

SENSOR, WATER TEMPERATURE

9043012221

Крепеж

9043018008

Крепеж

9046208008

Крепеж

9161160812

Крепеж

Код

Описание

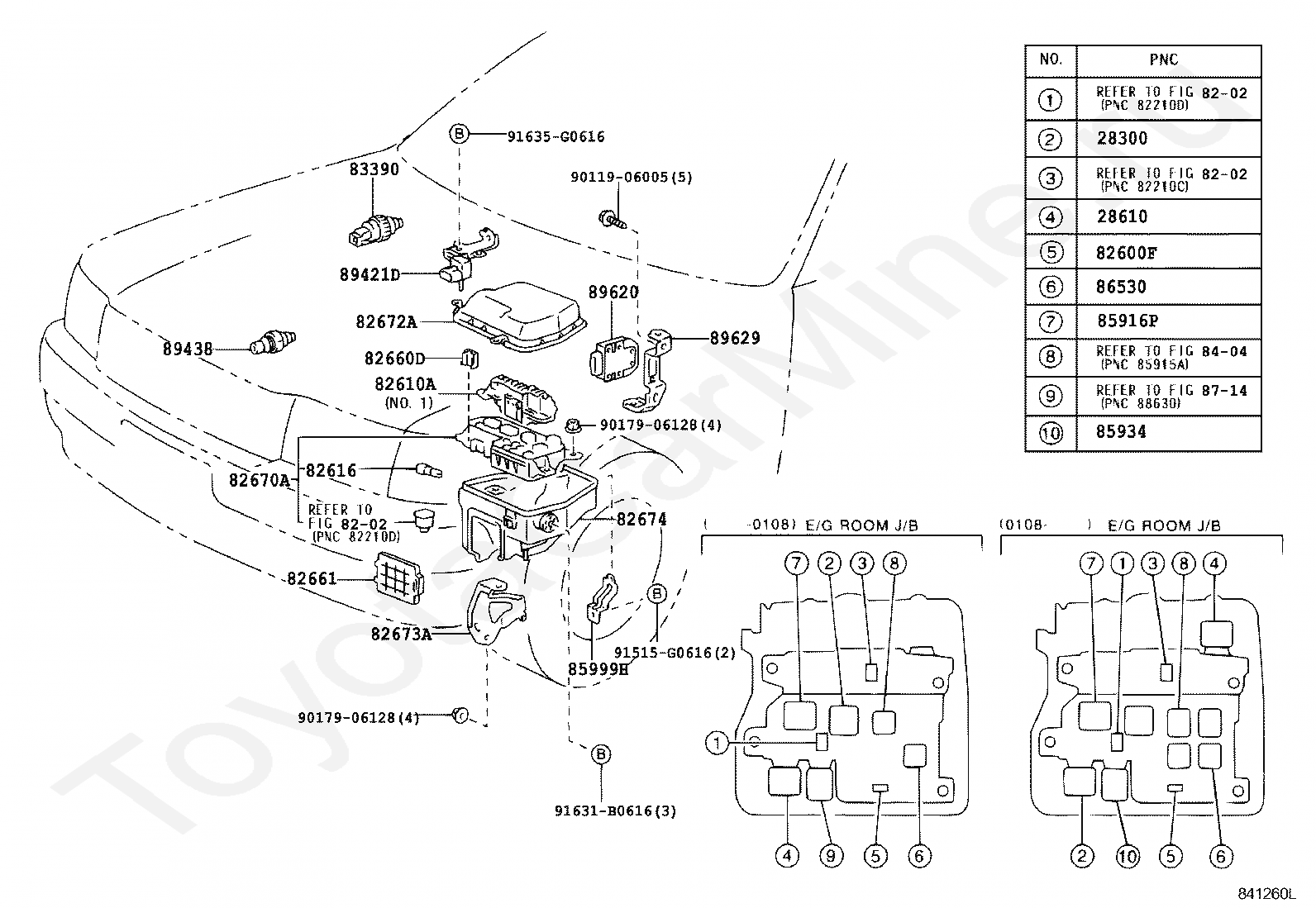

28300

RELAY ASSY, STARTER

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82610A

BLOCK ASSY, FUSE

82616

PULLER, FUSE

82660D

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82670A

BLOCK ASSY, JUNCTION, NO.1

82672A

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82674

COVER, JUNCTION BLOCK LOWER

83390

SWITCH ASSY, VACUUM WARNING

8404

переход к группе запчастей

85916P

RELAY, HEADLAMP

85934

RELAY, MAGNET-CLUTCH

85999H

BRACKET, RELAY

86530

RELAY ASSY, HORN

8714

переход к группе запчастей

89421D

SENSOR, TURBO PRESSURE

89438

SWITCH, POWER STEERING OIL PRESSURE

89620

IGNITER ASSY

89629

BRACKET, IGNITER ASSY

9011906005

Крепеж

9017906128

Крепеж

9017906128

Крепеж

91515G0616

Крепеж

91631B0616

Крепеж

91635G0616

Крепеж

Код

Описание

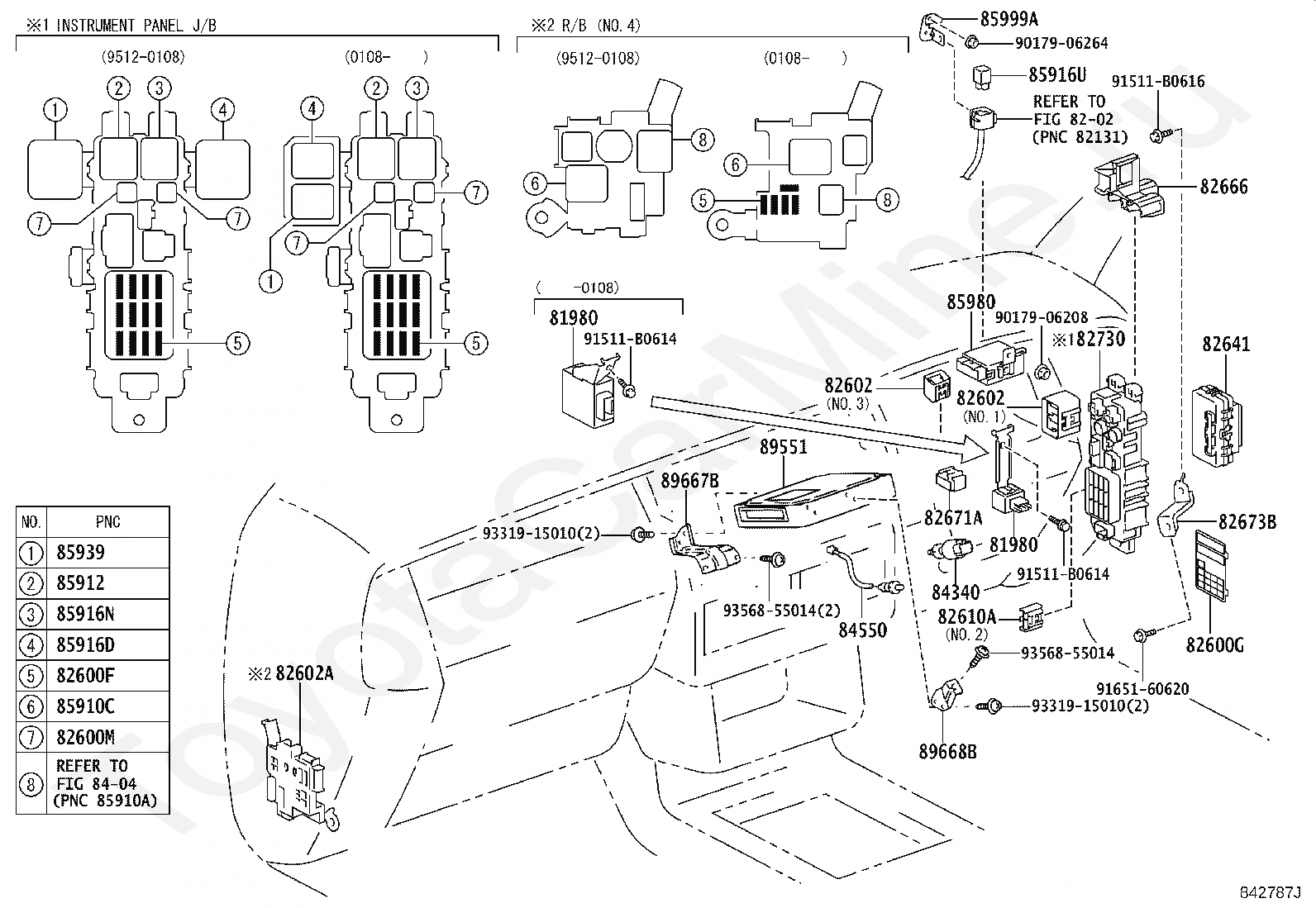

81980

FLASHER ASSY, TURN SIGNAL

81980

FLASHER ASSY, TURN SIGNAL

8202

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82600G

PLATE, CAUTION(FOR FUSE)

82600M

FUSE, MEDIUM CURRENT

82602

BLOCK SUB-ASSY, RELAY

82602

BLOCK SUB-ASSY, RELAY

82602A

BLOCK SUB-ASSY, RELAY

82610A

BLOCK ASSY, FUSE

82641

RELAY, INTEGRATION NO.1

82666

HOLDER, CONNECTOR

82671A

BLOCK, JUNCTION

82673B

BRACKET, JUNCTION BLOCK

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

8404

переход к группе запчастей

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85912

RELAY, DEFOGGER

85916D

RELAY, FOG LAMP

85916N

RELAY, TAIL LAMP

85916U

RELAY, HEADLAMP, NO.2

85939

RELAY, POWER WINDOW

85980

RELAY ASSY, DOOR CONTROL

85999A

BRACKET, RELAY, NO.2

89551

COMPUTER, EMISSION CONTROL

89667B

BRACKET, ENGINE CONTROL COMPUTER, NO.1

89668B

BRACKET, ENGINE CONTROL COMPUTER, NO.2

9017906208

Крепеж

9017906264

Крепеж

91511B0614

Крепеж

91511B0614

Крепеж

91511B0616

Крепеж

9165160620

Крепеж

9331915010

Крепеж

9331915010

Крепеж

9356855014

Крепеж

9356855014

Крепеж

Код

Описание

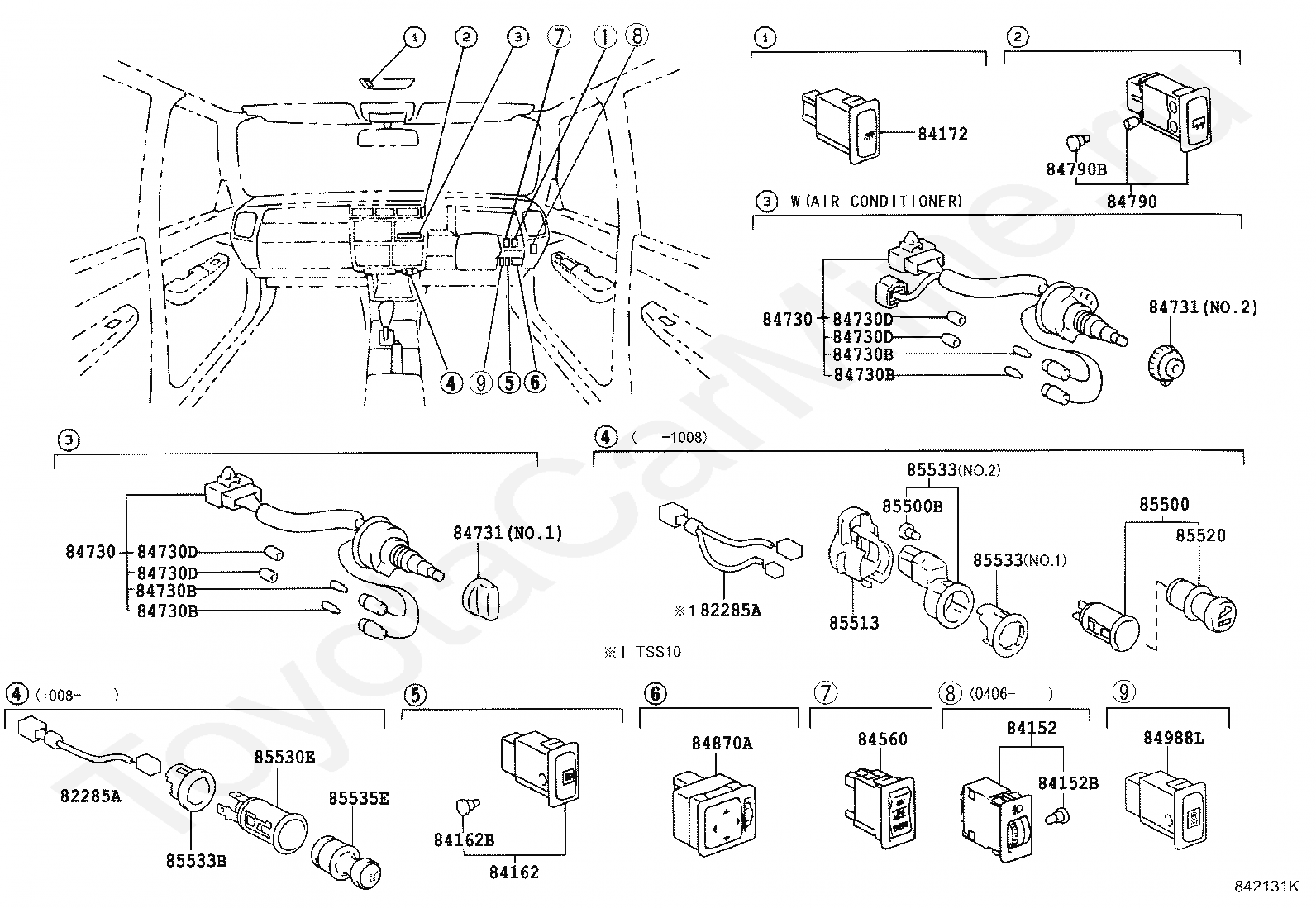

82285A

WIRE, ILLUMINATION

82285A

WIRE, ILLUMINATION

84152

SWITCH, HEADLAMP LEVELING

84152B

BULB (FOR HEADLAMP LEVELING SWITCH)

84162

SWITCH, FRONT FOG LAMP

84162B

BULB, FOG LAMP SWITCH

84172

SWITCH, ROOM LAMP

84560

SWITCH ASSY, FUEL VALVE CONTROL

84730

SWITCH ASSY, HEATER BLOWER

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84730B

BULB, HEATER BLOWER SWITCH

84730B

BULB, HEATER BLOWER SWITCH

84730B

BULB, HEATER BLOWER SWITCH

84730D

CAP, HEATER BLOWER SWITCH BULB

84730D

CAP, HEATER BLOWER SWITCH BULB

84730D

CAP, HEATER BLOWER SWITCH BULB

84730D

CAP, HEATER BLOWER SWITCH BULB

84731

KNOB, HEATER BLOWER SWITCH

84731

KNOB, HEATER BLOWER SWITCH

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84870A

SWITCH ASSY, OUTER MIRROR

84988L

SWITCH, VSC OFF

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85513

COVER, CIGARETTE LIGHTER

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85530E

SOCKET ASSY, POWER OUTLET, NO.3

85533

LENS, CIGARETTE LIGHTER INDICATOR

85533

LENS, CIGARETTE LIGHTER INDICATOR

85533B

LENS, POWER OUTLET SOCKET

85535E

COVER, POWER OUTLET SOCKET, NO.2

Код

Описание

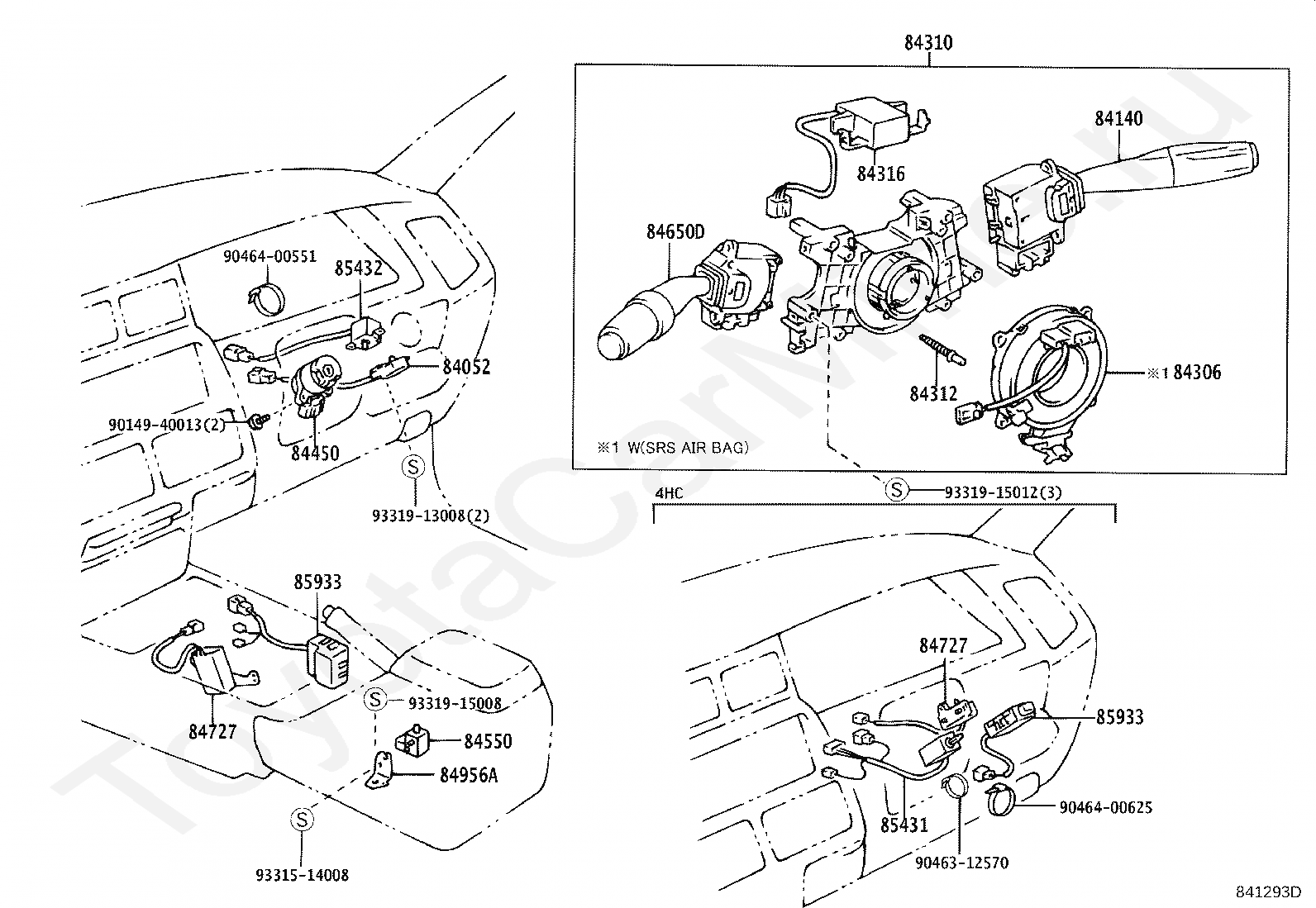

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84306

CABLE SUB-ASSY, SPIRAL

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84316

UNIT, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84550

SWITCH ASSY, PARKING BRAKE

84650D

SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL)

84727

SWITCH, SHIFT LOCK CONTROL

84727

SWITCH, SHIFT LOCK CONTROL

84956A

BRACKET, HAND BRAKE SIGNAL SWITCH

85431

SOLENOID, SHIFT LOCK

85432

SOLENOID, KEY INTER LOCK

85933

COMPUTER, SHIFT LOCK CONTROL

85933

COMPUTER, SHIFT LOCK CONTROL

9014940013

Крепеж

9046312570

Крепеж

9046400551

Крепеж

9046400625

Крепеж

9331514008

Крепеж

9331913008

Крепеж

9331915008

Крепеж

9331915012

Крепеж

Код

Описание

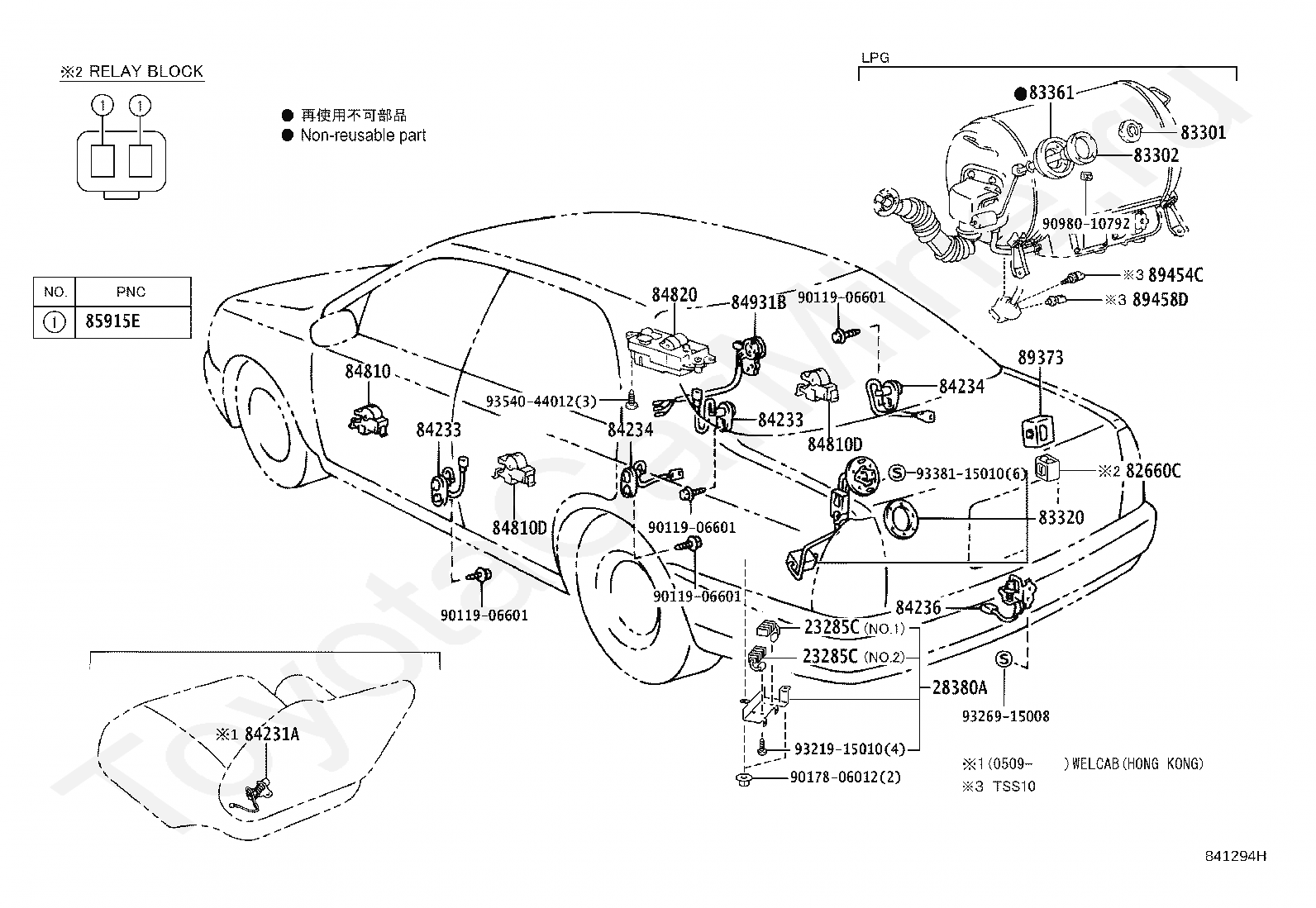

23285C

RESISTOR, FUEL PUMP

23285C

RESISTOR, FUEL PUMP

28380A

RESISTER, FUEL PUMP

82660C

BLOCK ASSY, RELAY

83301

GAGE SUB-ASSY, FUEL SENDER (FOR LPG TANK)

83302

BODY SUB-ASSY, FUEL SENDER GAGE

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

84231A

SWITCH, COURTESY LAMP

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84236

SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84931B

SWITCH, DOOR CONTROL

85915E

RELAY

89373

SENSOR, LAMP FAILURE INDICATOR

89454C

SENSOR, FUEL GAS TEMPERATURE

89458D

SENSOR, FUEL PRESSURE

9011906601

Крепеж

9011906601

Крепеж

9011906601

Крепеж

9011906601

Крепеж

9017806012

Крепеж

9098010792

Крепеж

9321915010

Крепеж

9326915008

Крепеж

9338115010

Крепеж

9354044012

Крепеж
