Ближний Восток

Модель

CROWN (CHINA)

VIN

Дата

2005/02

Двигатель

3 литра, 24 клапана, DOHC, EFI

Кузов

седан

Класс

ROYAL SALOON G TYPE

Фрейм

GRS182

КПП

автомат АКПП, 6 скоростей

Опции

левый руль HIGH EFFICIENCY TWIN CAM Китай 296W

Реле и кнопки TOYOTA CROWN (CHINA)

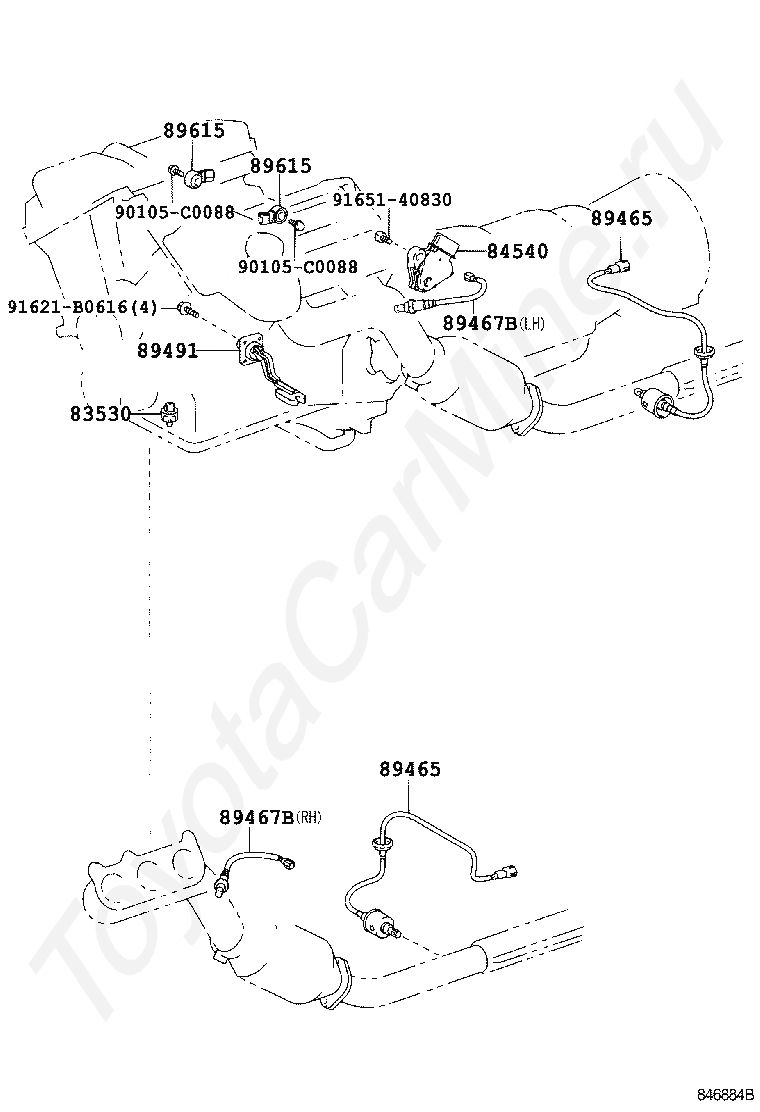

Код

Описание

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84540

SWITCH ASSY, NEUTRAL START

89465

SENSOR, OXYGEN

89465

SENSOR, OXYGEN

89467B

SENSOR, AIR FUEL RATIO

89467B

SENSOR, AIR FUEL RATIO

89491

SENSOR, ENGINE OIL LEVEL

89615

SENSOR, KNOCK CONTROL

89615

SENSOR, KNOCK CONTROL

90105C0088

Крепеж

90105C0088

Крепеж

91621B0616

Крепеж

9165140830

Крепеж

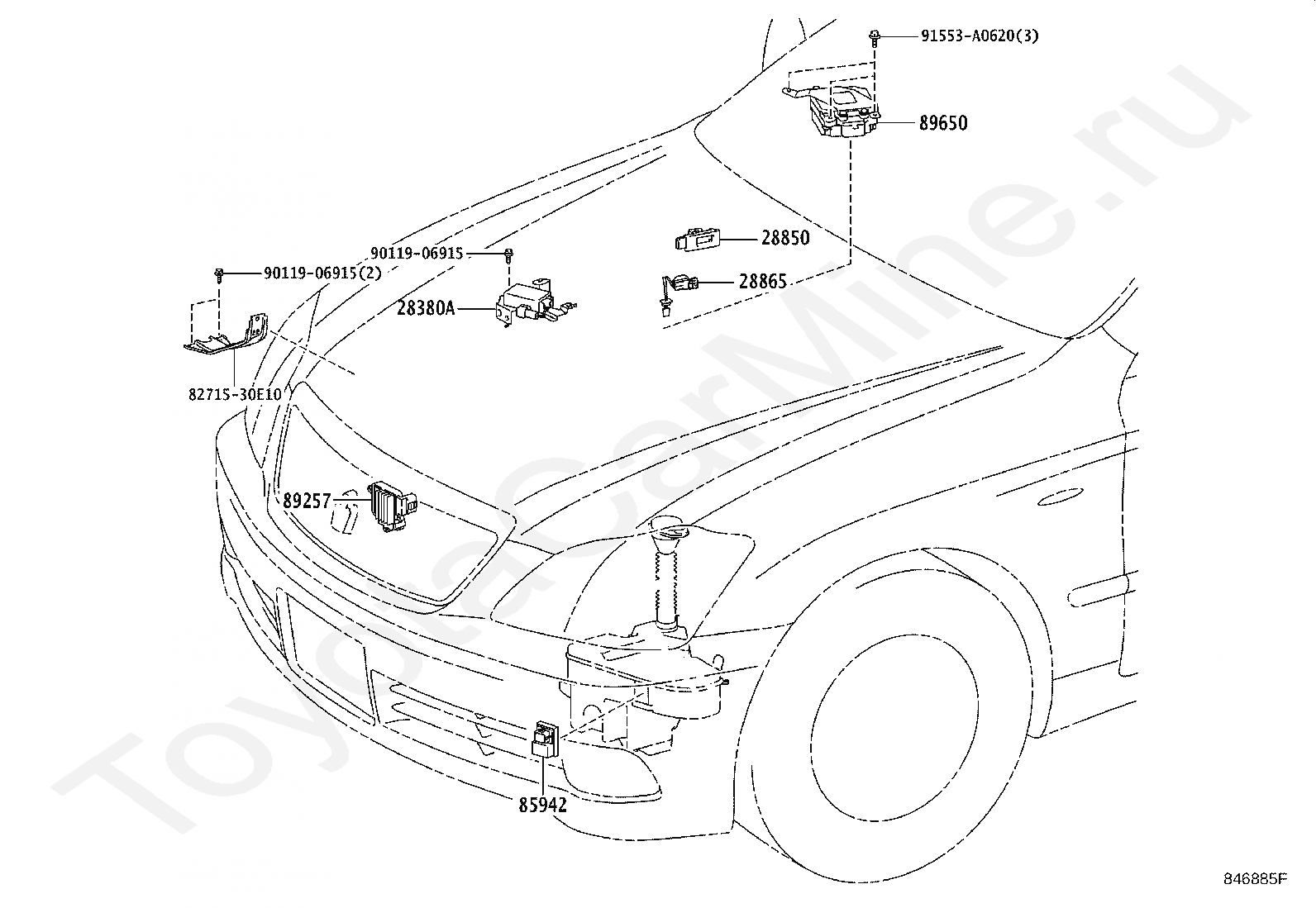

Код

Описание

28380A

RESISTER, FUEL PUMP

28850

SENSOR ASSY, BATTERY CURRENT

28865

SENSOR, BATTERY THERMOMETER

8271530E10

Крепеж

85942

RELAY, HEADLAMP CLEANER CONTROL

89257

COMPUTER, COOLING FAN

89650

COMPUTER ASSY, POWER STEERING

9011906915

Крепеж

9011906915

Крепеж

91553A0620

Крепеж

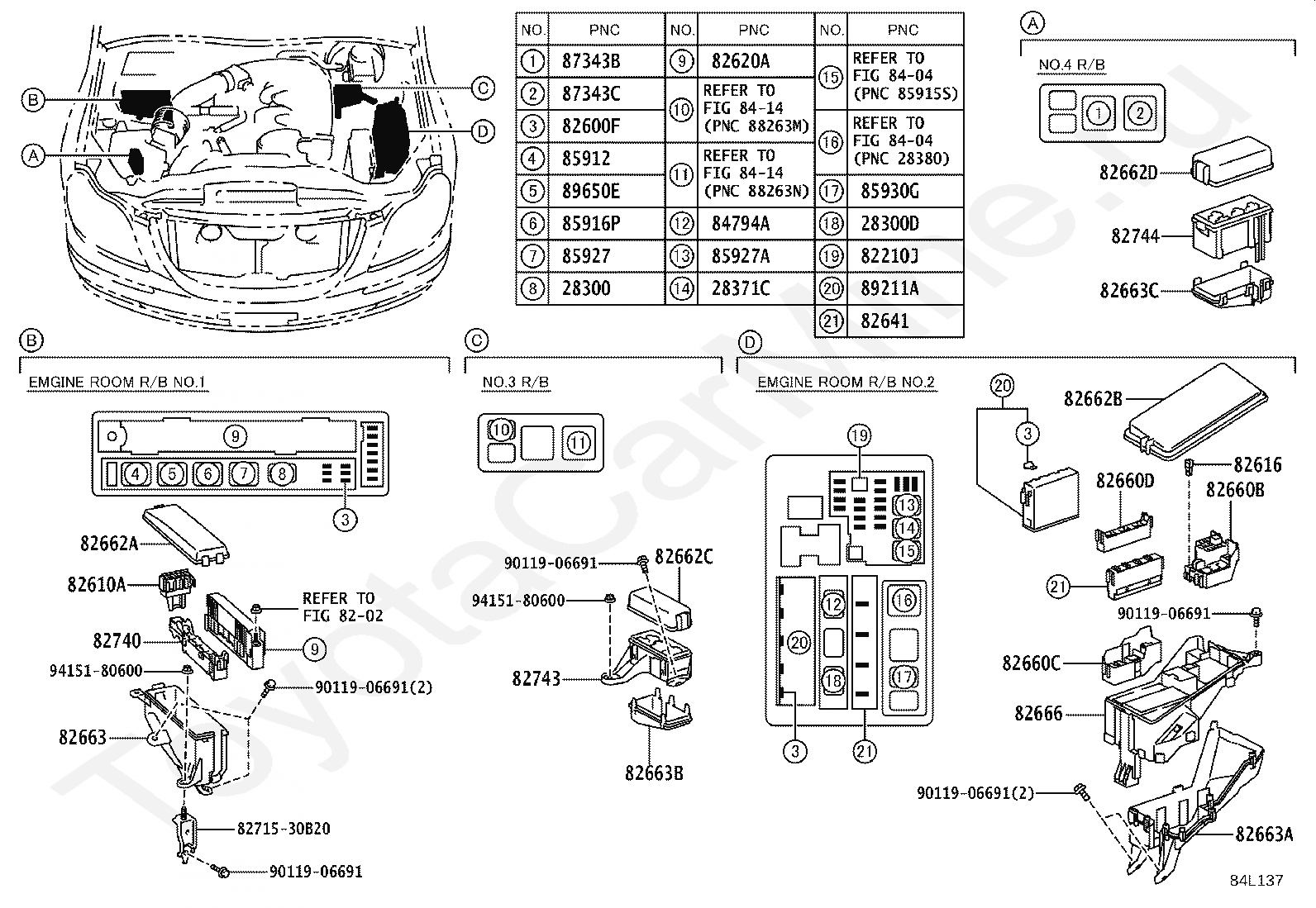

Код

Описание

28300

RELAY ASSY, STARTER

28300D

RELAY, STARTER CUT

28371C

RELAY, IGNITION, NO.2

8202

переход к группе запчастей

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82610A

BLOCK ASSY, FUSE

82616

PULLER, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82641

RELAY, INTEGRATION NO.1

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82662C

COVER, RELAY BLOCK, UPPER, NO.3

82662D

COVER, RELAY BLOCK, UPPER, NO.4

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

82666

HOLDER, CONNECTOR

8271530B20

Крепеж

82740

BLOCK ASSY, ENGINE ROOM RELAY

82743

BLOCK, ENGINE ROOM RELAY, NO.3

82744

BLOCK, ENGINE ROOM RELAY, NO.4

8404

переход к группе запчастей

8404

переход к группе запчастей

8414

переход к группе запчастей

8414

переход к группе запчастей

84794A

RELAY, FR WIPER DEICER

85912

RELAY, DEFOGGER

85916P

RELAY, HEADLAMP

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85930G

RELAY, ACC

87343B

RELAY, HEATER SUB, NO.1(FOR GLOW PLUG HEATER)

87343C

RELAY, HEATER SUB, NO.2(FOR GLOW PLUG HEATER)

89211A

COMPUTER, MULTIPLEX NETWORK BODY

89650E

RELAY, ELECTRIC POWER STEERING

9011906691

Крепеж

9011906691

Крепеж

9011906691

Крепеж

9011906691

Крепеж

9011906691

Крепеж

9415180600

Крепеж

9415180600

Крепеж

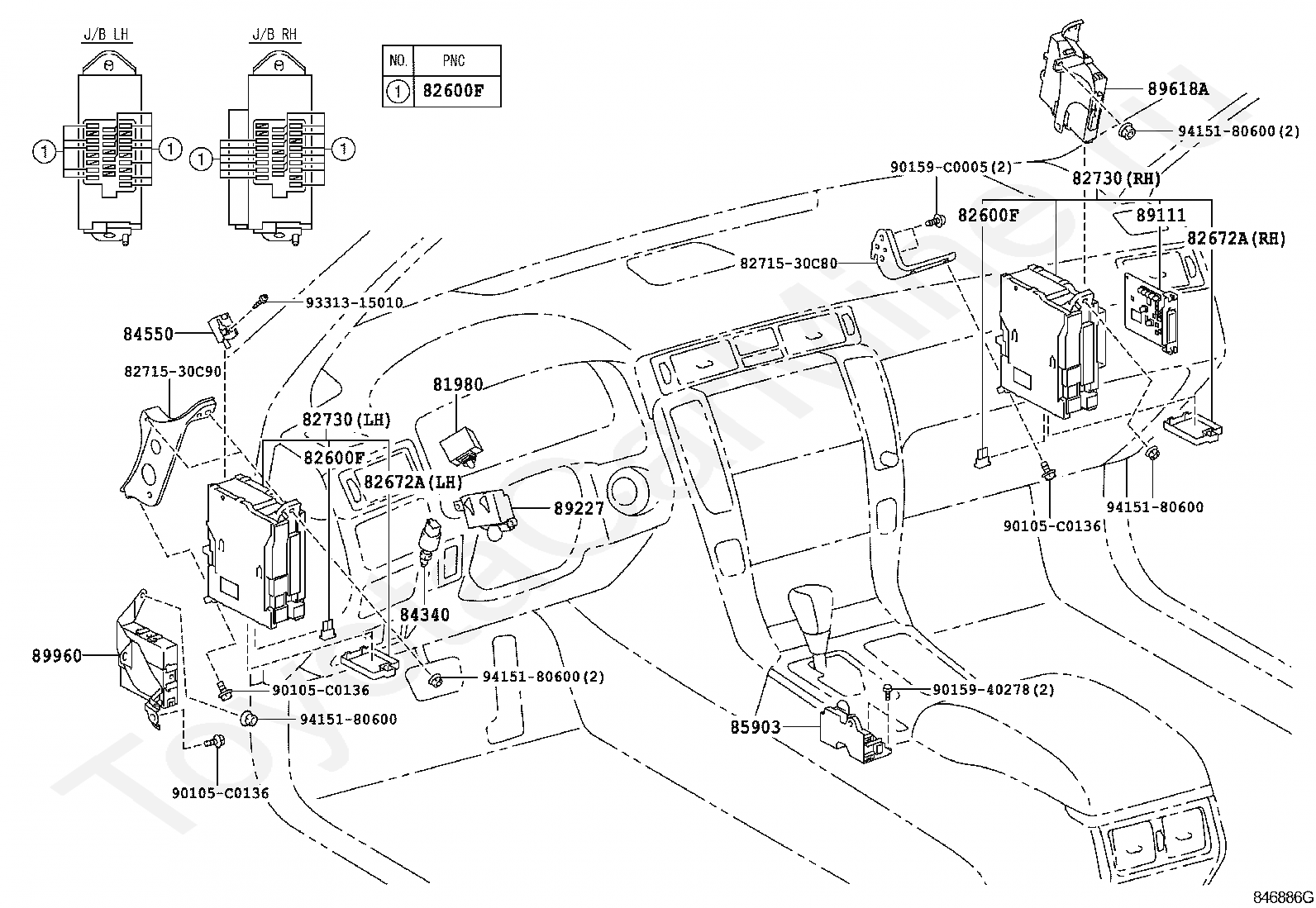

Код

Описание

81980

FLASHER ASSY, TURN SIGNAL

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82672A

COVER, JUNCTION BLOCK

82672A

COVER, JUNCTION BLOCK

8271530C80

Крепеж

8271530C90

Крепеж

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

85903

COMPUTER SUB-ASSY, SHIFT LOCK CONTROL

89111

COMPUTER, NETWORK GATEWAY

89227

COMPUTER, MULTIPLEX TILT & TELESCOPIC

89618A

COMPUTER, POWER SOURCE CONTROL

89960

COMPUTER ASSY, HEADLAMP LEVELING

90105C0136

Крепеж

90105C0136

Крепеж

90105C0136

Крепеж

9015940278

Крепеж

90159C0005

Крепеж

9331315010

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9415180600

Крепеж

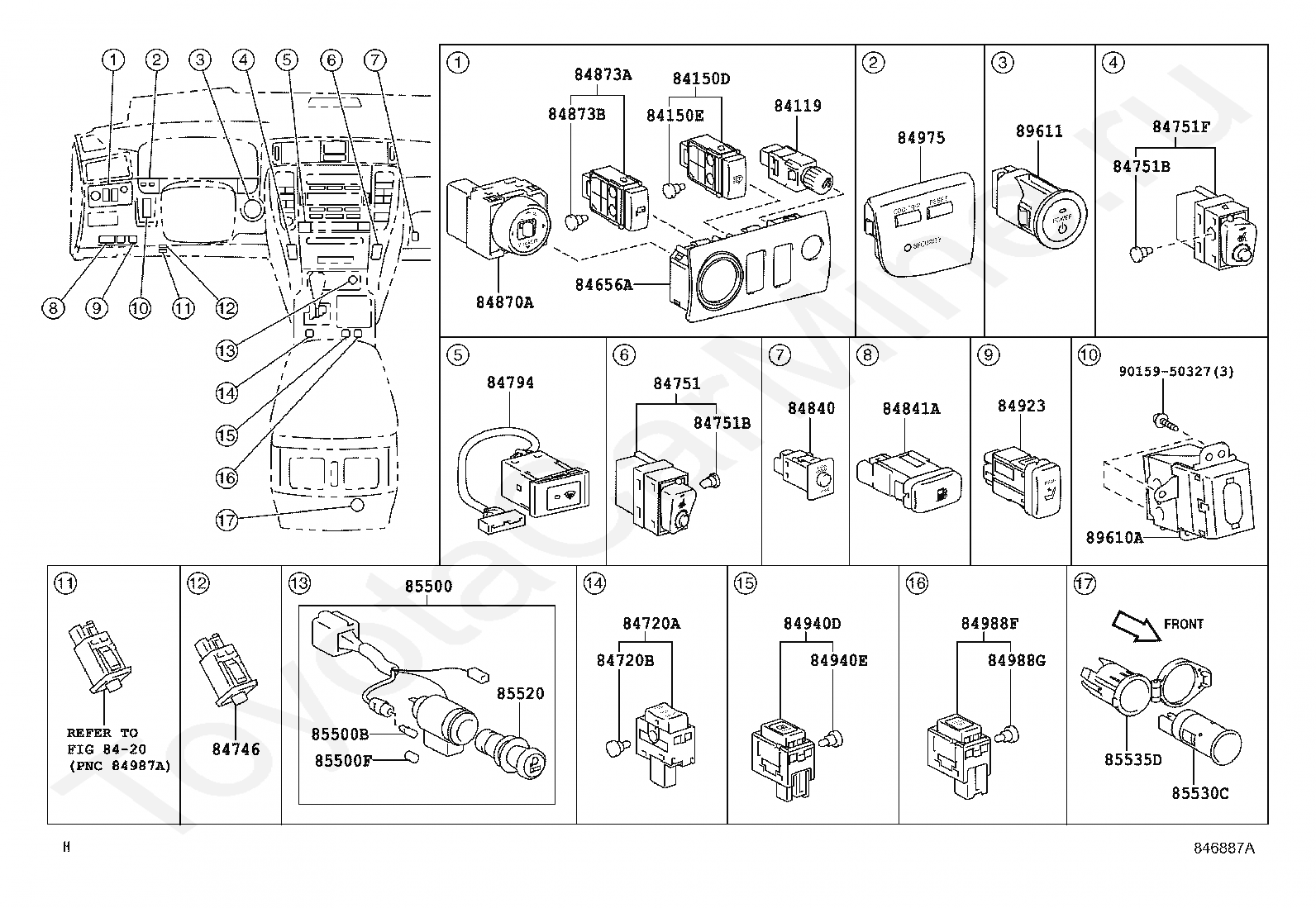

Код

Описание

84119

RHEOSTAT, LIGHT CONTROL

84150D

SWITCH ASSY, HEADLAMP CLEANER

84150E

BULB, HEADLAMP CLEANER SWITCH

8420

переход к группе запчастей

84656A

BEZEL, SWITCH

84720A

SWITCH ASSY, PATTERN SELECT, NO.1

84720B

BULB (FOR PATTERN SELECT SWITCH)

84746

SWITCH, TIRE PRESSURE WARNING

84751

SWITCH, SEAT HEATER

84751B

BULB, SEAT HEATER SWITCH

84751B

BULB, SEAT HEATER SWITCH

84751F

SWITCH, SEAT HEATER

84794

SWITCH, FR WIPER DEICER

84840

SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING

84841A

SWITCH, FUEL LID OPENER

84870A

SWITCH ASSY, OUTER MIRROR

84873A

SWITCH, RETRACTABLE OUTER MIRROR

84873B

BULB, RETRACTABLE OUTER MIRROR SWITCH

84923

SWITCH, REAR POWER SEAT

84940D

SWITCH ASSY, REAR SUN SHADE

84940E

BULB, REAR SUN SHADE

84975

SWITCH, TRIP

84988F

SWITCH, TRACTION CONTROL

84988G

BULB, TRACTION CONTROL SWITCH

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85500F

CAP, CIGARETTE LIGHTER BULB

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85530C

SOCKET ASSY, POWER OUTLET, CENTER

85535D

COVER, POWER OUTLET SOCKET, CENTER

89610A

HOLDER ASSY, ELECTRICAL KEY

89611

SWITCH, PUSH START

9015950327

Крепеж

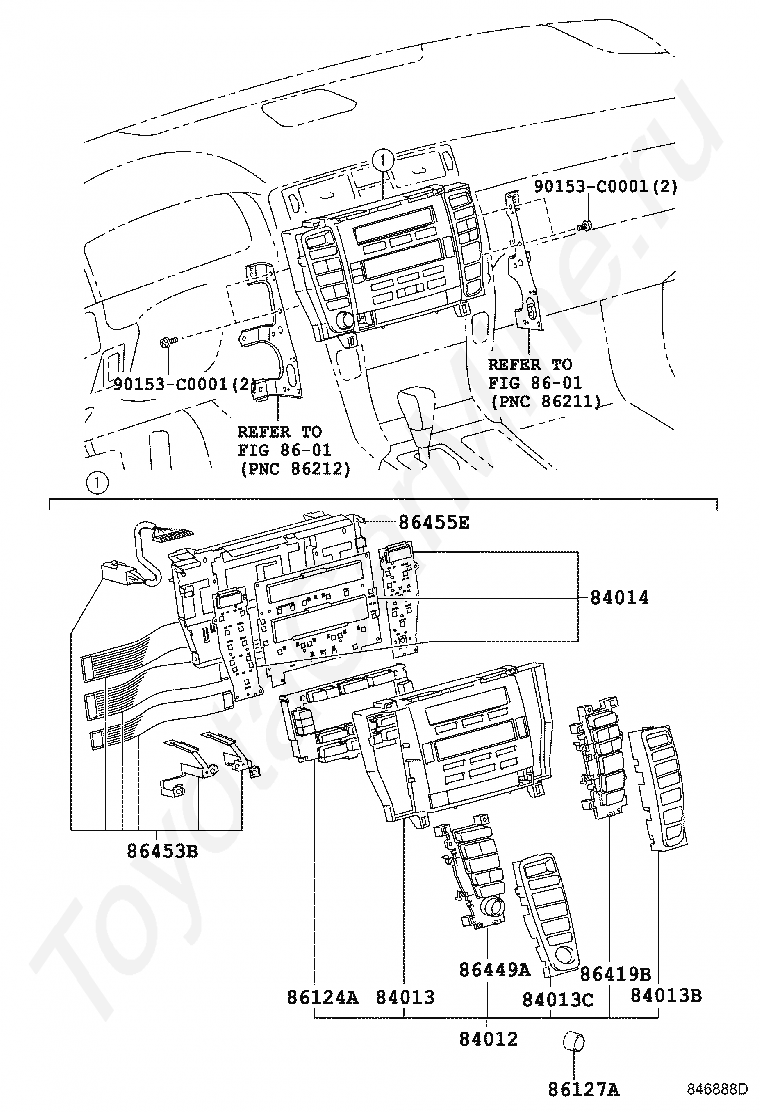

Код

Описание

84012

CONTROL & PANEL SUB-ASSY, INTEGRATION

84013

PANEL SUB-ASSY, INTEGRATION

84013B

PANEL SUB-ASSY, INTEGRATION, NO.2

84013C

PANEL SUB-ASSY, INTEGRATION, NO.3

84014

BOARD SUB-ASSY, PRINTED WIRE INTEGRATION

8601

переход к группе запчастей

8601

переход к группе запчастей

86124A

KNOB, RADIO RECEIVER TONE CONTROL

86127A

KNOB,RADIO RECEIVER, NO.1

86419B

KNOB, AUDIO MODULE

86449A

KNOB,HEATER CONTROL MODULE

86453B

WIRE, MULTI-MEDIA MODULE

86455E

CASE, MULTI-MEDIA MODULE

90153C0001

Крепеж

90153C0001

Крепеж

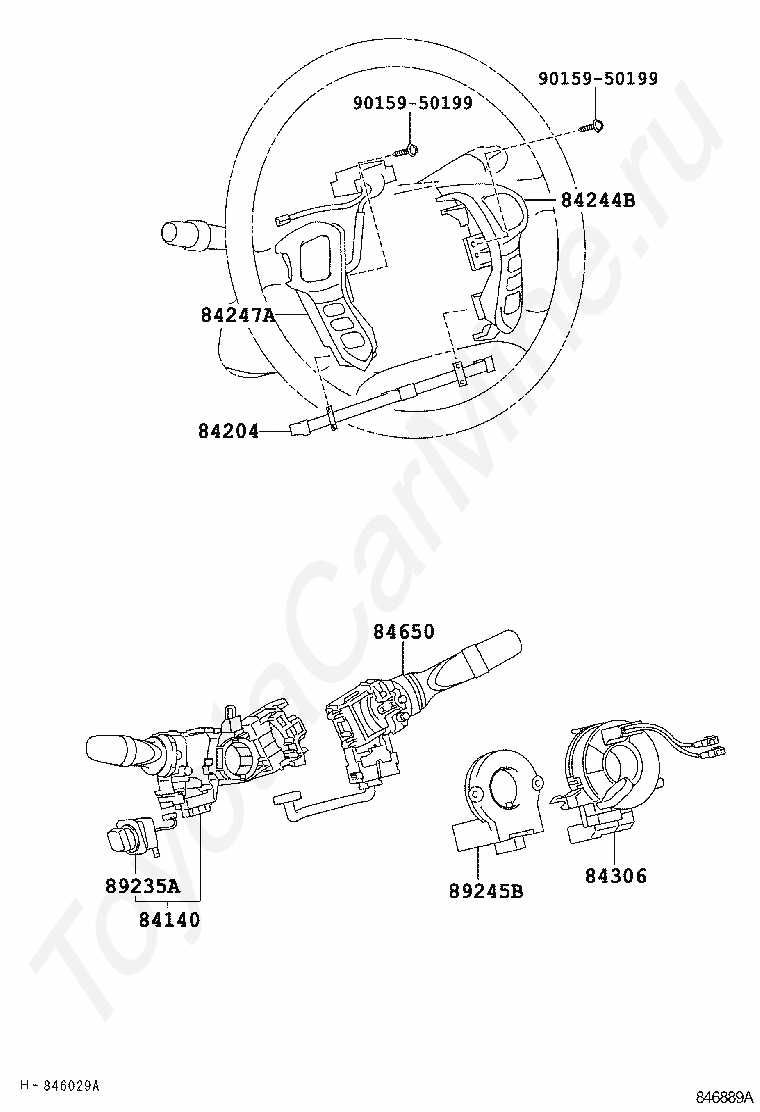

Код

Описание

84140

SWITCH ASSY, HEADLAMP DIMMER

84204

CABLE SUB-ASSY, STEERING PAD SWITCH

84244B

SWITCH, STEERING PAD, RH

84247A

SWITCH, STEERING PAD, LH

84306

CABLE SUB-ASSY, SPIRAL

84650

SWITCH ASSY, WINDSHIELD WIPER

89235A

SWITCH, TILT & TELESCOPIC

89245B

SENSOR, STEERING

9015950199

Крепеж

9015950199

Крепеж

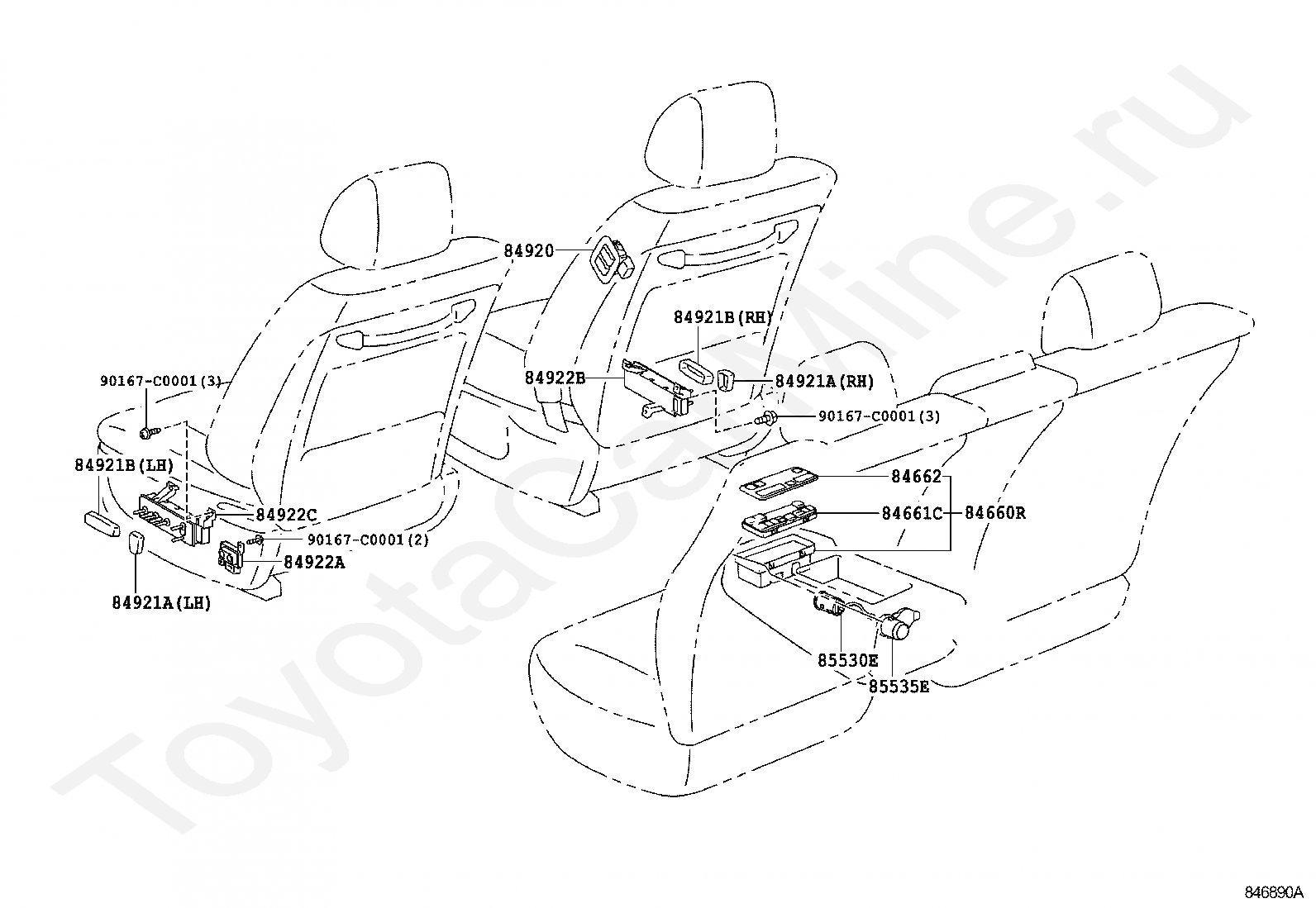

Код

Описание

84660R

SWITCH, COOLER(REAR)

84661C

KNOB, COOLER CONTROL SWITCH

84662

PANEL, COOLER CONTROL SWITCH

84920

SWITCH ASSY, POWER SEAT

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84922A

SWITCH, FRONT POWER SEAT(FOR LUMBAR)

84922B

SWITCH, FRONT POWER SEAT, RH

84922C

SWITCH, FRONT POWER SEAT, LH

85530E

SOCKET ASSY, POWER OUTLET, NO.3

85535E

COVER, POWER OUTLET SOCKET, NO.2

90167C0001

Крепеж

90167C0001

Крепеж

90167C0001

Крепеж

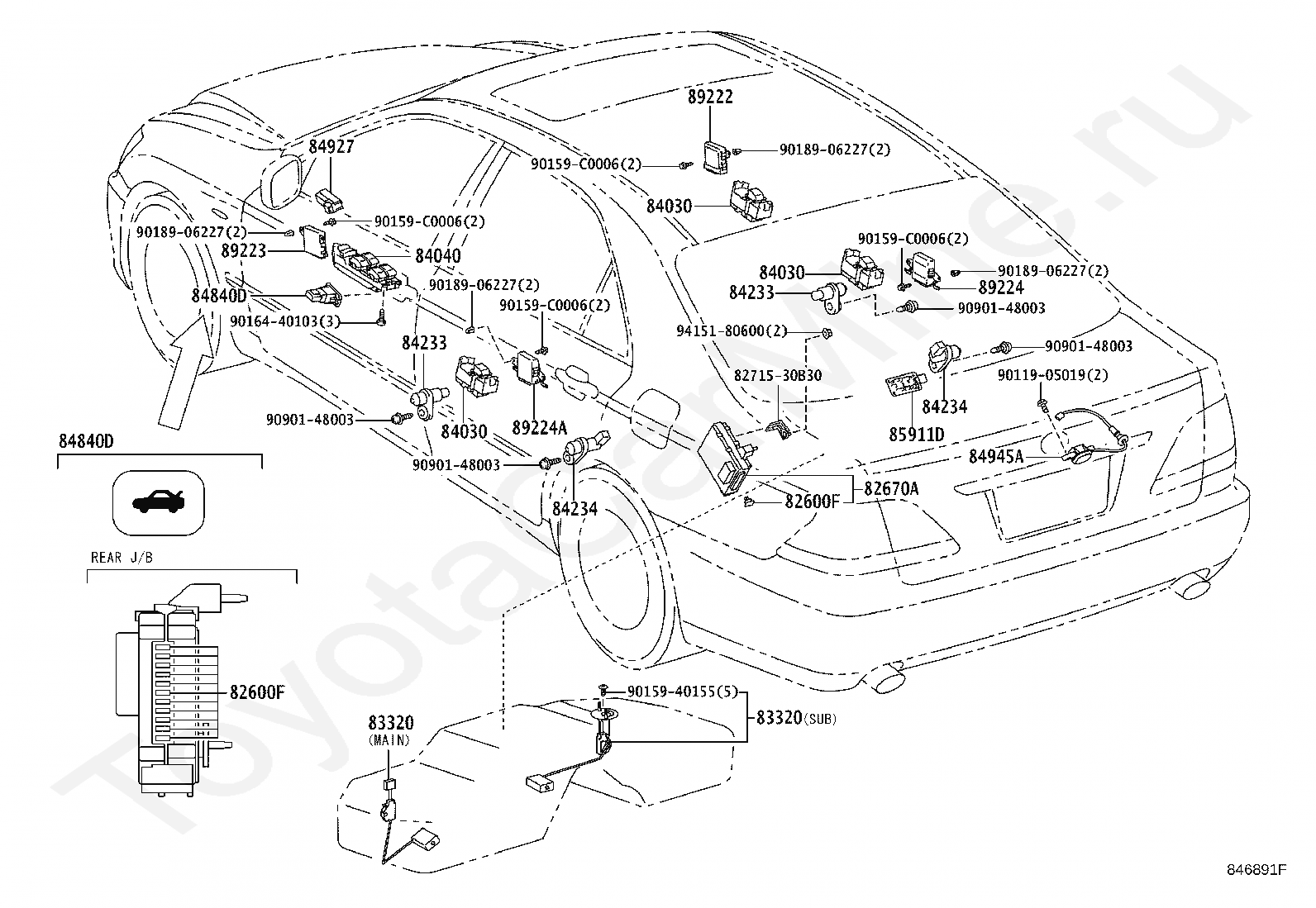

Код

Описание

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82670A

BLOCK ASSY, JUNCTION, NO.1

8271530B30

Крепеж

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84030

SWITCH ASSY,MULTIPLEX NETWORK

84030

SWITCH ASSY,MULTIPLEX NETWORK

84030

SWITCH ASSY,MULTIPLEX NETWORK

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84840D

SWITCH ASSY, LUGGAGE DOOR OPENING

84840D

SWITCH ASSY, LUGGAGE DOOR OPENING

84927

SWITCH, SEAT MEMORY

84945A

SWITCH, LUGGAGE ELECTRICAL KEY

85911D

RELAY, REAR SUNSHADE

89222

COMPUTER, MULTIPLEX NETWORK DOOR, FRONT RH

89223

COMPUTER, MULTIPLEX NETWORK DOOR, FRONT LH

89224

COMPUTER, MULTIPLEX NETWORK DOOR, REAR RH

89224A

COMPUTER, MULTIPLEX NETWORK DOOR, REAR LH

9011905019

Крепеж

9015940155

Крепеж

90159C0006

Крепеж

90159C0006

Крепеж

90159C0006

Крепеж

90159C0006

Крепеж

9016440103

Крепеж

9018906227

Крепеж

9018906227

Крепеж

9018906227

Крепеж

9018906227

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9090148003

Крепеж

9415180600

Крепеж
