Япония

Модель

CROWN

VIN

Дата

1987/09

Двигатель

2 литра, 24 клапана DOHC, EFI, нагнетатель

Кузов

седан

Класс

ROYAL SALOON TYPE

Фрейм

GS131

КПП

автомат АКПП, 4 ступени, на руле

Опции

SPACE CASUAL SPECIFICATION NORMAL BODY

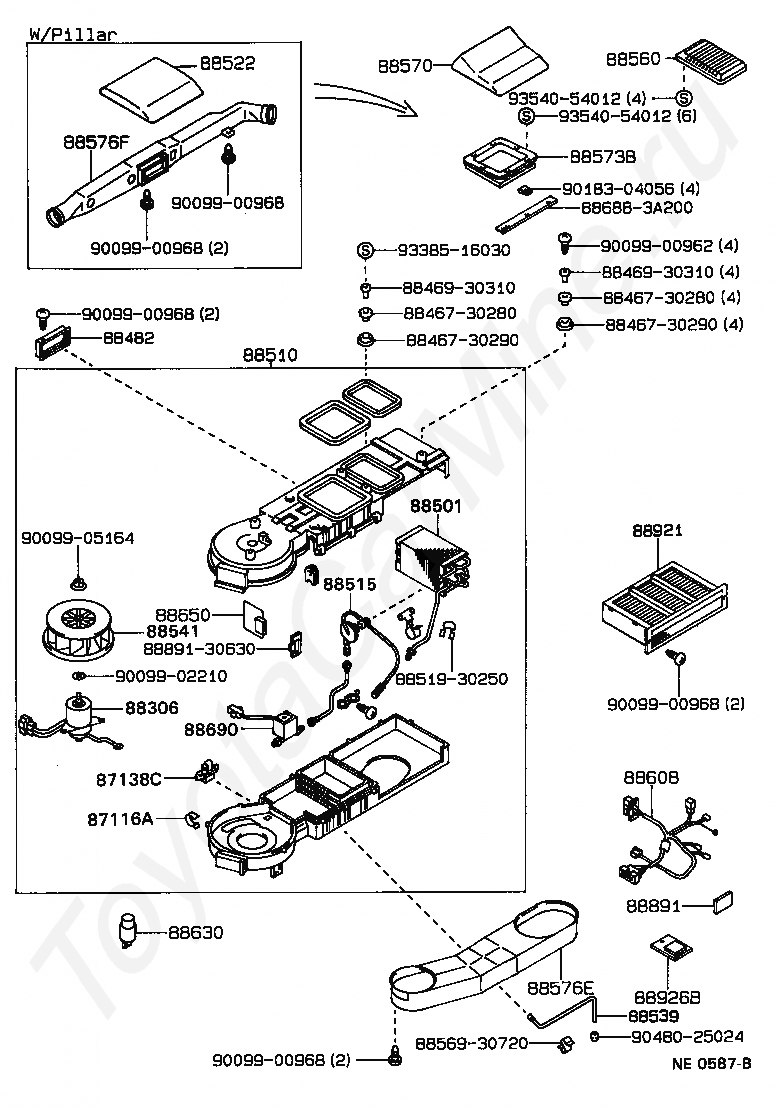

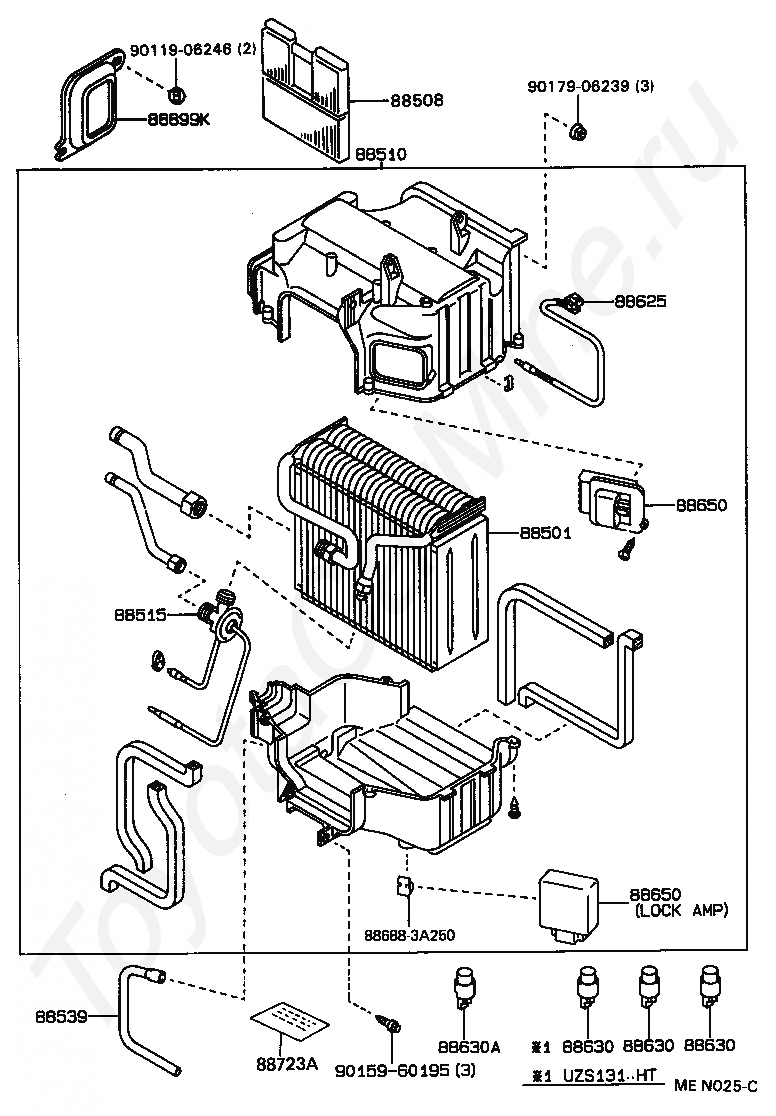

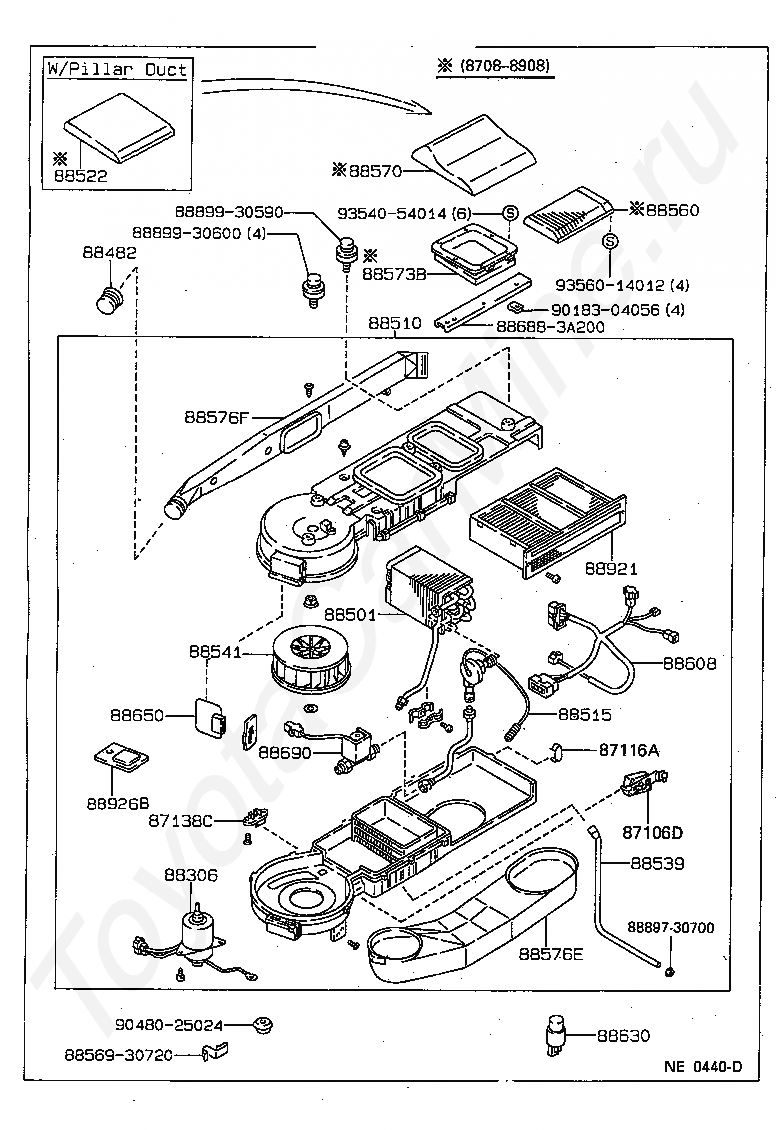

Кондиционер: охлаждающая система TOYOTA CROWN

Код

Описание

87116A

SPRING, HOLDING (FOR COOLER UNIT CASE)

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88508

FILTER SUB-ASSY, CLEAN AIR

88510

UNIT ASSY, COOLER

88515

VALVE, COOLER EXPANSION

88539

HOSE, COOLER UNIT DRAIN, NO.1

8856930880

Крепеж

88608

HARNESS SUB-ASSY, WIRING AIR CONDITIONER

88625

THERMISTOR, COOLER, NO.1

88630

RELAY ASSY, COOLER

88630A

RELAY ASSY, COOLER

88650

AMPLIFIER ASSY, COOLER STABILIZER

886883A070

Крепеж

886883A080

Крепеж

88891

PACKING (FOR COOLER)

8889995A14

Крепеж

88899K

PLATE, COVER

9009490405

Крепеж

9017908123

Крепеж

9354014010

Крепеж

9354014010

Крепеж

Код

Описание

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88508

FILTER SUB-ASSY, CLEAN AIR

88510

UNIT ASSY, COOLER

88515

VALVE, COOLER EXPANSION

88539

HOSE, COOLER UNIT DRAIN, NO.1

88625

THERMISTOR, COOLER, NO.1

88630

RELAY ASSY, COOLER

88630

RELAY ASSY, COOLER

88630

RELAY ASSY, COOLER

88630A

RELAY ASSY, COOLER

88650

AMPLIFIER ASSY, COOLER STABILIZER

88650

AMPLIFIER ASSY, COOLER STABILIZER

886883A250

Крепеж

88723A

LABEL, COOLER SERVICE CAUTION

88899K

PLATE, COVER

9011906246

Крепеж

9015960195

Крепеж

9017906239

Крепеж

Код

Описание

87116A

SPRING, HOLDING (FOR COOLER UNIT CASE)

87138C

RESISTOR, BLOWER

88306

MOTOR SUB-ASSY, COOLER BLOWER, NO.1

8846730280

Крепеж

8846730280

Крепеж

8846730290

Крепеж

8846730290

Крепеж

8846930310

Крепеж

8846930310

Крепеж

88482

CAP, COOLER

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88510

UNIT ASSY, COOLER

88515

VALVE, COOLER EXPANSION

8851930250

Крепеж

88522

DOOR, COOLING UNIT

88539

HOSE, COOLER UNIT DRAIN, NO.1

88541

FAN, BLOWER

88560

GRILLE ASSY, COOLER AIR INLET

8856930720

Крепеж

88570

GRILLE SUB-ASSY, COOLER AIR OUTLET

88573B

BASE, GRILLE

88576E

DUCT, COOLER AIR, NO.1

88576F

DUCT, COOLER AIR, NO.2

88608

HARNESS SUB-ASSY, WIRING AIR CONDITIONER

88630

RELAY ASSY, COOLER

88650

AMPLIFIER ASSY, COOLER STABILIZER

886883A200

Крепеж

88690

VALVE ASSY, COOLER MAGNET

88891

PACKING (FOR COOLER)

8889130630

Крепеж

88921

FILTER, AIR PURIFIER, NO.1

88926B

FILTER, AIR PURIFIER

9009900962

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9009902210

Крепеж

9009905164

Крепеж

9018304056

Крепеж

9048025024

Крепеж

9338516030

Крепеж

9354054012

Крепеж

9354054012

Крепеж

Код

Описание

87106D

SERVO SUB-ASSY, DAMPER, NO.1

87116A

SPRING, HOLDING (FOR COOLER UNIT CASE)

87138C

RESISTOR, BLOWER

88306

MOTOR SUB-ASSY, COOLER BLOWER, NO.1

88482

CAP, COOLER

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88510

UNIT ASSY, COOLER

88515

VALVE, COOLER EXPANSION

88522

DOOR, COOLING UNIT

88539

HOSE, COOLER UNIT DRAIN, NO.1

88541

FAN, BLOWER

88560

GRILLE ASSY, COOLER AIR INLET

8856930720

Крепеж

88570

GRILLE SUB-ASSY, COOLER AIR OUTLET

88573B

BASE, GRILLE

88576E

DUCT, COOLER AIR, NO.1

88576F

DUCT, COOLER AIR, NO.2

88608

HARNESS SUB-ASSY, WIRING AIR CONDITIONER

88630

RELAY ASSY, COOLER

88650

AMPLIFIER ASSY, COOLER STABILIZER

886883A200

Крепеж

88690

VALVE ASSY, COOLER MAGNET

8889730700

Крепеж

8889930590

Крепеж

8889930600

Крепеж

88921

FILTER, AIR PURIFIER, NO.1

88926B

FILTER, AIR PURIFIER

9018304056

Крепеж

9048025024

Крепеж

9354054014

Крепеж

9356014012

Крепеж

Кондиционер: охлаждающая система TOYOTA CROWN
