Ходовые запчасти

Каталог

Япония

Модель

CROWN

VIN

Дата

1987/09

Двигатель

2 литра, 24 клапана DOHC, EFI, нагнетатель

Кузов

седан

Класс

ROYAL SALOON TYPE

Фрейм

GS131

КПП

автомат АКПП, 4 ступени, на руле

Опции

SPACE CASUAL SPECIFICATION NORMAL BODY

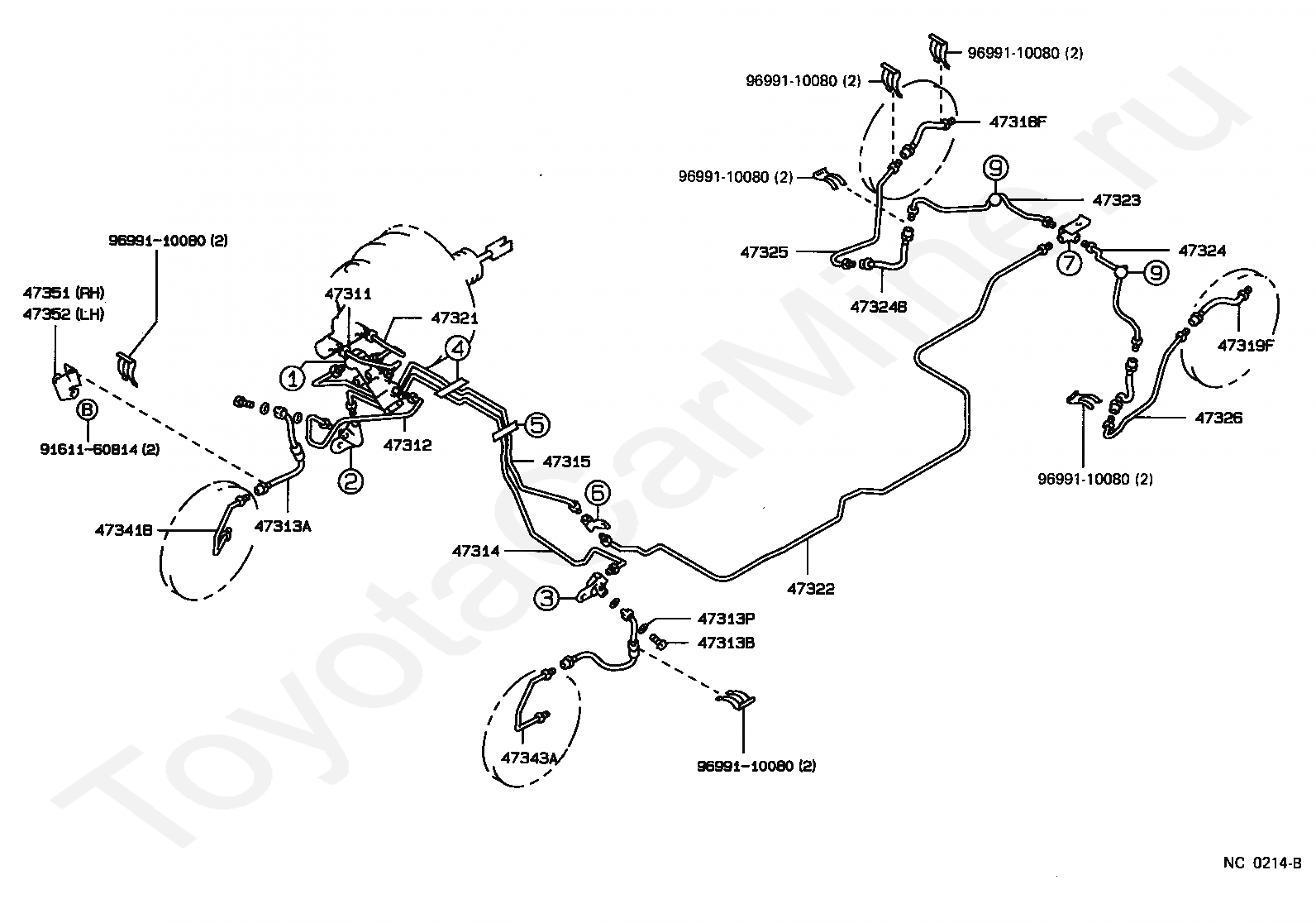

Тормозная магистраль TOYOTA CROWN

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47312

TUBE, FRONT BRAKE, NO.2

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47324B

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47341B

TUBE, WHEEL CYLINDER, FRONT RH NO.1

47343A

TUBE, WHEEL CYLINDER, FRONT LH NO.1

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

9161160814

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

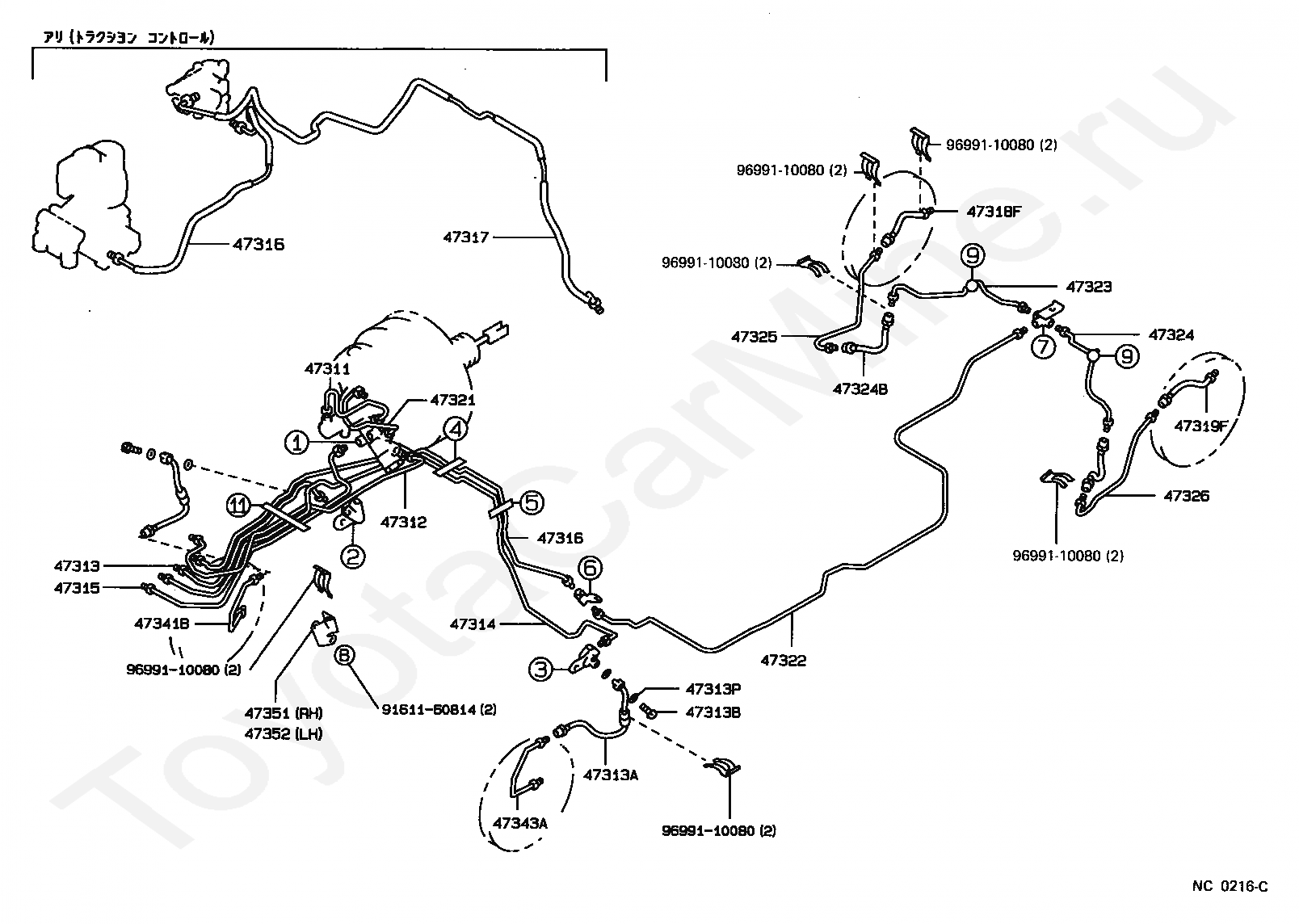

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47316

TUBE, FRONT BRAKE, NO.6

47317

TUBE, FRONT BRAKE, NO.7

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47324B

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47341B

TUBE, WHEEL CYLINDER, FRONT RH NO.1

47343A

TUBE, WHEEL CYLINDER, FRONT LH NO.1

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

9161160814

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

9699110080

Крепеж

Код

Описание

47159B

BRACKET, PROPORTIONING & BY-PASS VALVE

47190

VALVE ASSY, PROPORTIONING & BY-PASS

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322B

WAY, NO.2(FOR REAR BRAKE TUBE)

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

9011906005

Крепеж

9011906398

Крепеж

9046106041

Крепеж

9046106051

Крепеж

9046106902

Крепеж

9046400208

Крепеж

9161160612

Крепеж

9161160612

Крепеж

9161160640

Крепеж

9165540616

Крепеж

9165540616

Крепеж

9165540616

Крепеж

9165540816

Крепеж

9165540820

Крепеж

9165540820

Крепеж

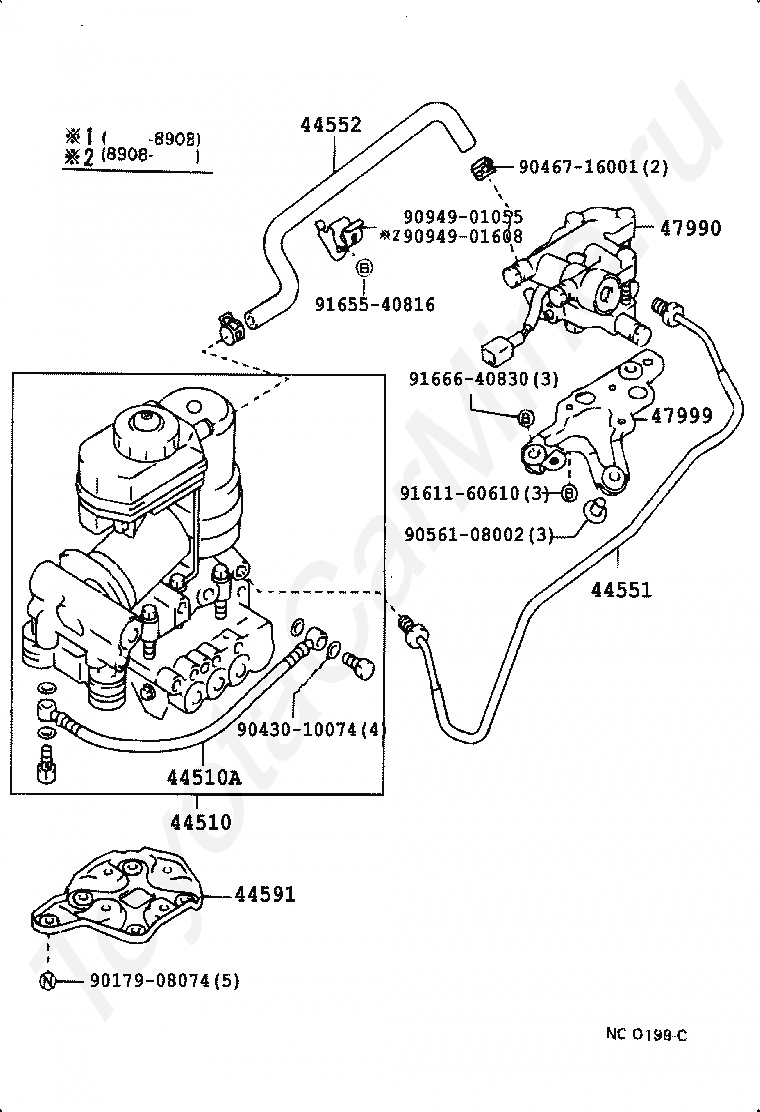

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44510A

HOSE, PRESSURE

44551

TUBE, BRAKE ACTUATOR, NO.1

44552

TUBE, BRAKE ACTUATOR, NO.2

44591

BRACKET, BRAKE ACTUATOR, NO.1

47990

ACTUATOR ASSY, BRAKE TRACTION

47999

BRACKET, BRAKE TRACTION ACTUATOR, NO.2

9017908074

Крепеж

9043010074

Крепеж

9046716001

Крепеж

9056108002

Крепеж

9094901055

Крепеж

9094901608

Крепеж

9161160610

Крепеж

9165540816

Крепеж

9166640830

Крепеж
