Ходовые запчасти

Каталог

Япония

Модель

CROWN

VIN

Дата

1987/09

Двигатель

2 литра, 24 клапана DOHC, EFI, нагнетатель

Кузов

седан

Класс

ROYAL SALOON TYPE

Фрейм

GS131

КПП

автомат АКПП, 4 ступени, на руле

Опции

SPACE CASUAL SPECIFICATION NORMAL BODY

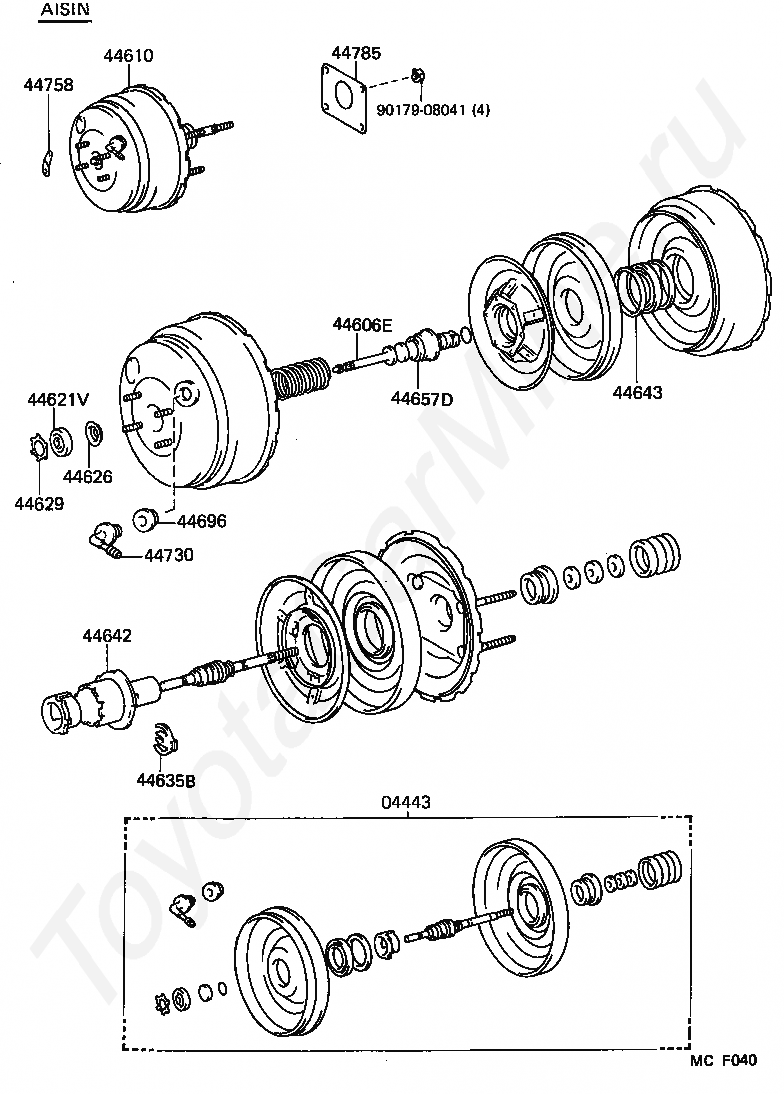

Вакуумный тормозной цилиндр TOYOTA CROWN

Код

Описание

04443

BOOSTER KIT, BRAKE

44606E

ROD SUB-ASSY, BRAKE BOOSTER PISTON

44610

BOOSTER ASSY, BRAKE

44621V

SEAL, BOOSTER BODY

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44635B

KEY, VALVE STOPPER

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44657D

CASE, REACTION DISC

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

44785

GASKET, BRAKE BOOSTER

9017908041

Крепеж

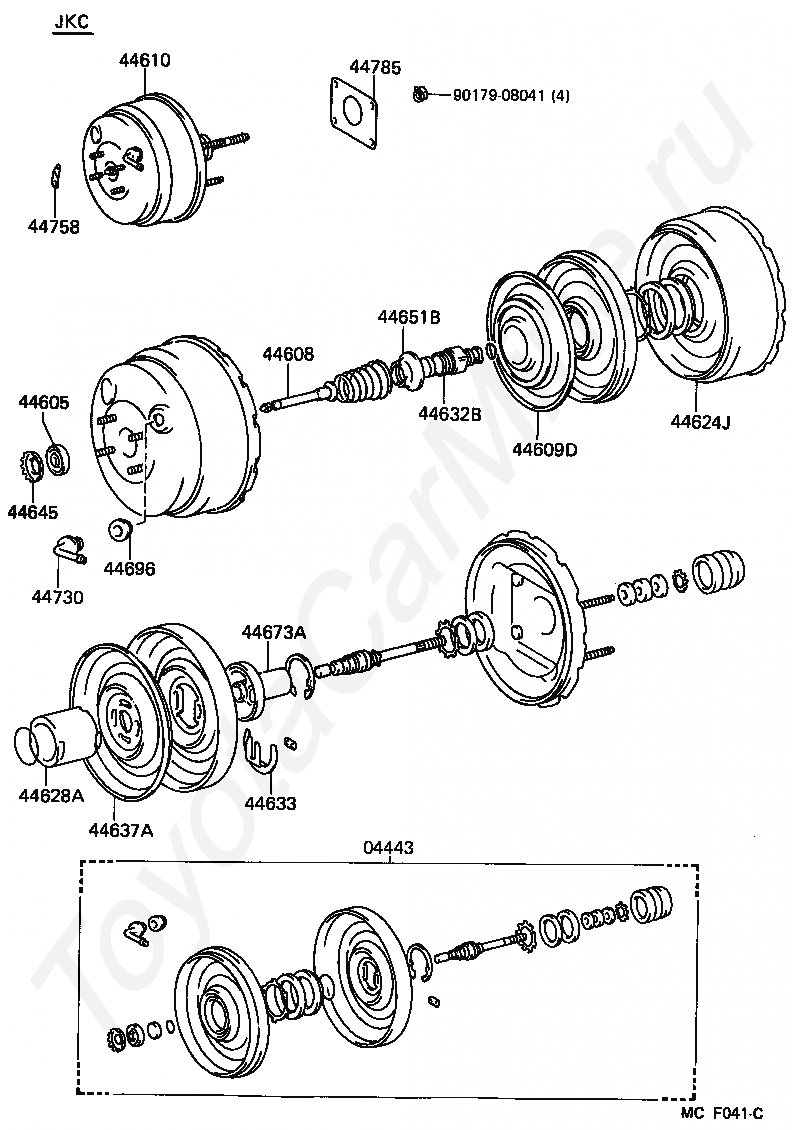

Код

Описание

04443

BOOSTER KIT, BRAKE

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44609D

PLATE & RETAINER SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44624J

PLATE, BOOSTER CENTER

44628A

BODY, BOOSTER CENTER

44632B

HUB, BOOSTER REACTION DISK

44633

KEY, BOOSTER VALVE PLUNGER

44637A

PLATE, BOOSTER DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44651B

NUT, BOOSTER

44673A

BODY, BOOSTER VALVE

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

44785

GASKET, BRAKE BOOSTER

9017908041

Крепеж

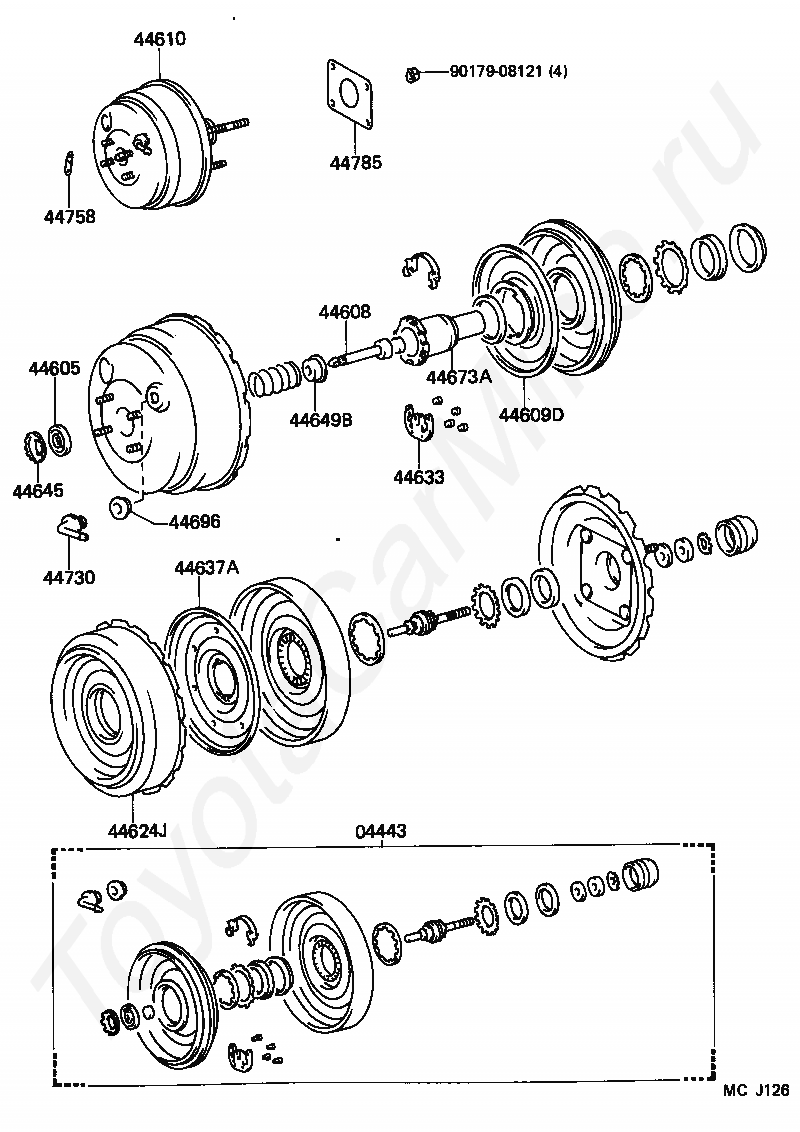

Код

Описание

04443

BOOSTER KIT, BRAKE

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44609D

PLATE & RETAINER SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44624J

PLATE, BOOSTER CENTER

44633

KEY, BOOSTER VALVE PLUNGER

44637A

PLATE, BOOSTER DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44649B

RETAINER, BOOSTER SPRING

44673A

BODY, BOOSTER VALVE

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

44785

GASKET, BRAKE BOOSTER

9017908121

Крепеж

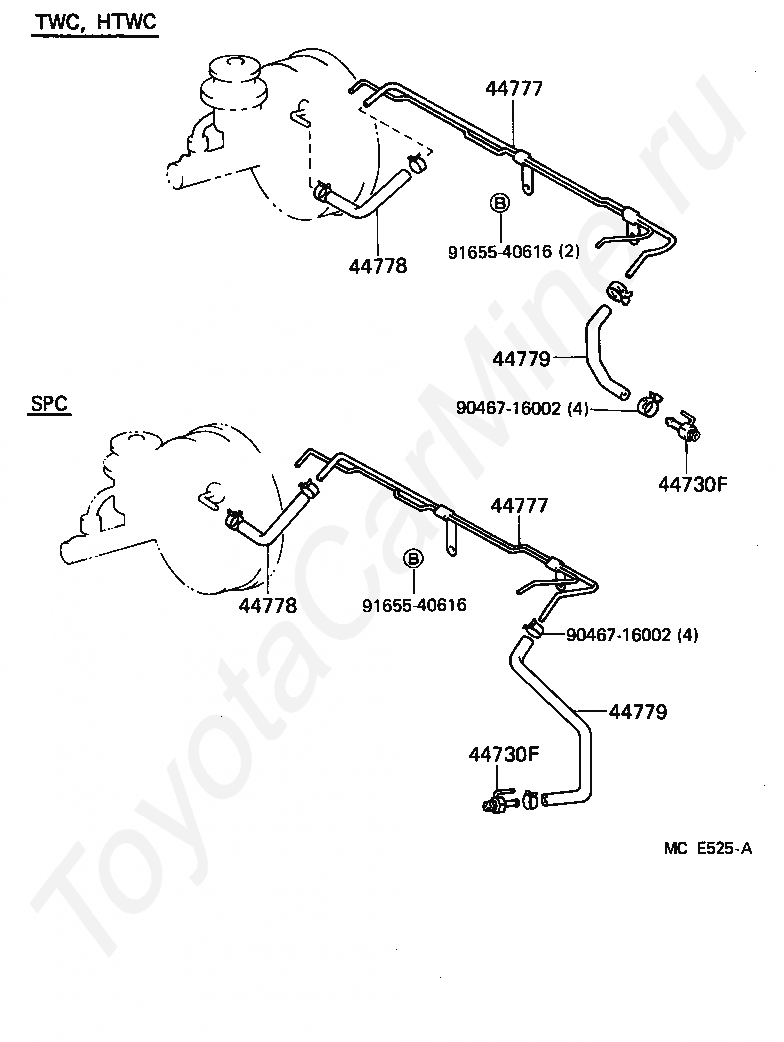

Код

Описание

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44777

CONNECTOR, VACUUM HOSE, NO.1

44777

CONNECTOR, VACUUM HOSE, NO.1

44778

HOSE, CONNECTOR TO CHECK VALVE

44778

HOSE, CONNECTOR TO CHECK VALVE

44779

HOSE, UNION TO CONNECTOR

44779

HOSE, UNION TO CONNECTOR

9046716002

Крепеж

9046716002

Крепеж

9165540616

Крепеж

9165540616

Крепеж
