Ходовые запчасти

Каталог

Япония

Модель

CROWN

VIN

Дата

1987/09

Двигатель

2 литра, 24 клапана DOHC, EFI, нагнетатель

Кузов

седан

Класс

ROYAL SALOON TYPE

Фрейм

GS131

КПП

автомат АКПП, 4 ступени, на руле

Опции

SPACE CASUAL SPECIFICATION NORMAL BODY

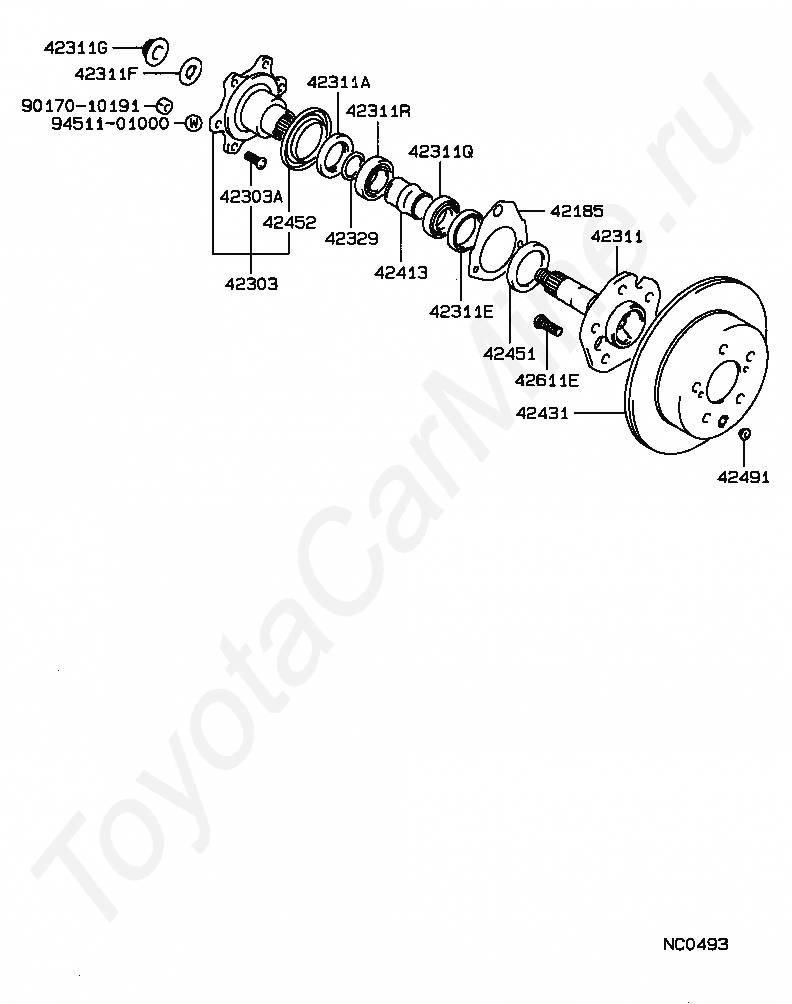

Задняя ступица и тормозной диск TOYOTA CROWN

Код

Описание

04421

BEARING KIT, REAR AXLE SHAFT

04421

BEARING KIT, REAR AXLE SHAFT

42185

GASKET, REAR AXLE HOUSING END

42185

GASKET, REAR AXLE HOUSING END

42311

SHAFT, REAR AXLE

42311

SHAFT, REAR AXLE

42311A

SEAL, OIL (FOR REAR AXLE SHAFT)

42311A

SEAL, OIL (FOR REAR AXLE SHAFT)

42403

DRUM SUB-ASSY, REAR BRAKE

42403A

PIECE, BALANCE (FOR REAR BRAKE DRUM)

42424

RETAINER, REAR AXLE BEARING, OUTER, RH

42424

RETAINER, REAR AXLE BEARING, OUTER, RH

42425

GASKET, REAR AXLE BEARING RETAINER

42425

GASKET, REAR AXLE BEARING RETAINER

42431

DISC, REAR

42454

RETAINER, REAR AXLE BEARING, OUTER, LH

42454

RETAINER, REAR AXLE BEARING, OUTER, LH

42491

PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

42611E

BOLT, HUB (FOR REAR AXLE)

42611E

BOLT, HUB (FOR REAR AXLE)

9020510005

Крепеж

Код

Описание

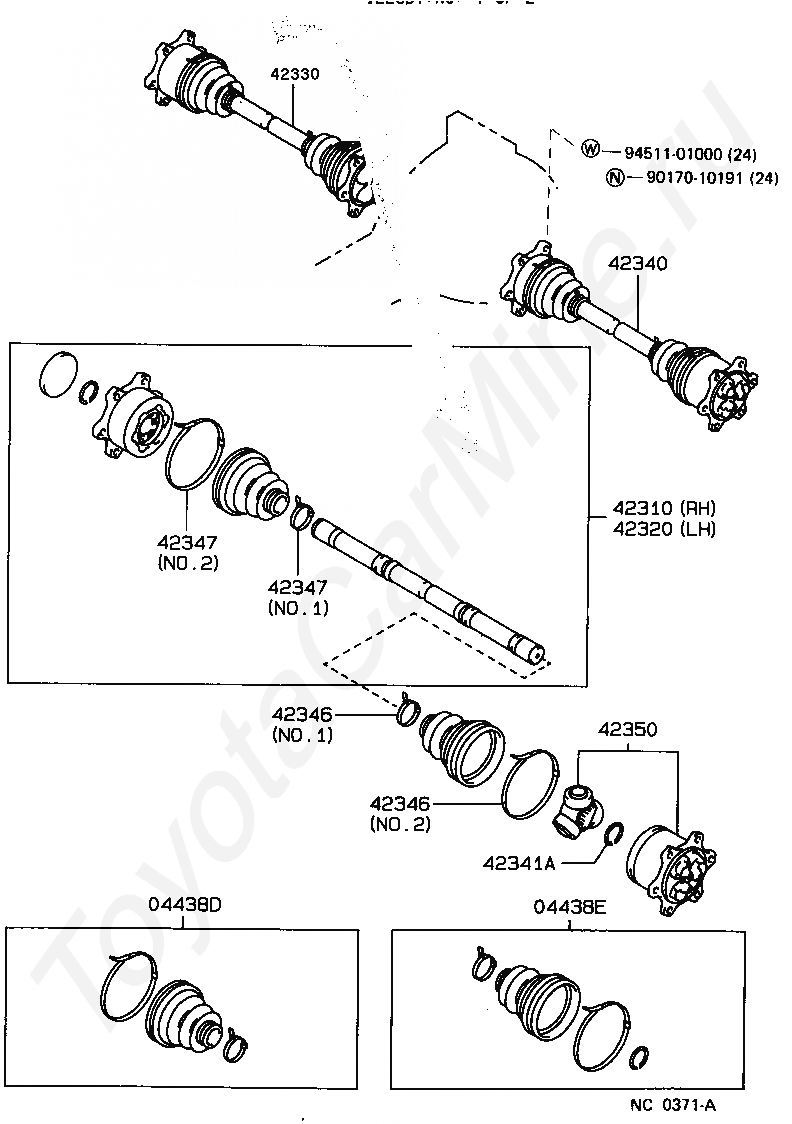

04438D

BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

04438E

BOOT KIT, REAR DRIVE SHAFT OUTBOARD JOINT

42310

SHAFT ASSY, REAR DRIVE INBOARD JOINT, RH

42320

SHAFT ASSY, REAR DRIVE INBOARD JOINT, LH

42330

SHAFT ASSY, REAR DRIVE, RH

42340

SHAFT ASSY, REAR DRIVE

42341A

RING, SNAP (FOR REAR DRIVE SHAFT)

42346

CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

42346

CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

42347

CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

42347

CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

42350

JOINT ASSY, REAR DRIVE SHAFT OUTBOARD

9017010191

Крепеж

9451101000

Крепеж

Код

Описание

42185

GASKET, REAR AXLE HOUSING END

42303

FLANGE SUB-ASSY, REAR AXLE

42303A

BOLT, SERRATION (FOR REAR AXLE FLANGE)

42311

SHAFT, REAR AXLE

42311A

SEAL, OIL (FOR REAR AXLE SHAFT)

42311E

SEAL, OIL (FOR REAR AXLE SHAFT OUTER)

42311F

WASHER, PLATE (FOR REAR AXLE SHAFT)

42311G

NUT (FOR REAR AXLE SHAFT)

42311Q

BEARING (FOR REAR AXLE SHAFT OUTER)

42311R

BEARING (FOR REAR AXLE SHAFT INNER)

42329

SPACER, REAR AXLE SHAFT

42413

SPACER, REAR WHEEL BEARING

42431

DISC, REAR

42451

DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

42452

DEFLECTOR, REAR WHEEL BEARING DUST, NO.2

42491

PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

42611E

BOLT, HUB (FOR REAR AXLE)

9017010191

Крепеж

9451101000

Крепеж
