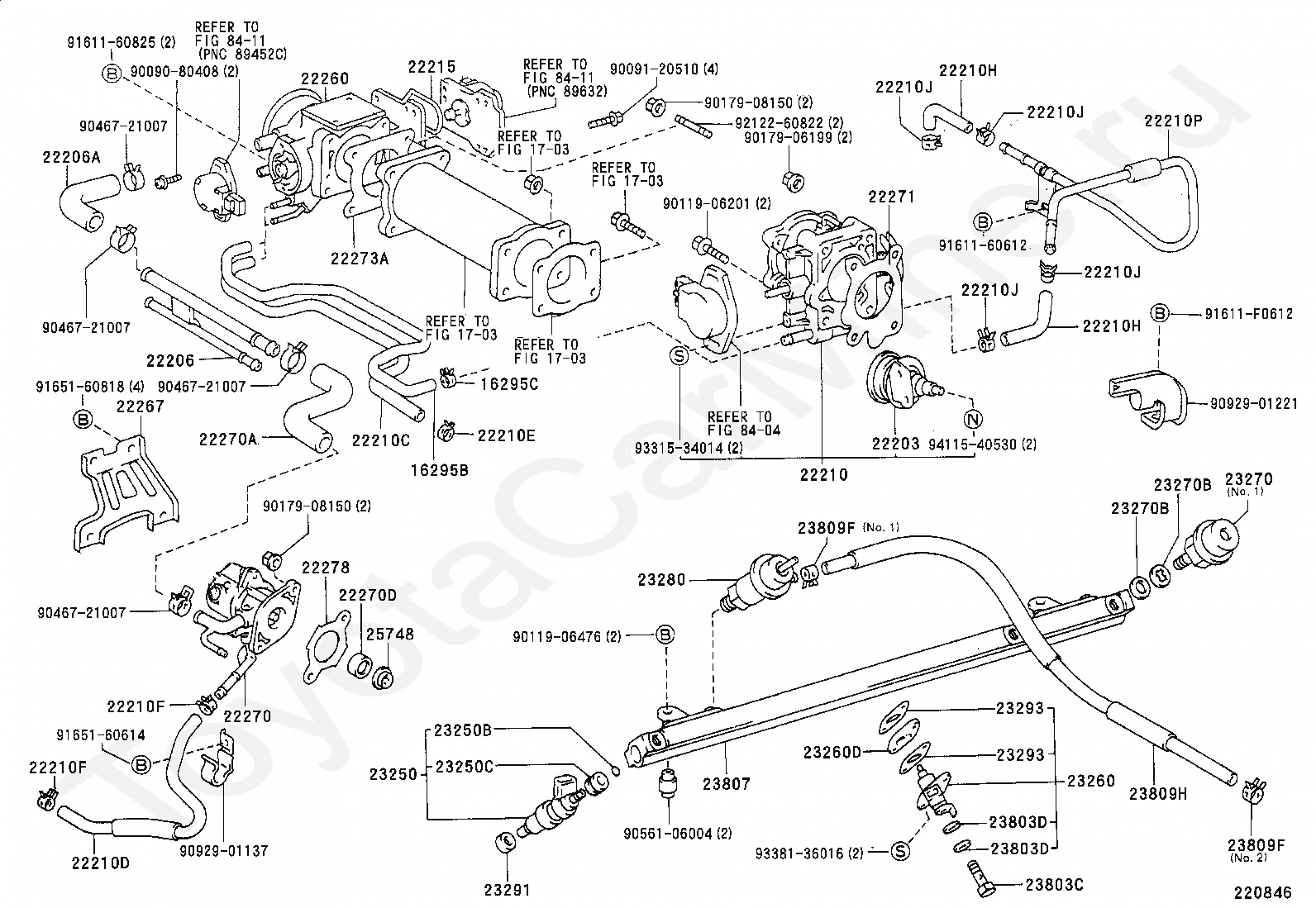

16295B
HOSE, WATER BY-PASS, NO.7
16295C
CLIP(FOR WATER BY-PASS HOSE NO.7)
1703
переход к группе запчастей
1703
переход к группе запчастей
1703
переход к группе запчастей
1703
переход к группе запчастей

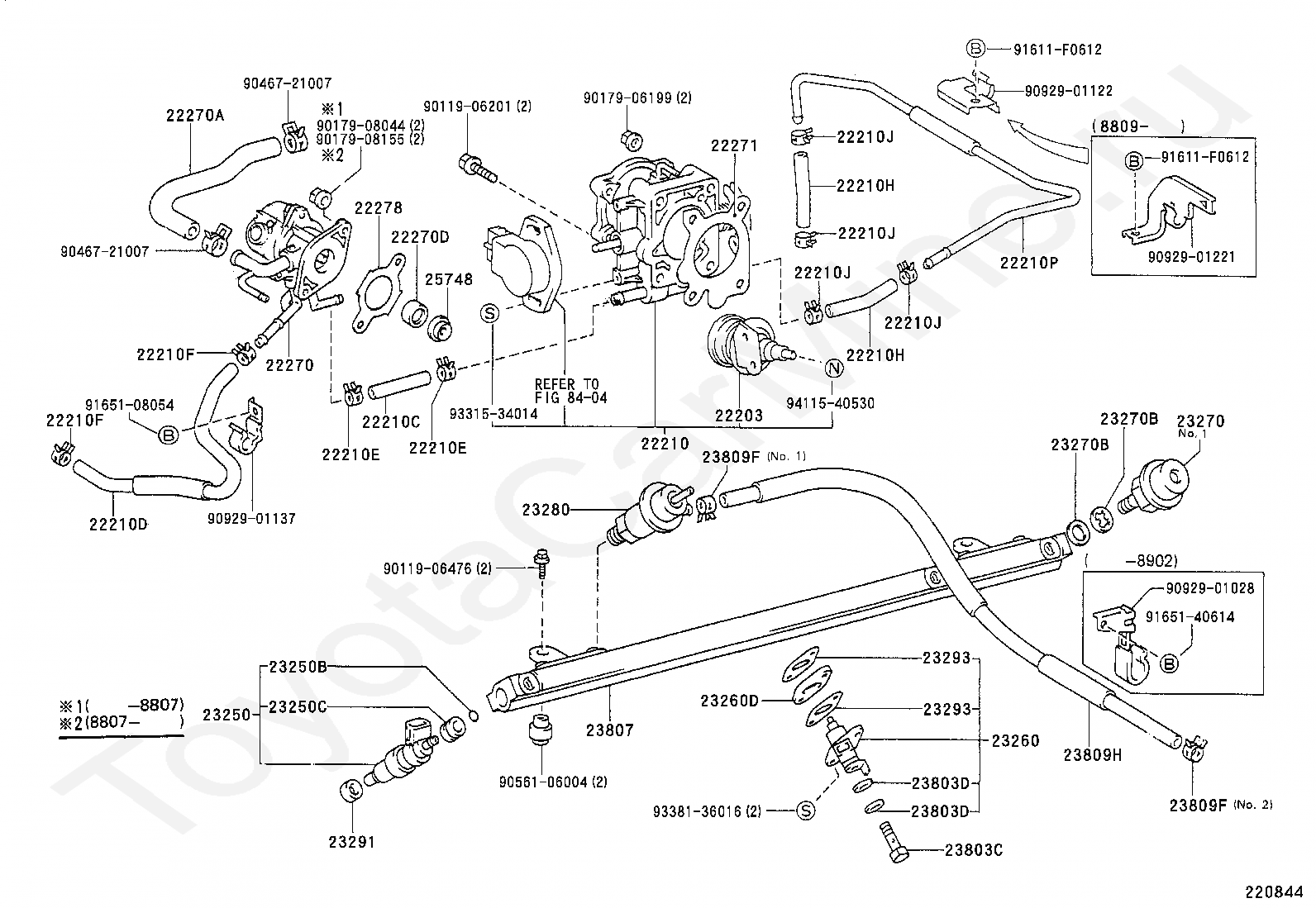

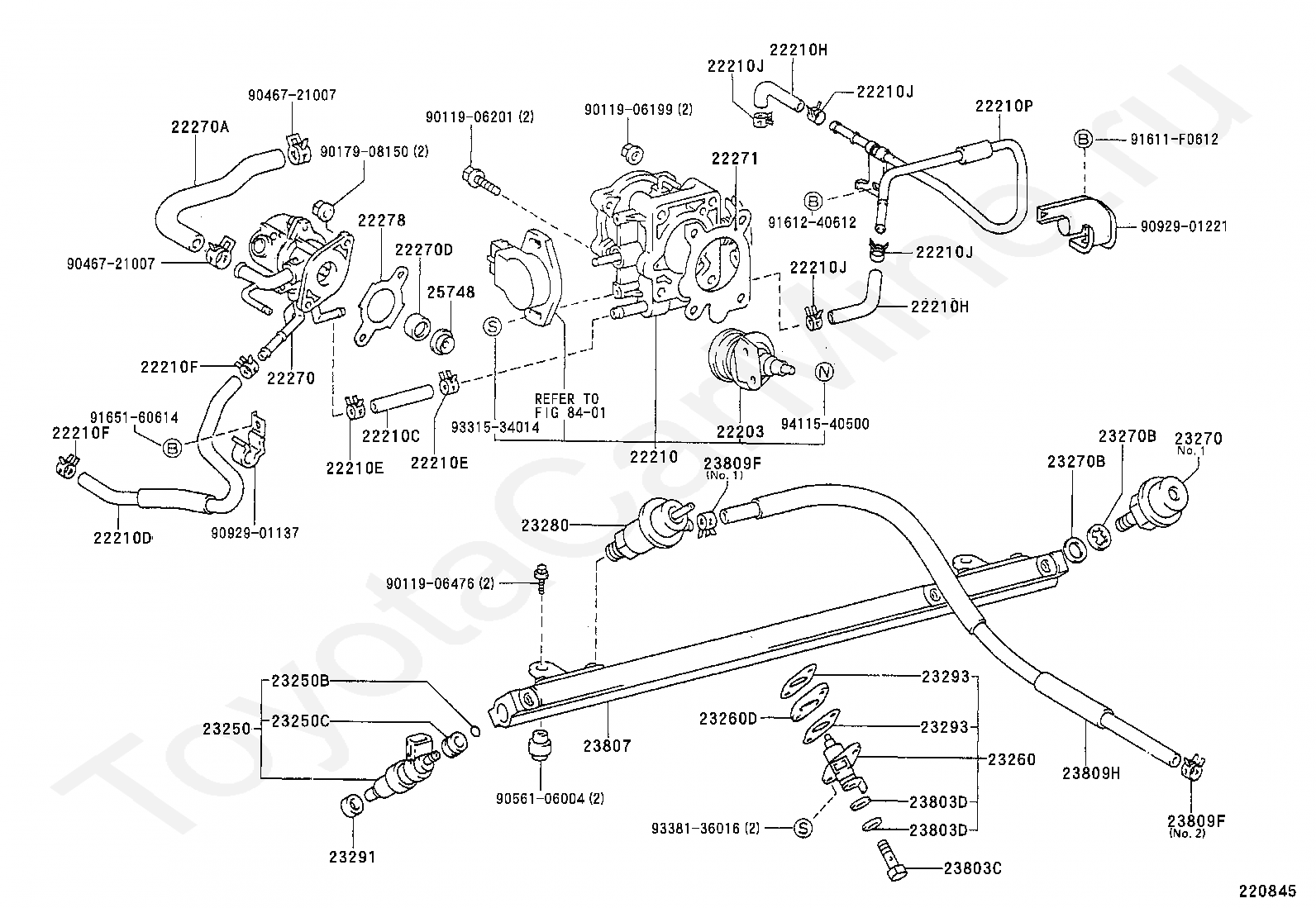

22203
DASH POT SUB-ASSY(FOR THROTTLE BODY)
22206
PIPE SUB-ASSY, IDLE SPEED CONTROL
22210
BODY ASSY, THROTTLE
22210C
HOSE, WATER BY-PASS, NO.1
22210D
HOSE, WATER BY-PASS, NO.2
22210E
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210F
CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22210F
CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22210H
HOSE, WATER BY-PASS, NO.3
22210H
HOSE, WATER BY-PASS, NO.3
22210J
CLIP(FOR WATER BY-PASS HOSE NO.3)
22210J
CLIP(FOR WATER BY-PASS HOSE NO.3)
22210J
CLIP(FOR WATER BY-PASS HOSE NO.3)
22210J
CLIP(FOR WATER BY-PASS HOSE NO.3)
22210P
PIPE, WATER BY-PASS
22215
GASKET, THROTTLE BODY COVER
22260
BODY ASSY, THROTTLE, NO.2
22267
BRACKET, THROTTLE BODY
22270
VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270A
HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
22270D
WASHER, SEAL(FOR IDLE SPEED CONTROL VALVE)
22271
GASKET, THROTTLE BODY
22273A
GASKET, THROTTLE BODY, NO.2
22278
GASKET, IDLE SPEED CONTROL VALVE
23250
INJECTOR ASSY, FUEL
23250B
RING, O(FOR FUEL INJECTOR)
23250C
GROMMET(FOR FUEL INJECTOR)
23260
INJECTOR ASSY, COLD START FUEL
23260D
INSULATOR, COLD START FUEL INJECTOR
23270
DAMPER ASSY, FUEL PRESSURE PULSATION
23270B
GASKET(FOR PULSATION DAMPER HOSE)
23270B
GASKET(FOR PULSATION DAMPER HOSE)
23280
REGULATOR ASSY, FUEL PRESSURE
23291
INSULATOR, INJECTOR VIBRATION
23293
GASKET, COLD START INJECTOR
23293
GASKET, COLD START INJECTOR
23803C
GASKET(NOZZLE LEKAGE PIPE NO.3)
23803D
BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23803D
BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807
PIPE SUB-ASSY, FUEL DELIVERY
23809F
CLIP(FOR FUEL PIPE SUPPORT)
23809F
CLIP(FOR FUEL PIPE SUPPORT)
23809H
HOSE, FUEL PIPE SUPPORT TO REGULATOR
25748
VALVE, CHECK(FOR IDLE SPEED CONTROL)
8404
переход к группе запчастей
8411
переход к группе запчастей
8411
переход к группе запчастей
