Ходовые запчасти

Каталог

Япония

Модель

CROWN

VIN

Дата

1987/09

Двигатель

2 литра, 24 клапана DOHC, EFI, нагнетатель

Кузов

седан

Класс

ROYAL SALOON TYPE

Фрейм

GS131

КПП

автомат АКПП, 4 ступени, на руле

Опции

SPACE CASUAL SPECIFICATION NORMAL BODY

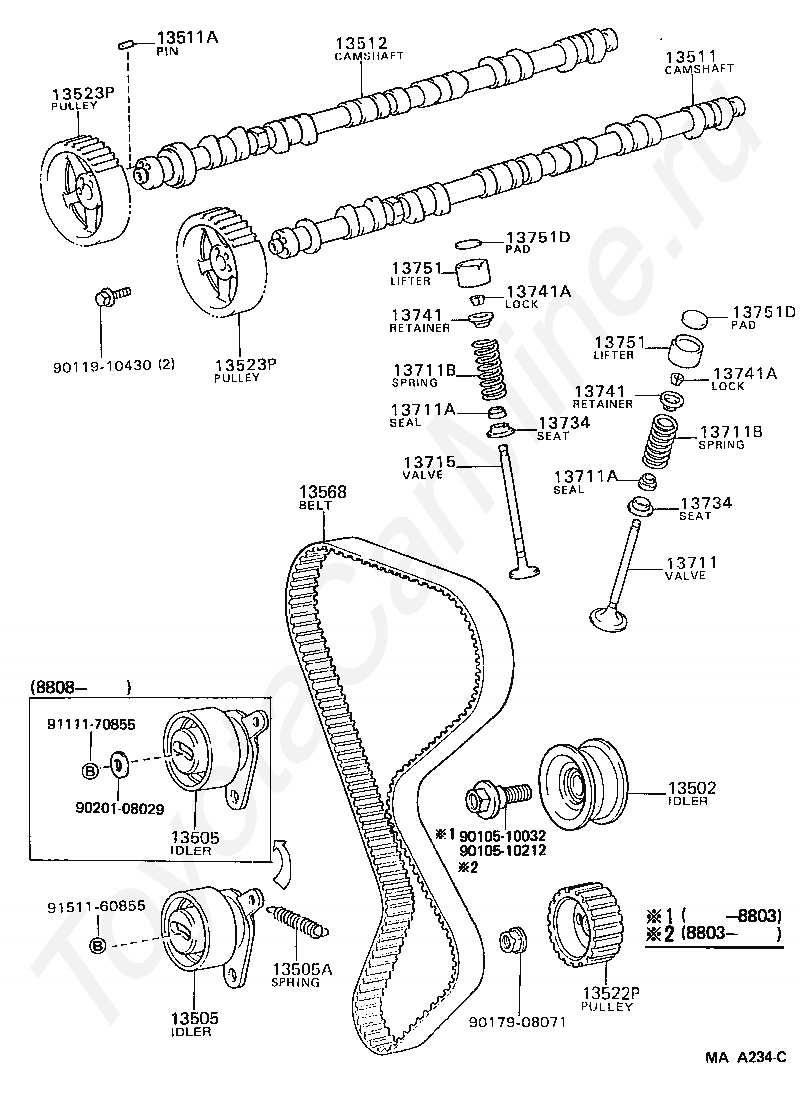

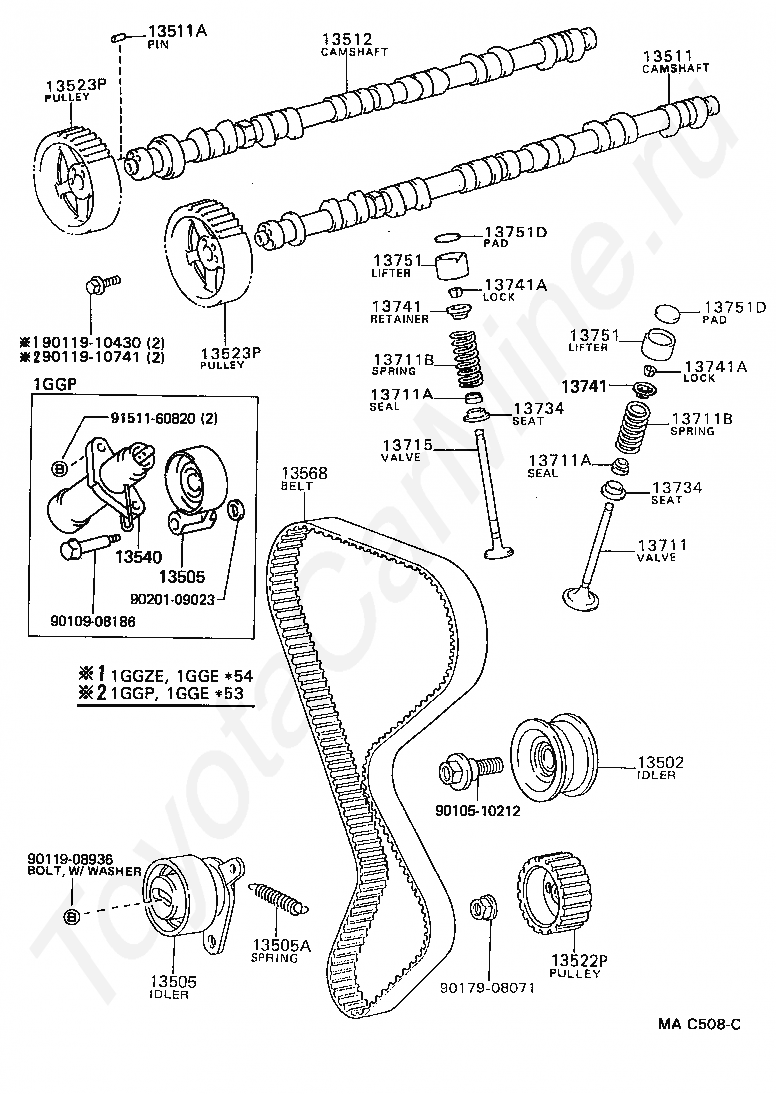

Распредвал, клапаны, ремень TOYOTA CROWN

Код

Описание

13502

IDLER SUB-ASSY, TIMING BELT, NO.2

13505

IDLER SUB-ASSY, TIMING BELT, NO.1

13505

IDLER SUB-ASSY, TIMING BELT, NO.1

13505A

SPRING, TENSION(FOR IDLER)

13511

CAMSHAFT

13511A

PIN, STRAIGHT(FOR CAMSHAFT KNOCK)

13512

CAMSHAFT, NO.2

13522P

PULLEY, PUMP DRIVE SHAFT

13523P

PULLEY, CAMSHAFT TIMING

13523P

PULLEY, CAMSHAFT TIMING

13568

BELT, TIMING

13711

VALVE, INTAKE

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711B

SPRING, COMPRESSION(FOR INNER)

13711B

SPRING, COMPRESSION(FOR INNER)

13715

VALVE, EXHAUST

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13751

LIFTER, VALVE

13751

LIFTER, VALVE

13751D

PAD, VALVE ADJUSTING

13751D

PAD, VALVE ADJUSTING

9010510032

Крепеж

9010510212

Крепеж

9011910430

Крепеж

9017908071

Крепеж

9020108029

Крепеж

9111170855

Крепеж

9151160855

Крепеж

Код

Описание

13502

IDLER SUB-ASSY, TIMING BELT, NO.2

13505

IDLER SUB-ASSY, TIMING BELT, NO.1

13505

IDLER SUB-ASSY, TIMING BELT, NO.1

13505A

SPRING, TENSION(FOR IDLER)

13511

CAMSHAFT

13511A

PIN, STRAIGHT(FOR CAMSHAFT KNOCK)

13512

CAMSHAFT, NO.2

13522P

PULLEY, PUMP DRIVE SHAFT

13523P

PULLEY, CAMSHAFT TIMING

13523P

PULLEY, CAMSHAFT TIMING

13540

TENSIONER ASSY, CHAIN, NO.1

13568

BELT, TIMING

13711

VALVE, INTAKE

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711B

SPRING, COMPRESSION(FOR INNER)

13711B

SPRING, COMPRESSION(FOR INNER)

13715

VALVE, EXHAUST

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13751

LIFTER, VALVE

13751

LIFTER, VALVE

13751D

PAD, VALVE ADJUSTING

13751D

PAD, VALVE ADJUSTING

9010510212

Крепеж

9010908186

Крепеж

9011908936

Крепеж

9011910430

Крепеж

9011910741

Крепеж

9017908071

Крепеж

9020109023

Крепеж

9151160820

Крепеж
