Ходовые запчасти

Каталог

Япония

Модель

CROWN

VIN

Дата

1987/09

Двигатель

2 литра, 24 клапана DOHC, EFI, нагнетатель

Кузов

седан

Класс

ROYAL SALOON TYPE

Фрейм

GS131

КПП

автомат АКПП, 4 ступени, на руле

Опции

SPACE CASUAL SPECIFICATION NORMAL BODY

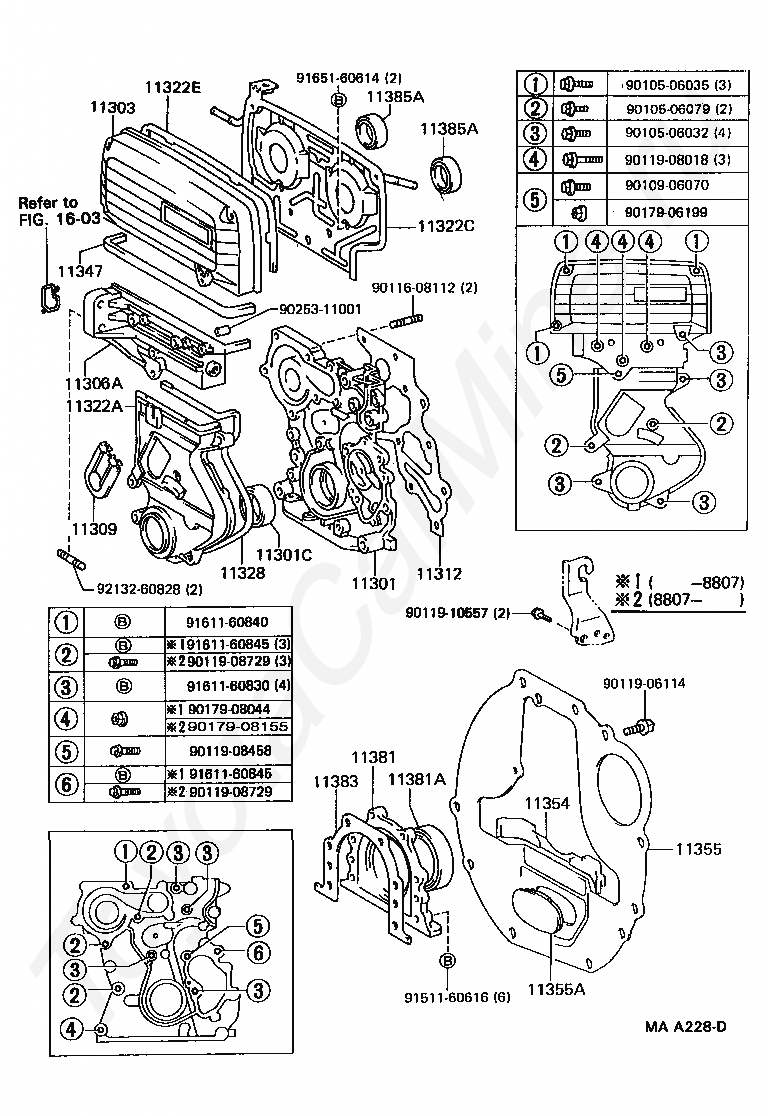

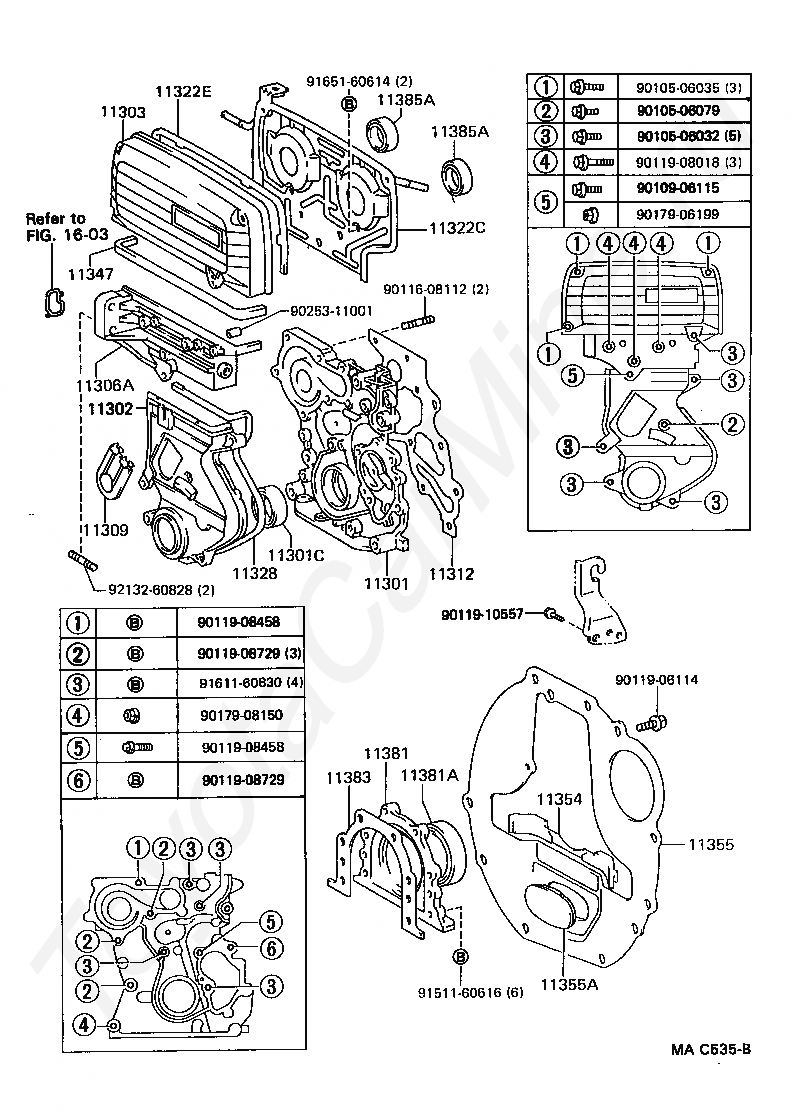

TIMING GEAR COVER & REAR END PLATE TOYOTA CROWN

Код

Описание

11301

CASE SUB-ASSY, TIMING GEAR

11301C

SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

11303

COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

11306A

COVER SUB-ASSY, TIMING BELT, NO.5

11309

COVER SUB-ASSY, TIMING BELT, NO.4

11312

GASKET, FRONT END PLATE

11322A

COVER, TIMING BELT, NO.1

11322C

COVER, TIMING BELT, NO.3

11322E

GASKET, TIMING BELT COVER, NO.2

11328

GASKET, TIMING GEAR OR CHAIN COVER

11347

GASKET, TIMING BELT COVER, NO.5

11354

SEAL, FLYWHEEL HOUSING DUST

11355

PLATE, REAR END

11355A

PLUG, HOLE(FOR REAR END PLATE)

11381

RETAINER, ENGINE REAR OIL SEAL

11381A

SEAL, ENGINE REAR OIL

11383

GASKET, ENGINE REAR OIL SEAL RETAINER

11385A

SEAL, OIL(FOR CAMSHAFT)

11385A

SEAL, OIL(FOR CAMSHAFT)

1603

переход к группе запчастей

9010506032

Крепеж

9010506035

Крепеж

9010506079

Крепеж

9010906070

Крепеж

9011608112

Крепеж

9011906114

Крепеж

9011908018

Крепеж

9011908458

Крепеж

9011908729

Крепеж

9011908729

Крепеж

9011910557

Крепеж

9017906199

Крепеж

9017908044

Крепеж

9017908155

Крепеж

9025311001

Крепеж

9151160616

Крепеж

9161160830

Крепеж

9161160840

Крепеж

9161160845

Крепеж

9161160845

Крепеж

9165160614

Крепеж

9213260828

Крепеж

Код

Описание

11301

CASE SUB-ASSY, TIMING GEAR

11301C

SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

11302

COVER SUB-ASSY, TIMING CHAIN OR BELT

11303

COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

11306A

COVER SUB-ASSY, TIMING BELT, NO.5

11309

COVER SUB-ASSY, TIMING BELT, NO.4

11312

GASKET, FRONT END PLATE

11322C

COVER, TIMING BELT, NO.3

11322E

GASKET, TIMING BELT COVER, NO.2

11328

GASKET, TIMING GEAR OR CHAIN COVER

11347

GASKET, TIMING BELT COVER, NO.5

11354

SEAL, FLYWHEEL HOUSING DUST

11355

PLATE, REAR END

11355A

PLUG, HOLE(FOR REAR END PLATE)

11381

RETAINER, ENGINE REAR OIL SEAL

11381A

SEAL, ENGINE REAR OIL

11383

GASKET, ENGINE REAR OIL SEAL RETAINER

11385A

SEAL, OIL(FOR CAMSHAFT)

11385A

SEAL, OIL(FOR CAMSHAFT)

1603

переход к группе запчастей

9010506032

Крепеж

9010506035

Крепеж

9010506079

Крепеж

9010906115

Крепеж

9011608112

Крепеж

9011906114

Крепеж

9011908018

Крепеж

9011908458

Крепеж

9011908458

Крепеж

9011908729

Крепеж

9011908729

Крепеж

9011910557

Крепеж

9017906199

Крепеж

9017908150

Крепеж

9025311001

Крепеж

9151160616

Крепеж

9161160830

Крепеж

9165160614

Крепеж

9213260828

Крепеж
