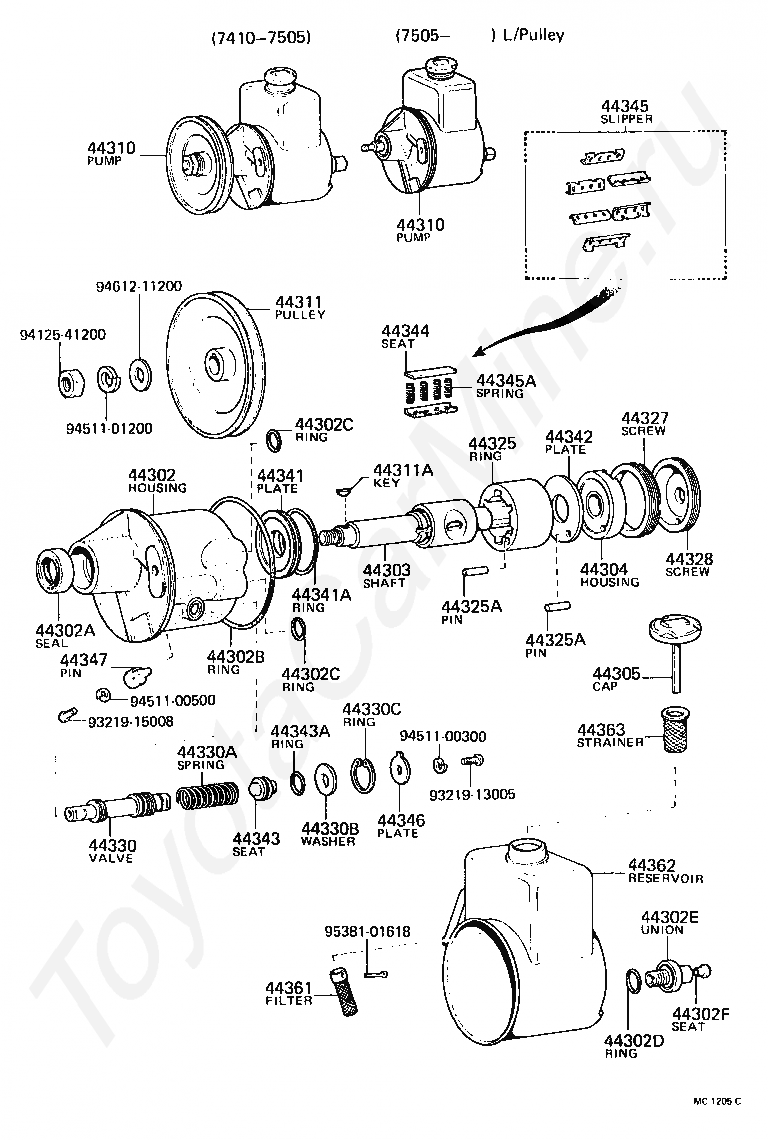

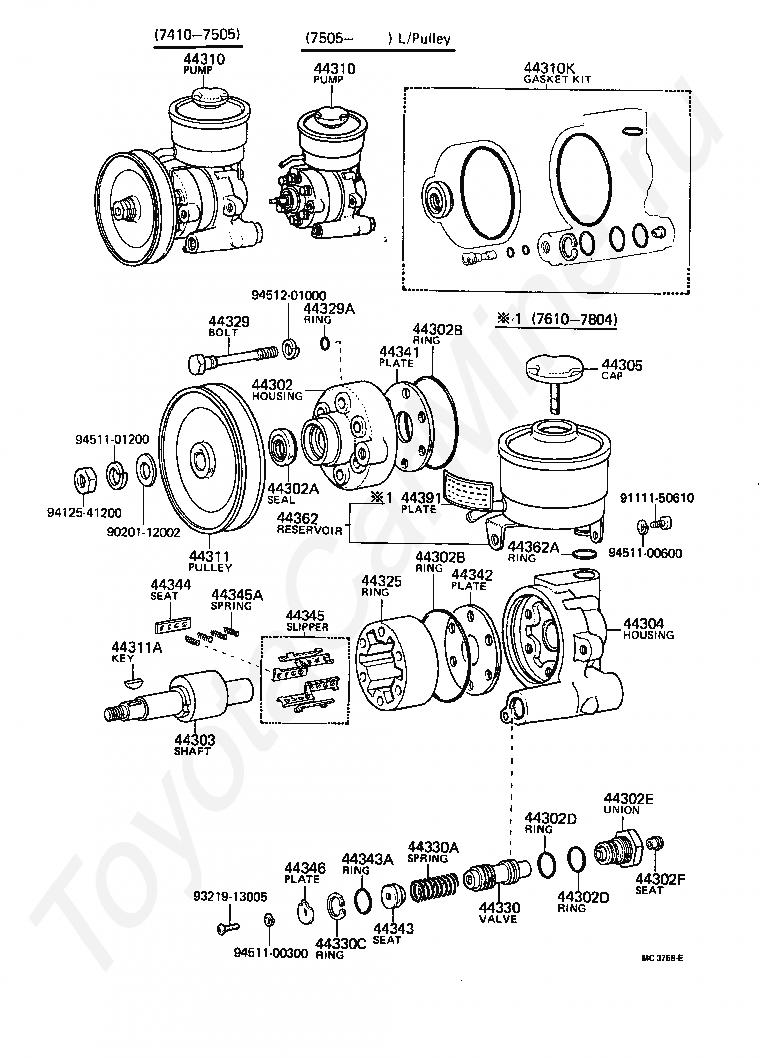

44302
HOUSING SUB-ASSY, VANE PUMP, FRONT
44302A
SEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
44302B
RING, O, NO.1(FOR VANE PUMP HOUSING)
44302C
RING, O, NO.2(FOR VANE PUMP HOUSING)
44302C
RING, O, NO.2(FOR VANE PUMP HOUSING)
44302D
RING, O, NO.3(FOR VANE PUMP HOUSING)
44302E
UNION(FOR PUMP HOUSING)
44302F
SEAT, UNION(FOR VANE PUMP HOUSING)
44303
SHAFT SUB-ASSY, W/ROTOR
44304
HOUSING SUB-ASSY, VANE PUMP, REAR
44305
CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44311A
KEY, VANE PUMP PULLEY
44325
RING, FIXED(FOR VANE PUMP)
44325A
PIN, STRAIGHT(FOR FIXED RING)
44325A
PIN, STRAIGHT(FOR FIXED RING)
44327
SCREW, RETAINING(FOR VANE PUMP)
44328
SCREW, LOCK(FOR VANE PUMP)
44330
VALVE ASSY, FLOW CONTROL
44330A
SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44330B
WASHER, PLATE(FOR FLOW CONTROL VALVE)
44330C
RING, SNAP(FOR FLOW CONTROL VALVE)
44341
PLATE, VANE PUMP SIDE, FRONT
44341A
RING, O(FOR VANE PUMP FRONT SIDE PLATE)
44342
PLATE, VANE PUMP SIDE, REAR
44343
SEAT, FLOW CONTROL SPRING
44343A
RING, O(FOR FLOW CONTROL SPRING SEAT)
44344
SEAT, SPRING(FOR VANE PUMP)
44345A
SPRING, COMPRESSION(FOR VANE PUMP SLIPPER)
44346
PLATE, SNAP RING LOCK
44347
PIN, LOCK(FOR VANE PUMP)
44361
FILTER, OIL(FOR VANE PUMP)
44362
RESERVOIR, OIL(FOR VANE PUMP)
44363
STRAINER, OIL(FOR VANE PUMP)
