Ближний Восток

Модель

CROWN

VIN

Дата

1976/11

Двигатель

2,6 литра

Кузов

седан

Класс

SUPER SALOON TYPE

Фрейм

MS85

КПП

автомат АКПП, 3 ступени

Опции

левый руль 4 двери Европа

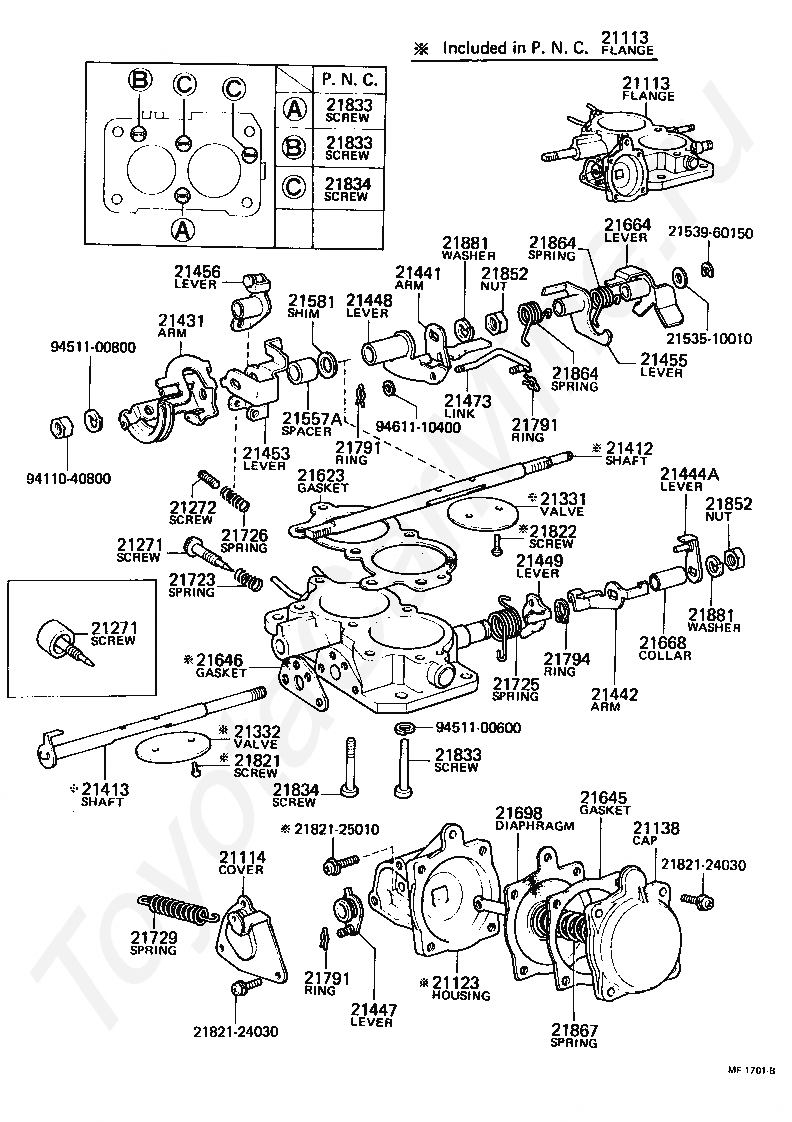

Карбюратор TOYOTA CROWN







Код

Описание

21015

HOUSING SUB-ASSY, COIL

21069

DASH POT SUB-ASSY

21112

HORN, AIR

21121

CASE, THERMOSTAT

21192

BREAKER

21334

VALVE, CHOKE

21414

SHAFT, CHOKE

21446

LEVER, 1ST IDLE CAM

21452

LEVER, PUMP

21454

LEVER, CHOKE

21471

LINK, PUMP CONNECTING

21476

LINK, 1ST IDLE

21477

LINK, CHOKE LEVER

21516

CLAMP, CONNECTOR

2152445100

Крепеж

21531

RETAINER, COIL HOUSING

21536

PLATE, COIL HOUSING

21575

STOPPER, B(FOR DISCHARGE WEIGHT)

21621

GASKET, UNION NIPPLE

21621

GASKET, UNION NIPPLE

21622

GASKET, AIR HORN

21627

GASKET, COIL HOUSING

21654A

LEVER, RELIEF

21672

CAP

21695

BOOT(FOR DASH POT)

21699

BOOT(FOR PUMP PLUNGER)

21735

SPRING, PUMP ARM

21751

UNION, NIPPLE

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

21811

BOLT, UNION NIPPLE

2182134380

Крепеж

21823

SCREW, CHOKE, VALVE SET

21826

SCREW, PUMP ARM SET

21837

SCREW, COIL HOUSING SET

21837

SCREW, COIL HOUSING SET

2183721010

Крепеж

2188544010

Крепеж

2353744020

Крепеж

2353744020

Крепеж

9311913012

Крепеж

9411040800

Крепеж

9411540500

Крепеж

9451100500

Крепеж

9461110300

Крепеж

9461110400

Крепеж

9461110400

Крепеж

9461110400

Крепеж

9538101610

Крепеж

Код

Описание

21035

PLUNGER SUB-ASSY, PUMP

21205

JET SUB-ASSY, SLOW

21209

FLOAT SUB-ASSY

21211

VENTURI, 1ST SMALL

21212

VENTURI, 2ND SMALL

21251

JET, 1ST MAIN

21253

JET, 2ND MAIN

21255

JET, POWER

21257

JET, PUMP

21257A

RING, O(FOR PUMP JET)

21257B

SPRING(FOR PUMP JET)

21273

SCREW, THROTTLE ADJUSTING

21291

GLASS, LEVEL GAGE

21301

VALVE SUB-ASSY, NEEDLE

21313

BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)

21314

BALL, STEEL, NO.2(FOR PUMP PLUNGER)

21341

VALVE, POWER

21351

PISTON, POWER

21371

CAM, 1ST IDLE

2139845220

Крепеж

21439

ARM, 1ST IDLE

21511

CLAMP, LEVEL GAGE

21557

SPACER(FOR 1ST IDLE CAM)

21572

STOP, POWER PISTON

21611

GASKET, MAIN JET

21611

GASKET, MAIN JET

21614

GASKET, VENTURI

21614

GASKET, VENTURI

21617

GASKET, MAIN PASSAGE PLUG

21617

GASKET, MAIN PASSAGE PLUG

21618

GASKET, NEEDLE VALVE SEAT

21625

GASKET, LEVEL GAGE

21724

SPRING, THROTTLE ADJUSTING

21734

SPRING, POWER PISTON

21763

PIN, FLOAT LEVER

21781

PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

21781

PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

21782

PLUG, NUT(FOR ACCELERATING SYSTEM)

2182124030

Крепеж

2182124030

Крепеж

21828

SCREW, 1ST IDLE SET

21831

SCREW, POWER PISTON STOP

21842

SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

2188545200

Крепеж

21934

SOLENOID, THROTTLE VALVE

21934E

RING, O(FOR SOLENOID VALVE)

21934F

GASKET

9321915008

Крепеж

9451100400

Крепеж

9451100500

Крепеж

Код

Описание

21113

FLANGE, CARBURETOR

21114

COVER(FOR CHOKE LEVER)

21123

HOUSING, DIAPHRAGM

21138

CAP, DIAPHRAGM

21271

SCREW, IDLE ADJUSTING

21271

SCREW, IDLE ADJUSTING

21272

SCREW, 1ST IDLE ADJUSTING

21331

VALVE, 1ST THROTTLE

21332

VALVE, 2ND THROTTLE

21412

SHAFT, 1ST THROTTLE

21413

SHAFT, 2ND THROTTLE

21431

ARM, 1ST THROTTLE SHAFT

21441

ARM, 1ST KICK

21442

ARM, 2ND KICK

21444A

LEVER

21447

LEVER, DIAPHRAGM

21448

LEVER, 1ST KICK

21449

LEVER, 2ND KICK

21453

LEVER, 1ST THROTTLE

21455

LEVER, THROTTLE

21456

LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1

21473

LINK, THROTTLE SHAFT

2153510010

Крепеж

2153960150

Крепеж

21557A

SPACER, NO.2

21581

SHIM, 1ST THROTTLE SHAFT

21623

GASKET, BODY FLANGE

21645

GASKET, DIAPHRAGM, CAP

21646

GASKET, DIAPHRAGM HOUSING, NO.1

21664

LEVER(FOR DASH POT OR POSITIONER)

21668

COLLAR

21698

DIAPHRAGM

21723

SPRING, IDLE ADJUSTING

21725

SPRING, 2ND THROTTLE BACK

21726

SPRING, 1ST IDLE ADJUSTING

21729

SPRING, 1ST THROTTLE BACK

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

21794

RING, RETAINER, NO.1(FOR THROTTLE SHAFT)

21821

SCREW, 2ND THROTTLE VALVE SET

2182124030

Крепеж

2182124030

Крепеж

2182125010

Крепеж

21822

SCREW, 1ST THROTTLE VALVE SET

21833

SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

21833

SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

21833

SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

21834

SCREW, SET, NO.2(FOR CARBURETOR BODY SET)

21834

SCREW, SET, NO.2(FOR CARBURETOR BODY SET)

21852

NUT, THROTTLE LEVER SET

21852

NUT, THROTTLE LEVER SET

21864

SPRING(FOR 1ST THROTTLE ARM)

21864

SPRING(FOR 1ST THROTTLE ARM)

21867

SPRING, DIAPHRAGM

21881

WASHER, LOCK(FOR THROTTLE SHAFT)

21881

WASHER, LOCK(FOR THROTTLE SHAFT)

9411040800

Крепеж

9451100600

Крепеж

9451100800

Крепеж

9461110400

Крепеж
