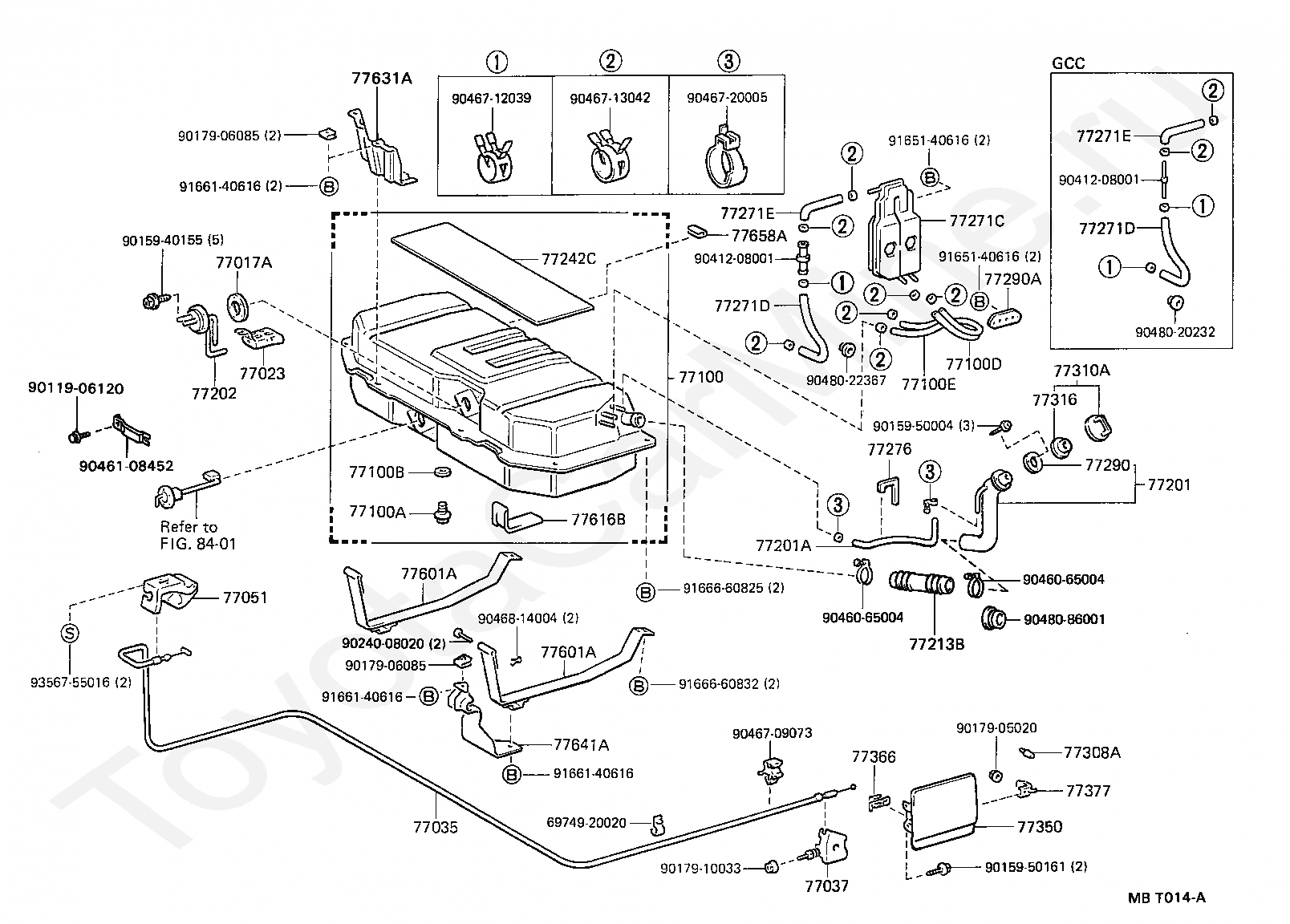

77017A
GASKET, FUEL TANK VENT
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77051
LEVER SUB-ASSY, FUEL LID OPEN
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77100D
HOSE, FUEL, NO.1(FOR FUEL TANK)
77100E
HOSE, FUEL, NO.2(FOR FUEL TANK)
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77202
TUBE SUB-ASSY, BREATHER
77213B
HOSE, FUEL TANK TO FILLER PIPE
77242C
PACKING, FUEL TANK SET, UPPER
77271C
SEPARATOR, FUEL VAPOR LIQUID
77271D
HOSE, FUEL, NO.1(FOR FUEL VAPOR LIQUID)
77271D
HOSE, FUEL, NO.1(FOR FUEL VAPOR LIQUID)
77271E
HOSE, FUEL, NO.2(FOR FUEL VAPOR LIQUID)
77271E
HOSE, FUEL, NO.2(FOR FUEL VAPOR LIQUID)
77276
PROTECTOR, FUEL HOSE
77286C
PROTECTOR, FUEL TANK INLET HOSE
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77290A
GROMMET ASSY, FUEL HOSE
77308A
CUSHION(FOR FUEL INLET BOX COVER)
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77606C
PROTECTOR, FUEL TANK, NO.2
77611A
PIN (FOR FUEL TANK BAND)
77616B
PACKING, FUEL TANK SET
77631A
PROTECTOR, FUEL TANK, LOWER CENTER
77641A
PROTECTOR, FUEL TANK, NO.1
77658A
PROTECTOR, FUEL TANK EDGE, NO.1
77701T
VALVE, CHECK (FOR MAIN FUEL TANK)
