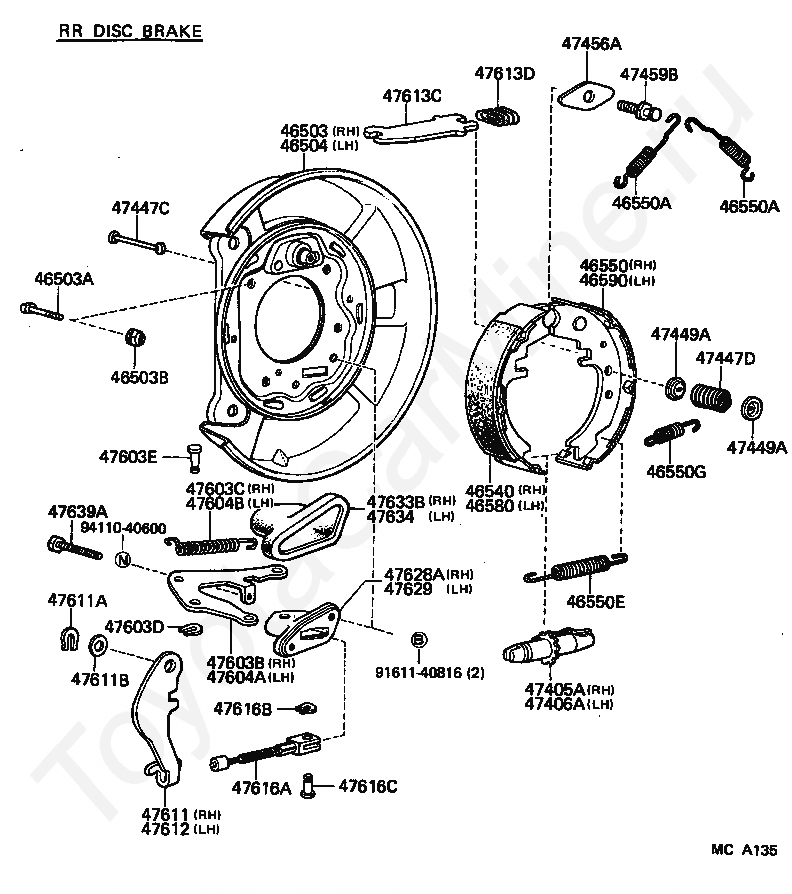

46503
PLATE SUB-ASSY, PARKING BRAKE, RH
46503A
BOLT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING)
46503B
NUT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING)
46504
PLATE SUB-ASSY, PARKING BRAKE, LH
46540
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550G
SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
46580
SHOE ASSY, PARKING BRAKE, LH NO.1
46590
SHOE ASSY, PARKING BRAKE, LH NO.2
47405A
SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47406A
SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47447C
PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE)
47447D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
47449A
CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449A
CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47456A
PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47459B
BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47603B
CRANK SUB-ASSY, PARKING BRAKE BELL, RH
47603C
SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RH)
47603D
WASHER, TYPE C(FOR PARKING BRAKE BELL CRANK)
47603E
PIN(FOR PARKING BRAKE BELL CRANK)
47604A
CRANK SUB-ASSY, PARKING BRAKE BELL,LH
47604B
SPRING, TENSION(FOR PARKING BRAKE BELL CRANK LH)
47611
LEVER, PARKING BRAKE SHOE, RH
47611A
WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER)
47611B
SHIM(FOR PARKING BRAKE SHOE LEVER)
47612
LEVER, PARKING BRAKE SHOE, LH
47613C
STRUT, PARKING BRAKE SHOE
47613D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47616A
WIRE, PARKING BRAKE
47616B
WASHER, TYPE C(FOR PARKING BRAKE WIRE)
47616C
PIN(FOR PARKING BRAKE WIRE)
47628A
BRACKET, BELLCRANK, RH(FOR PARKING BRAKE)
47629
BRACKET, BELLCRANK, LH(FOR PARKING BRAKE)
47633B
BOOT, BELLCRANK, RH(FOR PARKING BRAKE)
47634
BOOT, BELLCRANK, LH(FOR PARKING BRAKE)
47639A
BOLT, BELLCRANK STOPPER(FOR PARKING BRAKE)
