Ближний Восток

Модель

CROWN

VIN

Дата

1985/09

Двигатель

2,8 литра, EFI

Кузов

HARD TOP SERIES

Класс

SUPER SALOON TYPE

Фрейм

MS122

КПП

автомат АКПП, 4 ступени

Опции

левый руль Саудовская Аравия

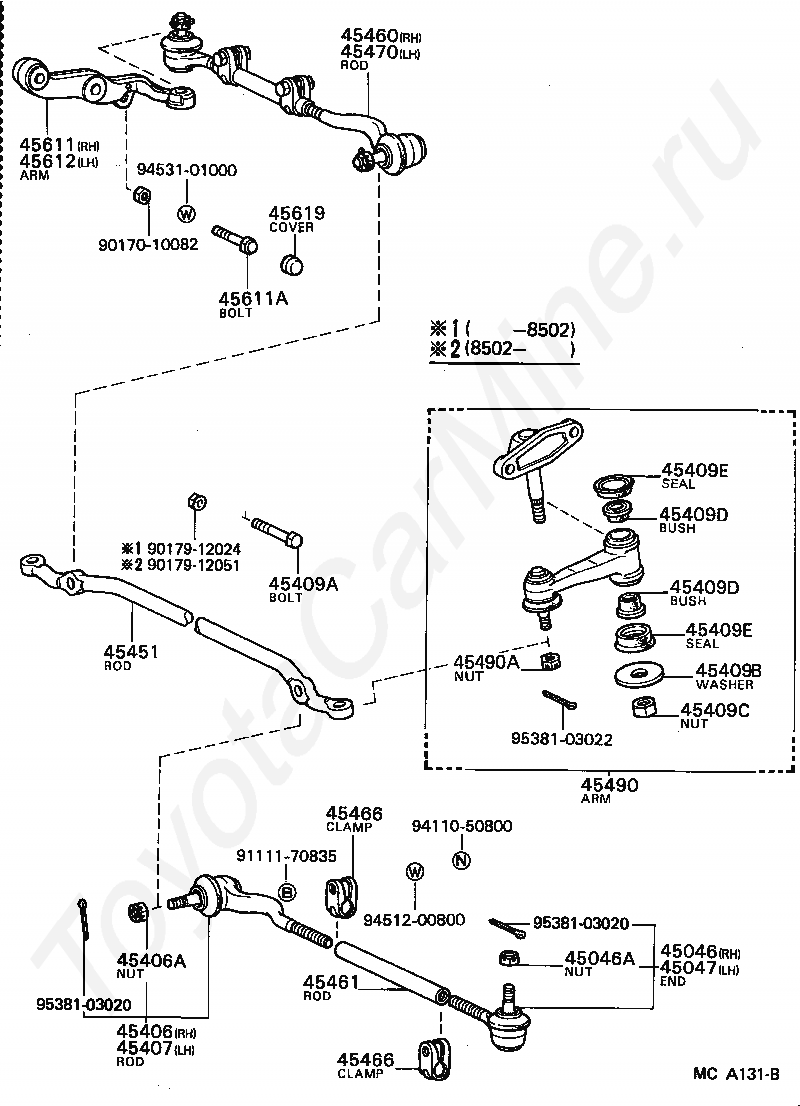

Рулевая рейка и наконечники TOYOTA CROWN

Код

Описание

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45406

ROD SUB-ASSY, TIE, RH

45406A

NUT, CASTLE(FOR TIE ROD)

45407

ROD SUB-ASSY, TIE, LH

45409A

BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

45409B

WASHER, PLATE(FOR IDLER ARM RUBBER BUSH)

45409C

NUT(FOR IDLER ARM SUPPORT)

45409D

BUSH(FOR IDLER ARM)

45409D

BUSH(FOR IDLER ARM)

45409E

SEAL, DUST(FOR IDLER ARM SUPPORT)

45409E

SEAL, DUST(FOR IDLER ARM SUPPORT)

45451

ROD, STEERING RELAY

45460

ROD ASSY, TIE, RH

45461

ROD, STEERING TIE

45466

CLAMP, TIE ROD END

45466

CLAMP, TIE ROD END

45470

ROD ASSY, TIE, LH

45490

ARM ASSY, STEERING IDLER

45490A

NUT, CASTLE(FOR IDLER ARM)

45611

ARM, STEERING KNUCKLE, RH

45611A

BOLT, KNUCKLE STOPPER

45612

ARM, STEERING KNUCKLE, LH

45619

COVER, KNUCKLE STOPPER

9017010082

Крепеж

9017912024

Крепеж

9017912051

Крепеж

9111170835

Крепеж

9411050800

Крепеж

9451200800

Крепеж

9453101000

Крепеж

9538103020

Крепеж

9538103020

Крепеж

9538103022

Крепеж

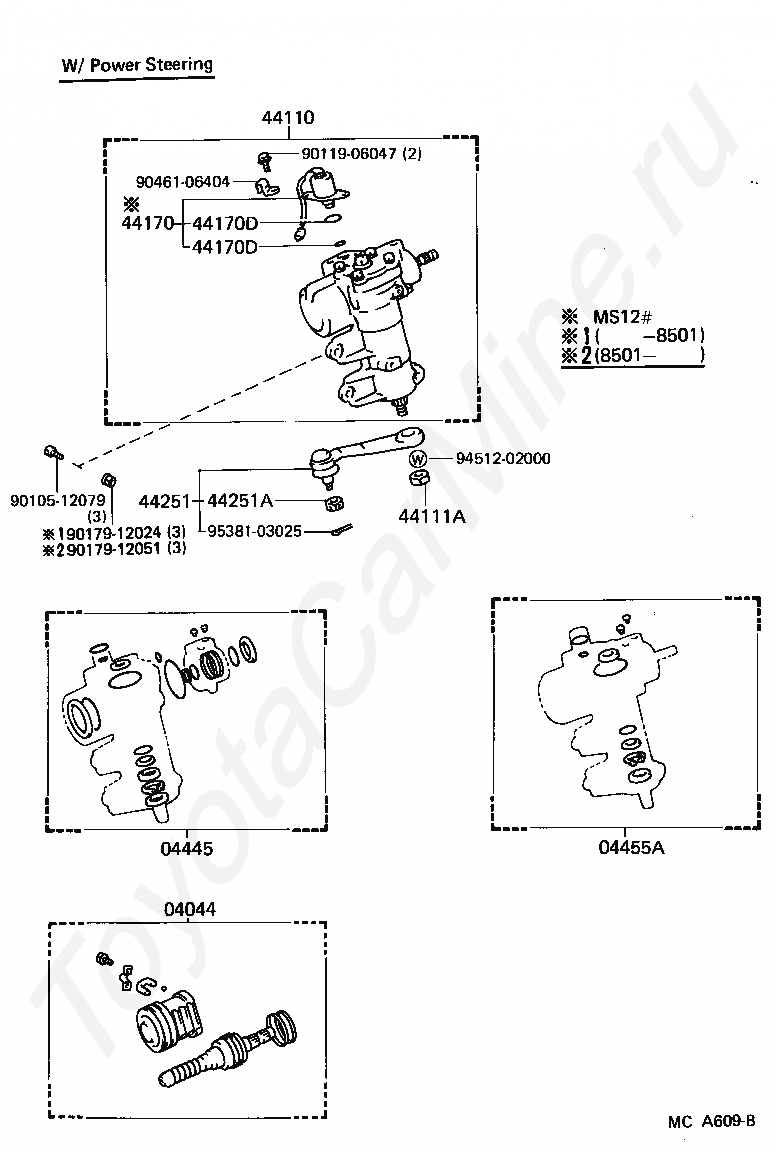

Код

Описание

04044

WARM KIT, POWER STEERING

04445

GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

04455A

GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE

44110

GEAR ASSY, POWER STEERING

44111A

NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)

44170

VALVE ASSY, SOLENOID(FOR POWER STEERING)

44170D

RING, O(FOR POWER STEERING SOLENOID VALVE)

44170D

RING, O(FOR POWER STEERING SOLENOID VALVE)

44251

ARM, PITMAN

44251A

NUT, CASTLE(FOR PITMAN ARM)

9010512079

Крепеж

9011906047

Крепеж

9017912024

Крепеж

9017912051

Крепеж

9046106404

Крепеж

9451202000

Крепеж

9538103025

Крепеж

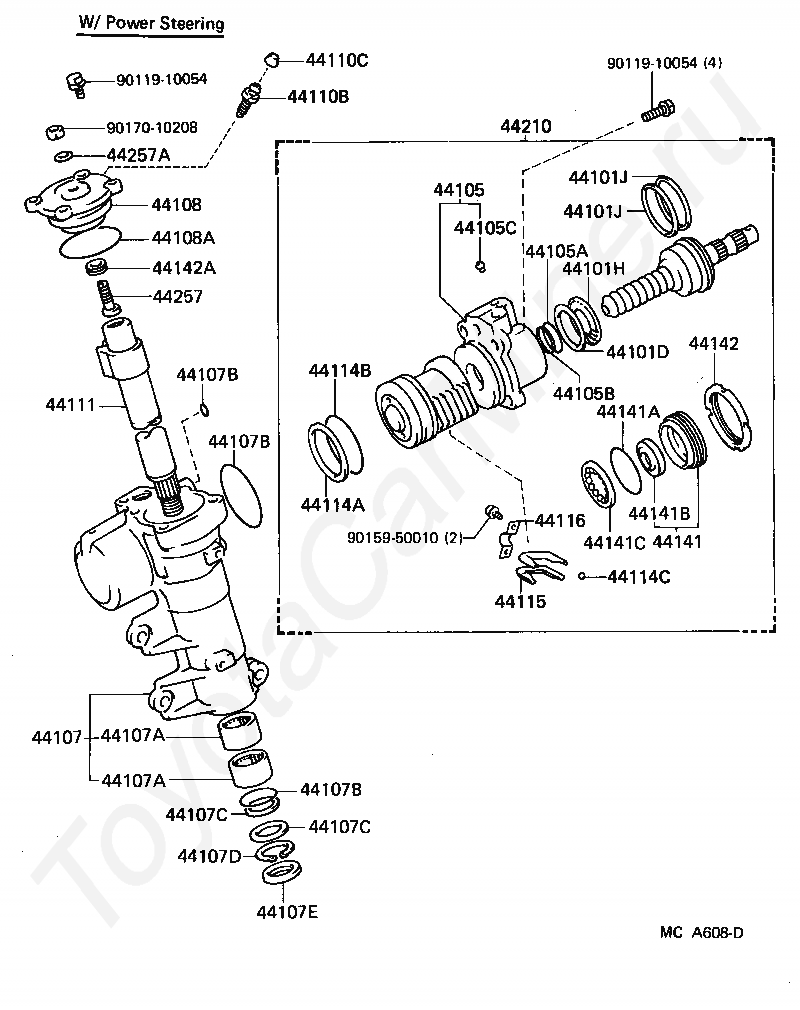

Код

Описание

44101D

WASHER, PLATE(FOR STEERING WORM)

44101H

BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM)

44101J

RING(FOR STEERING WORM)

44101J

RING(FOR STEERING WORM)

44105

HOUSING SUB-ASSY, VALVE

44105A

RING, O(FOR VALVE HOUSING)

44105B

RING(FOR VALVE HOUSING)

44105C

SEAT, UNION(FOR VALVE BODY HOUSING)

44107

HOUSING SUB-ASSY, POWER STEERING GEAR

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107D

RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)

44107E

SEAL, OIL(FOR POWER STEERING GEAR HOUSING)

44108

COVER SUB-ASSY, SIDE

44108A

RING, O(FOR SIDE COVER)

44110B

PLUG, BLEEDER(FOR POWER STEERING GEAR HOUSING)

44110C

CAP, BLEEDER PLUG(FOR POWER STEERING GEAR HOUSING)

44111

SHAFT, CROSS

44114A

RING(FOR POWER PISTON NUT)

44114B

RING, O(FOR POWER PISTON NUT)

44114C

BALL(FOR POWER PISTON NUT)

44115

GUIDE, BALL

44116

CLAMP, BALL GUIDE

44141

PLUG, ADJUSTER

44141A

RING, O(FOR ADJUSTER PLUG)

44141B

SEAL, OIL(FOR ADJUSTER PLUG)

44141C

BEARING(FOR ADJUSTER PLUG)

44142

NUT, LOCK

44142A

NUT, LOCK, NO.1

44210

VALVE ASSY, POWER STEERING CONTROL

44257

SCREW, CROSS SHAFT ADJUSTING

44257A

WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)

9011910054

Крепеж

9011910054

Крепеж

9015950010

Крепеж

9017010208

Крепеж

Рулевая рейка и наконечники TOYOTA CROWN
