Ближний Восток

Модель

CROWN

VIN

Дата

1985/09

Двигатель

2,8 литра, EFI

Кузов

HARD TOP SERIES

Класс

SUPER SALOON TYPE

Фрейм

MS122

КПП

автомат АКПП, 4 ступени

Опции

левый руль Саудовская Аравия

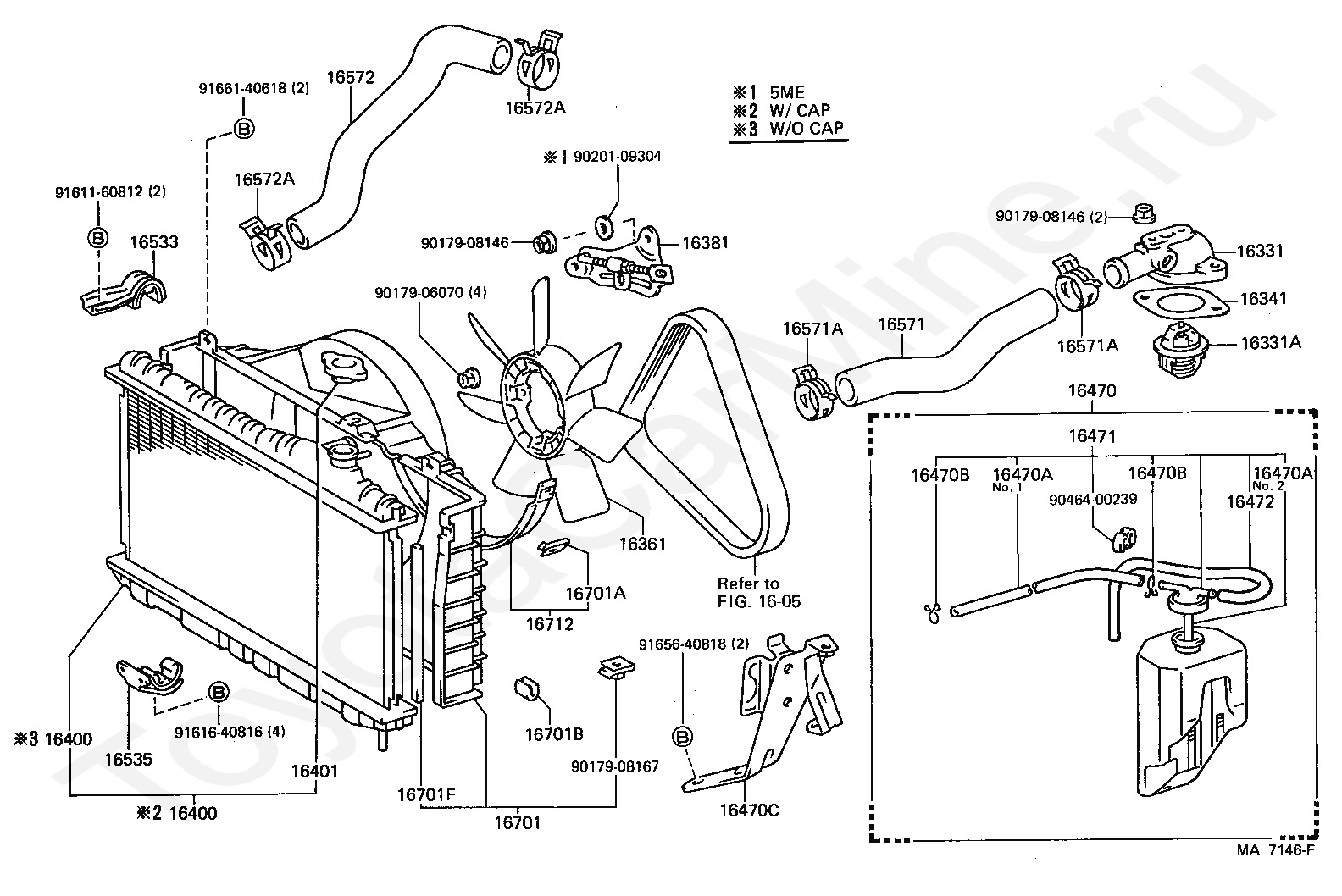

Радиатор и шланги TOYOTA CROWN

Код

Описание

1605

переход к группе запчастей

16331

OUTLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16361

FAN

16381

BAR, FAN BELT ADJUSTING

16400

RADIATOR ASSY

16400

RADIATOR ASSY

16401

CAP SUB-ASSY, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470C

BRACKET(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16472

HOSE, BREATHER

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16701

SHROUD SUB-ASSY, FAN

16701A

CLIP(FOR FAN SHROUD)

16701B

CUSHION, FAN SHROUD

16701F

SEAL(FOR FAN SHROUD)

16712

SHROUD, FAN, NO.2

9017906070

Крепеж

9017908146

Крепеж

9017908146

Крепеж

9017908167

Крепеж

9020109304

Крепеж

9046400239

Крепеж

9161160812

Крепеж

9161640816

Крепеж

9165640818

Крепеж

9166140618

Крепеж

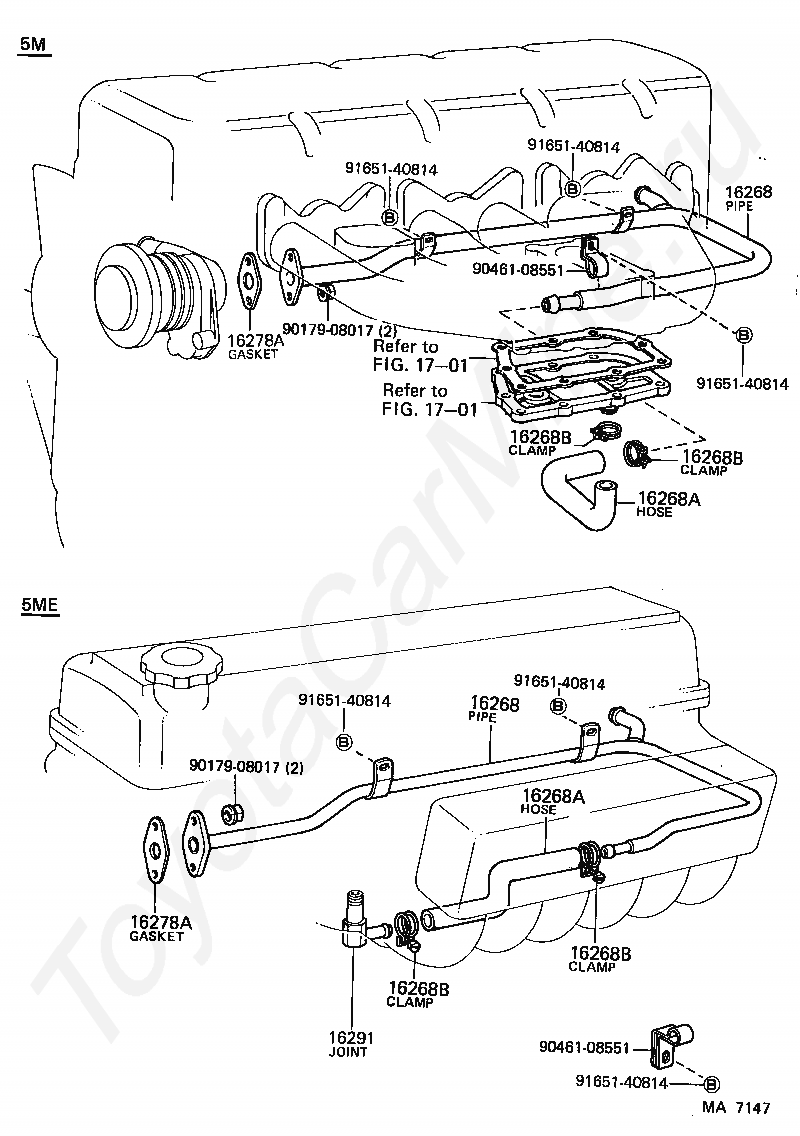

Код

Описание

16268

PIPE, WATER BY-PASS, NO.1

16268

PIPE, WATER BY-PASS, NO.1

16268A

HOSE(FOR WATER BY-PASS PIPE)

16268A

HOSE(FOR WATER BY-PASS PIPE)

16268B

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

16268B

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

16268B

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

16268B

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

16278A

GASKET, WATER BY-PASS

16278A

GASKET, WATER BY-PASS

16291

JOINT, WATER HOSE

1701

переход к группе запчастей

1701

переход к группе запчастей

9017908017

Крепеж

9017908017

Крепеж

9046108551

Крепеж

9046108551

Крепеж

9165140814

Крепеж

9165140814

Крепеж

9165140814

Крепеж

9165140814

Крепеж

9165140814

Крепеж

9165140814

Крепеж

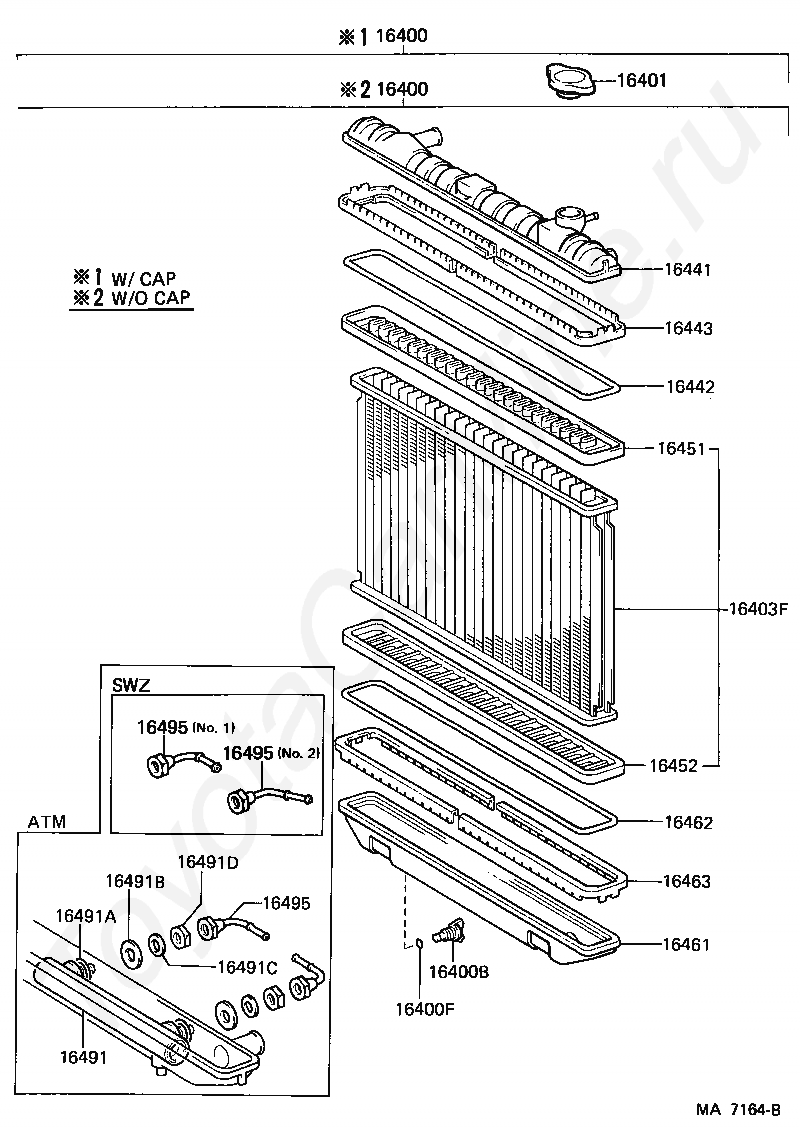

Код

Описание

16400

RADIATOR ASSY

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16403F

CORE SUB-ASSY, RADIATOR

16441

TANK, RADIATOR, UPPER

16442

RING, O(FOR RADIATOR UPPER TANK)

16443

PLATE, RADIATOR TANK, LOCK, UPPER

16451

PLATE, RADIATOR CORE, UPPER

16452

PLATE, RADIATOR CORE, LOWER

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16463

PLATE, RADIATOR TANK, LOCK, LOWER

16491

COOLER, OIL(FOR ATM)

16491A

RING, O(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16491C

WASHER, SPRING(FOR ATM OIL COOLER)

16491D

NUT(FOR ATM OIL COOLER)

16495

NUT, FLARE(FOR ATM OIL COOLER)

16495

NUT, FLARE(FOR ATM OIL COOLER)

16495

NUT, FLARE(FOR ATM OIL COOLER)
