Ходовые запчасти

Каталог

Ближний Восток

Модель

CROWN

VIN

Дата

1979/09

Двигатель

L TYPE

Кузов

седан

Класс

B TYPE(STANDARD TYPE)

Фрейм

LS110

КПП

механика МКПП, 4 ступени, на руле

Опции

левый руль GENERAL COUNTRIES дизель

Вакуумный тормозной цилиндр TOYOTA CROWN

Код

Описание

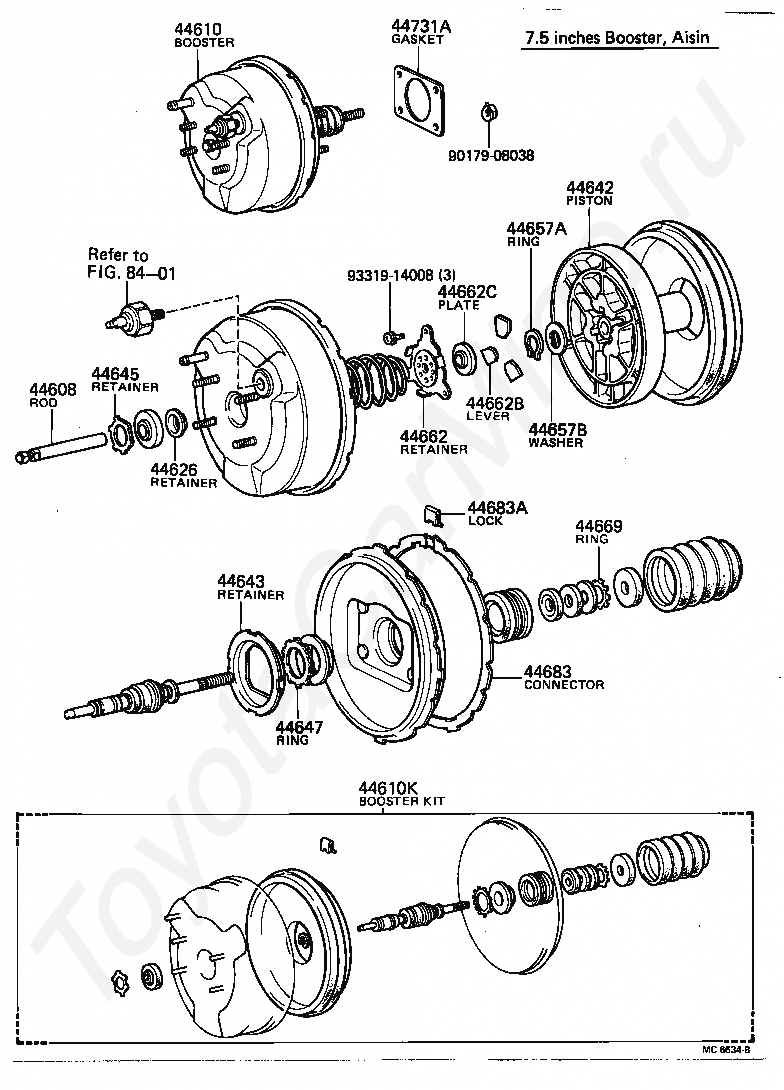

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44647

RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44657B

WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44683

CONNECTOR, BOOSTER BODY

44683A

LOCK, CONNECTOR

44731A

GASKET, BRAKE BOOSTER BRACKET

8401

переход к группе запчастей

9017908038

Крепеж

9331914008

Крепеж

Код

Описание

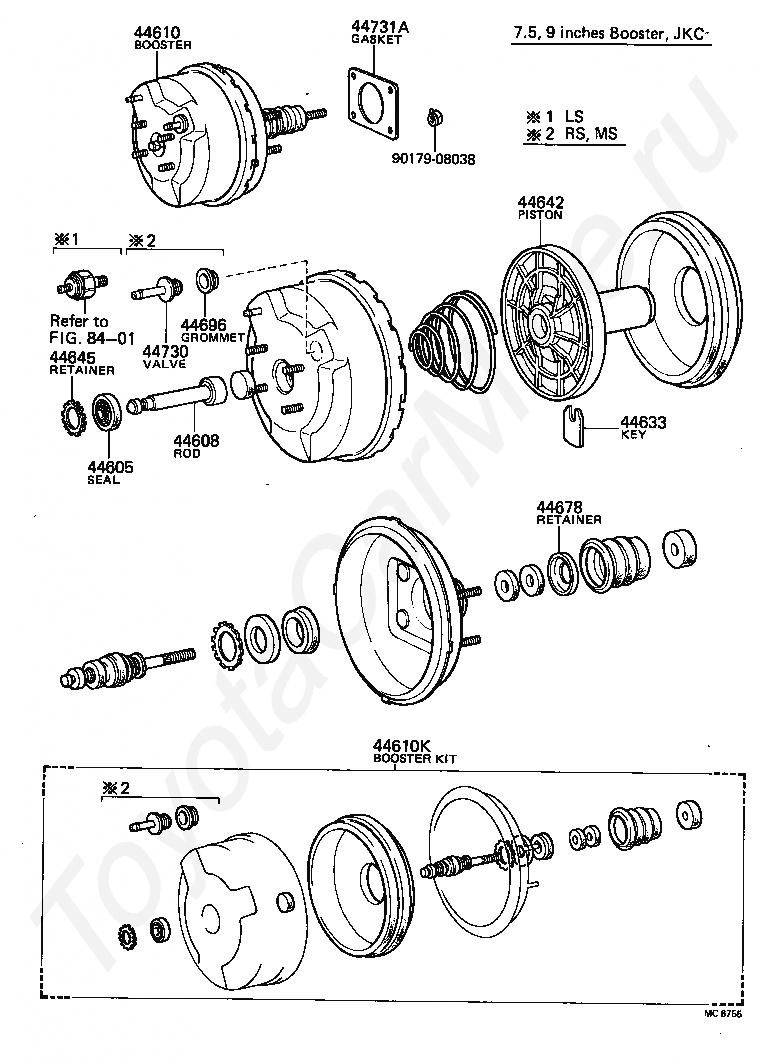

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

44633

KEY, BOOSTER VALVE PLUNGER

44642

PISTON, BRAKE BOOSTER

44645

RETAINER, BOOSTER PUSH ROD SEAL

44678

RETAINER, BOOSTER AIR CLEANER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44731A

GASKET, BRAKE BOOSTER BRACKET

8401

переход к группе запчастей

9017908038

Крепеж

Код

Описание

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

44633

KEY, BOOSTER VALVE PLUNGER

44642

PISTON, BRAKE BOOSTER

44645

RETAINER, BOOSTER PUSH ROD SEAL

44678

RETAINER, BOOSTER AIR CLEANER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44731A

GASKET, BRAKE BOOSTER BRACKET

8401

переход к группе запчастей

9017908038

Крепеж

Код

Описание

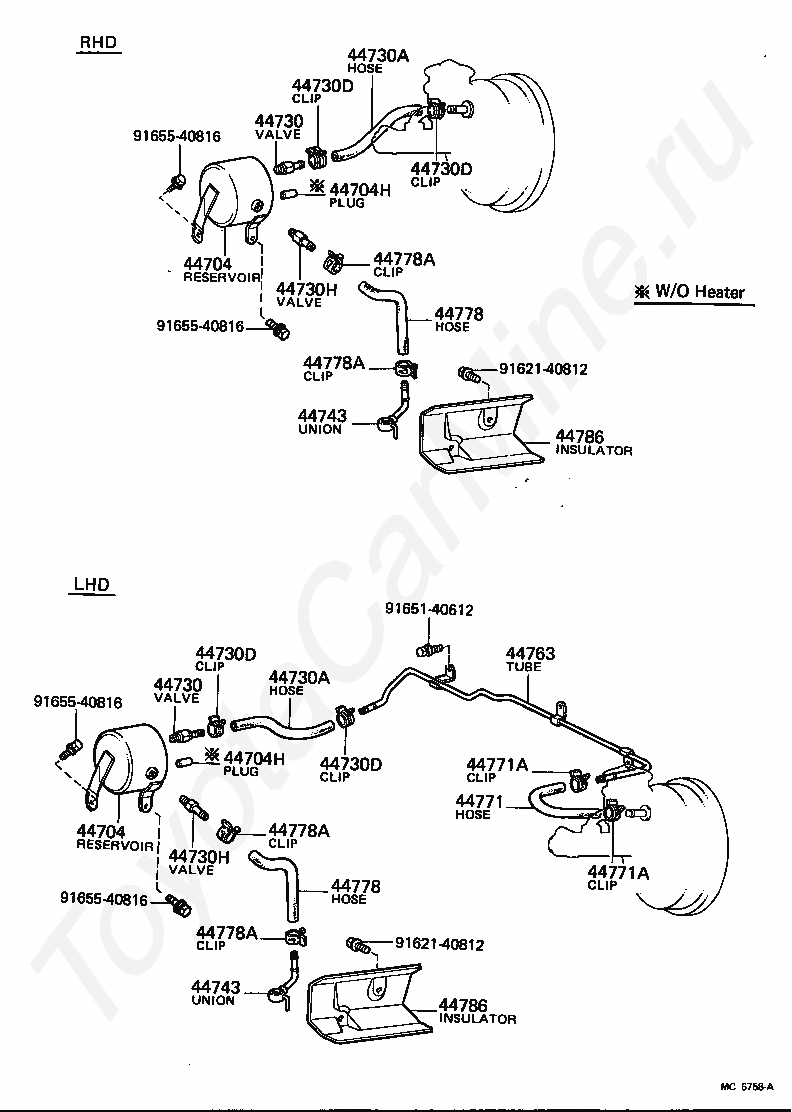

44704

RESERVOIR SUB-ASSY, VACUUM

44704

RESERVOIR SUB-ASSY, VACUUM

44704H

PLUG(FOR VACUUM RESERVOIR)

44704H

PLUG(FOR VACUUM RESERVOIR)

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730H

VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)

44730H

VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)

44743

UNION(FOR VACUUM PUMP)

44743

UNION(FOR VACUUM PUMP)

44763

TUBE, BOOSTER VACUUM

44771

HOSE, VACUUM TUBE CONNECTOR

44771A

CLIP(FOR VACUUM TUBE CONNECTOR HOSE)

44771A

CLIP(FOR VACUUM TUBE CONNECTOR HOSE)

44778

HOSE, CONNECTOR TO CHECK VALVE

44778

HOSE, CONNECTOR TO CHECK VALVE

44778A

CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

44778A

CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

44778A

CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

44778A

CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

44786

INSULATOR, HOSE HEAT

44786

INSULATOR, HOSE HEAT

9162140812

Крепеж

9162140812

Крепеж

9165140612

Крепеж

9165540816

Крепеж

9165540816

Крепеж

9165540816

Крепеж

9165540816

Крепеж
