Ходовые запчасти

Каталог

Япония

Модель

CRESTA

VIN

Дата

1988/08

Двигатель

2,4 литра, турбо-дизель

Кузов

седан

Класс

DRIVERS SCHOOL VEHICLE

Фрейм

LX80

КПП

автомат АКПП, 4 ступени

Опции

TURBO DIESEL

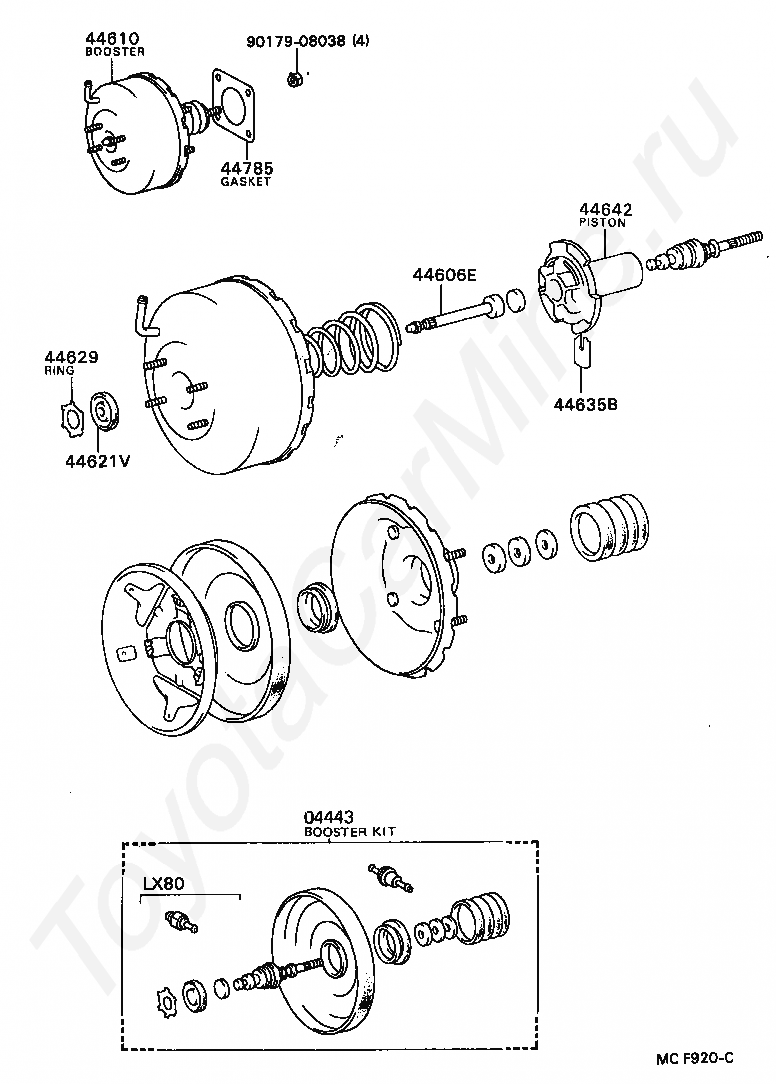

Вакуумный тормозной цилиндр TOYOTA CRESTA

Код

Описание

04443

BOOSTER KIT, BRAKE

44606E

ROD SUB-ASSY, BRAKE BOOSTER PISTON

44610

BOOSTER ASSY, BRAKE

44621V

SEAL, BOOSTER BODY

44629

RING, CIRCULAR INTERNAL

44635B

KEY, VALVE STOPPER

44642

PISTON, BRAKE BOOSTER

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

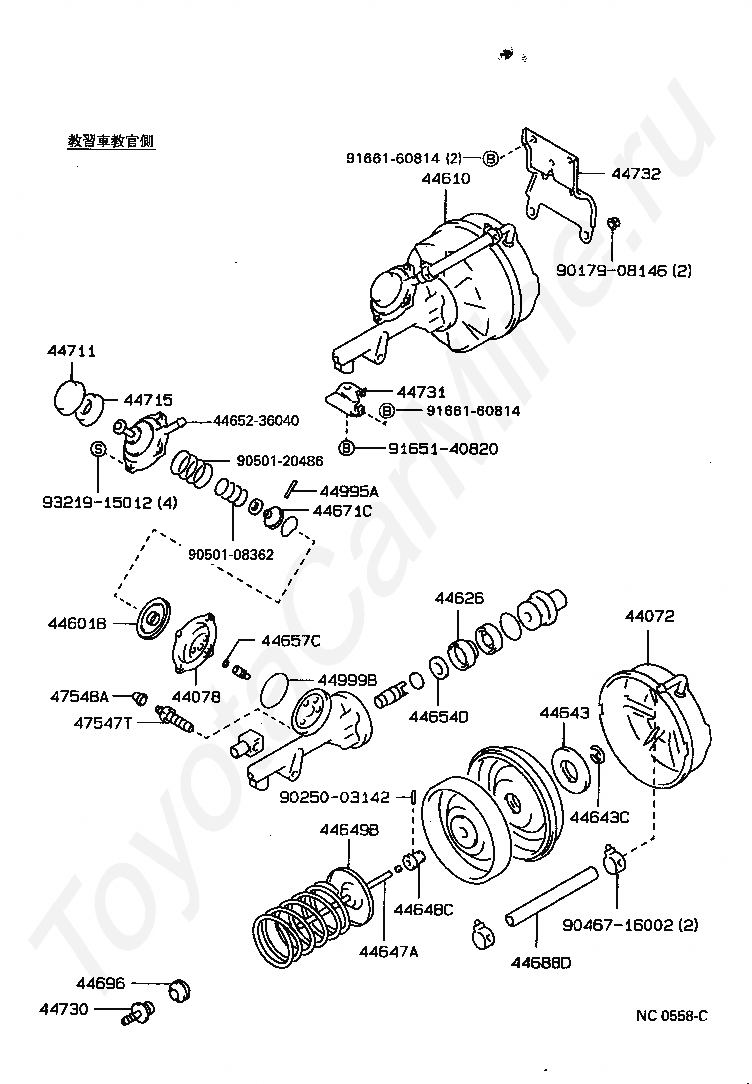

Код

Описание

44072

BODY SUB-ASSY, SEPARATOR BOOSTER, NO.2

44078

BODY SUB-ASSY, CONTROL VALVE

44601B

DIAPHRAGM PLATE SUB-ASSY, BOOSTER, REAR

44610

BOOSTER ASSY, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44643

RETAINER, DIAPHRAGM

44643C

RING, SNAP(FOR DIAPHRAGM RETAINER)

44647A

ROD, BOOSTER PISTON

44648C

ROD, BOOSTER BODY TIE

44649B

RETAINER, BOOSTER SPRING

4465236040

Крепеж

44654D

SPACER, PISTON ROD

44657C

SPACER(FOR BOOSTER CONTROL VALVE PISTON)

44671C

SEAT, VACUUM VALVE

44688D

HOSE, BOOSTER VACUUM

44696

GROMMET, CHECK VALVE

44711

BODY, AIR CLEANER(FOR BOOSTER)

44715

ELEMENT, AIR CLEANER(FOR BOOSTER)

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44731

BRACKET, BRAKE BOOSTER, FRONT

44732

BRACKET, BRAKE BOOSTER, REAR

44995A

PIN, VALVE JOINT

44999B

RING, O(FOR CONTROL VALVE)

47547T

PLUG, BLEEDER(FOR BOOSTER)

47548A

CAP, BLEEDER PLUG(FOR BRAKE BOOSTER)

9017908146

Крепеж

9025003142

Крепеж

9046716002

Крепеж

9050108362

Крепеж

9050120486

Крепеж

9165140820

Крепеж

9166160814

Крепеж

9166160814

Крепеж

9321915012

Крепеж

Код

Описание

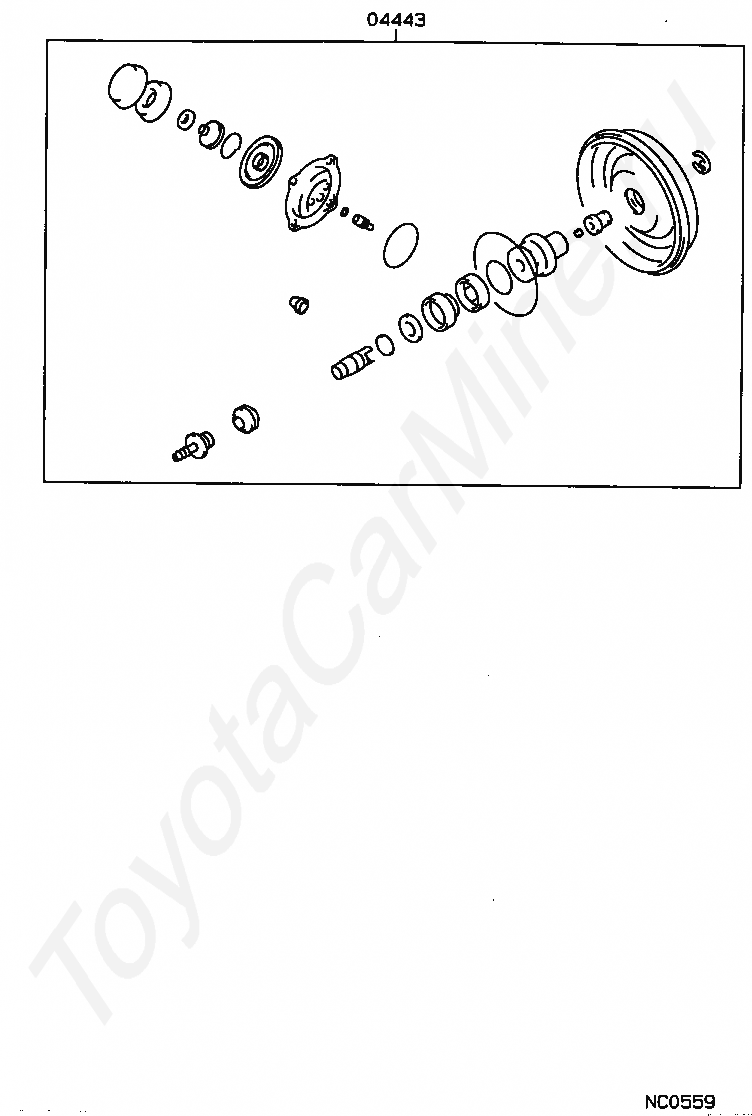

04443

BOOSTER KIT, BRAKE

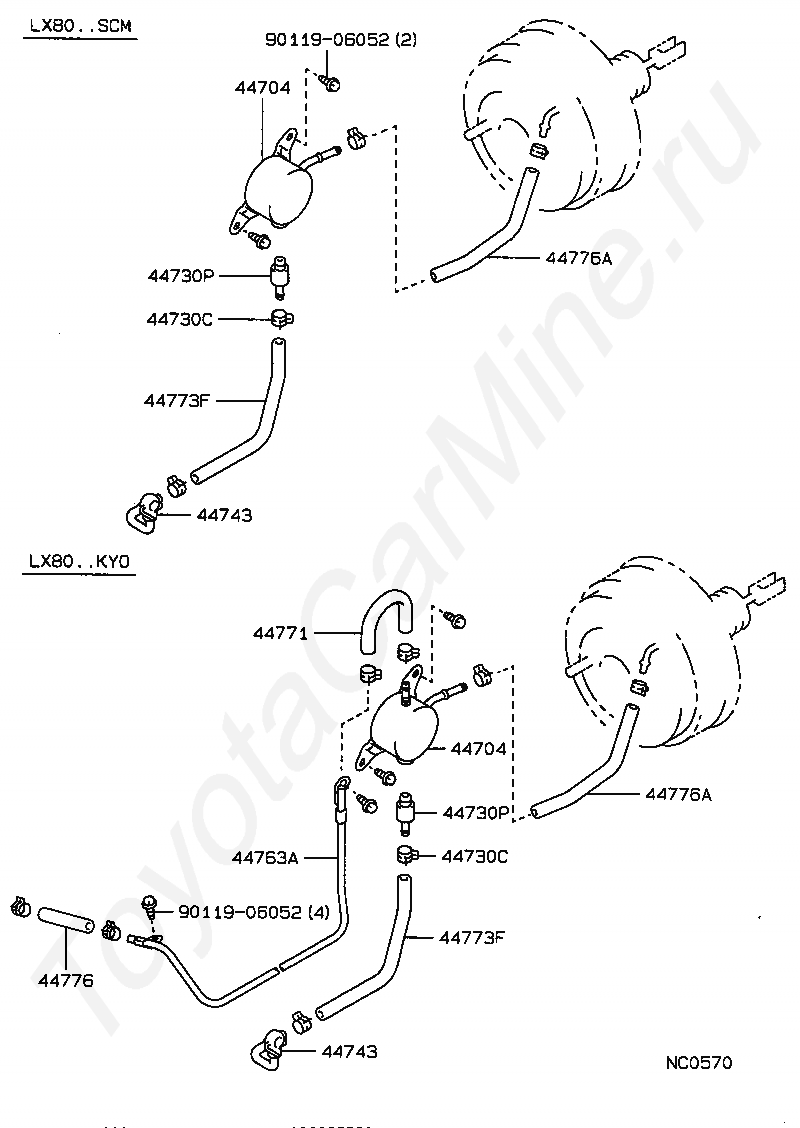

Код

Описание

44704

RESERVOIR SUB-ASSY, VACUUM

44704

RESERVOIR SUB-ASSY, VACUUM

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730P

VALVE ASSY, VACUUM CHECK, NO.1

44730P

VALVE ASSY, VACUUM CHECK, NO.1

44743

UNION(FOR VACUUM PUMP)

44743

UNION(FOR VACUUM PUMP)

44763A

TUBE, HOSE TO HOSE, NO.1

44771

HOSE, VACUUM TUBE CONNECTOR

44773F

HOSE, UNION TO CHECK VALVE

44773F

HOSE, UNION TO CHECK VALVE

44776

HOSE, BRAKE BOOSTER

44776A

HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

44776A

HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

9011906052

Крепеж

9011906052

Крепеж
