Ходовые запчасти

Каталог

Европа

Модель

CRESSIDA

VIN

Дата

1985/02

Двигатель

2 литра

Кузов

седан

Класс

XL SPECIFICATION

Фрейм

RX70

КПП

механика МКПП, 5 скоростей

Опции

правый руль STANDARD CARBURETOR SPECIFICATION Южная Африка

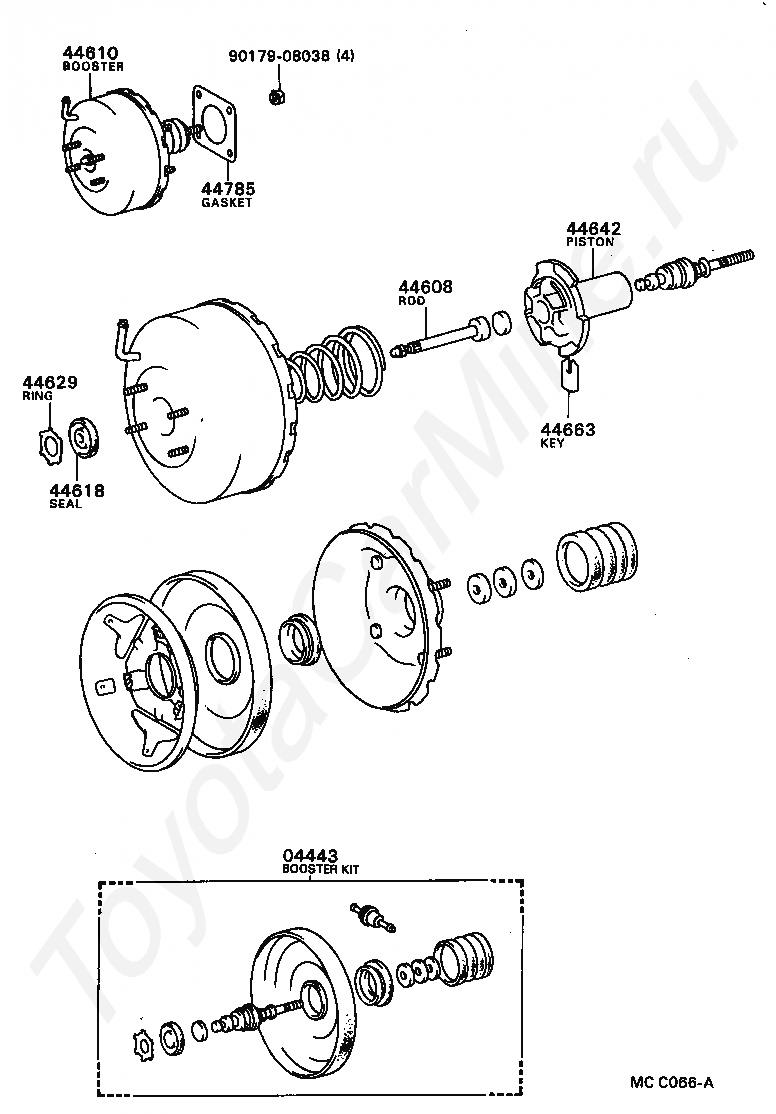

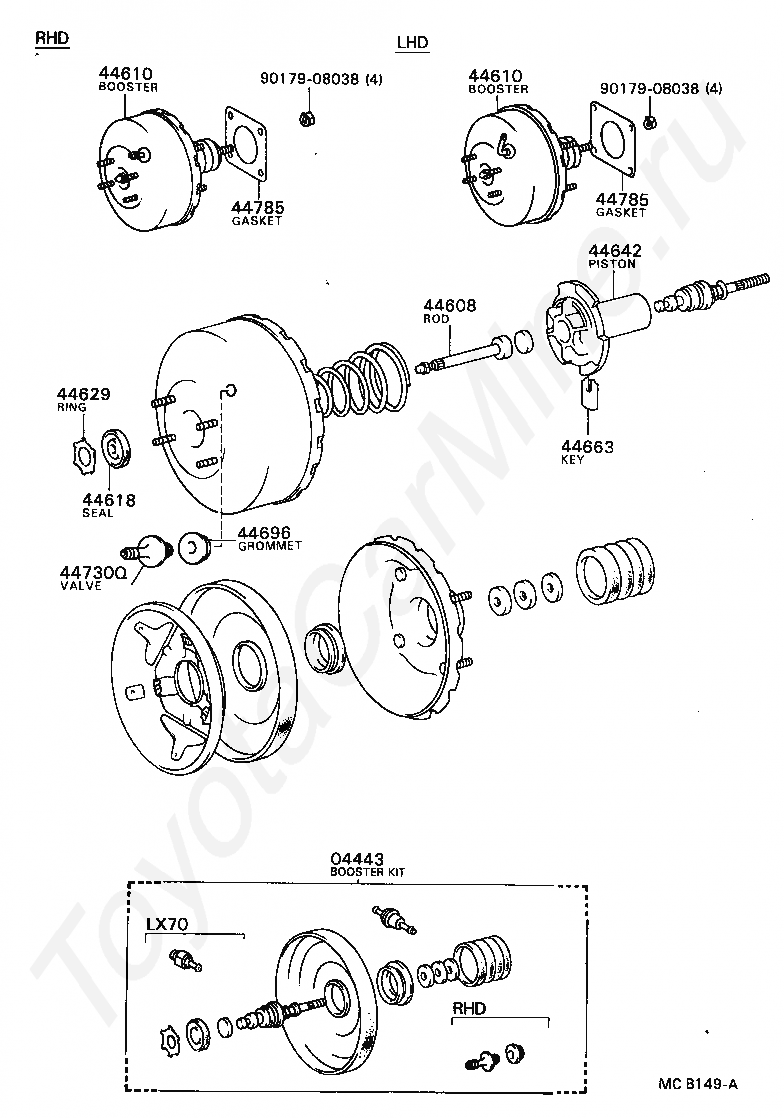

Вакуумный тормозной цилиндр TOYOTA CRESSIDA

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610

BOOSTER ASSY, BRAKE

44618

SEAL, BOOSTER BODY

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44663

KEY, VALVE STOPPER

44696

GROMMET, CHECK VALVE

44730Q

VALVE ASSY, VACUUM CHECK, NO.2

44785

GASKET, BRAKE BOOSTER

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

9017908038

Крепеж

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44618

SEAL, BOOSTER BODY

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44663

KEY, VALVE STOPPER

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

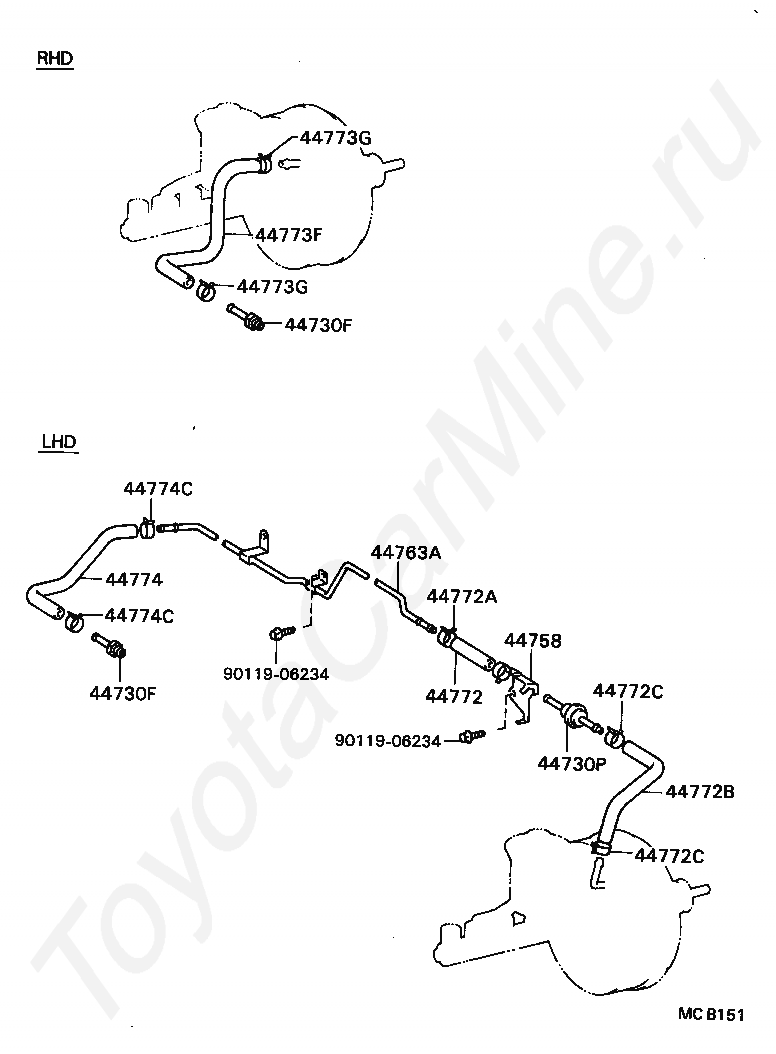

Код

Описание

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730P

VALVE ASSY, VACUUM CHECK, NO.1

44758

BRACKET, VACUUM CHECK VALVE

44763A

TUBE, HOSE TO HOSE, NO.1

44772

HOSE, CHECK VALVE TO CONNECTOR TUBE

44772A

CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

44772B

HOSE, CHECK VALVE TO BRAKE BOOSTER

44772C

CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

44772C

CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

44773F

HOSE, UNION TO CHECK VALVE

44773G

CLIP(FOR UNION TO CHECK VALVE HOSE)

44773G

CLIP(FOR UNION TO CHECK VALVE HOSE)

44774

HOSE, UNION TO CONNECTOR TUBE

44774C

CLIP(FOR UNION TO CONNECTOR TUBE HOSE)

44774C

CLIP(FOR UNION TO CONNECTOR TUBE HOSE)

9011906234

Крепеж

9011906234

Крепеж
