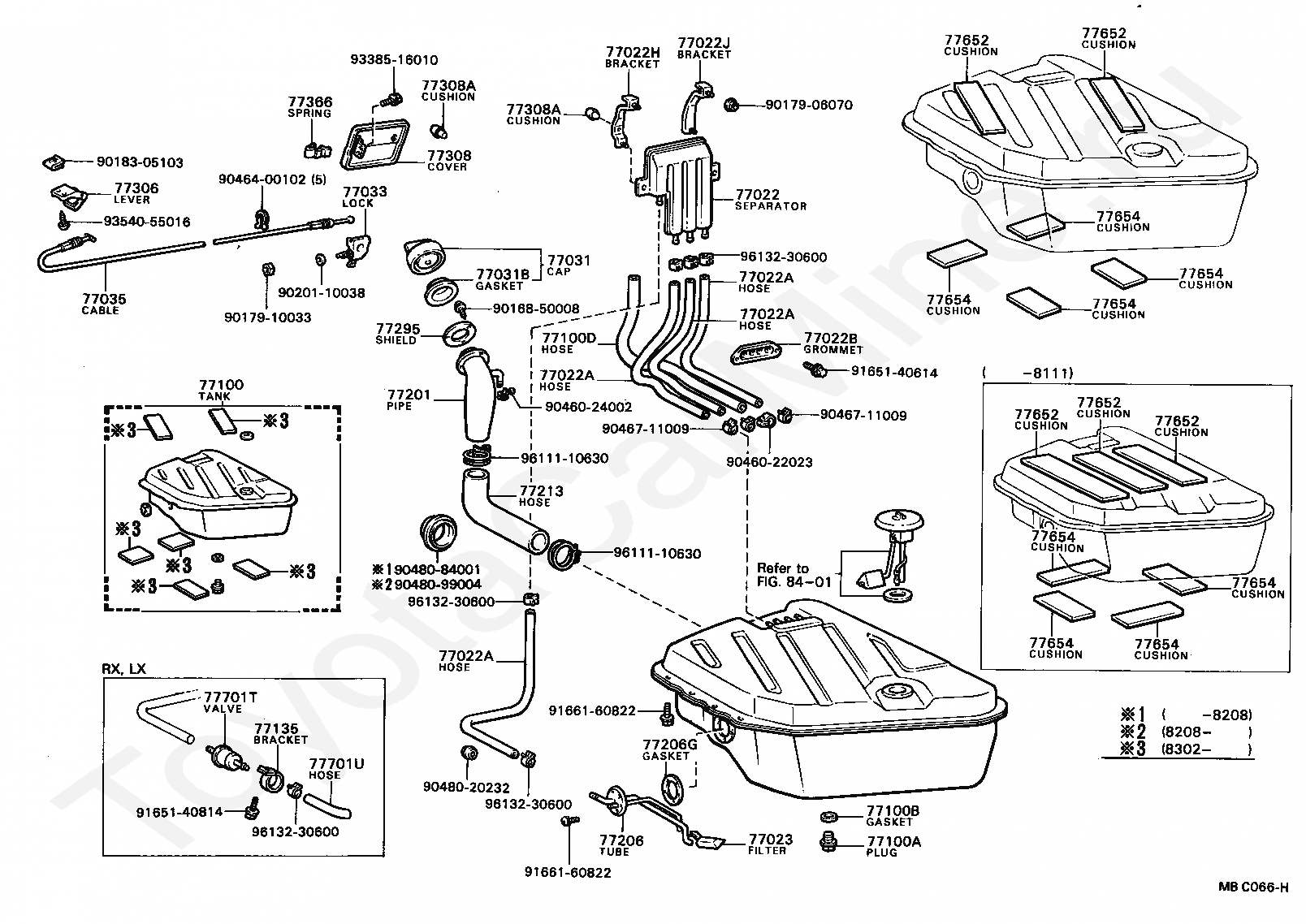

77022
SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022B
GROMMET(FOR FUEL EVAPORATIVE SEPARATOR FUEL HOSE)
77022H
BRACKET, FUEL VAPOR LIQUID SEPARATOR, FRONT
77022J
BRACKET, FUEL VAPOR LIQUID SEPARATOR, REAR
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77031
CAP ASSY, FUEL TANK
77031B
GASKET (FOR FUEL TANK CAP)
77033
LOCK SUB-ASSY, FUEL TANK CAP
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77100D
HOSE, FUEL, NO.1(FOR FUEL TANK)
77135
BRACKET, CHECK VALVE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77206
TUBE SUB-ASSY, FUEL TANK SUCTION
77206G
GASKET (FOR FUEL TANK SUCTION TUBE)
77213
HOSE, FUEL TANK SUB INLET
77295
SHIELD, FUEL FILLER PIPE
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77308
COVER SUB-ASSY, FUEL INLET BOX
77308A
CUSHION(FOR FUEL INLET BOX COVER)
77308A
CUSHION(FOR FUEL INLET BOX COVER)
77366
SPRING, FUEL FILLER OPENING LID HINGE
77652
CUSHION, FUEL TANK, NO.1
77652
CUSHION, FUEL TANK, NO.1
77652
CUSHION, FUEL TANK, NO.1
77652
CUSHION, FUEL TANK, NO.1
77652
CUSHION, FUEL TANK, NO.1
77654
CUSHION, FUEL TANK, NO.2
77654
CUSHION, FUEL TANK, NO.2
77654
CUSHION, FUEL TANK, NO.2
77654
CUSHION, FUEL TANK, NO.2
77654
CUSHION, FUEL TANK, NO.2
77654
CUSHION, FUEL TANK, NO.2
77654
CUSHION, FUEL TANK, NO.2
77654
CUSHION, FUEL TANK, NO.2

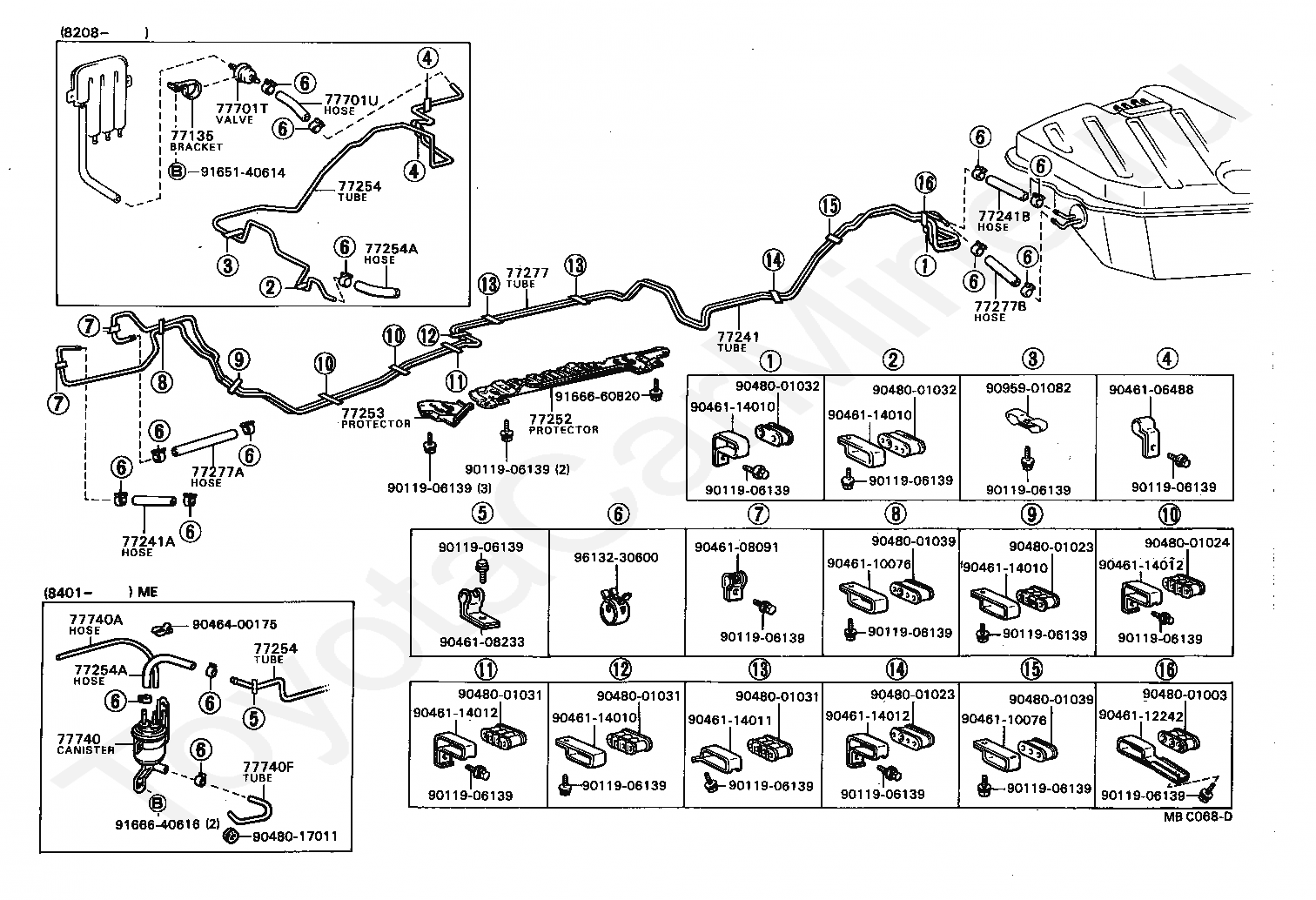

77701T
VALVE, CHECK (FOR MAIN FUEL TANK)
77701U
HOSE, FUEL (FOR CHECK VALVE)
8401
