Ходовые запчасти

Каталог

Ближний Восток

Модель

CRESSIDA

VIN

Дата

1984/08

Двигатель

2 литра, EFI

Кузов

седан

Класс

GLX TYPE

Фрейм

GX71

КПП

механика МКПП, 5 скоростей

Опции

левый руль электронная система впрыска топлива GENERAL COUNTRIES

Кондиционер: компрессор TOYOTA CRESSIDA

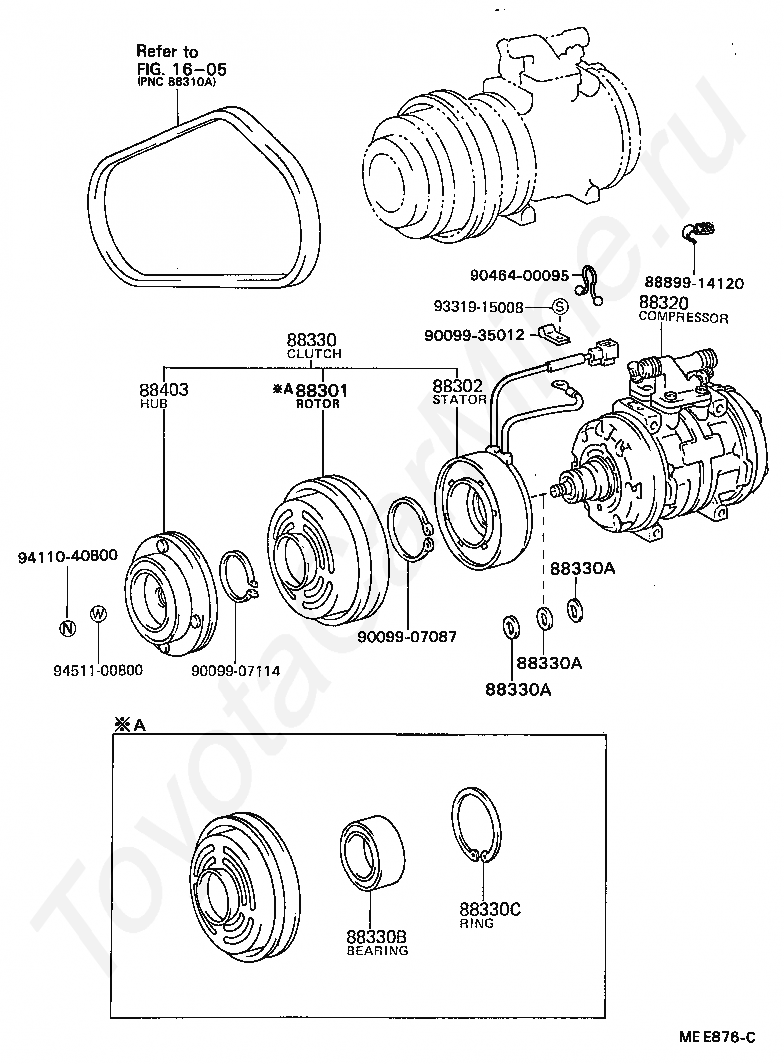

Код

Описание

1605

переход к группе запчастей

88301

ROTOR SUB-ASSY, MAGNET CLUTCH

88302

STATOR SUB-ASSY, MAGNET CLUTCH

88320

COMPRESSOR ASSY, COOLER

88330

CLUTCH ASSY, MAGNET

88330A

WASHER (FOR MAGNET CLUTCH)

88330A

WASHER (FOR MAGNET CLUTCH)

88330A

WASHER (FOR MAGNET CLUTCH)

88330B

BEARING, MAGNET CLUTCH

88330C

RING, SNAP (FOR MAGNET CLUTCH)

88403

HUB SUB-ASSY, MAGNET CLUTCH

8889914120

Крепеж

9009907087

Крепеж

9009907114

Крепеж

9009935012

Крепеж

9046400095

Крепеж

9331915008

Крепеж

9411040800

Крепеж

9451100800

Крепеж

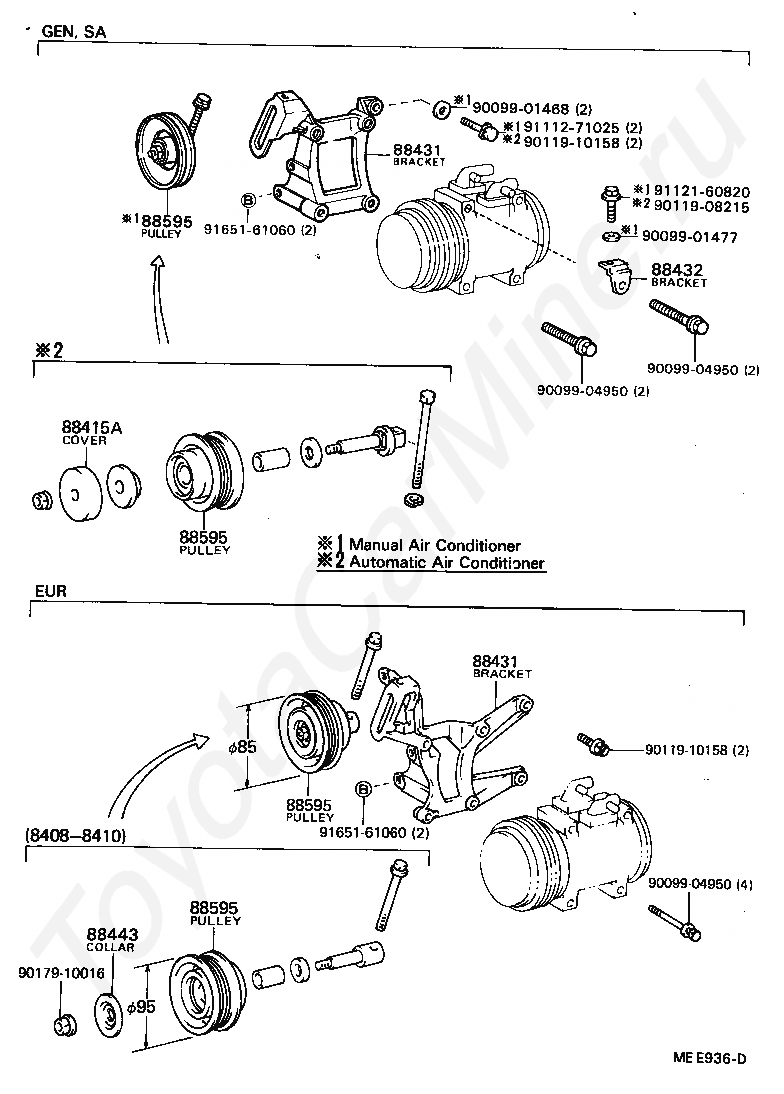

Код

Описание

88415A

COVER, DUST

88431

BRACKET, COMPRESSOR MOUNTING, NO.1

88431

BRACKET, COMPRESSOR MOUNTING, NO.1

88432

BRACKET, COMPRESSOR MOUNTING, NO.2

88443

COLLAR, IDLE PULLEY

88595

PULLEY, COOLER COMPRESSOR IDLE

88595

PULLEY, COOLER COMPRESSOR IDLE

88595

PULLEY, COOLER COMPRESSOR IDLE

88595

PULLEY, COOLER COMPRESSOR IDLE

9009901468

Крепеж

9009901477

Крепеж

9009904950

Крепеж

9009904950

Крепеж

9009904950

Крепеж

9011908215

Крепеж

9011910158

Крепеж

9011910158

Крепеж

9017910016

Крепеж

9111271025

Крепеж

9112160820

Крепеж

9165161060

Крепеж

9165161060

Крепеж

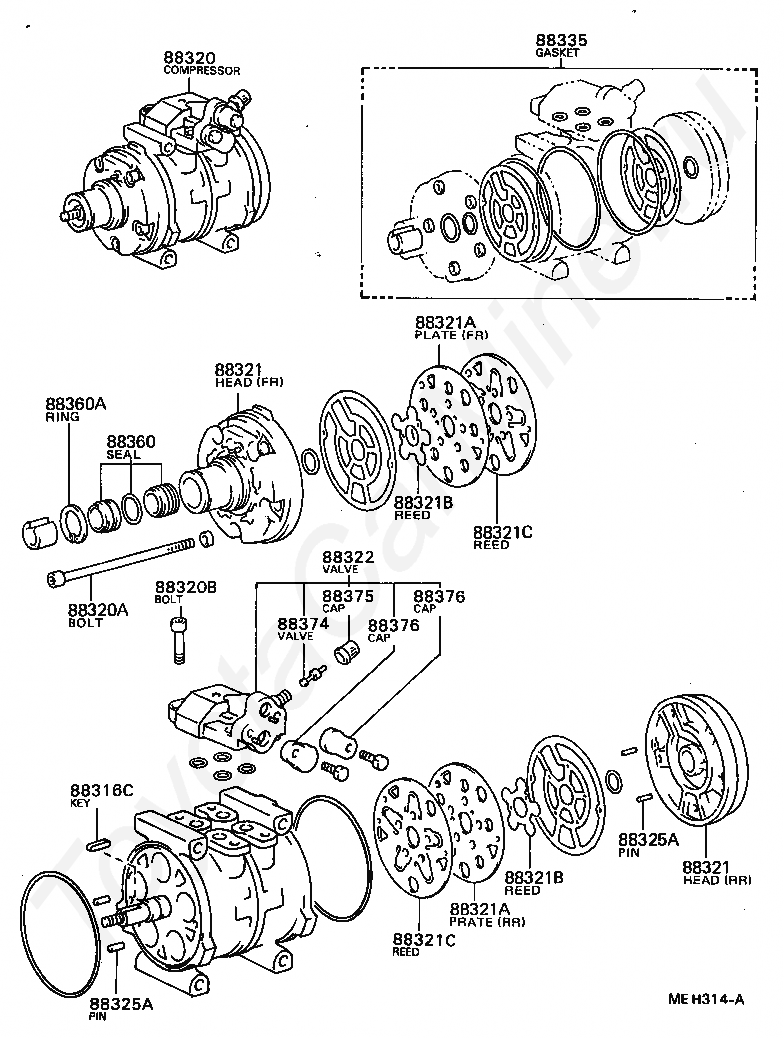

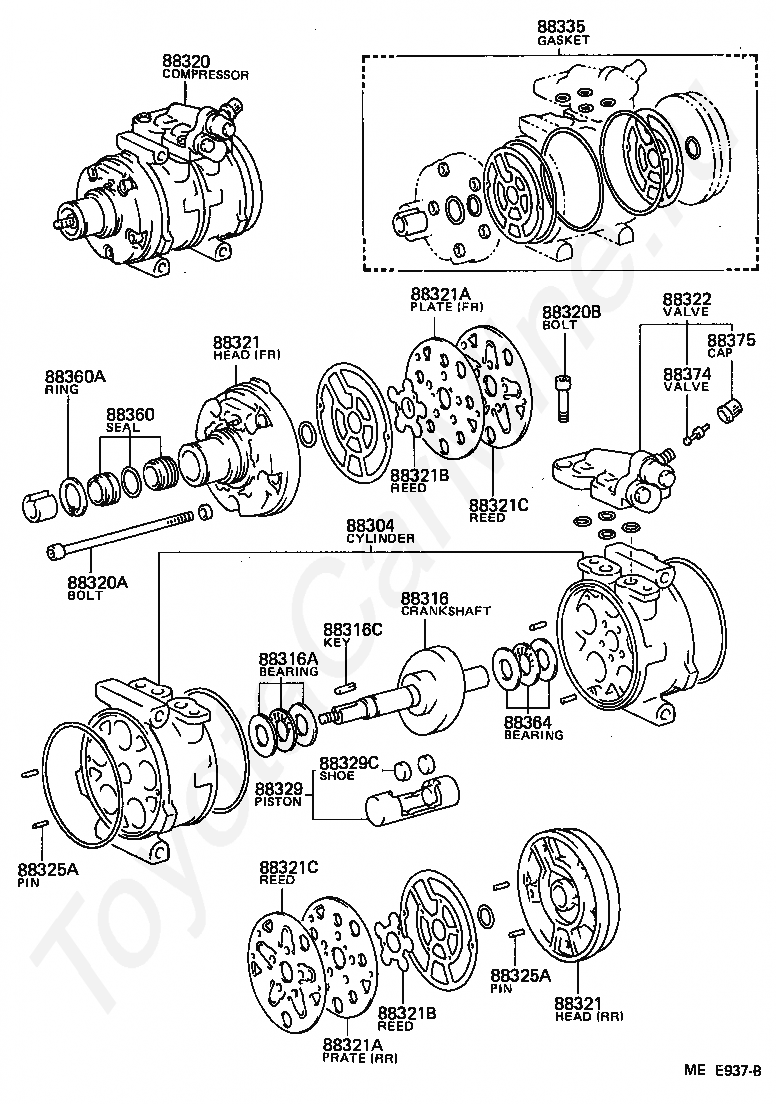

Код

Описание

88304

CYLINDER SUB-ASSY, COOLER COMPRESSOR

88316

CRANKSHAFT, COOLER COMPRESSOR

88316A

BEARING, COMPRESSOR CRANKSHAFT, FRONT

88316C

KEY, COMPRESSOR CRANKSHAFT

88320

COMPRESSOR ASSY, COOLER

88320A

BOLT, THROUGH

88320B

BOLT, SERVICE VALVE

88321

HEAD, COOLER COMPRESSOR CYLINDER

88321

HEAD, COOLER COMPRESSOR CYLINDER

88321A

PLATE SUB-ASSY, VALVE

88321A

PLATE SUB-ASSY, VALVE

88321B

REED SUB-ASSY, VALVE

88321B

REED SUB-ASSY, VALVE

88321C

REED, SUCTION VALVE

88321C

REED, SUCTION VALVE

88322

VALVE, COOLER COMPRESSOR SUCTION SERVICE

88325A

PIN, CYLINDER BLOCK

88325A

PIN, CYLINDER BLOCK

88329

PISTON SUB-ASSY, COOLER COMPRESSOR

88329C

SHOE, PISTON

88335

GASKET KIT, OVERHAUL

88360

SEAL ASSY, COOLER COMPRESSOR SHAFT

88360A

RING, COMPRESSOR SEAL PLATE SNAP

88364

BEARING, COMPRESSOR CRANKSHAFT, REAR

88374

VALVE, COOLER COMPRESSOR SERVICE

88375

CAP, COOLER COMPRESSOR SERVICE VALVE

Код

Описание

88316C

KEY, COMPRESSOR CRANKSHAFT

88320

COMPRESSOR ASSY, COOLER

88320A

BOLT, THROUGH

88320B

BOLT, SERVICE VALVE

88321

HEAD, COOLER COMPRESSOR CYLINDER

88321

HEAD, COOLER COMPRESSOR CYLINDER

88321A

PLATE SUB-ASSY, VALVE

88321A

PLATE SUB-ASSY, VALVE

88321B

REED SUB-ASSY, VALVE

88321B

REED SUB-ASSY, VALVE

88321C

REED, SUCTION VALVE

88321C

REED, SUCTION VALVE

88322

VALVE, COOLER COMPRESSOR SUCTION SERVICE

88325A

PIN, CYLINDER BLOCK

88325A

PIN, CYLINDER BLOCK

88335

GASKET KIT, OVERHAUL

88360

SEAL ASSY, COOLER COMPRESSOR SHAFT

88360A

RING, COMPRESSOR SEAL PLATE SNAP

88374

VALVE, COOLER COMPRESSOR SERVICE

88375

CAP, COOLER COMPRESSOR SERVICE VALVE

88376

CAP, BLIND

88376

CAP, BLIND
