Каталог

Япония

Модель

CORSA/TERCEL

VIN

Дата

1990/09

Двигатель

1,5 литра, турбо-дизель

Класс

AX-X TYPE

Фрейм

NL40

КПП

механика МКПП, 5 скоростей

Опции

CLEARANCE SONER 4 двери дизель

Реле и кнопки TOYOTA CORSA/TERCEL







Код

Описание

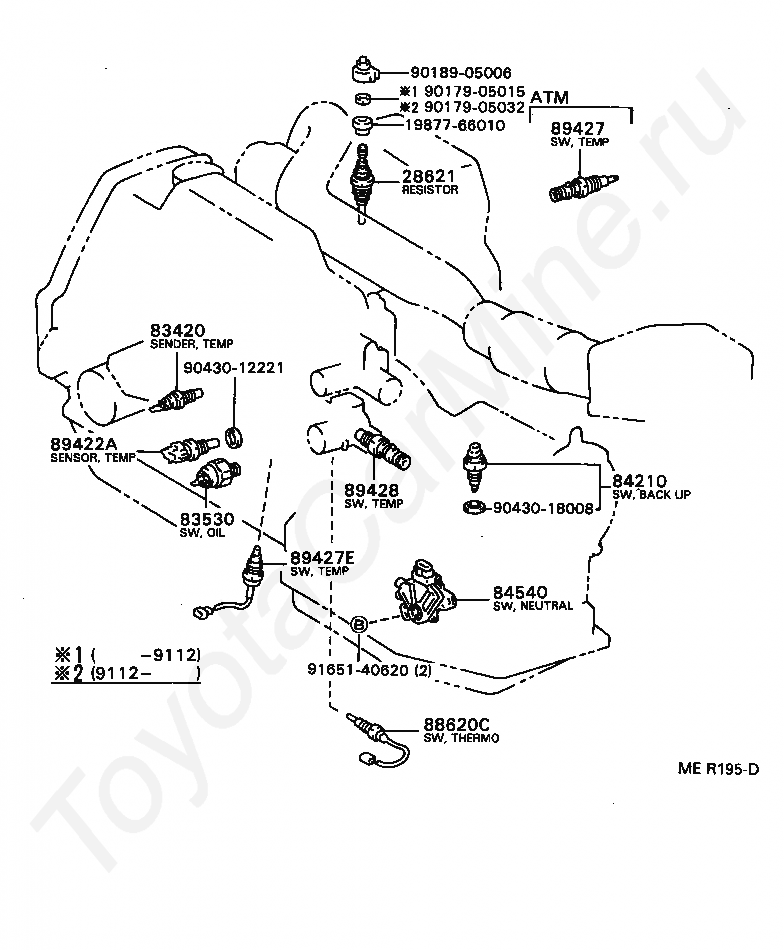

1987766010

Крепеж

28621

RESISTOR, GLOW PLUG

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

88620C

THERMO SWITCH ASSY

89422A

SENSOR, WATER TEMPERATURE

89427

SWITCH, TEMPERATURE DETECT

89427E

SWITCH, TEMPERATURE (FOR HEATER IDLE UP)

89428

SWITCH, TEMPERATURE DETECT, NO.2

9017905015

Крепеж

9017905032

Крепеж

9018905006

Крепеж

9043012221

Крепеж

9043018008

Крепеж

9165140620

Крепеж

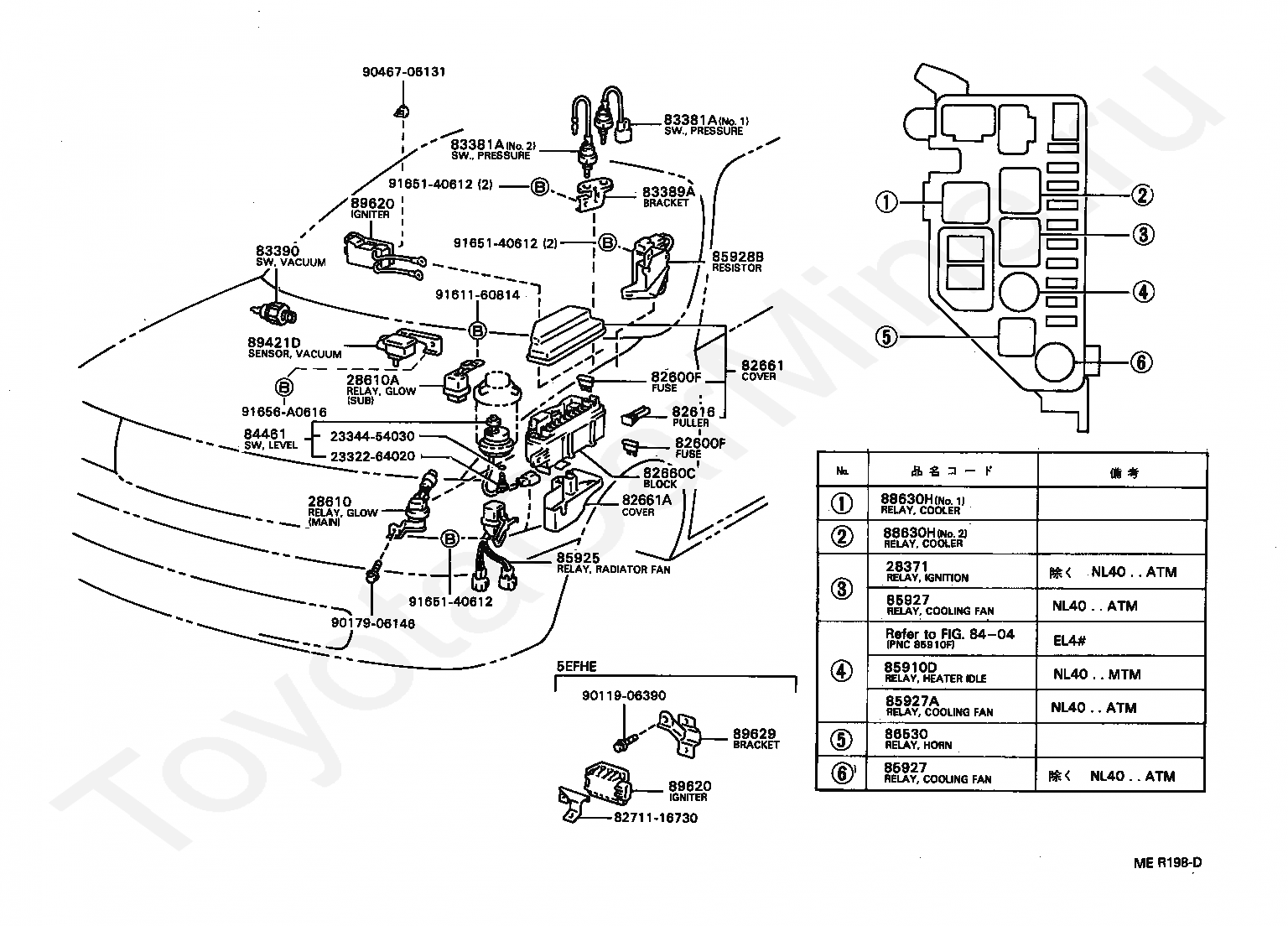

Код

Описание

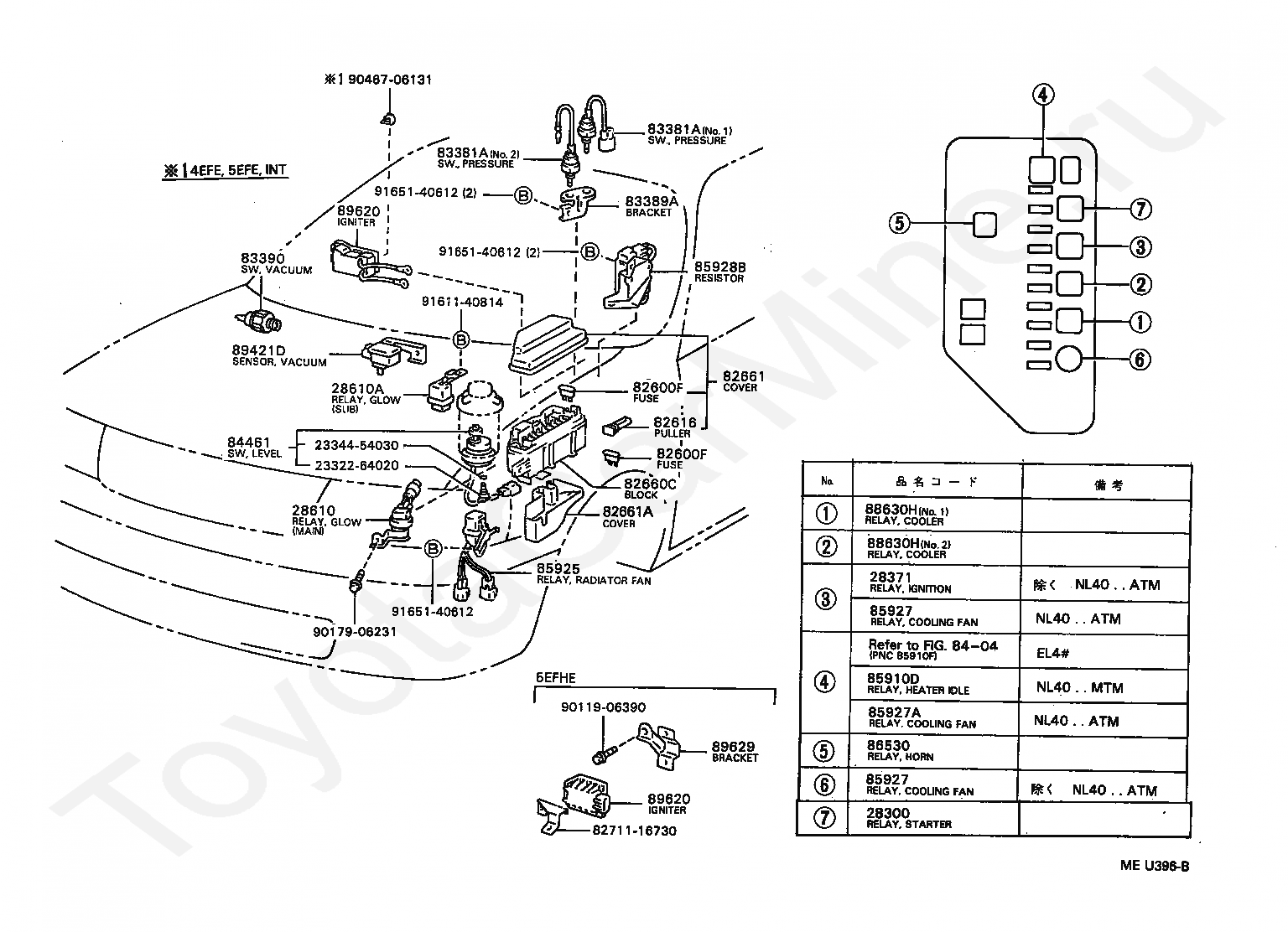

2332264020

Крепеж

2334454030

Крепеж

28371

RELAY, IGNITION, NO.1

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610A

RELAY ASSY, GLOW PLUG(SUB)

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82616

PULLER, FUSE

82660C

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82661A

COVER, RELAY BLOCK, NO.2

8271116730

Крепеж

83381A

SWITCH, PRESSURE

83381A

SWITCH, PRESSURE

83389A

BRACKET, PRESSURE SWITCH

83390

SWITCH ASSY, VACUUM WARNING

8404

переход к группе запчастей

84461

SWITCH, LEVEL WARNING

85910D

RELAY (FOR HEATER IDLE UP)

85925

RELAY, RADIATOR FAN

85927

RELAY, COOLING FAN

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85928B

RESISTOR, COOLING FAN

86530

RELAY ASSY, HORN

88630H

RELAY ASSY, COOLER

88630H

RELAY ASSY, COOLER

89421D

SENSOR, TURBO PRESSURE

89620

IGNITER ASSY

89620

IGNITER ASSY

89629

BRACKET, IGNITER ASSY

9011906390

Крепеж

9017906146

Крепеж

9046706131

Крепеж

9161160814

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165140612

Крепеж

91656A0616

Крепеж

Код

Описание

2332264020

Крепеж

2334454030

Крепеж

28300

RELAY ASSY, STARTER

28371

RELAY, IGNITION, NO.1

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610A

RELAY ASSY, GLOW PLUG(SUB)

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82616

PULLER, FUSE

82660C

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82661A

COVER, RELAY BLOCK, NO.2

8271116730

Крепеж

83381A

SWITCH, PRESSURE

83381A

SWITCH, PRESSURE

83389A

BRACKET, PRESSURE SWITCH

83390

SWITCH ASSY, VACUUM WARNING

8404

переход к группе запчастей

84461

SWITCH, LEVEL WARNING

85910D

RELAY (FOR HEATER IDLE UP)

85925

RELAY, RADIATOR FAN

85927

RELAY, COOLING FAN

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85928B

RESISTOR, COOLING FAN

86530

RELAY ASSY, HORN

88630H

RELAY ASSY, COOLER

88630H

RELAY ASSY, COOLER

89421D

SENSOR, TURBO PRESSURE

89620

IGNITER ASSY

89620

IGNITER ASSY

89629

BRACKET, IGNITER ASSY

9011906390

Крепеж

9017906231

Крепеж

9046706131

Крепеж

9161140814

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165140612

Крепеж

Код

Описание

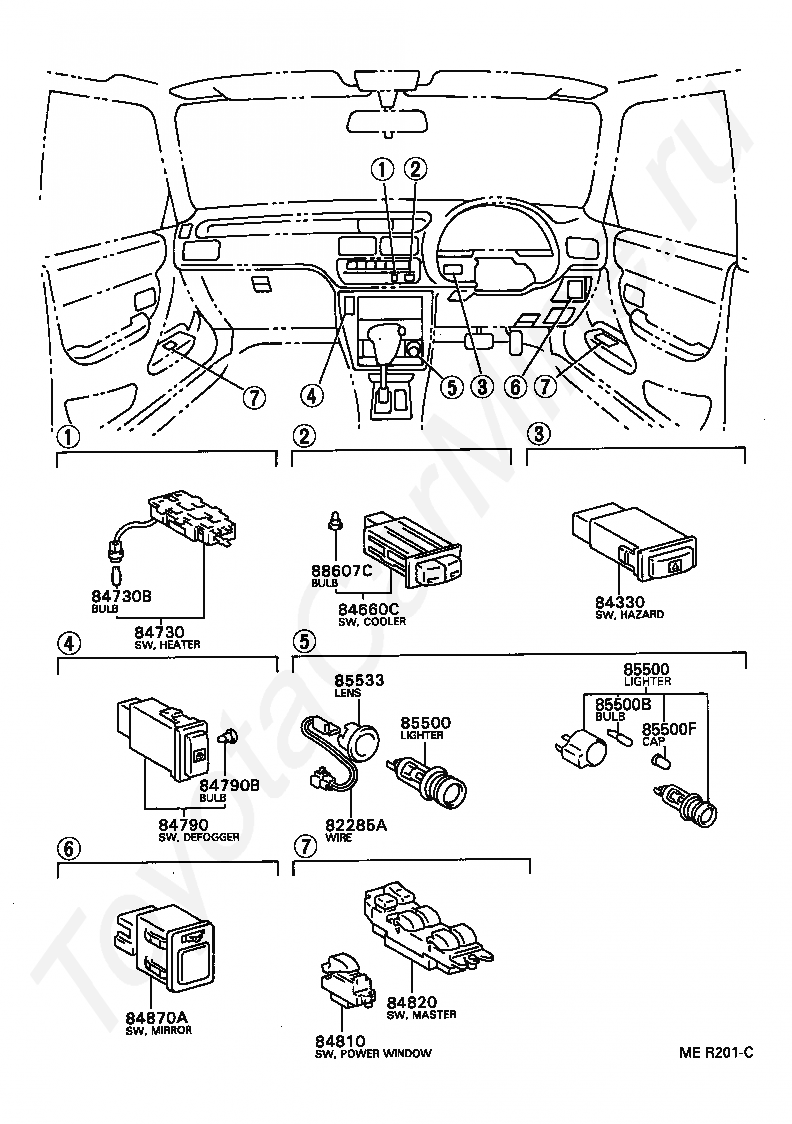

82285A

WIRE, ILLUMINATION

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84660C

SWITCH, COOLER

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84870A

SWITCH ASSY, OUTER MIRROR

85500

LIGHTER ASSY, CIGARETTE

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85500F

CAP, CIGARETTE LIGHTER BULB

85533

LENS, CIGARETTE LIGHTER INDICATOR

88607C

LAMP SUB-ASSY, INDICATOR

Код

Описание

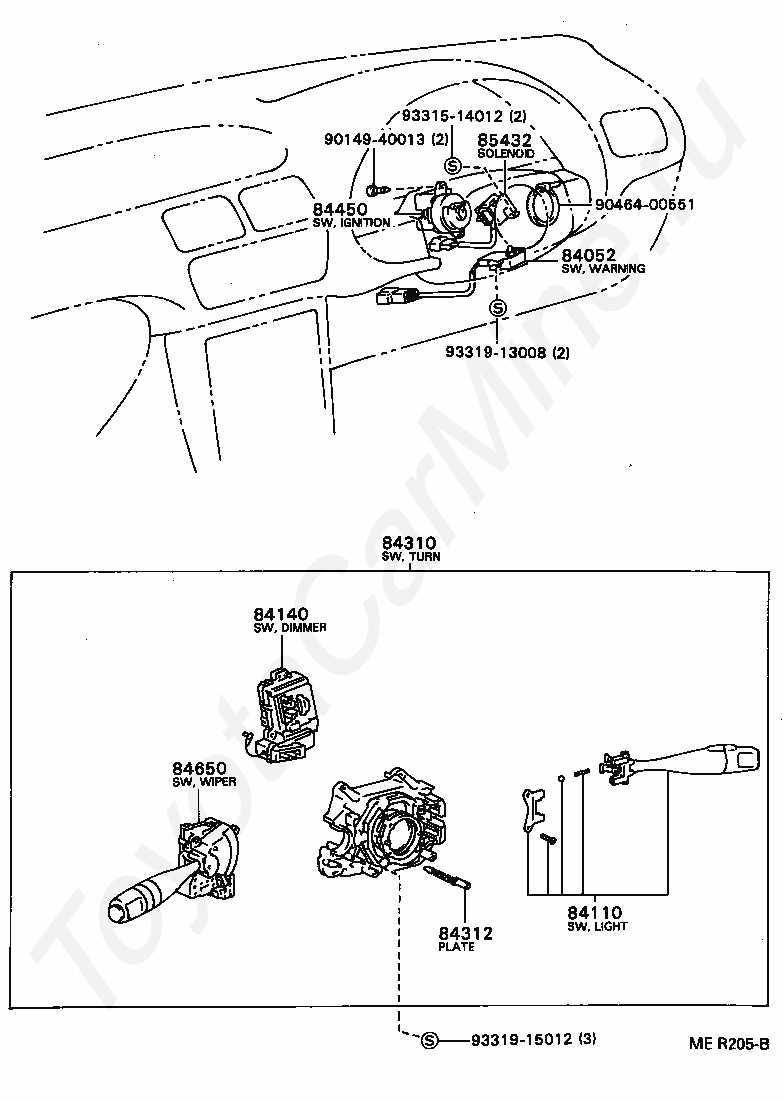

84052

SWITCH ASSY, UN-LOCK WARNING

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84140

SWITCH ASSY, HEADLAMP DIMMER

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

9014940013

Крепеж

9046400551

Крепеж

9331514012

Крепеж

9331913008

Крепеж

9331915012

Крепеж

Код

Описание

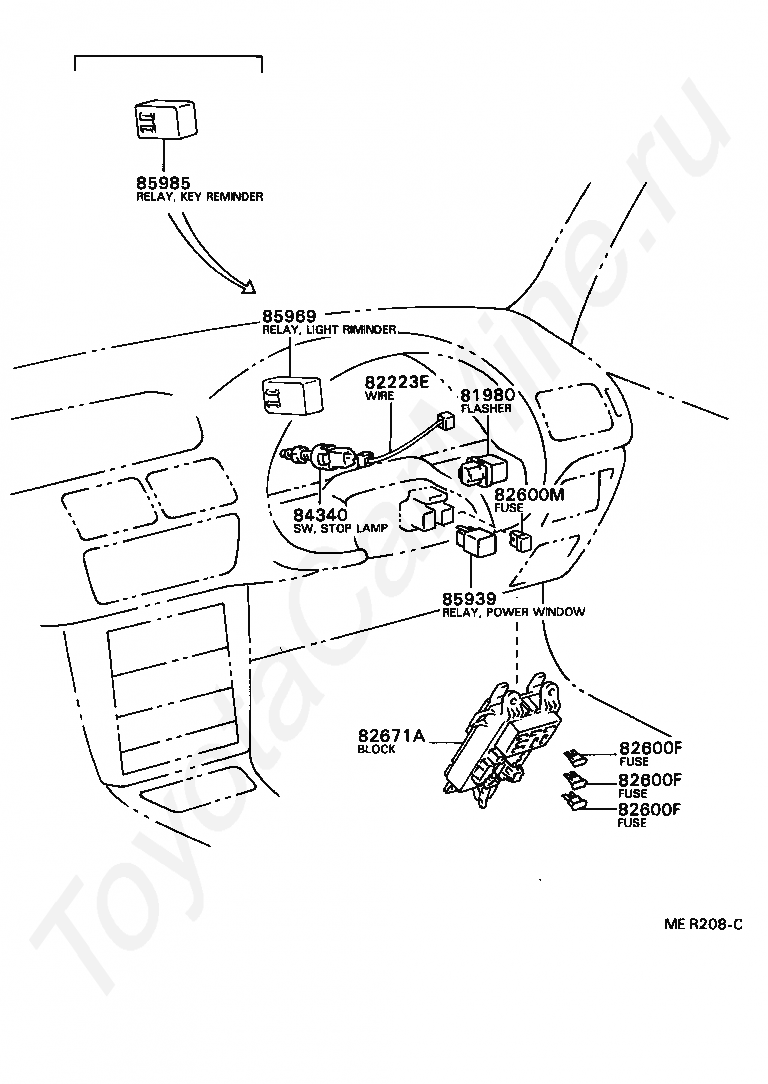

81980

FLASHER ASSY, TURN SIGNAL

82223E

WIRE, CLUTCH START SWITCH

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600M

FUSE, MEDIUM CURRENT

82671A

BLOCK, JUNCTION

84340

SWITCH ASSY, STOP LAMP

85939

RELAY, POWER WINDOW

85969

RELAY, LIGHT REMINDER

85985

RELAY, KEY REMINDER

Код

Описание

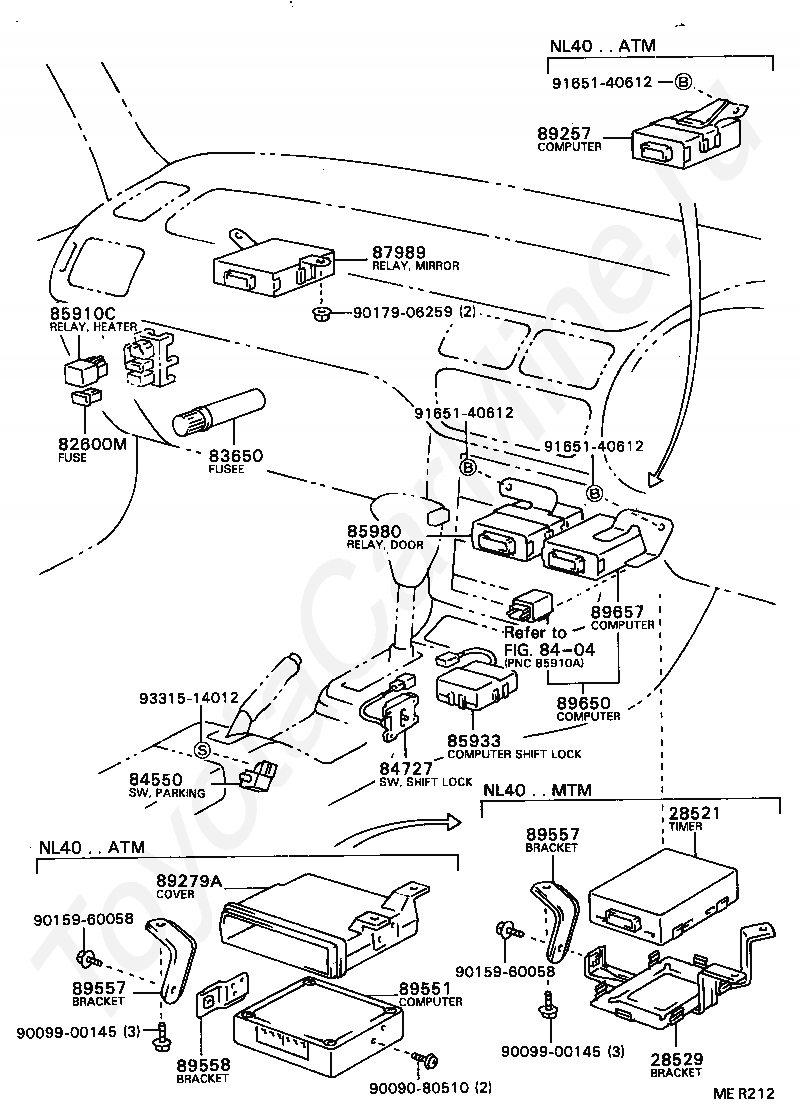

28521

TIMER, PREHEATING

28529

BRACKET, PREHEATING TIMER, NO.1

82600M

FUSE, MEDIUM CURRENT

83650

FUSEE

8404

переход к группе запчастей

84550

SWITCH ASSY, PARKING BRAKE

84727

SWITCH, SHIFT LOCK CONTROL

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85933

COMPUTER, SHIFT LOCK CONTROL

85980

RELAY ASSY, DOOR CONTROL

87989

RELAY, MIRROR CONTROL

89257

COMPUTER, COOLING FAN

89279A

COVER, COMPUTER

89551

COMPUTER, EMISSION CONTROL

89557

BRACKET, EMISSION CONTROL COMPUTER, NO.1

89557

BRACKET, EMISSION CONTROL COMPUTER, NO.1

89558

BRACKET, EMISSION CONTROL COMPUTER, NO.2

89650

COMPUTER ASSY, POWER STEERING

89657

COMPUTER, POWER STEERING

9009080510

Крепеж

9009900145

Крепеж

9009900145

Крепеж

9015960058

Крепеж

9015960058

Крепеж

9017906259

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9331514012

Крепеж

Код

Описание

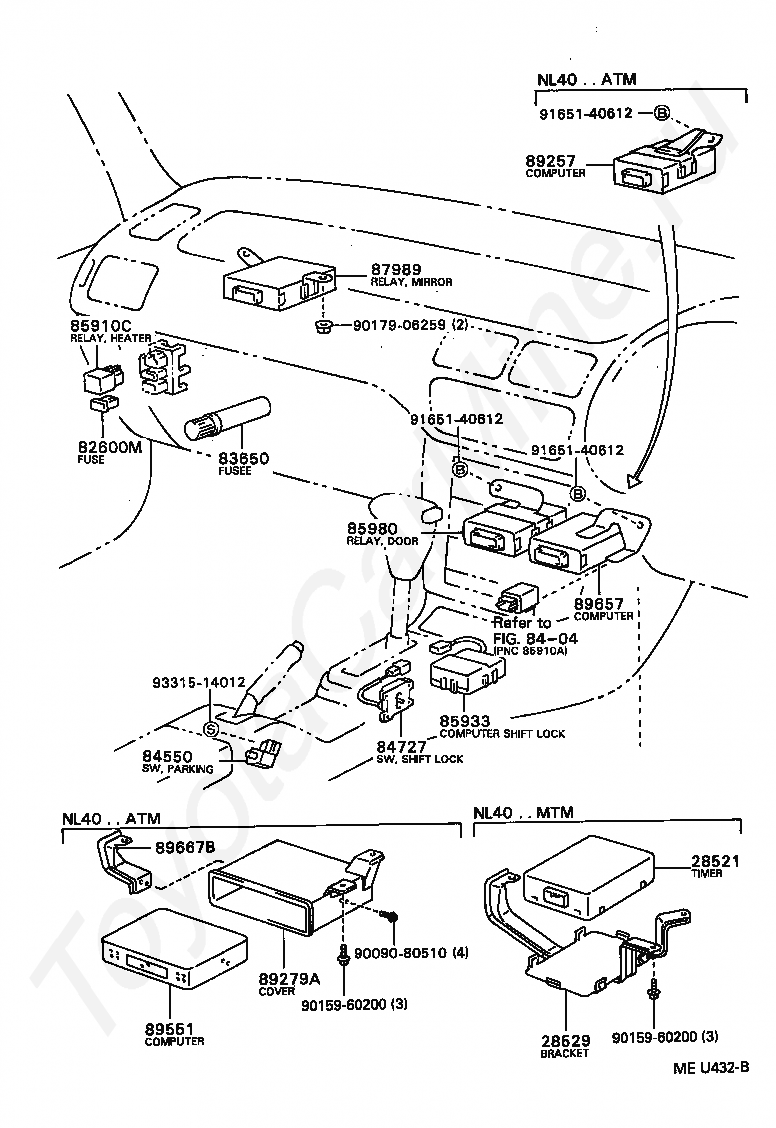

28521

TIMER, PREHEATING

28529

BRACKET, PREHEATING TIMER, NO.1

82600M

FUSE, MEDIUM CURRENT

83650

FUSEE

8404

переход к группе запчастей

84550

SWITCH ASSY, PARKING BRAKE

84727

SWITCH, SHIFT LOCK CONTROL

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85933

COMPUTER, SHIFT LOCK CONTROL

85980

RELAY ASSY, DOOR CONTROL

87989

RELAY, MIRROR CONTROL

89257

COMPUTER, COOLING FAN

89279A

COVER, COMPUTER

89551

COMPUTER, EMISSION CONTROL

89657

COMPUTER, POWER STEERING

89667B

BRACKET, ENGINE CONTROL COMPUTER, NO.1

9009080510

Крепеж

9015960200

Крепеж

9015960200

Крепеж

9017906259

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9331514012

Крепеж

Код

Описание

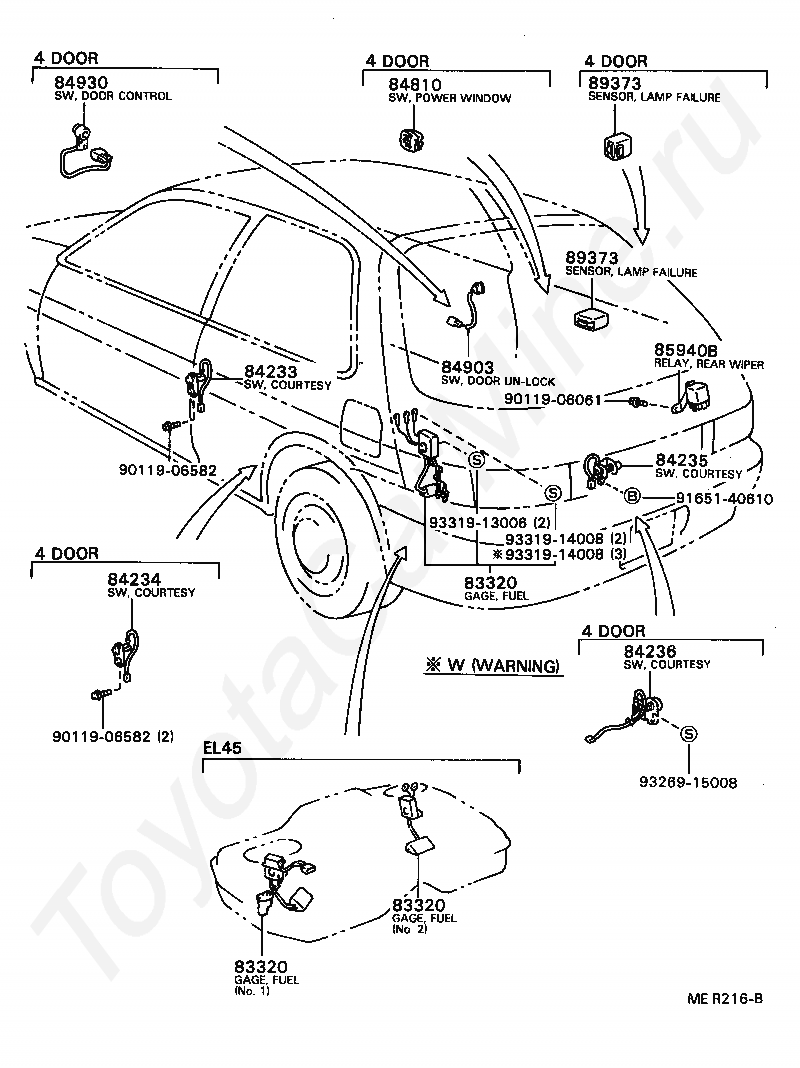

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84236

SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84903

SWITCH SUB-ASSY, DOOR UN-LOCK

84930

SWITCH ASSY, DOOR CONTROL

85940B

RELAY ASSY, REAR WIPER

89373

SENSOR, LAMP FAILURE INDICATOR

89373

SENSOR, LAMP FAILURE INDICATOR

9011906061

Крепеж

9011906582

Крепеж

9011906582

Крепеж

9165140610

Крепеж

9326915008

Крепеж

9331913006

Крепеж

9331914008

Крепеж

9331914008

Крепеж
