Каталог

Япония

Модель

CORSA/TERCEL

VIN

Дата

1990/09

Двигатель

1,5 литра, турбо-дизель

Класс

JOINAS TYPE

Фрейм

NL40

КПП

автомат АКПП, 4 ступени

Опции

TERCEL 3 двери дизель

Тормозная магистраль TOYOTA CORSA/TERCEL

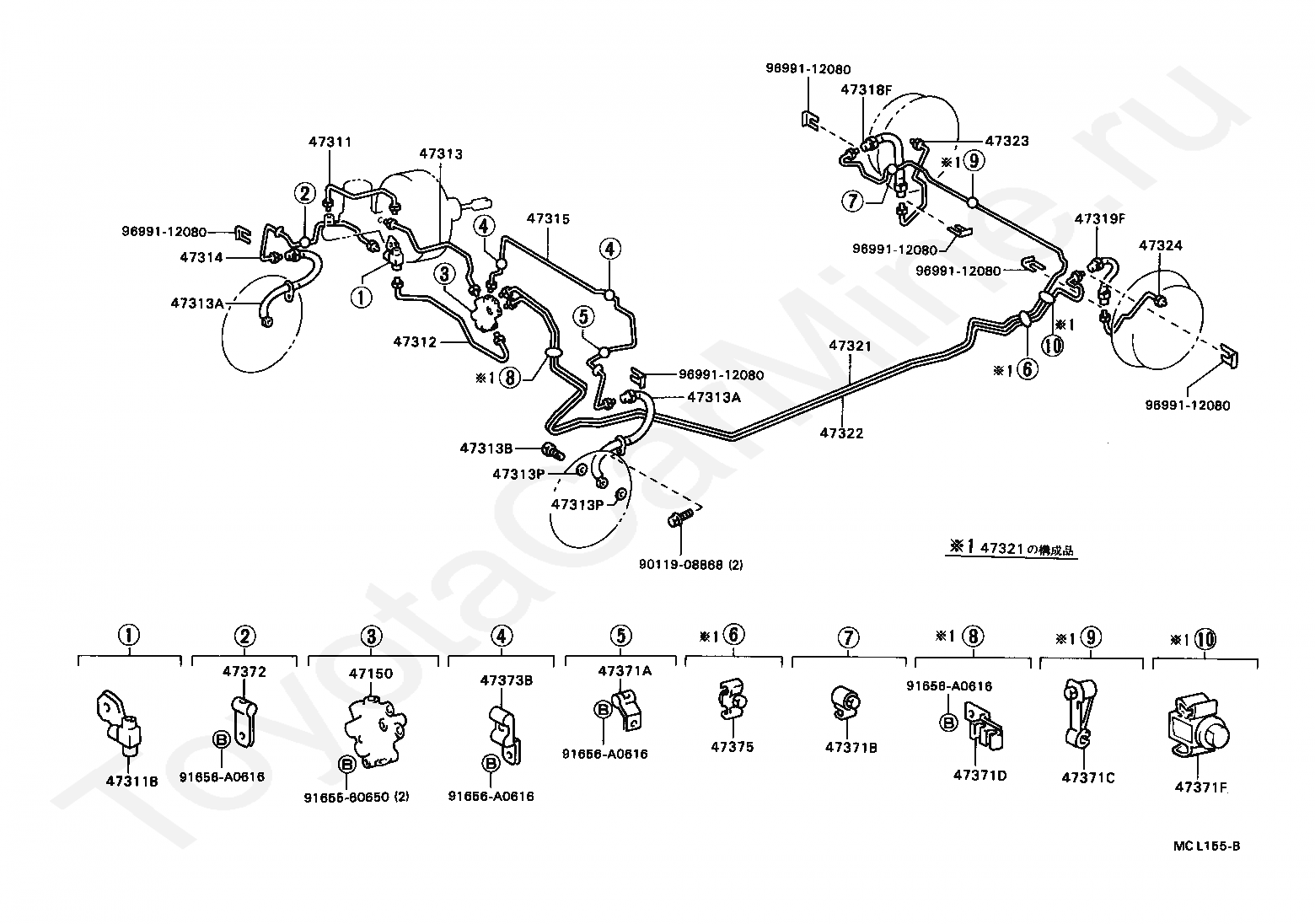

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47371D

CLAMP, BRAKE TUBE, NO.8

47371F

CLAMP, BRAKE TUBE, NO.10

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47375

CLAMP, BRAKE TUBE, NO.5

9011908868

Крепеж

9165560650

Крепеж

91656A0616

Крепеж

91656A0616

Крепеж

91656A0616

Крепеж

91656A0616

Крепеж

9699112080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

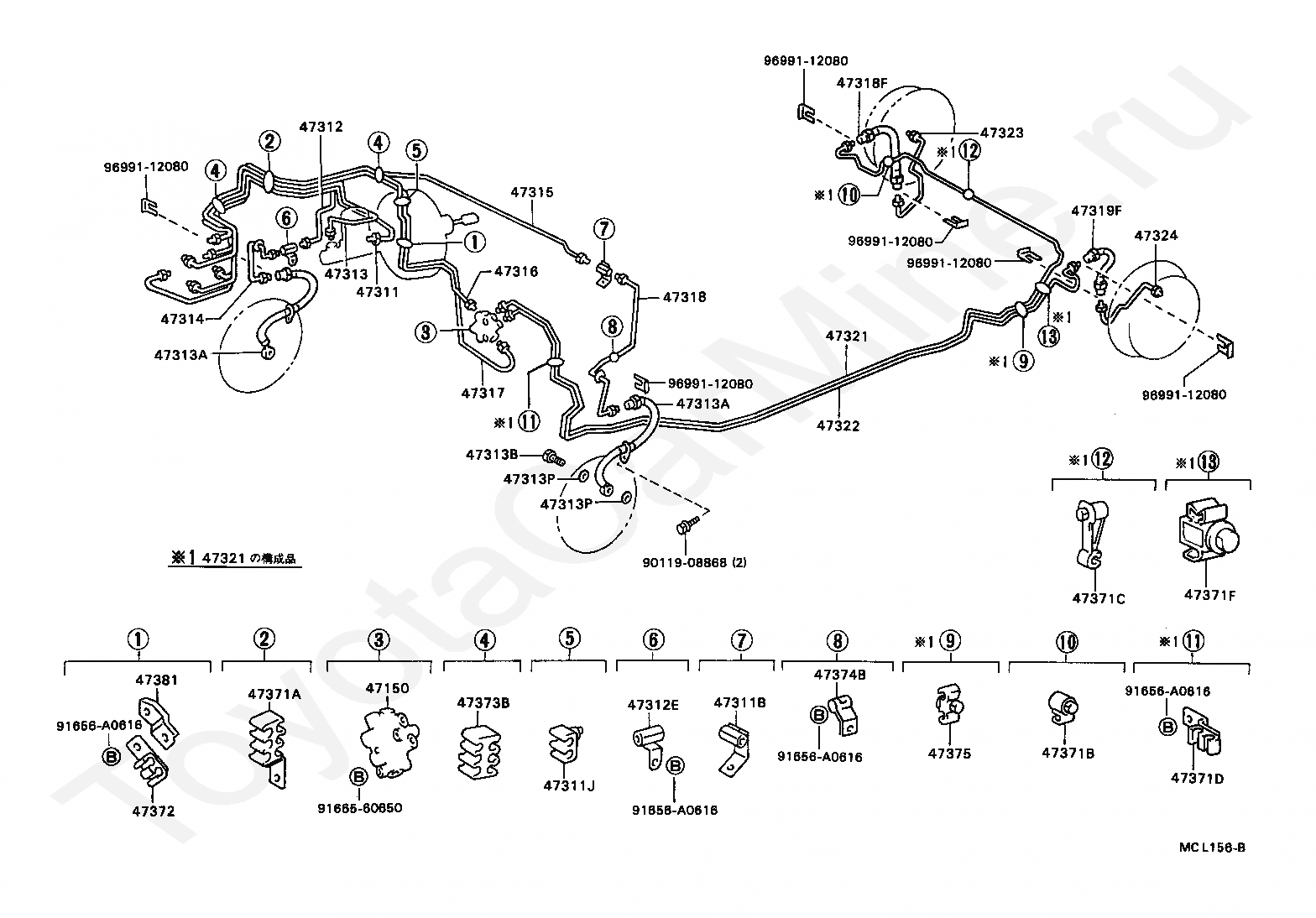

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311J

GROMMET, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47371D

CLAMP, BRAKE TUBE, NO.8

47371F

CLAMP, BRAKE TUBE, NO.10

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

47381

BRACKET, BRAKE TUBE CLAMP NO.1

9011908868

Крепеж

91656A0616

Крепеж

91656A0616

Крепеж

91656A0616

Крепеж

91656A0616

Крепеж

9166560650

Крепеж

9699112080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

9699112080

Крепеж

Код

Описание

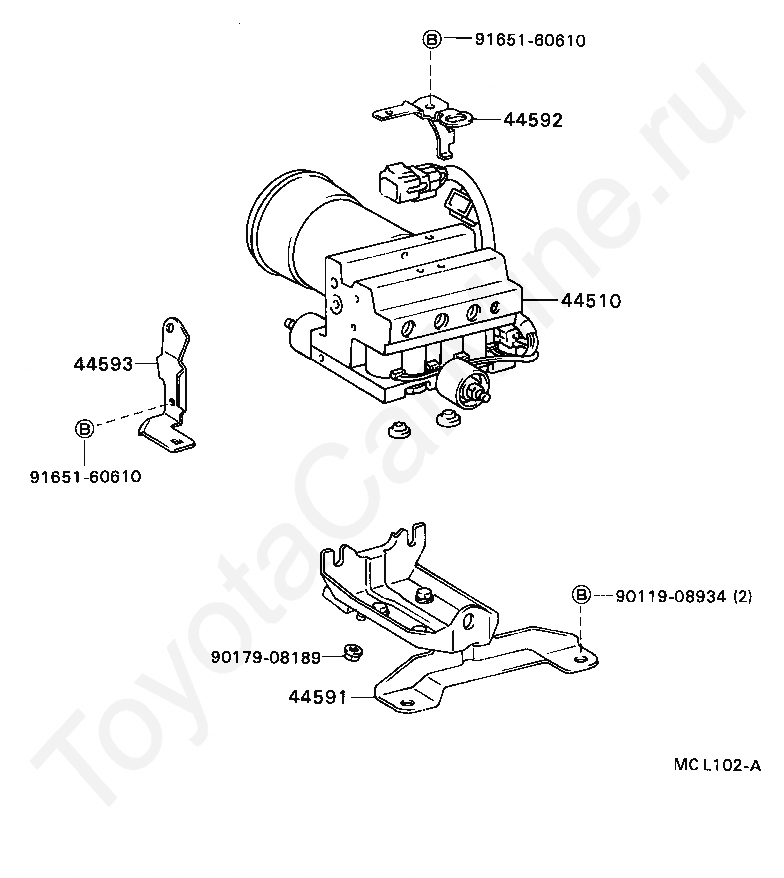

44510

ACTUATOR ASSY, BRAKE

44591

BRACKET, BRAKE ACTUATOR, NO.1

44592

BRACKET, BRAKE ACTUATOR, NO.2

44593

BRACKET, BRAKE ACTUATOR, NO.3

9011908934

Крепеж

9017908189

Крепеж

9165160610

Крепеж

9165160610

Крепеж
