Каталог

Европа

Модель

CORONA FR

VIN

Дата

1986/01

Двигатель

2 литра, дизель

Кузов

седан

Класс

STANDARD TYPE

Фрейм

CT141

КПП

механика МКПП, 5 скоростей

Опции

правый руль GENERAL COUNTRIES

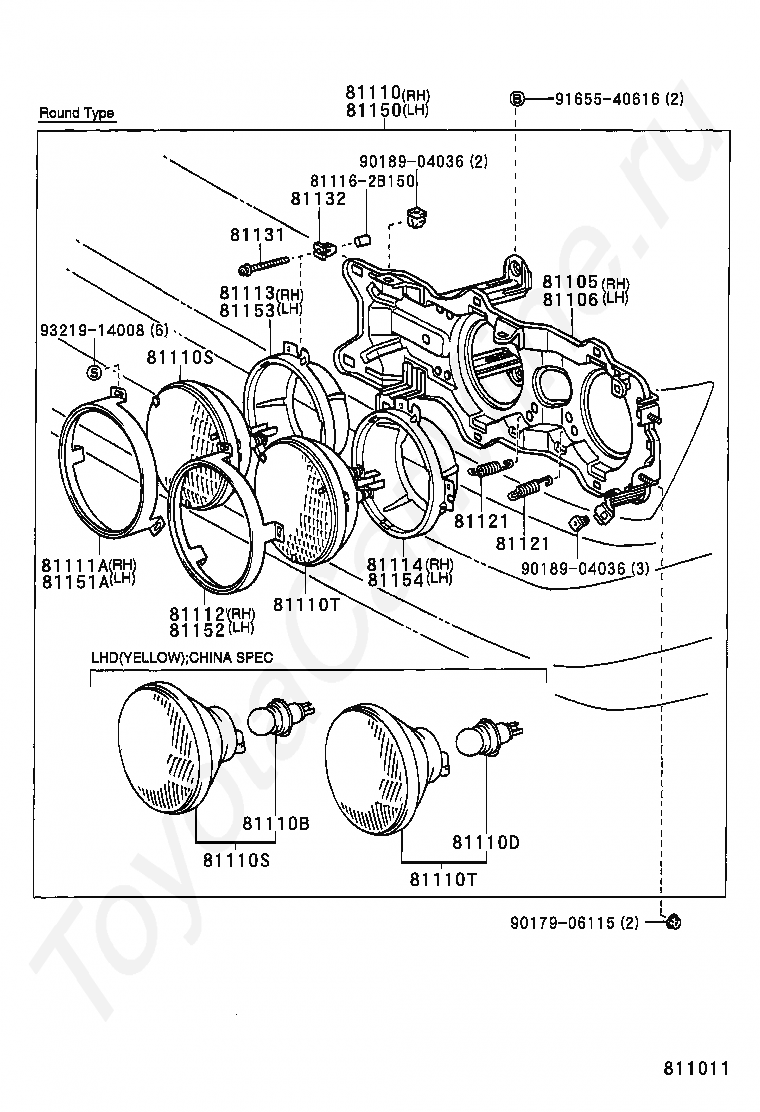

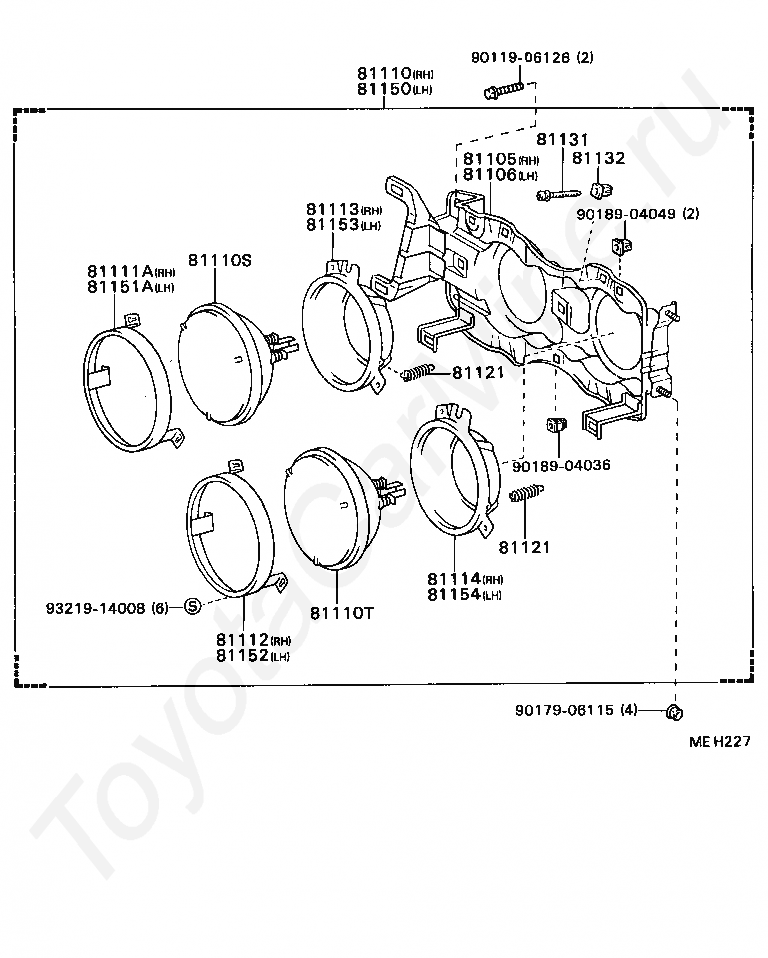

Фары TOYOTA CORONA FR

Код

Описание

81105

HOUSING SUB-ASSY, HEADLAMP, RH

81106

HOUSING SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110S

SEALED BEAM UNIT, NO.1

81110T

SEALED BEAM UNIT, NO.2

81111A

RING, SEALED BEAM RETAINING, NO.1 RH

81112

RING, SEALED BEAM RETAINING, NO.2 RH

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81114

RING, SEALED BEAM MOUNTING, NO.2 RH

81121

SPRING, HEADLAMP TENSION

81121

SPRING, HEADLAMP TENSION

81131

SCREW, HEADLAMP ADJUSTING

81132

NUT, HEADLAMP SELF LOCKING

81150

HEADLAMP ASSY, LH

81151A

RING, SEALED BEAM RETAINING, NO.1 LH

81152

RING, SEALED BEAM RETAINING, NO.2 LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

81154

RING, SEALED BEAM MOUNTING, NO.2 LH

9011906126

Крепеж

9017906115

Крепеж

9018904036

Крепеж

9018904049

Крепеж

9321914008

Крепеж

Код

Описание

81105

HOUSING SUB-ASSY, HEADLAMP, RH

81106

HOUSING SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110D

BULB(FOR HEADLAMP, NO.2)

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81110T

SEALED BEAM UNIT, NO.2

81110T

SEALED BEAM UNIT, NO.2

81111A

RING, SEALED BEAM RETAINING, NO.1 RH

81112

RING, SEALED BEAM RETAINING, NO.2 RH

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81114

RING, SEALED BEAM MOUNTING, NO.2 RH

811162B150

Крепеж

81121

SPRING, HEADLAMP TENSION

81121

SPRING, HEADLAMP TENSION

81131

SCREW, HEADLAMP ADJUSTING

81132

NUT, HEADLAMP SELF LOCKING

81150

HEADLAMP ASSY, LH

81151A

RING, SEALED BEAM RETAINING, NO.1 LH

81152

RING, SEALED BEAM RETAINING, NO.2 LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

81154

RING, SEALED BEAM MOUNTING, NO.2 LH

9017906115

Крепеж

9018904036

Крепеж

9018904036

Крепеж

9165540616

Крепеж

9321914008

Крепеж

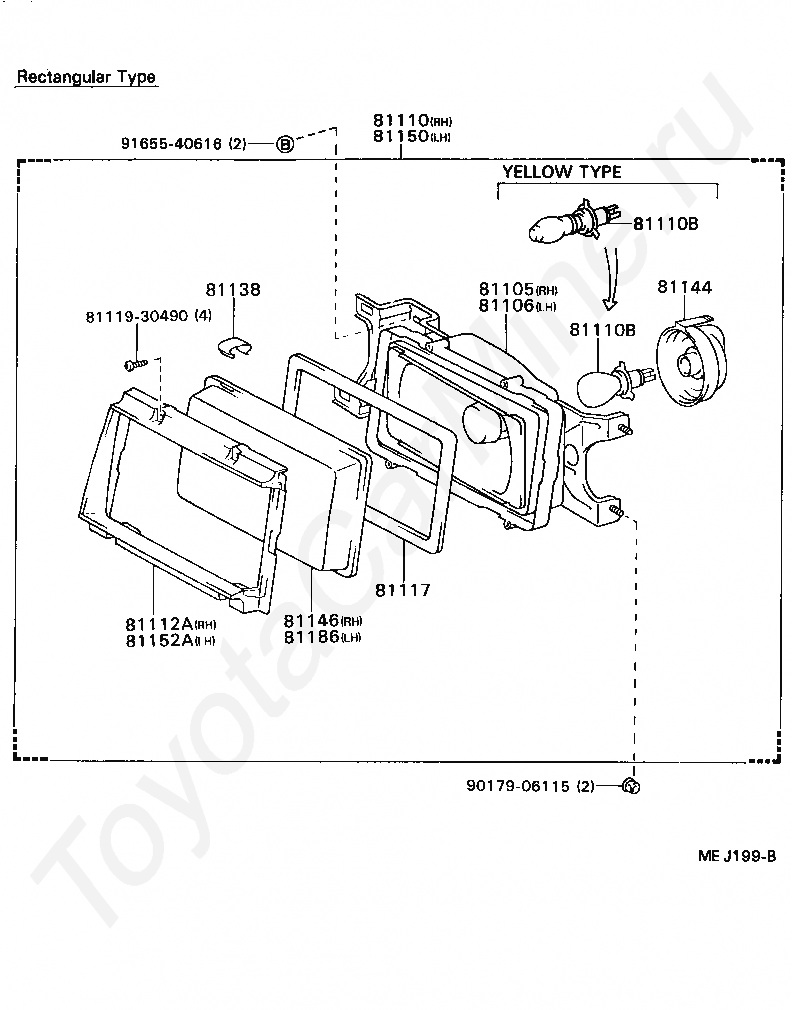

Код

Описание

81105

HOUSING SUB-ASSY, HEADLAMP, RH

81106

HOUSING SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110B

BULB(FOR HEADLAMP, NO.1)

81112A

RIM, HEADLAMP, RH

81117

PACKING, HEADLAMP HOUSING

8111930490

Крепеж

81138

SPRING, HEADLAMP

81144

COVER, HEADLAMP, NO.1

81146

LENS, HEADLAMP, RH

81150

HEADLAMP ASSY, LH

81152A

RIM, HEADLAMP, LH

81186

LENS, HEADLAMP, LH

9017906115

Крепеж

9165540616

Крепеж
