Каталог

Европа

Модель

CORONA FR

VIN

Дата

1986/01

Двигатель

2 литра, дизель

Кузов

седан

Класс

STANDARD TYPE

Фрейм

CT141

КПП

механика МКПП, 5 скоростей

Опции

правый руль GENERAL COUNTRIES

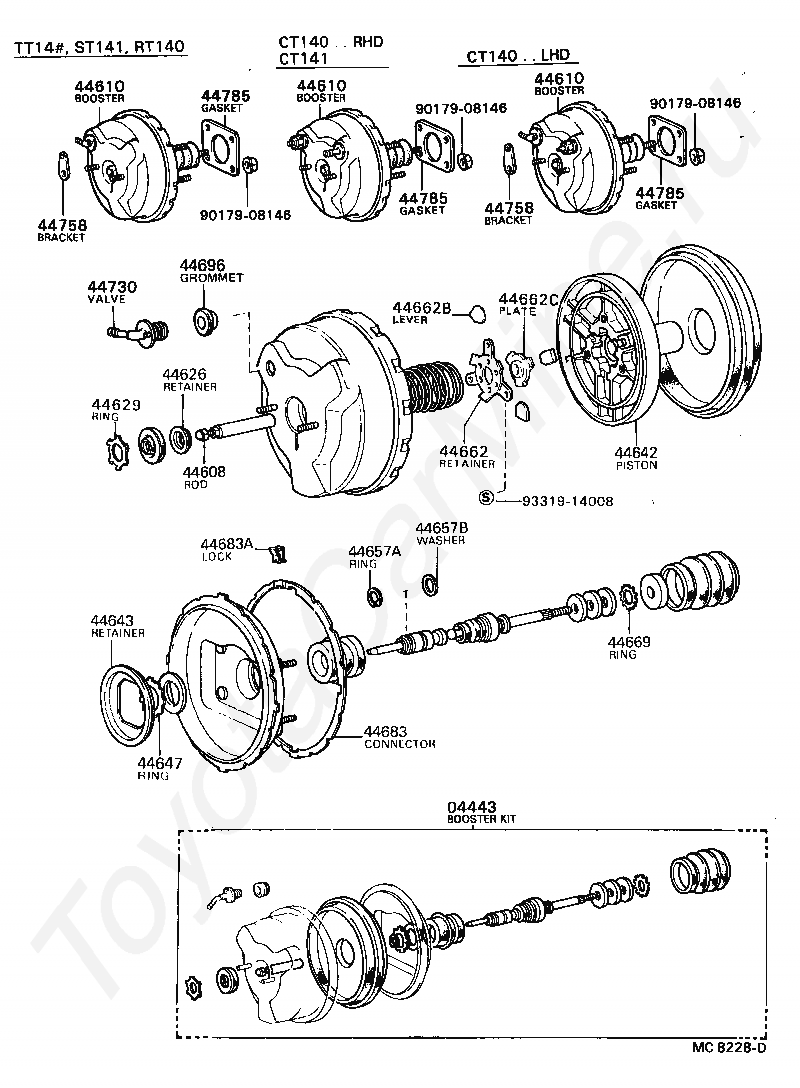

Вакуумный тормозной цилиндр TOYOTA CORONA FR

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610

BOOSTER ASSY, BRAKE

44610

BOOSTER ASSY, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44647

RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44657B

WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44683

CONNECTOR, BOOSTER BODY

44683A

LOCK, CONNECTOR

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

44758

BRACKET, VACUUM CHECK VALVE

44785

GASKET, BRAKE BOOSTER

44785

GASKET, BRAKE BOOSTER

44785

GASKET, BRAKE BOOSTER

9017908146

Крепеж

9017908146

Крепеж

9017908146

Крепеж

9331914008

Крепеж

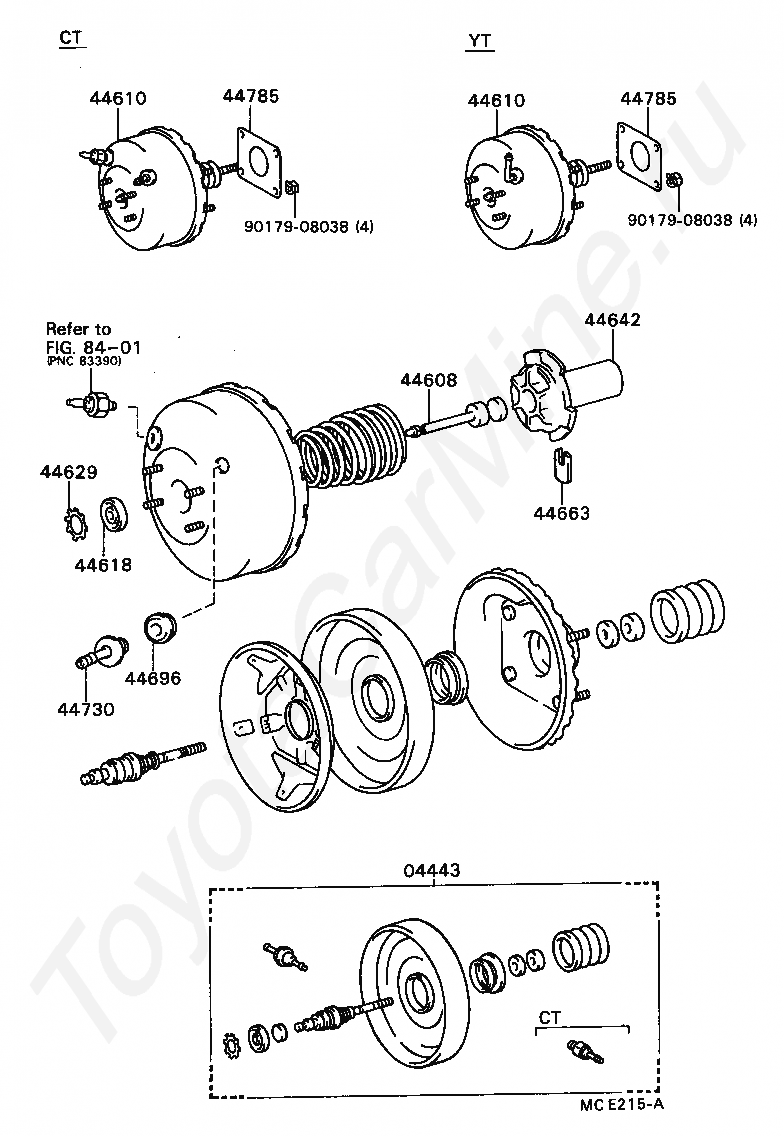

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610

BOOSTER ASSY, BRAKE

44618

SEAL, BOOSTER BODY

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44663

KEY, VALVE STOPPER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44785

GASKET, BRAKE BOOSTER

44785

GASKET, BRAKE BOOSTER

8401

переход к группе запчастей

9017908038

Крепеж

9017908038

Крепеж

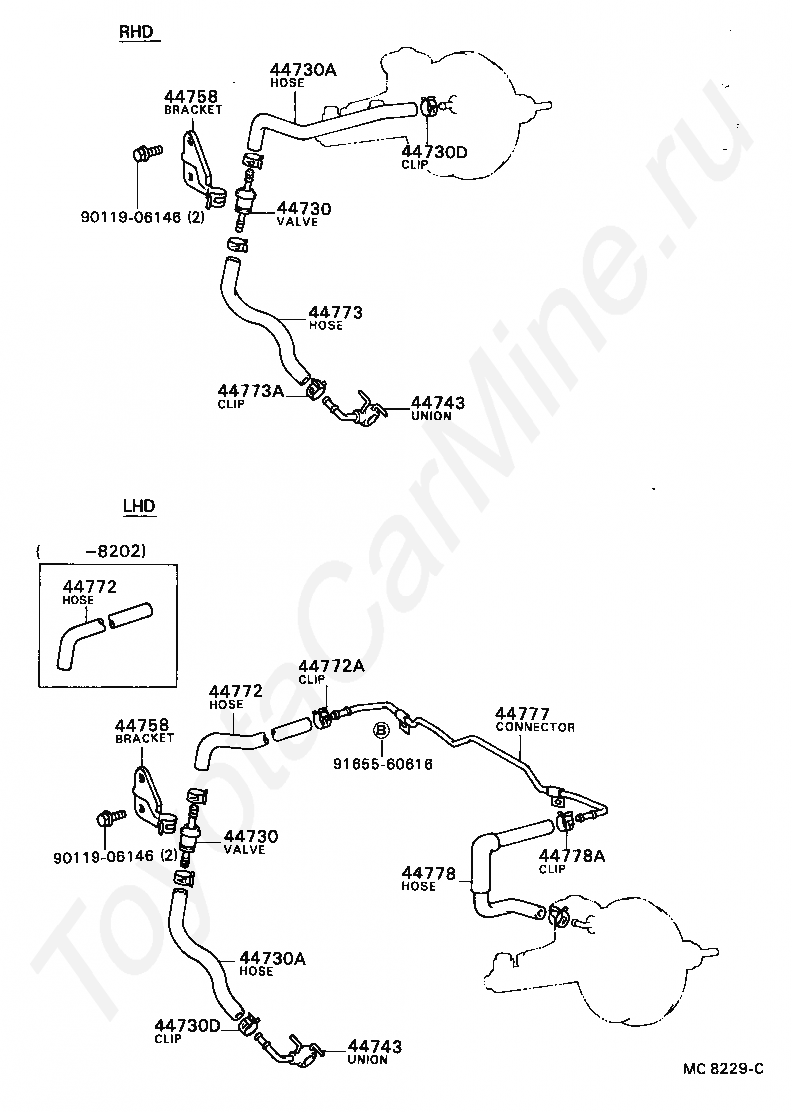

Код

Описание

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44743

UNION(FOR VACUUM PUMP)

44743

UNION(FOR VACUUM PUMP)

44758

BRACKET, VACUUM CHECK VALVE

44758

BRACKET, VACUUM CHECK VALVE

44772

HOSE, CHECK VALVE TO CONNECTOR TUBE

44772

HOSE, CHECK VALVE TO CONNECTOR TUBE

44772A

CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

44773

HOSE, VACUUM, NO.2

44773A

CLIP, NO.1(FOR VACUUM HOSE, NO.2)

44777

CONNECTOR, VACUUM HOSE, NO.1

44778

HOSE, CONNECTOR TO CHECK VALVE

44778A

CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

9011906146

Крепеж

9011906146

Крепеж

9165560616

Крепеж
