Каталог

Ближний Восток

Модель

CORONA/CARINA 2

VIN

Дата

1988/10

Двигатель

2 литра

Кузов

фургон

Класс

XL SPECIFICATION

Фрейм

ST171

КПП

механика МКПП, 5 скоростей

Опции

правый руль GENERAL COUNTRIES STANDARD CARBURETOR SPECIFICATION

Спидометр TOYOTA CORONA/CARINA 2

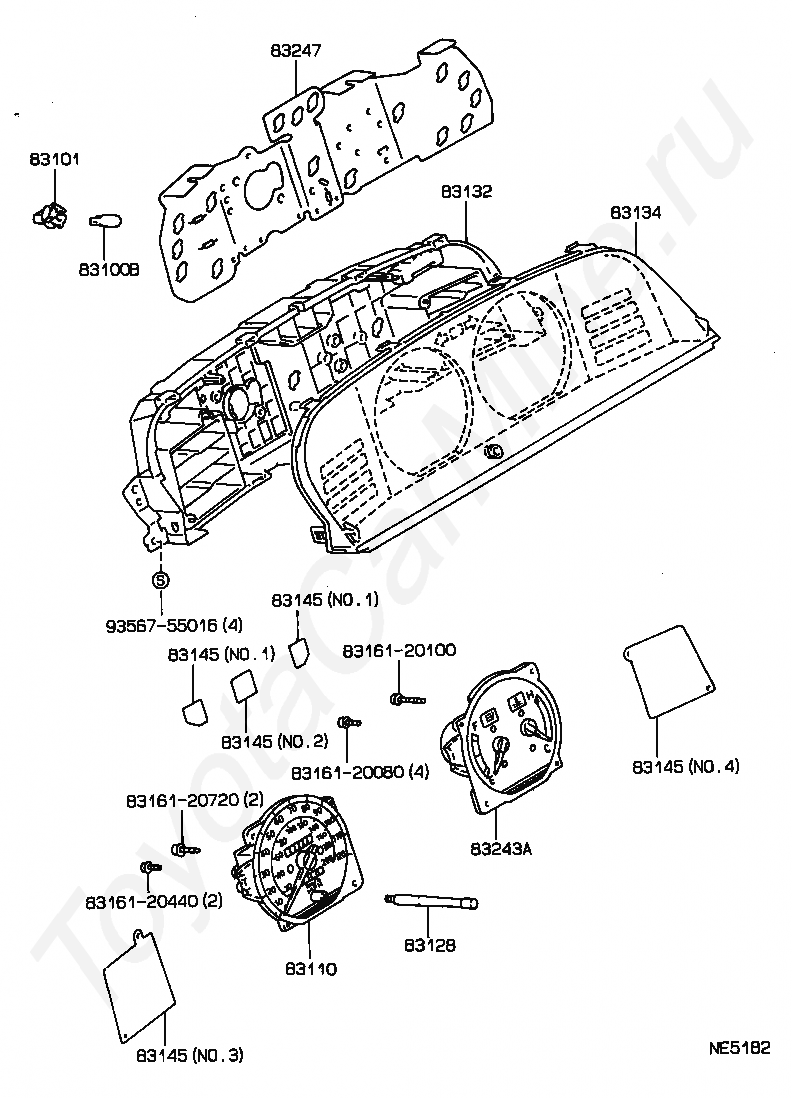

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83110

SPEEDOMETER ASSY

83128

KNOB, TRIP COUNTER

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83145

LENS, METER, NO.1

83145

LENS, METER, NO.1

83145

LENS, METER, NO.1

83145

LENS, METER, NO.1

83145

LENS, METER, NO.1

8316120080

Крепеж

8316120100

Крепеж

8316120440

Крепеж

8316120720

Крепеж

83243A

GAUGE SUB-ASSY, FUEL RECEIVER

83247

PLATE, METER CIRCUIT

9356755016

Крепеж

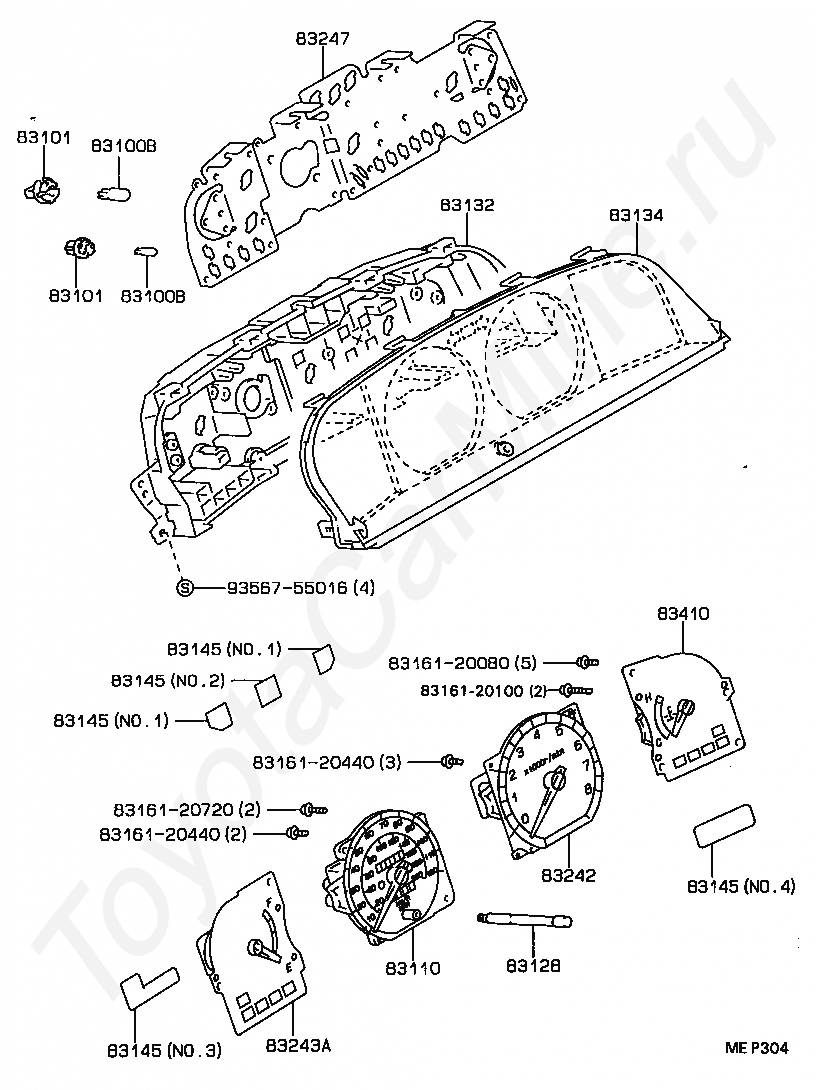

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83110

SPEEDOMETER ASSY

83128

KNOB, TRIP COUNTER

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83145

LENS, METER, NO.1

83145

LENS, METER, NO.1

83145

LENS, METER, NO.1

83145

LENS, METER, NO.1

83145

LENS, METER, NO.1

8316120080

Крепеж

8316120100

Крепеж

8316120440

Крепеж

8316120440

Крепеж

8316120720

Крепеж

83242

TACHOMETER ASSY, ENGINE

83243A

GAUGE SUB-ASSY, FUEL RECEIVER

83247

PLATE, METER CIRCUIT

83410

GAGE ASSY, WATER TEMPERATURE RECEIVER

9356755016

Крепеж

Код

Описание

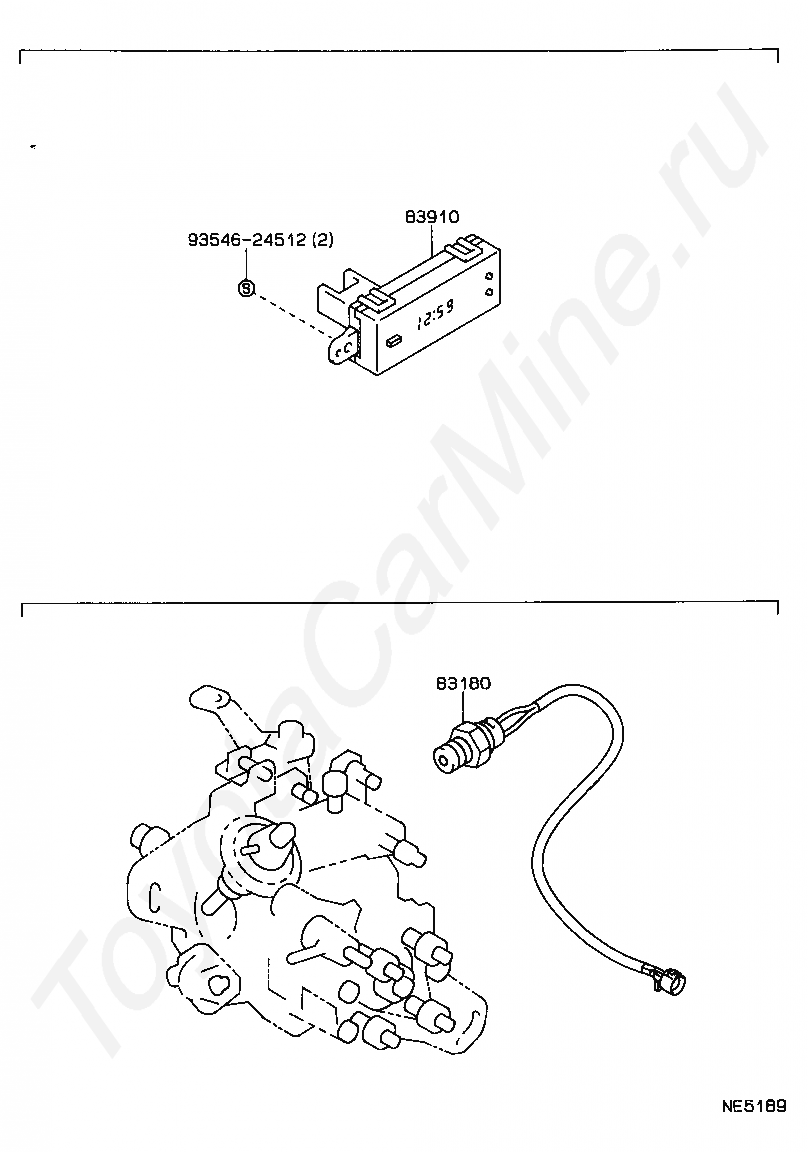

83180

DETECTOR ASSY, REVOLUTION

83910

CLOCK ASSY

9354624512

Крепеж

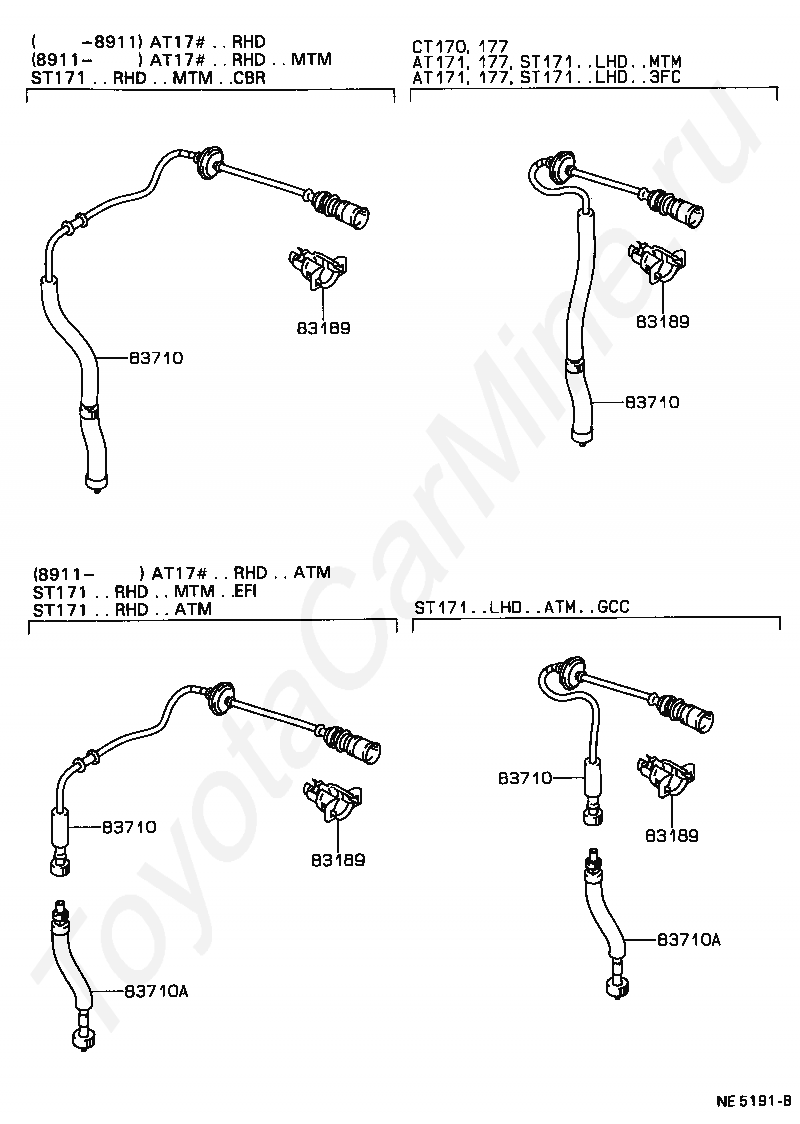

Код

Описание

83189

BRACKET, METER

83189

BRACKET, METER

83189

BRACKET, METER

83189

BRACKET, METER

83710

CABLE ASSY, SPEEDOMETER DRIVE, NO.1

83710

CABLE ASSY, SPEEDOMETER DRIVE, NO.1

83710

CABLE ASSY, SPEEDOMETER DRIVE, NO.1

83710

CABLE ASSY, SPEEDOMETER DRIVE, NO.1

83710A

CABLE ASSY, SPEEDOMETER DRIVE, NO.2

83710A

CABLE ASSY, SPEEDOMETER DRIVE, NO.2
