Каталог

Ближний Восток

Модель

CORONA/CARINA 2

VIN

Дата

1986/08

Двигатель

1,6 литра

Кузов

седан

Класс

DELUX SPECIFICATION

Фрейм

AT151

КПП

механика МКПП, 5 скоростей

Опции

левый руль Европа ФРГ

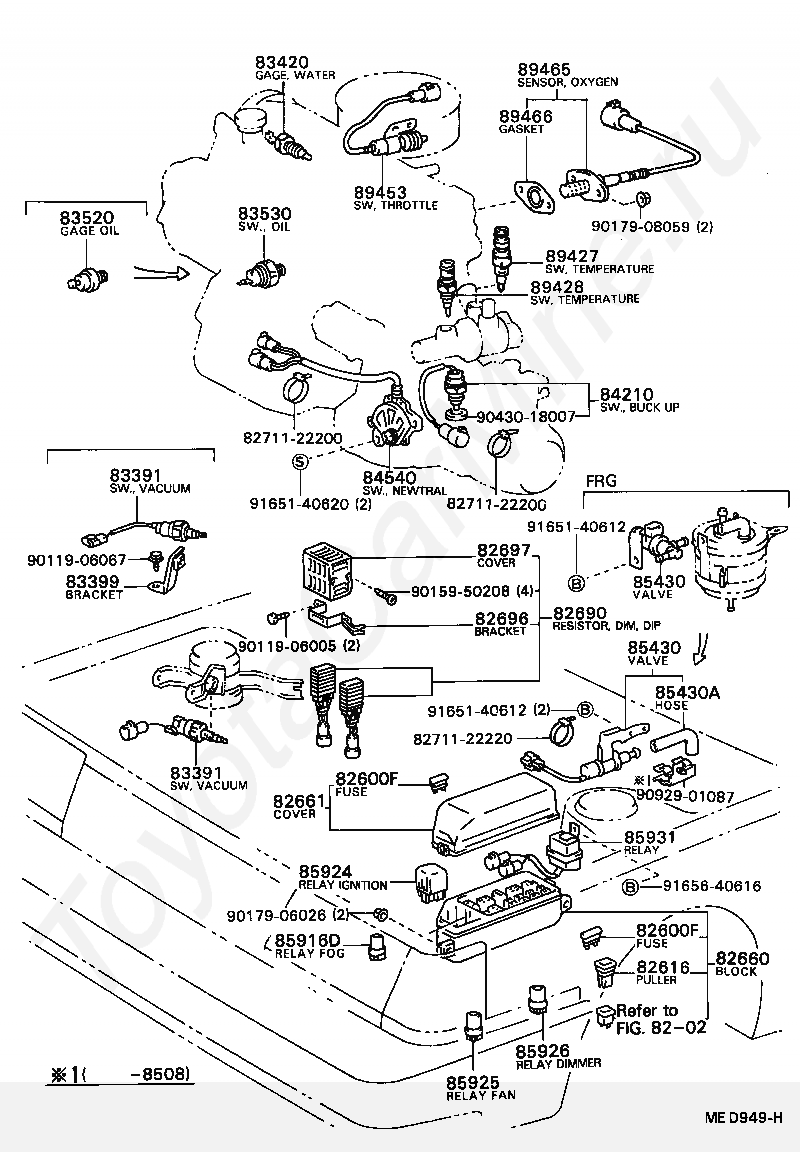

Реле и кнопки TOYOTA CORONA/CARINA 2

Код

Описание

8202

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82616

PULLER, FUSE

82660

BLOCK ASSY, RELAY, ENGINE ROOM

82661

COVER, RELAY BLOCK, NO.1

82690

RESISTOR ASSY, DIM DIP LAMP

82696

BRACKET, DIM-DIP LAMP RESISTOR

82697

COVER, DIM-DIP LAMP RESISTOR

8271122200

Крепеж

8271122200

Крепеж

8271122220

Крепеж

83391

SWITCH, VACUUM

83391

SWITCH, VACUUM

83399

BRACKET, VACUUM SWITCH

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83520

GAGE ASSY,OIL PRESSURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

85430

VALVE, OUTER VENT CONTROL

85430

VALVE, OUTER VENT CONTROL

85430A

HOSE

85916D

RELAY, FOG LAMP

85924

RELAY, IGNITION CONTROL

85925

RELAY, RADIATOR FAN

85926

RELAY, HEADLAMP DIMMER

85931

RELAY, EMISSION CONTROL

89427

SWITCH, TEMPERATURE DETECT

89428

SWITCH, TEMPERATURE DETECT, NO.2

89453

SWITCH, THROTTLE POSITION (FOR T.C.S.)

89465

SENSOR, OXYGEN

89466

GASKET, OXYGEN SENSOR

9011906005

Крепеж

9011906067

Крепеж

9015950208

Крепеж

9017906026

Крепеж

9017908059

Крепеж

9043018007

Крепеж

9092901087

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165140620

Крепеж

9165640616

Крепеж

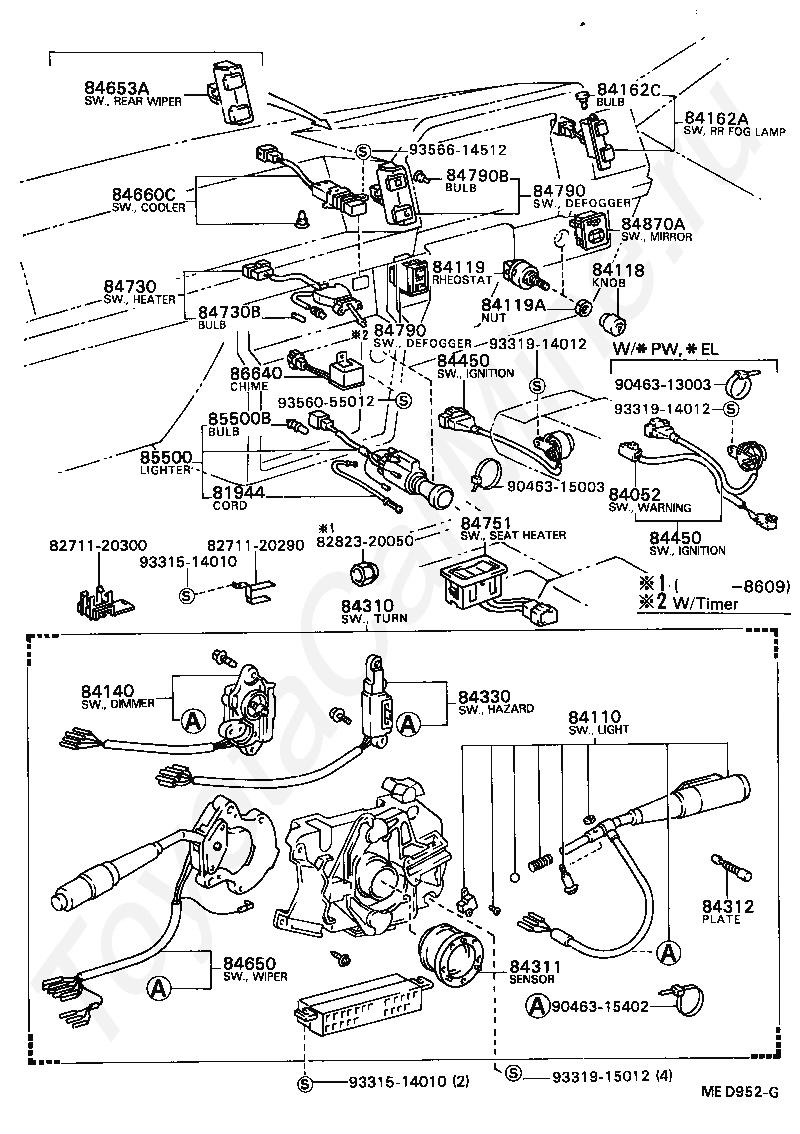

Код

Описание

81944

CORD, OPTICAL FIBER

8271120290

Крепеж

8271120300

Крепеж

8282320050

Крепеж

84052

SWITCH ASSY, UN-LOCK WARNING

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84118

KNOB, LIGHT CONTROL RHEOSTAT

84119

RHEOSTAT, LIGHT CONTROL

84119A

BOLT OR NUT, RHEOSTAT CONTROL SET

84140

SWITCH ASSY, HEADLAMP DIMMER

84162A

SWITCH, REAR FOG LAMP

84162C

BULB (FOR REAR FOG LAMP SWITCH)

84310

SWITCH ASSY, TURN SIGNAL

84311

SENSOR, TURN SIGNAL CANCEL

84312

PLATE, HORN CONTACT

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

84653A

SWITCH, REAR WIPER

84660C

SWITCH, COOLER

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84751

SWITCH, SEAT HEATER

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84870A

SWITCH ASSY, OUTER MIRROR

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

86640

CHIME ASSY

9046313003

Крепеж

9046315003

Крепеж

9046315402

Крепеж

9331514010

Крепеж

9331514010

Крепеж

9331914012

Крепеж

9331914012

Крепеж

9331915012

Крепеж

9356055012

Крепеж

9356614512

Крепеж

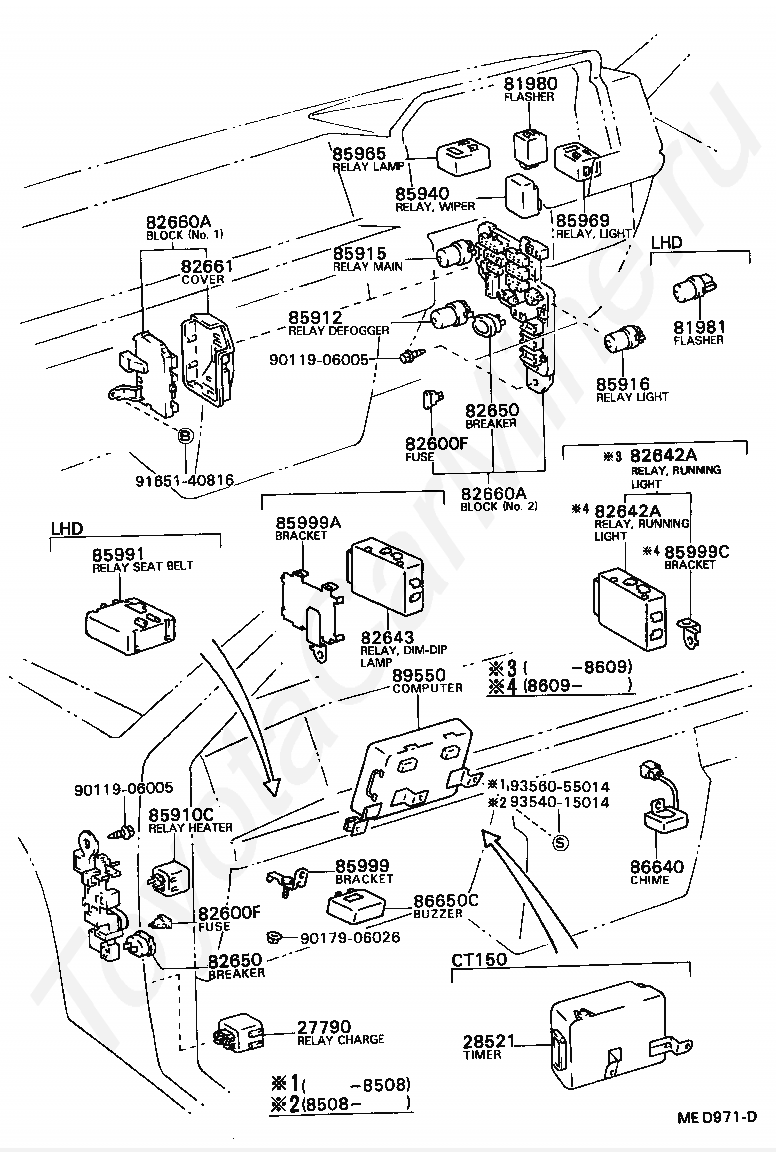

Код

Описание

27790

RELAY ASSY, CHARGE LAMP

28521

TIMER, PREHEATING

81980

FLASHER ASSY, TURN SIGNAL

81981

FLASHER ASSY, HAZARD WARNING SIGNAL

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82642A

RELAY, RUNNING LIGHT

82642A

RELAY, RUNNING LIGHT

82643

RELAY, DIM-DIP LAMP

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

82660A

BLOCK ASSY, RELAY, COWL SIDE

82660A

BLOCK ASSY, RELAY, COWL SIDE

82661

COVER, RELAY BLOCK, NO.1

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85912

RELAY, DEFOGGER

85915

RELAY, MAIN

85916

RELAY, LIGHT CONTROL

85940

RELAY ASSY, WINDSHIELD WIPER

85965

RELAY, ROOM LAMP CONTROL

85969

RELAY, LIGHT REMINDER

85991

RELAY, SEAT BELT WARNING

85999

BRACKET, COMBINATION RELAY

85999A

BRACKET, RELAY, NO.2

85999C

BRACKET, RELAY, NO.3

86640

CHIME ASSY

86650C

BUZZER ASSY, SEDIMENTER WARNING

89550

COMPUTER ASSY, EMISSION CONTROL

9011906005

Крепеж

9011906005

Крепеж

9017906026

Крепеж

9165140816

Крепеж

9354015014

Крепеж

9356055014

Крепеж

Код

Описание

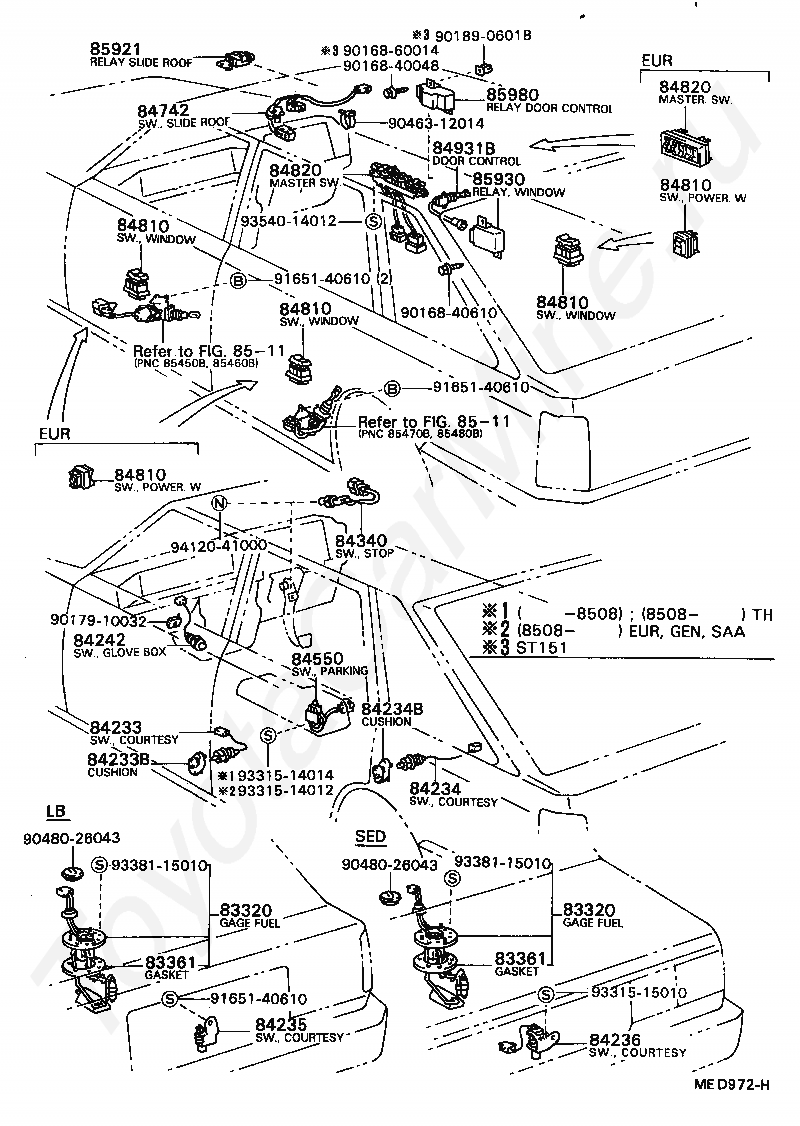

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

83361

GASKET, FUEL SENDER GAGE

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233B

CUSHION, COURTESY SWITCH (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234B

CUSHION, COURTESY SWITCH (FOR REAR DOOR)

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84236

SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM)

84242

SWITCH, GLOVE BOX LAMP

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

84742

SWITCH, SLIDE ROOF LIMIT

84810
