Каталог

Ближний Восток

Модель

CORONA/CARINA 2

VIN

Дата

1986/08

Двигатель

1,6 литра

Кузов

седан

Класс

DELUX SPECIFICATION

Фрейм

AT151

КПП

механика МКПП, 5 скоростей

Опции

левый руль Европа ФРГ

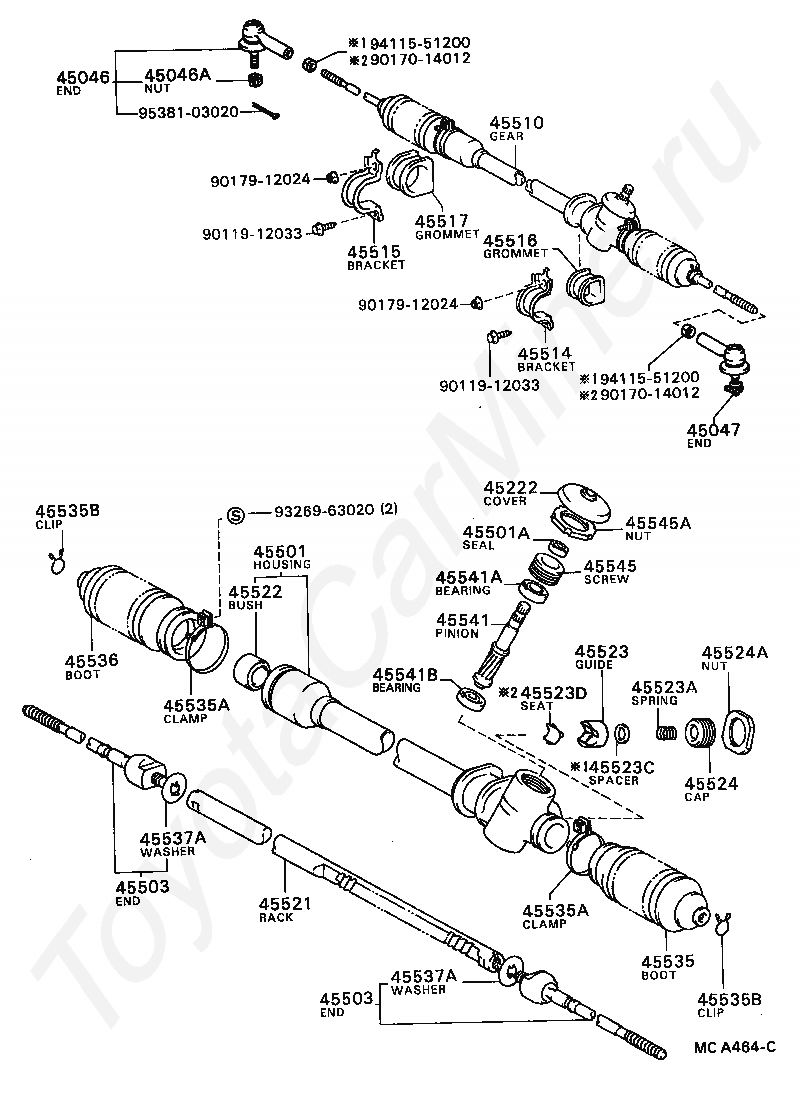

Рулевая рейка и наконечники TOYOTA CORONA/CARINA 2







Код

Описание

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45222

COVER, STEERING GEAR DUST

45501

HOUSING SUB-ASSY, STEERING RACK

45501A

SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

45503

END SUB-ASSY, STEERING RACK

45503

END SUB-ASSY, STEERING RACK

45510

GEAR ASSY, STEERING

45514

BRACKET, STEERING RACK HOUSING, NO.1

45515

BRACKET, STEERING RACK HOUSING, NO.2

45516

GROMMET, STEERING RACK HOUSING, NO.1

45517

GROMMET, STEERING RACK HOUSING, NO.2

45521

RACK, STEERING

45522

BUSH, STEERING RACK

45523

GUIDE, RACK(FOR STEERING GEAR)

45523A

SPRING(FOR STEERING GEAR RACK GUIDE)

45523C

SPACER(FOR RACK GUIDE)

45523D

SEAT, RACK GUIDE

45524

CAP, STEERING RACK GUIDE SPRING

45524A

NUT(FOR STEERING RACK GUIDE SPRING CAP)

45535

BOOT, STEERING RACK, NO.1

45535A

CLAMP(FOR STEERING RACK BOOT)

45535A

CLAMP(FOR STEERING RACK BOOT)

45535B

CLIP(FOR STEERING RACK BOOT)

45535B

CLIP(FOR STEERING RACK BOOT)

45536

BOOT, STEERING RACK, NO.2

45537A

WASHER, CLAW(FOR STEERING RACK END LOCK)

45537A

WASHER, CLAW(FOR STEERING RACK END LOCK)

45541

PINION, STEERING

45541A

BEARING, RADIAL BALL(FOR STEERING PINION UPPER)

45541B

BEARING, RADIAL BALL(FOR STEERING PINION LOWER)

45545

SCREW, PINION BEARING ADJUSTING

45545A

NUT(FOR PINION BEARING ADJUSTING SCREW)

9011912033

Крепеж

9011912033

Крепеж

9017014012

Крепеж

9017014012

Крепеж

9017912024

Крепеж

9017912024

Крепеж

9326963020

Крепеж

9411551200

Крепеж

9411551200

Крепеж

9538103020

Крепеж

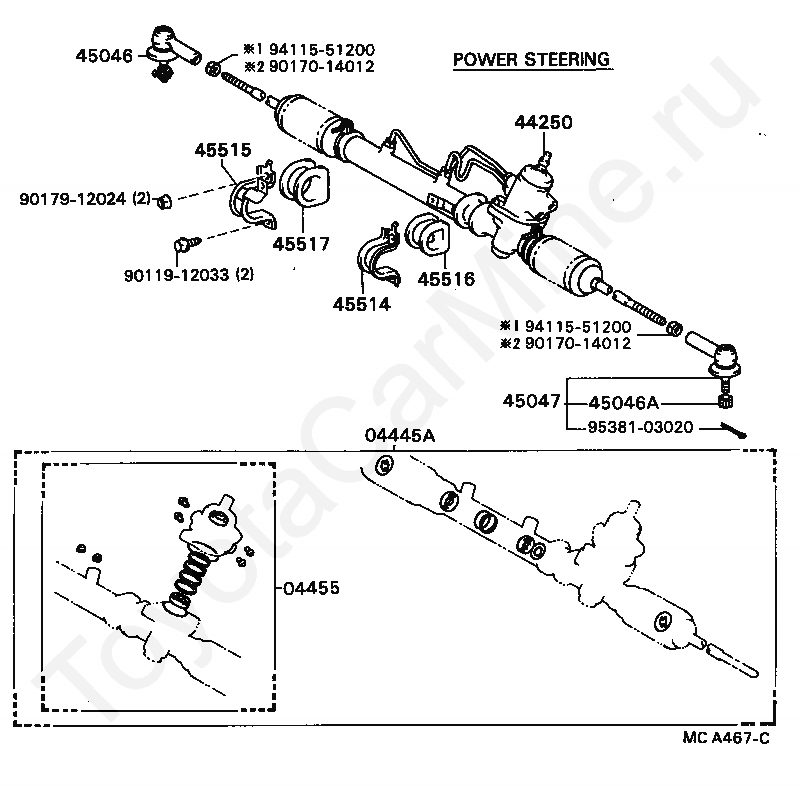

Код

Описание

04445A

GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

04455

GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

44250

GEAR ASSY, POWER STEERING(FOR RACK & PINION)

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45514

BRACKET, STEERING RACK HOUSING, NO.1

45515

BRACKET, STEERING RACK HOUSING, NO.2

45516

GROMMET, STEERING RACK HOUSING, NO.1

45517

GROMMET, STEERING RACK HOUSING, NO.2

9011912033

Крепеж

9017014012

Крепеж

9017014012

Крепеж

9017912024

Крепеж

9411551200

Крепеж

9411551200

Крепеж

9538103020

Крепеж

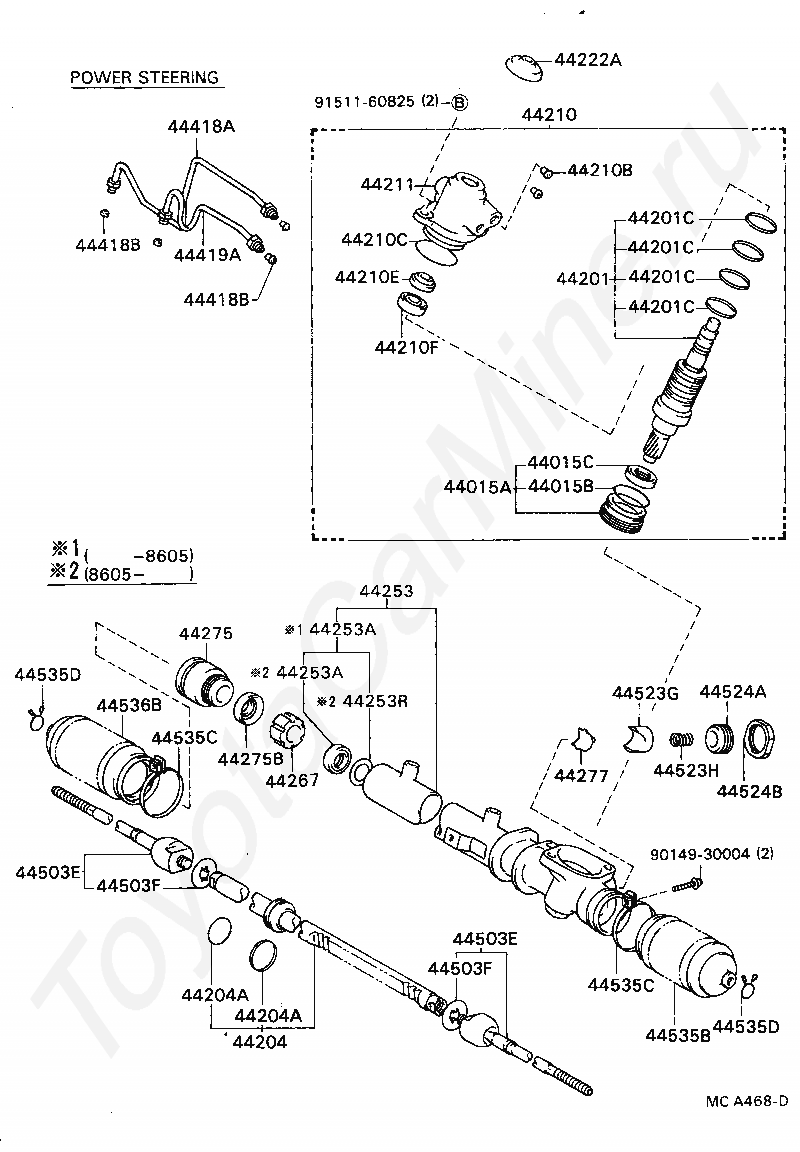

Код

Описание

44015A

NUT SUB-ASSY, BEARING GUIDE

44015B

RING, O(FOR BEARING GUIDE NUT)

44015C

SEAL, OIL(FOR BEARING GUIDE NUT)

44201

VALVE SUB-ASSY, POWER STEERING CONTROL

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44204

RACK SUB-ASSY, POWER STEERING

44204A

RING(FOR RACK STEERING PISTON)

44204A

RING(FOR RACK STEERING PISTON)

44210

VALVE ASSY, POWER STEERING CONTROL

44210B

SEAT, UNION(FOR POWER STEERING CONTROL VALVE)

44210C

RING, O(FOR POWER STEERING CONTROL VALVE)

44210E

SEAL, OIL(FOR POWER STEERING CONTROL VALVE)

44210F

BEARING(FOR POWER STEERING CONTROL VALVE)

44211

HOUSING, CONTROL VALVE

44222A

COVER, DUST(FOR POWER STEERING GEAR)

44253

HOUSING, POWER STEERING RACK

44253A

SEAL, OIL(FOR POWER STEERING RACK HOUSING)

44253A

SEAL, OIL(FOR POWER STEERING RACK HOUSING)

44253R

SPACER(FOR POWER STEERING RACK HOUSING)

44267

GUIDE, RACK END

44275

STOPPER, CYLINDER END

44275B

SEAL, OIL(FOR CYLINDER END STOPPER)

44277

SEAT, RACK GUIDE

44418A

TUBE, STEERING RIGHT TURN PRESSURE

44418B

SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)

44418B

SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)

44419A

TUBE, STEERING LEFT TURN PRESSURE

44503E

END SUB-ASSY, STEERING RACK(FOR POWER STEERING)

44503E

END SUB-ASSY, STEERING RACK(FOR POWER STEERING)

44503F

WASHER, CLAW(FOR POWER STEERING RACK END)

44503F

WASHER, CLAW(FOR POWER STEERING RACK END)

44523G

GUIDE, RACK(FOR POWER STEERING)

44523H

SPRING(FOR POWER STEERING RACK GUIDE)

44524A

CAP, RACK GUIDE SPRING(FOR POWER STEERING)

44524B

NUT(FOR POWER STEERING RACK GUIDE CAP)

44535B

BOOT, STEERING RACK NO.1(FOR POWER STEERING)

44535C

CLAMP(FOR POWER STEERING RACK BOOT)

44535C

CLAMP(FOR POWER STEERING RACK BOOT)

44535D

CLIP(FOR POWER STEERING RACK BOOT)

44535D

CLIP(FOR POWER STEERING RACK BOOT)

44536B

BOOT, STEERING RACK NO.2(FOR POWER STEERING)

9014930004

Крепеж

9151160825

Крепеж
