Каталог

Ближний Восток

Модель

CORONA/CARINA 2

VIN

Дата

1986/08

Двигатель

1,6 литра

Кузов

седан

Класс

DELUX SPECIFICATION

Фрейм

AT151

КПП

механика МКПП, 5 скоростей

Опции

левый руль Европа ФРГ

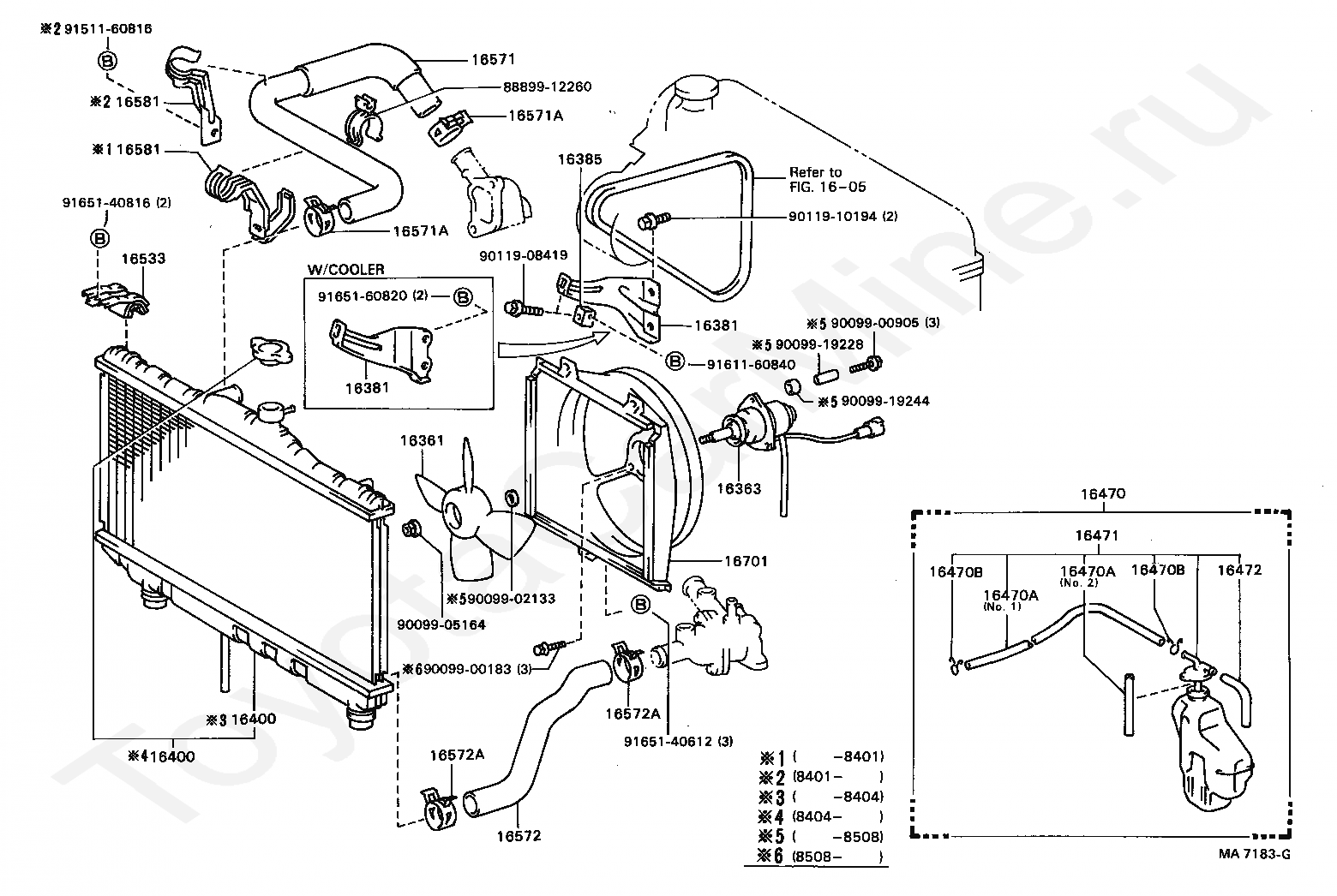

Радиатор и шланги TOYOTA CORONA/CARINA 2

Код

Описание

1605

переход к группе запчастей

16361

FAN

16363

MOTOR, COOLING FAN

16381

BAR, FAN BELT ADJUSTING

16381

BAR, FAN BELT ADJUSTING

16385

SLIDER, FAN BELT ADJUSTING

16400

RADIATOR ASSY

16400

RADIATOR ASSY

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16472

HOSE, BREATHER

16533

SUPPORT, RADIATOR, UPPER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16581

CLAMP, HOSE(FOR WATER HOSE)

16581

CLAMP, HOSE(FOR WATER HOSE)

16701

SHROUD SUB-ASSY, FAN

8889912260

Крепеж

9009900183

Крепеж

9009900905

Крепеж

9009902133

Крепеж

9009905164

Крепеж

9009919228

Крепеж

9009919244

Крепеж

9011908419

Крепеж

9011910194

Крепеж

9151160816

Крепеж

9161160840

Крепеж

9165140612

Крепеж

9165140816

Крепеж

9165160820

Крепеж

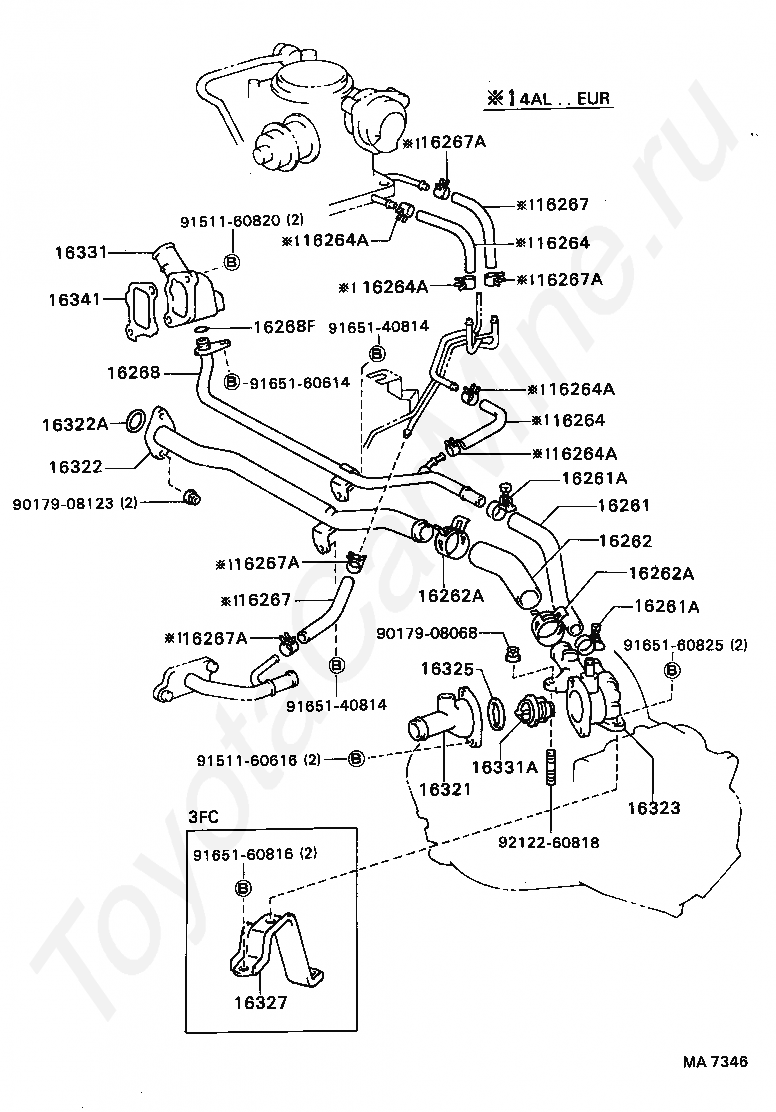

Код

Описание

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16262

HOSE, WATER INLET

16262A

CLIP(FOR WATER INLET HOSE)

16262A

CLIP(FOR WATER INLET HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16268F

RING, O(FOR WATER BY-PASS PIPE)

16321

INLET, WATER

16322

PIPE, WATER INLET

16322A

RING, O(FOR WATER INLET)

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16327

BRACKET, WATER INLET HOUSING

16331

OUTLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

9017908068

Крепеж

9017908123

Крепеж

9151160616

Крепеж

9151160820

Крепеж

9165140814

Крепеж

9165140814

Крепеж

9165160614

Крепеж

9165160816

Крепеж

9165160825

Крепеж

9211260818

Крепеж

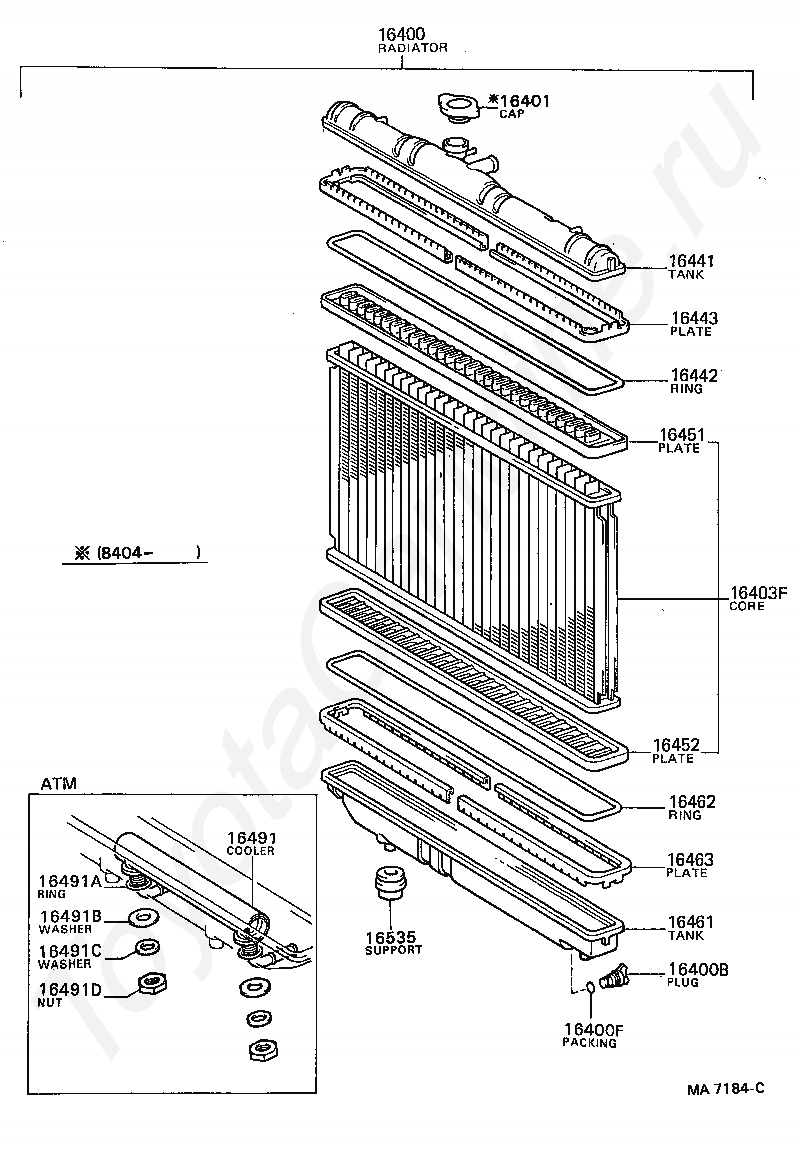

Код

Описание

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16403F

CORE SUB-ASSY, RADIATOR

16441

TANK, RADIATOR, UPPER

16442

RING, O(FOR RADIATOR UPPER TANK)

16443

PLATE, RADIATOR TANK, LOCK, UPPER

16451

PLATE, RADIATOR CORE, UPPER

16452

PLATE, RADIATOR CORE, LOWER

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16463

PLATE, RADIATOR TANK, LOCK, LOWER

16491

COOLER, OIL(FOR ATM)

16491A

RING, O(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16491C

WASHER, SPRING(FOR ATM OIL COOLER)

16491D

NUT(FOR ATM OIL COOLER)

16535

SUPPORT, RADIATOR, LOWER
