Европа

Модель

CORONA

VIN

Дата

1978/09

Двигатель

1,6 литра

Кузов

фургон

Класс

STANDARD TYPE

Фрейм

RT130

КПП

механика МКПП, 4 ступени

Опции

левый руль LEAF TYPE REAR SUSPENSION Филиппины

Спидометр TOYOTA CORONA

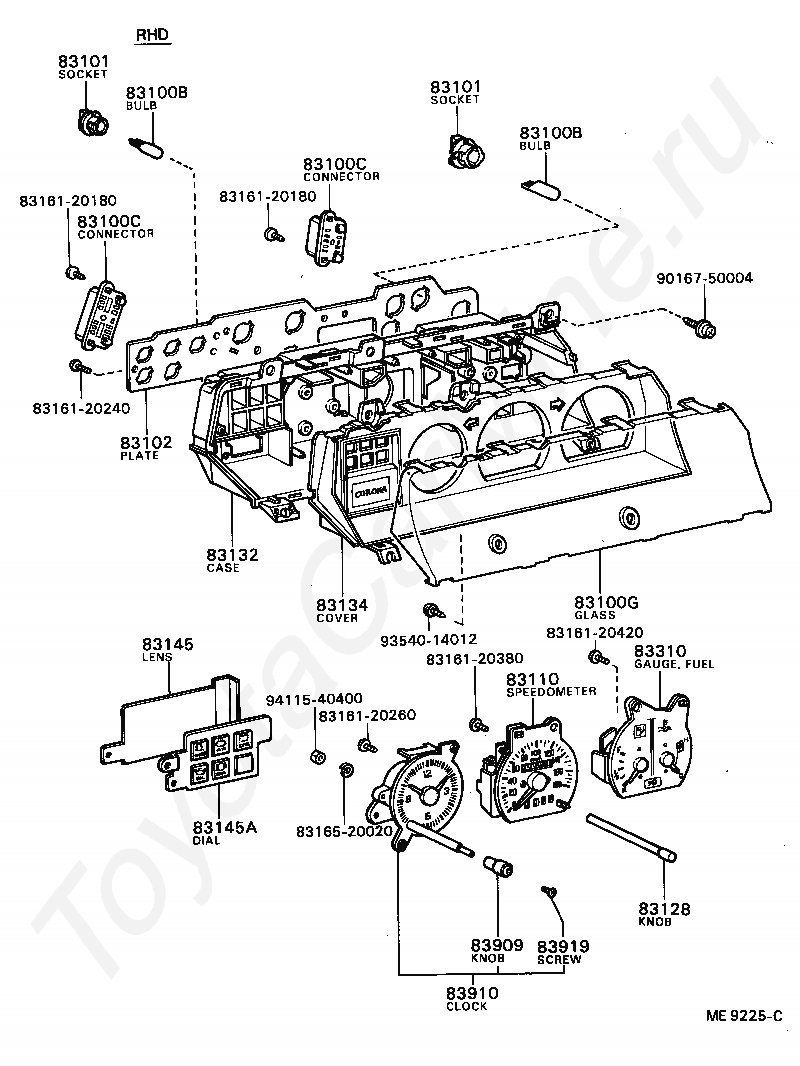

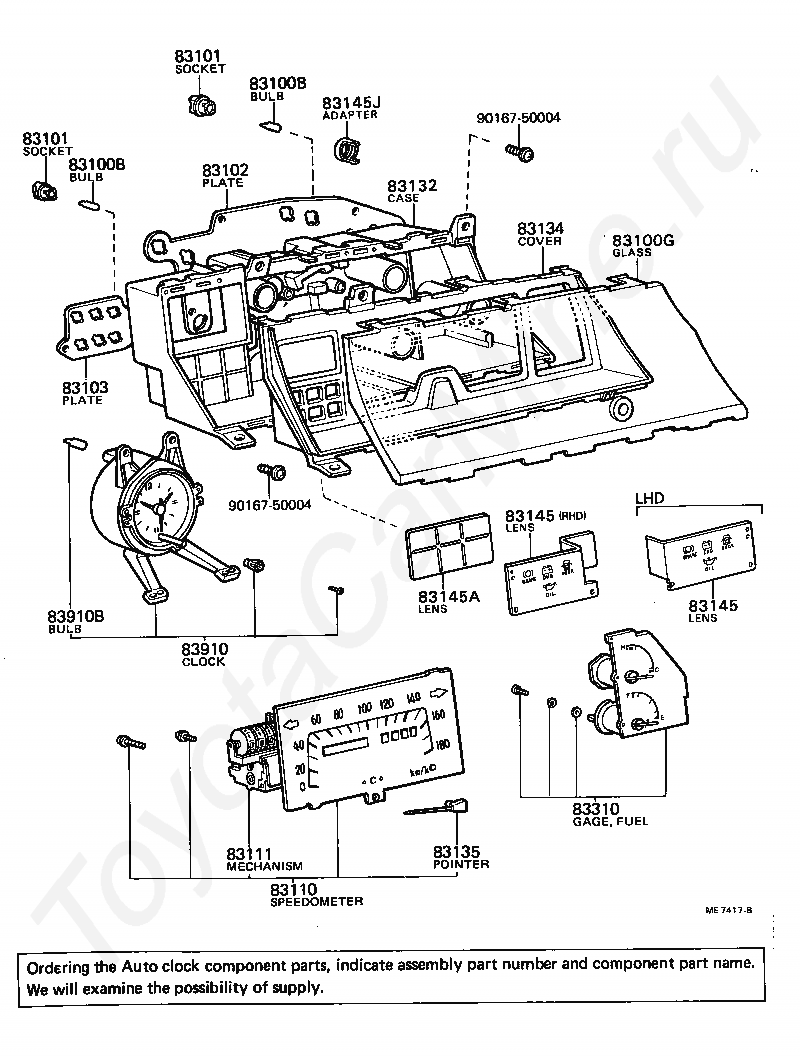

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100G

GLASS, COMBINATION METER

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83102

PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

83103

PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

83110

SPEEDOMETER ASSY

83111

MECHANISM, SPEEDOMETER

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83135

POINTER, SPEEDOMETER

83145

LENS, METER, NO.1

83145

LENS, METER, NO.1

83145A

LENS, METER, NO.2

83145J

ADAPTER, METER BULB SOCKET

83310

GAGE ASSY, FUEL RECEIVER

83910

CLOCK ASSY

83910B

BULB, CLOCK INDICATOR

9016750004

Крепеж

9016750004

Крепеж

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100C

CONNECTOR, COMBINATION METER

83100C

CONNECTOR, COMBINATION METER

83100G

GLASS, COMBINATION METER

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83102

PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

83110

SPEEDOMETER ASSY

83128

KNOB, TRIP COUNTER

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83145

LENS, METER, NO.1

83145A

LENS, METER, NO.2

8316120180

Крепеж

8316120180

Крепеж

8316120240

Крепеж

8316120260

Крепеж

8316120380

Крепеж

8316120420

Крепеж

8316520020

Крепеж

83310

GAGE ASSY, FUEL RECEIVER

83909

KNOB, CLOCK

83910

CLOCK ASSY

83919

SCREW, CLOCK

9016750004

Крепеж

9354014012

Крепеж

9411540400

Крепеж

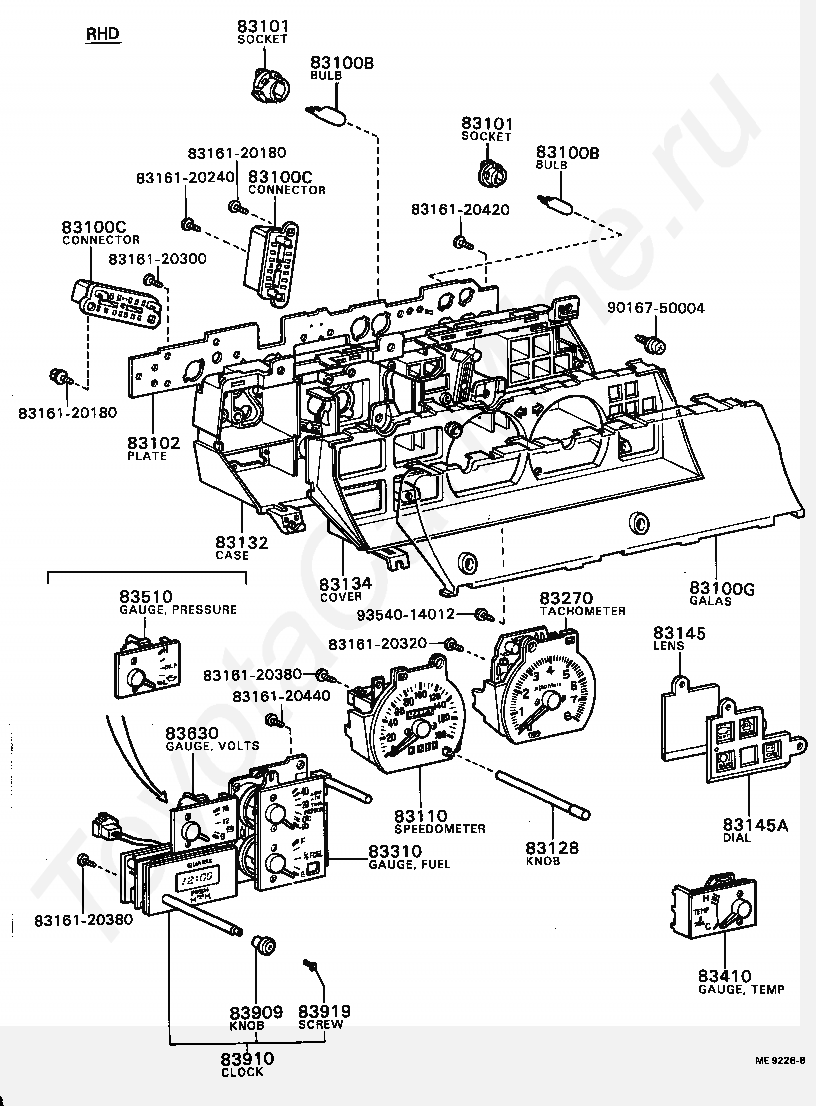

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100C

CONNECTOR, COMBINATION METER

83100C

CONNECTOR, COMBINATION METER

83100G

GLASS, COMBINATION METER

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83102

PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

83110

SPEEDOMETER ASSY

83128

KNOB, TRIP COUNTER

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83145

LENS, METER, NO.1

83145A

LENS, METER, NO.2

8316120180

Крепеж

8316120180

Крепеж

8316120240

Крепеж

8316120300

Крепеж

8316120320

Крепеж

8316120380

Крепеж

8316120380

Крепеж

8316120420

Крепеж

8316120440

Крепеж

83270

TACHOMETER ASSY, ENGINE

83310

GAGE ASSY, FUEL RECEIVER

83410

GAGE ASSY, WATER TEMPERATURE RECEIVER

83510

GAGE ASSY, OIL PRESSURE RECEIVER

83630

VOLTMETER ASSY

83909

KNOB, CLOCK

83910

CLOCK ASSY

83919

SCREW, CLOCK

9016750004

Крепеж

9354014012

Крепеж

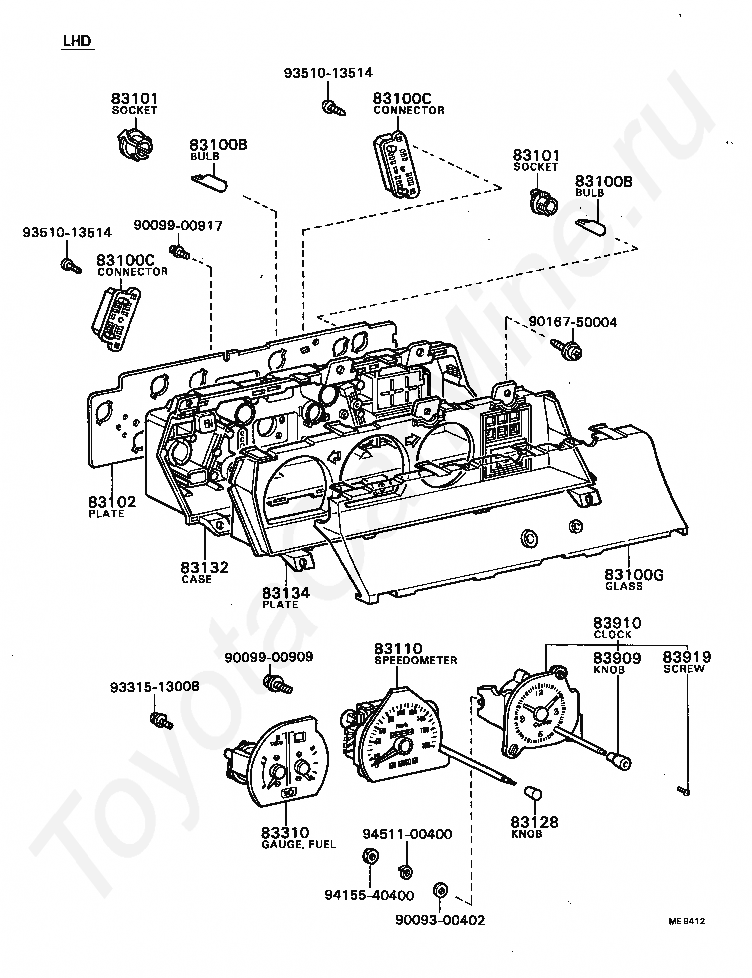

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100C

CONNECTOR, COMBINATION METER

83100C

CONNECTOR, COMBINATION METER

83100G

GLASS, COMBINATION METER

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83102

PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

83110

SPEEDOMETER ASSY

83128

KNOB, TRIP COUNTER

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83310

GAGE ASSY, FUEL RECEIVER

83909

KNOB, CLOCK

83910

CLOCK ASSY

83919

SCREW, CLOCK

9009300402

Крепеж

9009900909

Крепеж

9009900917

Крепеж

9016750004

Крепеж

9331513008

Крепеж

9351013514

Крепеж

9351013514

Крепеж

9415540400

Крепеж

9451100400

Крепеж

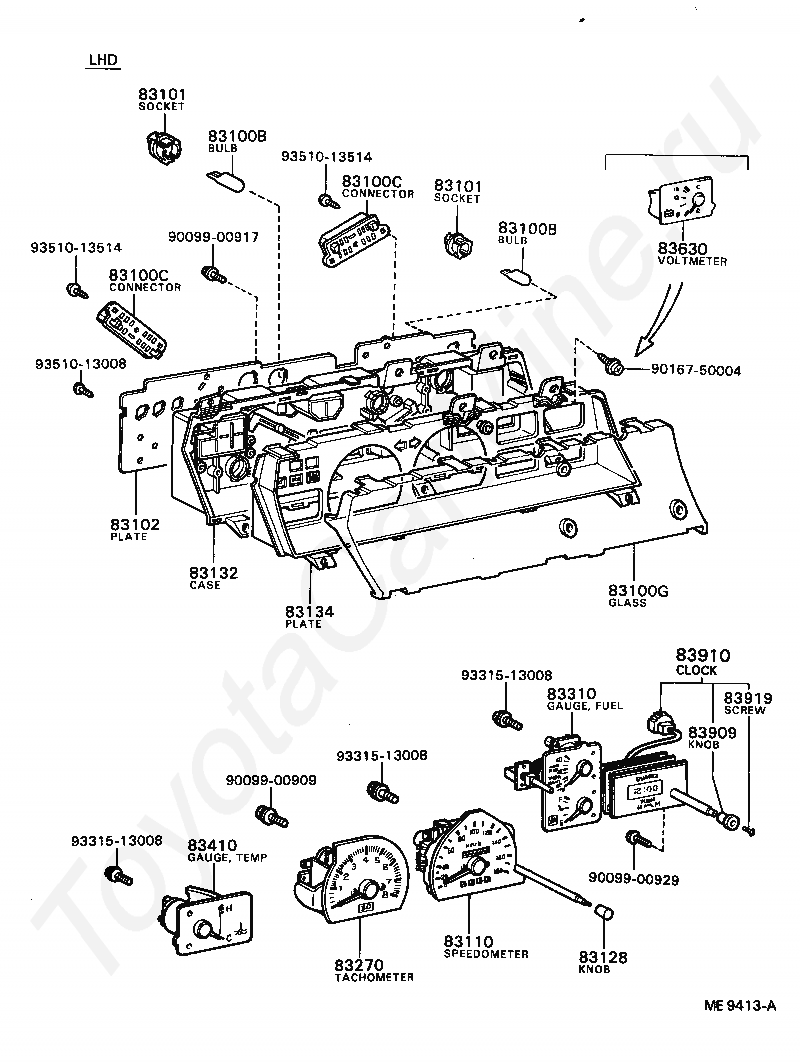

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83100C

CONNECTOR, COMBINATION METER

83100C

CONNECTOR, COMBINATION METER

83100G

GLASS, COMBINATION METER

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83102

PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

83110

SPEEDOMETER ASSY

83128

KNOB, TRIP COUNTER

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83270

TACHOMETER ASSY, ENGINE

83310

GAGE ASSY, FUEL RECEIVER

83410

GAGE ASSY, WATER TEMPERATURE RECEIVER

83630

VOLTMETER ASSY

83909

KNOB, CLOCK

83910

CLOCK ASSY

83919

SCREW, CLOCK

9009900909

Крепеж

9009900917

Крепеж

9009900929

Крепеж

9016750004

Крепеж

9331513008

Крепеж

9331513008

Крепеж

9331513008

Крепеж

9351013008

Крепеж

9351013514

Крепеж

9351013514

Крепеж

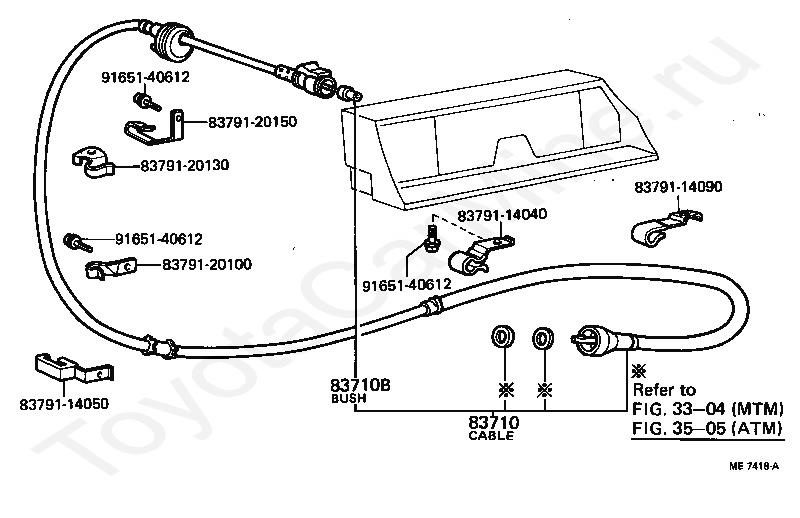

Код

Описание

3304

переход к группе запчастей

3505

переход к группе запчастей

83710

CABLE ASSY, SPEEDOMETER DRIVE, NO.1

83710B

BUSH, SPEEDOMETER DRIVE CABLE

8379114040

Крепеж

8379114050

Крепеж

8379114090

Крепеж

8379120100

Крепеж

8379120130

Крепеж

8379120150

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165140612

Крепеж
