Ходовые запчасти

Каталог

Европа

Модель

CORONA

VIN

Дата

1975/09

Двигатель

2 литра

Кузов

седан

Класс

STANDARD TYPE

Фрейм

RT104

КПП

механика МКПП, 4 ступени

Опции

правый руль 4 двери GENERAL COUNTRIES

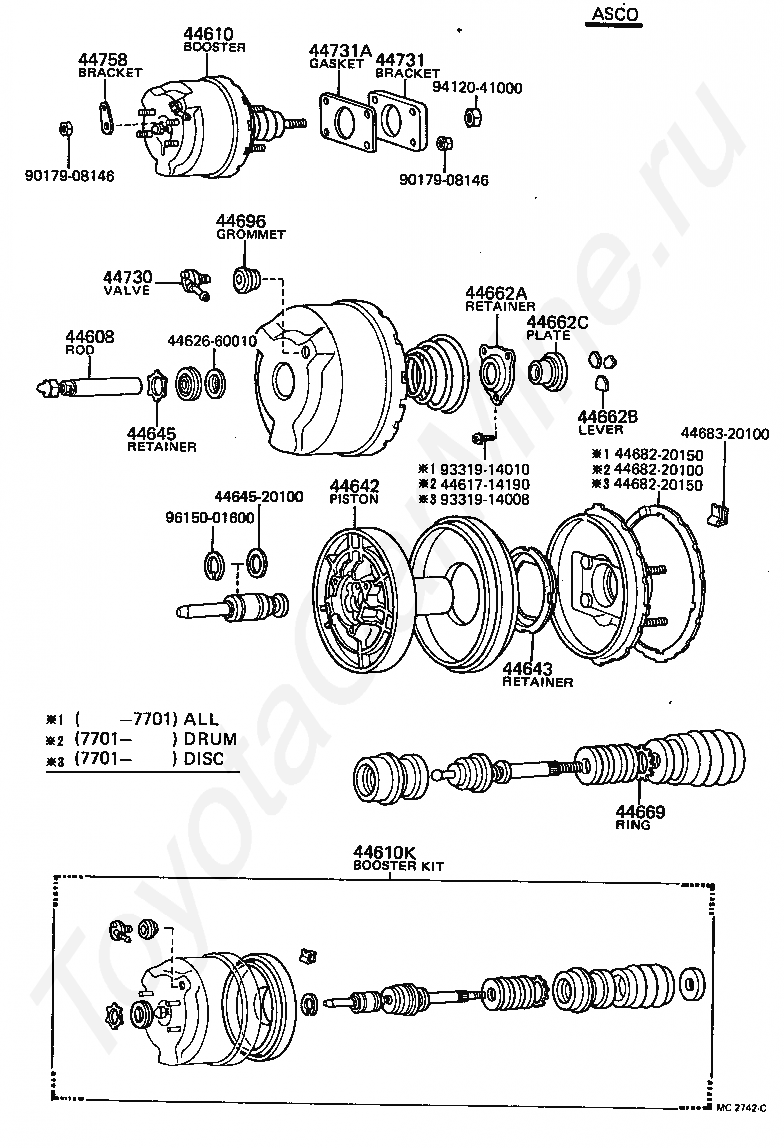

Вакуумный тормозной цилиндр TOYOTA CORONA

Код

Описание

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

4461714190

Крепеж

4462660010

Крепеж

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

4464520100

Крепеж

44662A

RETAINER, REACTION, NO.2

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

4468220100

Крепеж

4468220150

Крепеж

4468220150

Крепеж

4468320100

Крепеж

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44731

BRACKET, BRAKE BOOSTER, FRONT

44731A

GASKET, BRAKE BOOSTER BRACKET

44758

BRACKET, VACUUM CHECK VALVE

9017908146

Крепеж

9017908146

Крепеж

9331914008

Крепеж

9331914010

Крепеж

9412041000

Крепеж

9615001600

Крепеж

Код

Описание

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44610K

BOOSTER KIT, BRAKE

44633

KEY, BOOSTER VALVE PLUNGER

44642

PISTON, BRAKE BOOSTER

44645

RETAINER, BOOSTER PUSH ROD SEAL

44678

RETAINER, BOOSTER AIR CLEANER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44731

BRACKET, BRAKE BOOSTER, FRONT

44731A

GASKET, BRAKE BOOSTER BRACKET

44758

BRACKET, VACUUM CHECK VALVE

9017908146

Крепеж

9017908146

Крепеж

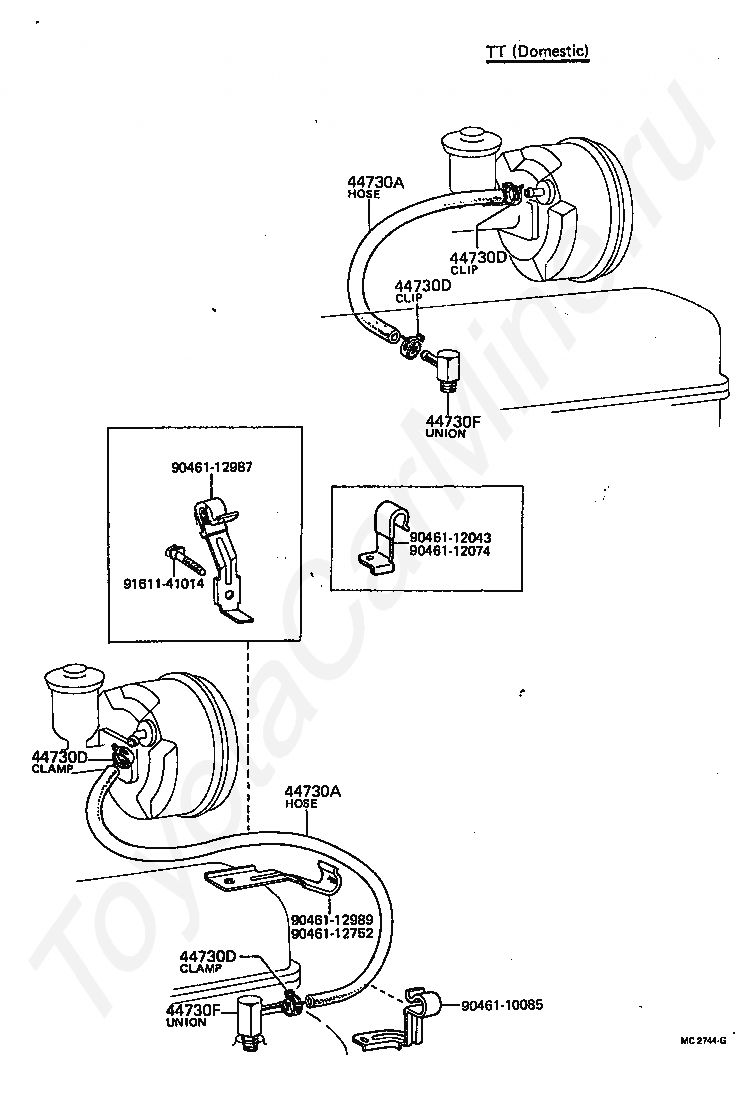

Код

Описание

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

9046110085

Крепеж

9046112043

Крепеж

9046112074

Крепеж

9046112752

Крепеж

9046112987

Крепеж

9046112989

Крепеж

9161141014

Крепеж

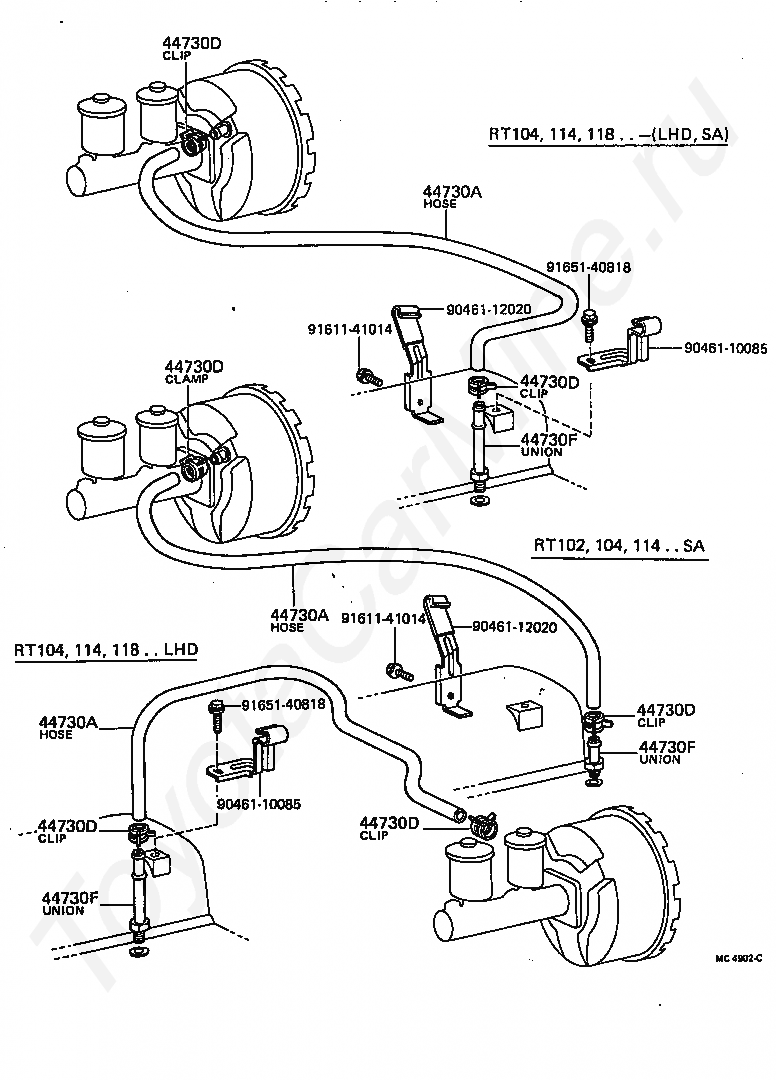

Код

Описание

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

9046110085

Крепеж

9046110085

Крепеж

9046112020

Крепеж

9046112020

Крепеж

9161141014

Крепеж

9161141014

Крепеж

9165140818

Крепеж

9165140818

Крепеж
