Каталог

Европа

Модель

CORONA

VIN

Дата

1975/09

Двигатель

2 литра

Кузов

седан

Класс

STANDARD TYPE

Фрейм

RT104

КПП

механика МКПП, 4 ступени

Опции

правый руль 4 двери GENERAL COUNTRIES

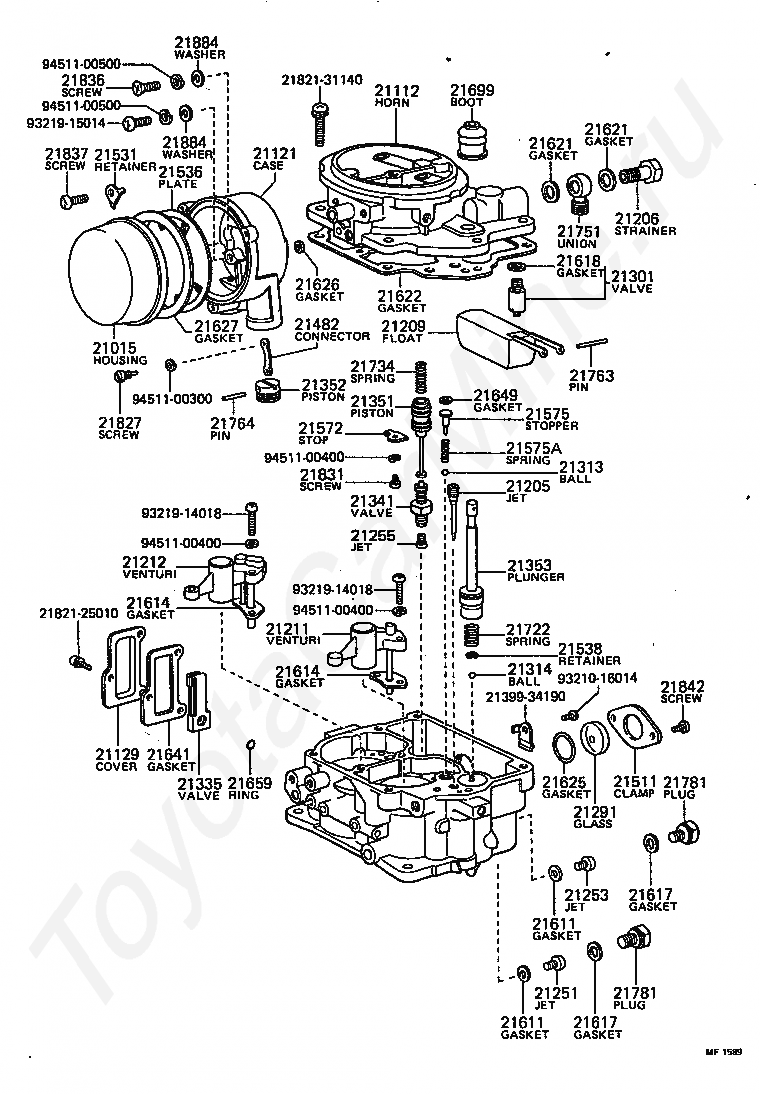

Карбюратор TOYOTA CORONA







Код

Описание

21015

HOUSING SUB-ASSY, COIL

21112

HORN, AIR

21121

CASE, THERMOSTAT

21129

COVER(FOR THERMOSTATIC VALVE)

21205

JET SUB-ASSY, SLOW

21206

STRAINER SUB-ASSY

21209

FLOAT SUB-ASSY

21211

VENTURI, 1ST SMALL

21212

VENTURI, 2ND SMALL

21251

JET, 1ST MAIN

21253

JET, 2ND MAIN

21255

JET, POWER

21291

GLASS, LEVEL GAGE

21301

VALVE SUB-ASSY, NEEDLE

21313

BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)

21314

BALL, STEEL, NO.2(FOR PUMP PLUNGER)

21335

VALVE, THERMOSTATIC

21341

VALVE, POWER

21351

PISTON, POWER

21352

PISTON, VACUUM

21353

PLUNGER, PUMP

2139934190

Крепеж

21482

CONNECTOR, PISTON

21511

CLAMP, LEVEL GAGE

21531

RETAINER, COIL HOUSING

21536

PLATE, COIL HOUSING

21538

RETAINER, BALL CHECK

21572

STOP, POWER PISTON

21575

STOPPER, B(FOR DISCHARGE WEIGHT)

21575A

SPRING(FOR STOPPER, B)

21611

GASKET, MAIN JET

21611

GASKET, MAIN JET

21614

GASKET, VENTURI

21614

GASKET, VENTURI

21617

GASKET, MAIN PASSAGE PLUG

21617

GASKET, MAIN PASSAGE PLUG

21618

GASKET, NEEDLE VALVE SEAT

21621

GASKET, UNION NIPPLE

21621

GASKET, UNION NIPPLE

21622

GASKET, AIR HORN

21625

GASKET, LEVEL GAGE

21626

GASKET, CASE

21627

GASKET, COIL HOUSING

21641

GASKET(FOR THERMOSTATIC VALVE COVER)

21649

GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)

21659

RING, O(FOR THERMOSTATIC VALVE)

21699

BOOT(FOR PUMP PLUNGER)

21722

SPRING, PUMP DAMPING

21734

SPRING, POWER PISTON

21751

UNION, NIPPLE

21763

PIN, FLOAT LEVER

21764

PIN, PISTON(FOR VACUUM PISTON)

21781

PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

21781

PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

2182125010

Крепеж

2182131140

Крепеж

21827

SCREW, CONNECTOR SET

21831

SCREW, POWER PISTON STOP

21836

SCREW, THERMOSTAT CASE SET

21837

SCREW, COIL HOUSING SET

21842

SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

21884

WASHER, THERMOSTAT CASE SET

21884

WASHER, THERMOSTAT CASE SET

9321016014

Крепеж

9321914018

Крепеж

9321914018

Крепеж

9321915014

Крепеж

9451100300

Крепеж

9451100400

Крепеж

9451100400

Крепеж

9451100400

Крепеж

9451100500

Крепеж

9451100500

Крепеж

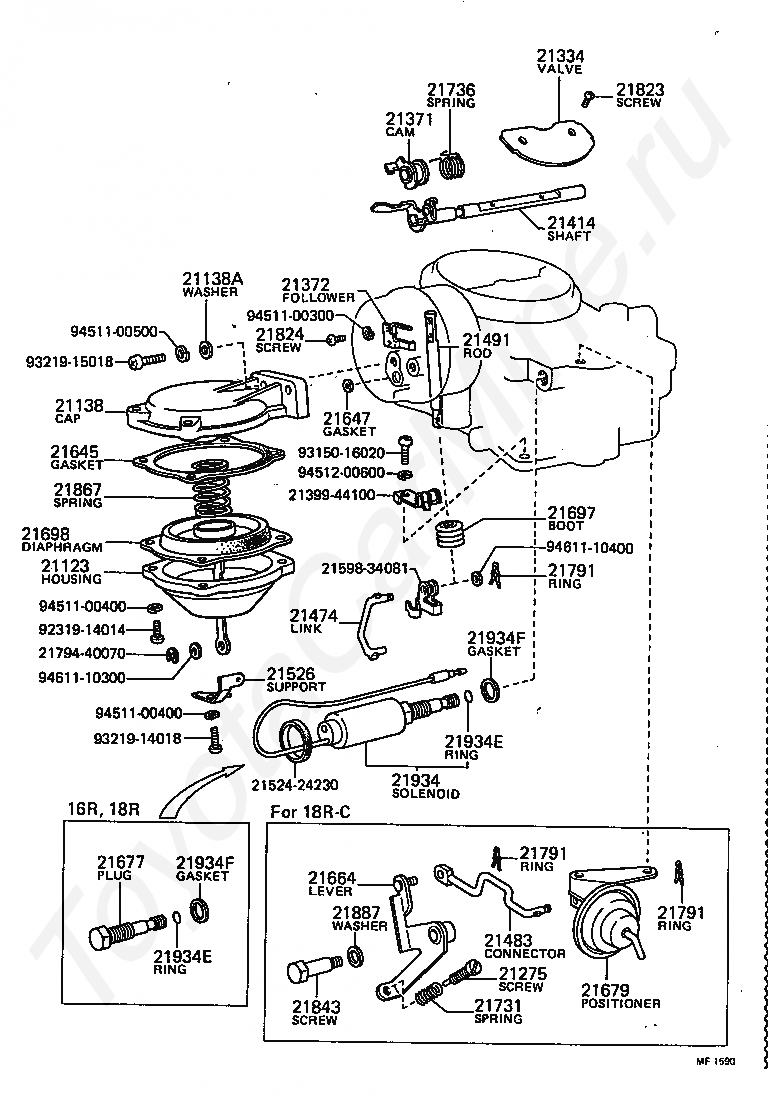

Код

Описание

21123

HOUSING, DIAPHRAGM

21138

CAP, DIAPHRAGM

21138A

WASHER(FOR DIAPHRAGM CAP SET)

21275

SCREW, ADJUSTING

21334

VALVE, CHOKE

21371

CAM, 1ST IDLE

21372

FOLLOWER, 1ST IDLE CAM

2139944100

Крепеж

21414

SHAFT, CHOKE

21474

LINK, CONNECTING

21483

CONNECTOR, NO.1

21491

ROD, SLIDING

2152424230

Крепеж

21526

SUPPORT, BACK SPRING

2159834081

Крепеж

21645

GASKET, DIAPHRAGM, CAP

21647

GASKET, DIAPHRAGM HOUSING CAP

21664

LEVER(FOR DASH POT OR POSITIONER)

21677

PLUG

21679

POSITIONER

21697

BOOT(FOR SLIDING ROD)

21698

DIAPHRAGM

21731

SPRING, DASH POT OR POSITIONER ADJUSTING

21736

SPRING, 1ST IDLE CAM

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

21791

RING, SNAP, NO.1(FOR CARBURETOR LINK)

2179440070

Крепеж

21823

SCREW, CHOKE, VALVE SET

21824

SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)

21843

SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER)

21867

SPRING, DIAPHRAGM

21887

WASHER(FOR CONNECTING LINK SETTING)

21934

SOLENOID, THROTTLE VALVE

21934E

RING, O(FOR SOLENOID VALVE)

21934E

RING, O(FOR SOLENOID VALVE)

21934F

GASKET

21934F

GASKET

9231914014

Крепеж

9315016020

Крепеж

9321914018

Крепеж

9321915018

Крепеж

9451100300

Крепеж

9451100400

Крепеж

9451100400

Крепеж

9451100500

Крепеж

9451200600

Крепеж

9461110300

Крепеж

9461110400

Крепеж

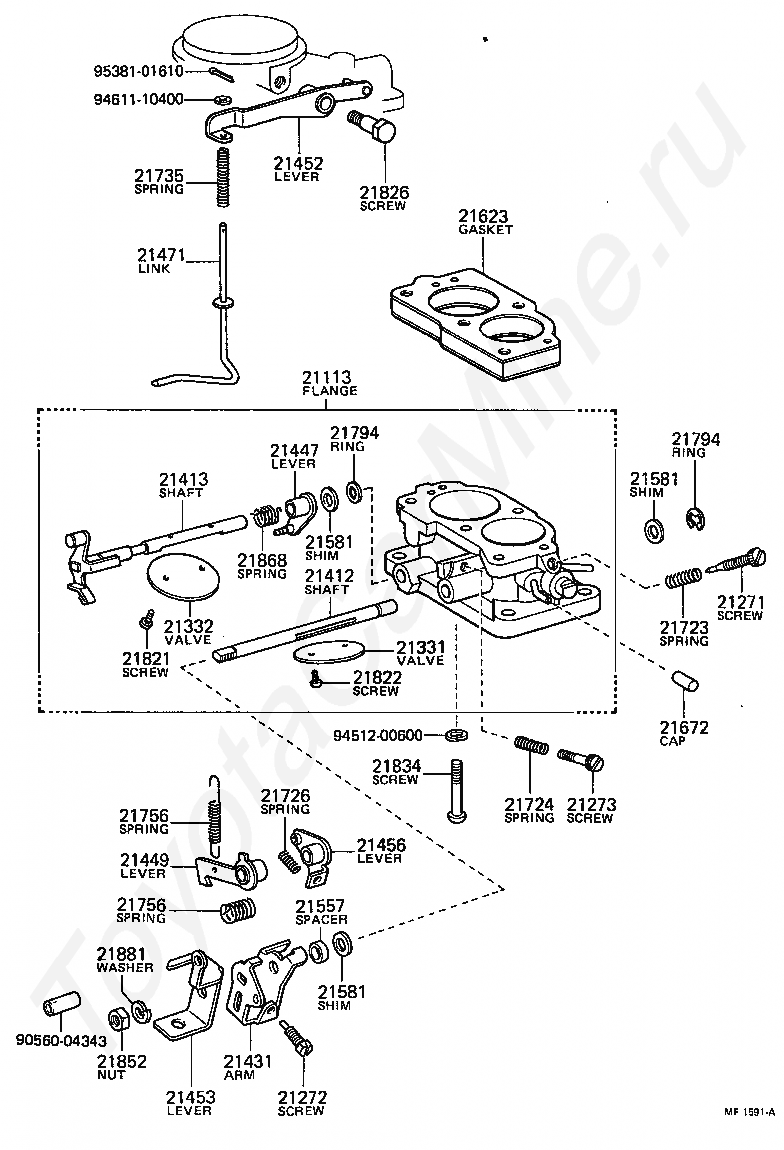

Код

Описание

21113

FLANGE, CARBURETOR

21271

SCREW, IDLE ADJUSTING

21272

SCREW, 1ST IDLE ADJUSTING

21273

SCREW, THROTTLE ADJUSTING

21331

VALVE, 1ST THROTTLE

21332

VALVE, 2ND THROTTLE

21412

SHAFT, 1ST THROTTLE

21413

SHAFT, 2ND THROTTLE

21431

ARM, 1ST THROTTLE SHAFT

21447

LEVER, DIAPHRAGM

21449

LEVER, 2ND KICK

21452

LEVER, PUMP

21453

LEVER, 1ST THROTTLE

21456

LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1

21471

LINK, PUMP CONNECTING

21557

SPACER(FOR 1ST IDLE CAM)

21581

SHIM, 1ST THROTTLE SHAFT

21581

SHIM, 1ST THROTTLE SHAFT

21581

SHIM, 1ST THROTTLE SHAFT

21623

GASKET, BODY FLANGE

21672

CAP

21723

SPRING, IDLE ADJUSTING

21724

SPRING, THROTTLE ADJUSTING

21726

SPRING, 1ST IDLE ADJUSTING

21735

SPRING, PUMP ARM

21756

SPRING, BACK(FOR THROTTLE SHAFT)

21756

SPRING, BACK(FOR THROTTLE SHAFT)

21794

RING, RETAINER, NO.1(FOR THROTTLE SHAFT)

21794

RING, RETAINER, NO.1(FOR THROTTLE SHAFT)

21821

SCREW, 2ND THROTTLE VALVE SET

21822

SCREW, 1ST THROTTLE VALVE SET

21826

SCREW, PUMP ARM SET

21834

SCREW, SET, NO.2(FOR CARBURETOR BODY SET)

21852

NUT, THROTTLE LEVER SET

21868

SPRING, DIAPHRAGM RELIEF

21881

WASHER, LOCK(FOR THROTTLE SHAFT)

9056004343

Крепеж

9451200600

Крепеж

9461110400

Крепеж

9538101610

Крепеж
