Ходовые запчасти

Каталог

Европа

Модель

CORONA

VIN

Дата

1973/11

Двигатель

1,8 литра

Кузов

седан

Класс

DELUX SPECIFICATION

Фрейм

RT102

КПП

механика МКПП, 5 скоростей

Опции

левый руль 4 двери Европа Европа

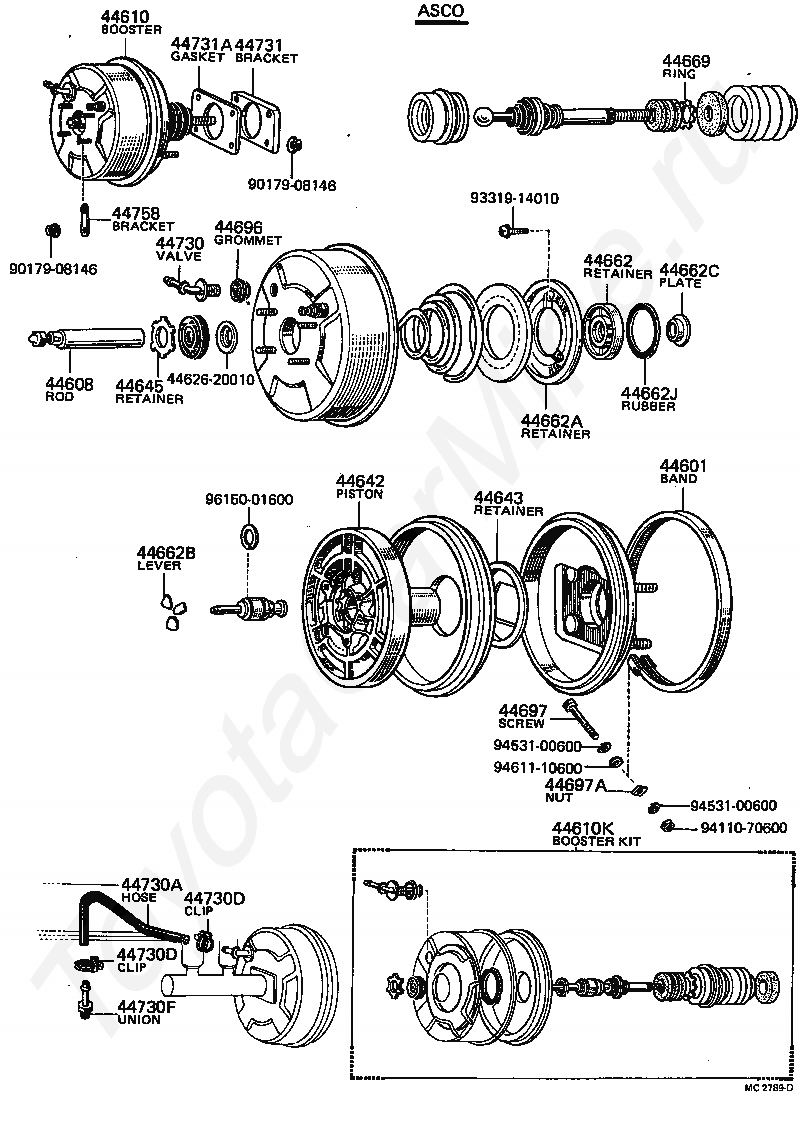

Вакуумный тормозной цилиндр TOYOTA CORONA

Код

Описание

44601

BAND SUB-ASSY, BOOSTER BODY

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

4462620010

Крепеж

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44662

RETAINER, REACTION, NO.1

44662A

RETAINER, REACTION, NO.2

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44662J

RUBBER, BIAS(FOR REACTION RETAINER)

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44696

GROMMET, CHECK VALVE

44697

SCREW, BOOSTER BAND SET

44697A

NUT(FOR BOOSTER BAND SET)

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730A

HOSE, VACUUM, NO.1

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44731

BRACKET, BRAKE BOOSTER, FRONT

44731A

GASKET, BRAKE BOOSTER BRACKET

44758

BRACKET, VACUUM CHECK VALVE

9017908146

Крепеж

9017908146

Крепеж

9331914010

Крепеж

9411070600

Крепеж

9453100600

Крепеж

9453100600

Крепеж

9461110600

Крепеж

9615001600

Крепеж

Код

Описание

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44610K

BOOSTER KIT, BRAKE

44633

KEY, BOOSTER VALVE PLUNGER

44642

PISTON, BRAKE BOOSTER

44645

RETAINER, BOOSTER PUSH ROD SEAL

44678

RETAINER, BOOSTER AIR CLEANER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44731

BRACKET, BRAKE BOOSTER, FRONT

44731A

GASKET, BRAKE BOOSTER BRACKET

44758

BRACKET, VACUUM CHECK VALVE

9017908146

Крепеж

9017908146

Крепеж

Код

Описание

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

9046110085

Крепеж

9046112043

Крепеж

9046112074

Крепеж

9046112752

Крепеж

9046112987

Крепеж

9046112989

Крепеж

9161141014

Крепеж
