Ходовые запчасти

Каталог

Ближний Восток

Модель

CORONA

VIN

Дата

1981/11

Двигатель

2 литра

Кузов

седан

Класс

STANDARD TYPE

Фрейм

RT133

КПП

механика МКПП, 5 скоростей

Опции

левый руль 4-LINK TYPE REAR SUSPENSION Австралия

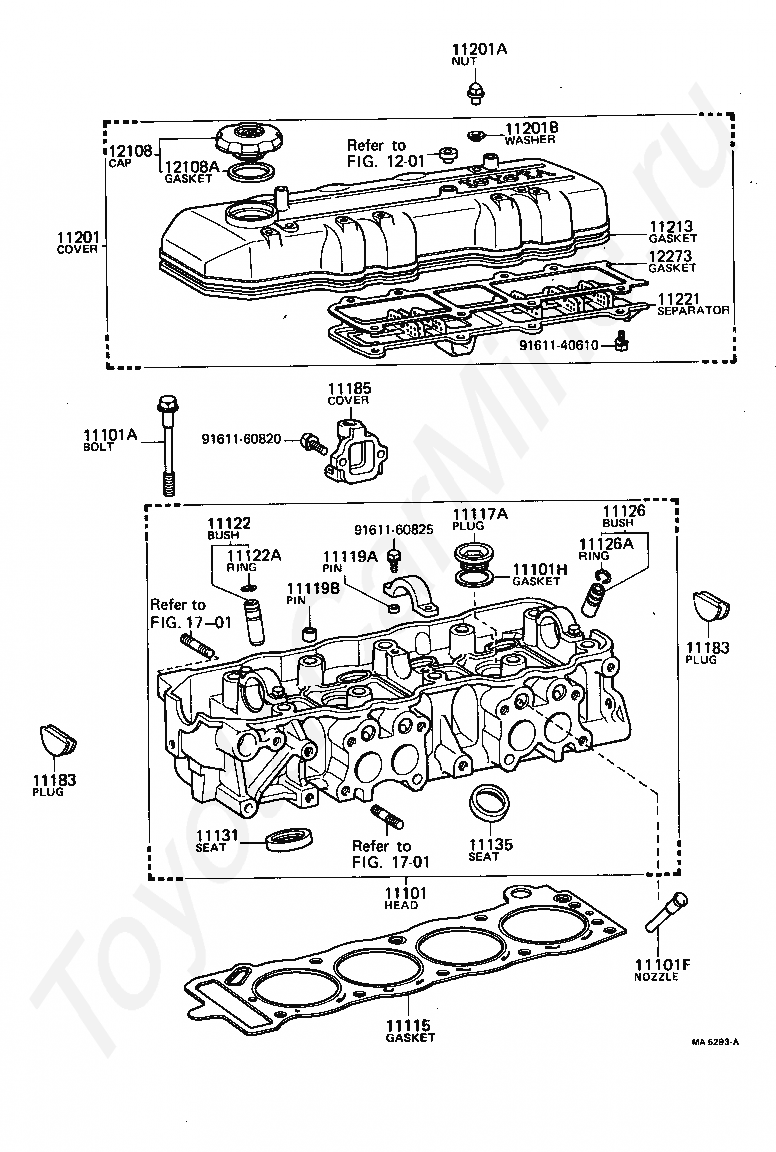

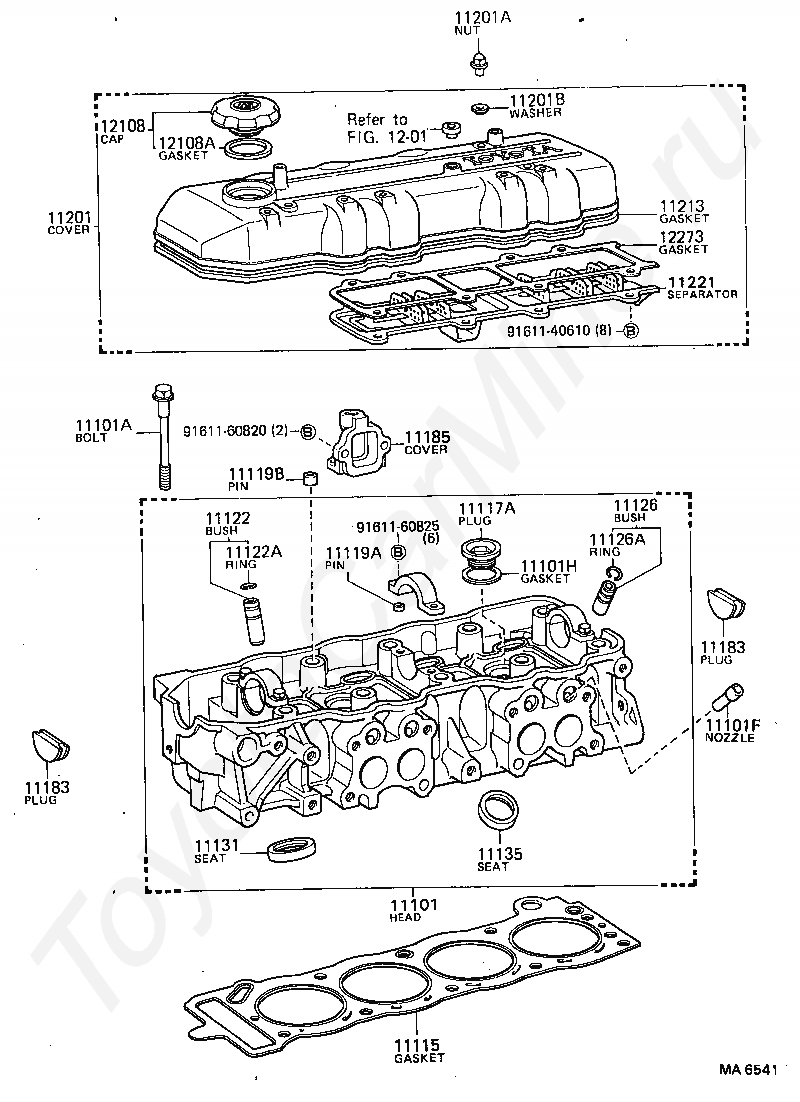

Головка блока цилиндров TOYOTA CORONA

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101F

NOZZLE, AIR INJECTION

11101H

GASKET(FOR CYLINDER HEAD SCREW PLUG)

11115

GASKET, CYLINDER HEAD

11117A

PLUG, W/HEAD TAPER SCREW, NO.1

11119A

PIN, STRAIGHT, NO.1

11119B

PIN, STRAIGHT, NO.2

11122

BUSH, INTAKE VALVE GUIDE

11122A

RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)

11126

BUSH, EXHAUST VALVE GUIDE

11126A

RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)

11131

SEAT, INTAKE VALVE

11135

SEAT, EXHAUST VALVE

11183

PLUG, SEMICIRCULAR

11183

PLUG, SEMICIRCULAR

11185

COVER, CYLINDER HEAD SIDE

11201

COVER SUB-ASSY, CYLINDER HEAD

11201A

NUT, CAP(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11213

GASKET, CYLINDER HEAD COVER

11221

SEPARATOR, CYLINDER HEAD COVER, NO.1

1201

переход к группе запчастей

12108

CAP SUB-ASSY, OIL FILLER

12108A

GASKET(FOR OIL FILLER CAP)

12273

GASKET, OIL SEPARATOR

1701

переход к группе запчастей

1701

переход к группе запчастей

9161140610

Крепеж

9161160820

Крепеж

9161160825

Крепеж

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101F

NOZZLE, AIR INJECTION

11101H

GASKET(FOR CYLINDER HEAD SCREW PLUG)

11115

GASKET, CYLINDER HEAD

11117A

PLUG, W/HEAD TAPER SCREW, NO.1

11119A

PIN, STRAIGHT, NO.1

11119B

PIN, STRAIGHT, NO.2

11122

BUSH, INTAKE VALVE GUIDE

11122A

RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)

11126

BUSH, EXHAUST VALVE GUIDE

11126A

RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)

11131

SEAT, INTAKE VALVE

11135

SEAT, EXHAUST VALVE

11183

PLUG, SEMICIRCULAR

11183

PLUG, SEMICIRCULAR

11185

COVER, CYLINDER HEAD SIDE

11201

COVER SUB-ASSY, CYLINDER HEAD

11201A

NUT, CAP(FOR CYLINDER HEAD COVER)

11201B

WASHER, SEAL(FOR CYLINDER HEAD COVER)

11213

GASKET, CYLINDER HEAD COVER

11221

SEPARATOR, CYLINDER HEAD COVER, NO.1

1201

переход к группе запчастей

12108

CAP SUB-ASSY, OIL FILLER

12108A

GASKET(FOR OIL FILLER CAP)

12273

GASKET, OIL SEPARATOR

9161140610

Крепеж

9161160820

Крепеж

9161160825

Крепеж
