6105
переход к группе запчастей

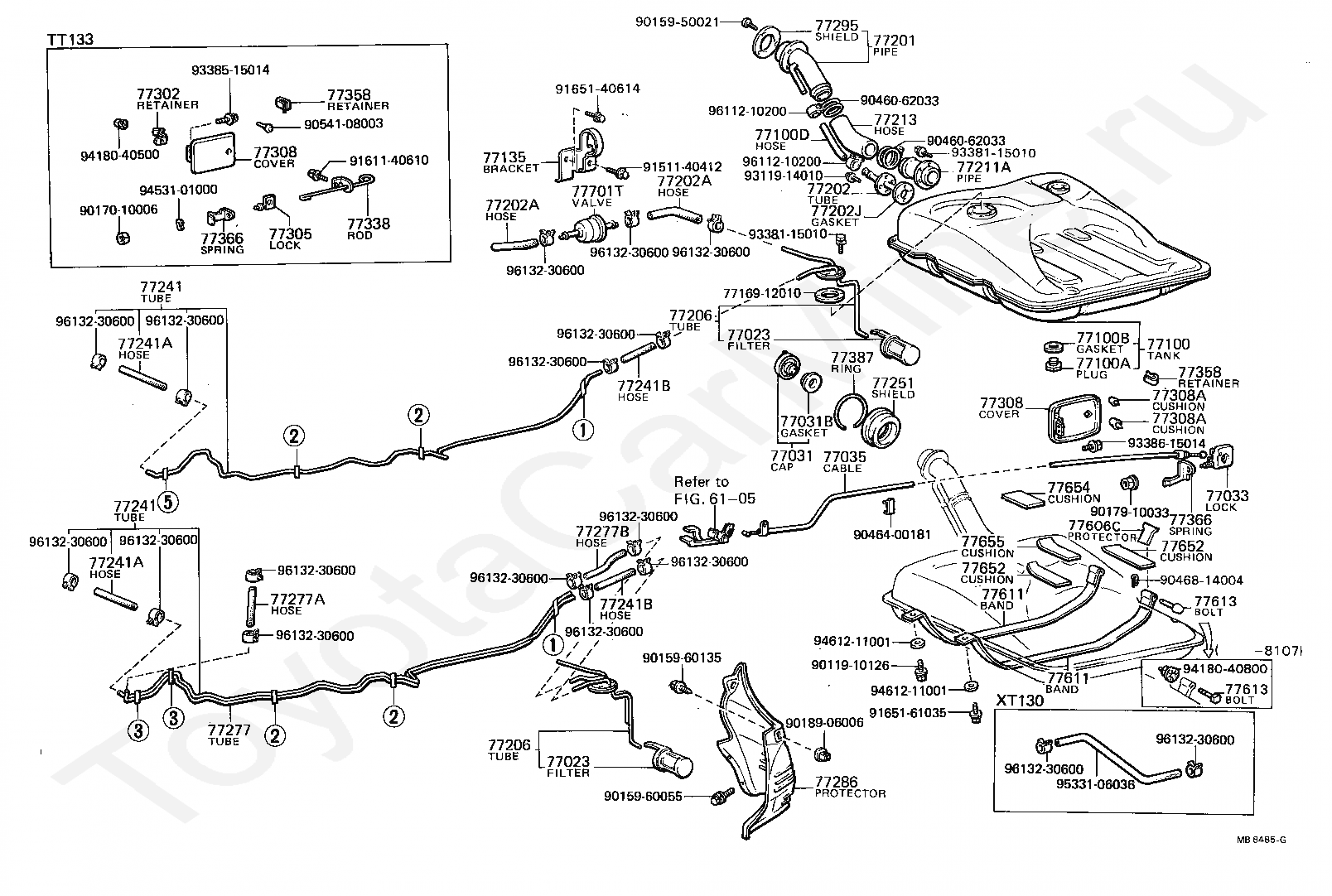

77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77031
CAP ASSY, FUEL TANK
77031B
GASKET (FOR FUEL TANK CAP)
77033
LOCK SUB-ASSY, FUEL TANK CAP
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77100D
HOSE, FUEL, NO.1(FOR FUEL TANK)
77135
BRACKET, CHECK VALVE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77202
TUBE SUB-ASSY, BREATHER
77202A
HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77202A
HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77202J
GASKET (FOR BREATHER TUBE)
77206
TUBE SUB-ASSY, FUEL TANK SUCTION
77206
TUBE SUB-ASSY, FUEL TANK SUCTION
77211A
PIPE, FUEL TANK FILLER, LOWER
77213
HOSE, FUEL TANK SUB INLET
77241
TUBE, FUEL MAIN, NO.1
77241
TUBE, FUEL MAIN, NO.1
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77241B
HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77241B
HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77251
SHIELD, FUEL TANK, INLET, NO.1
77277
TUBE, FUEL RETURN, NO.1
77277A
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77277B
HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
77286
PROTECTOR, FUEL TANK INLET PIPE
77295
SHIELD, FUEL FILLER PIPE
77302
RETAINER, FUEL TANK CAP
77305
LOCK SUB-ASSY, FUEL TANK CAP
77308
COVER SUB-ASSY, FUEL INLET BOX
77308
COVER SUB-ASSY, FUEL INLET BOX
77308A
CUSHION(FOR FUEL INLET BOX COVER)
77308A
CUSHION(FOR FUEL INLET BOX COVER)
77338
ROD, FUEL TANK CAP LOCK
77358
RETAINER, FUEL INLET CUSHION
77358
RETAINER, FUEL INLET CUSHION
77366
SPRING, FUEL FILLER OPENING LID HINGE
77366
SPRING, FUEL FILLER OPENING LID HINGE
77387
RING, FUEL INLET BOX
77606C
PROTECTOR, FUEL TANK, NO.2
77613
BOLT, FUEL TANK BAND SET
77613
BOLT, FUEL TANK BAND SET
77652
CUSHION, FUEL TANK, NO.1
77652
CUSHION, FUEL TANK, NO.1
77654
CUSHION, FUEL TANK, NO.2
77655
CUSHION, FUEL TANK, NO.3
77701T
VALVE, CHECK (FOR MAIN FUEL TANK)
