Ходовые запчасти Каталог Масла

Каталог

Япония

Модель

CORONA

VIN

Дата

1992/02

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

SELECT SALLON TYPE

Фрейм

ST195

КПП

автомат

Опции

Реле и кнопки TOYOTA CORONA







Код

Описание

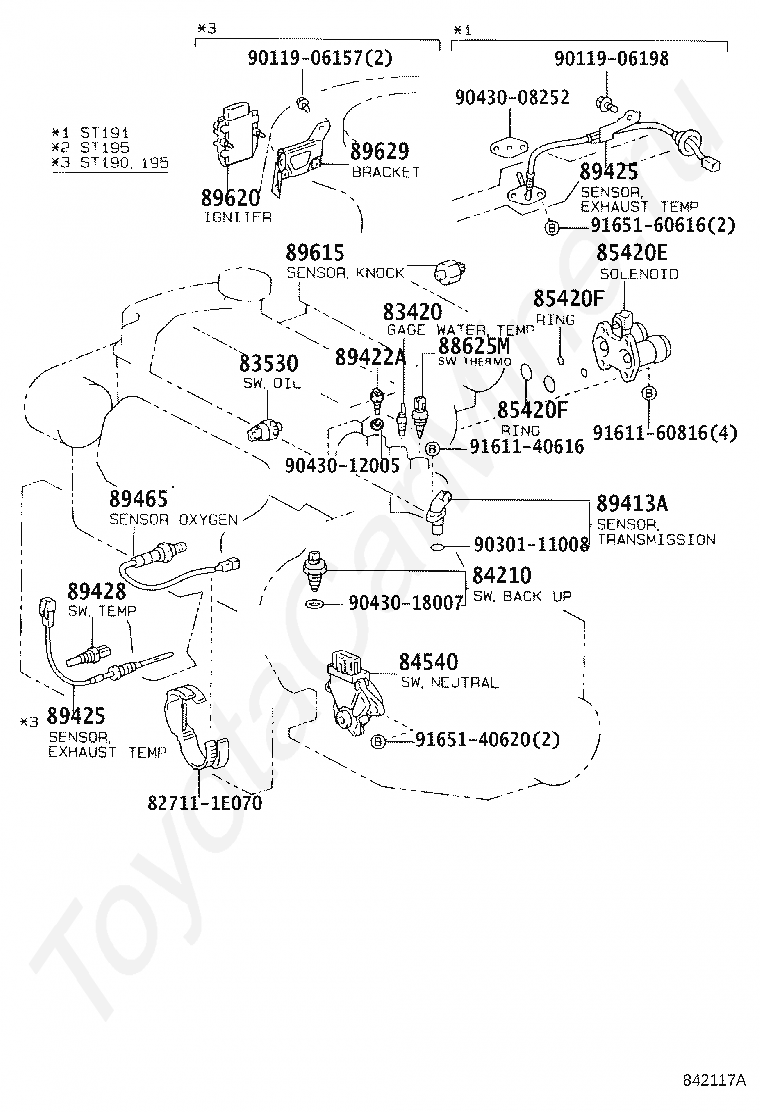

827111E070

Крепеж

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

85420E

SOLENOID ASSY, TRANSMISSION

85420F

RING, O(FOR TRANSMISSION SOLENOID)

85420F

RING, O(FOR TRANSMISSION SOLENOID)

88625M

THERMISTOR, COOLER

89413A

SENSOR, TRANSMISSION REVOLUTION

89422A

SENSOR, WATER TEMPERATURE

89425

SENSOR, EXHAUST GAS TEMPERATURE

89425

SENSOR, EXHAUST GAS TEMPERATURE

89428

SWITCH, TEMPERATURE DETECT, NO.2

89465

SENSOR, OXYGEN

89615

SENSOR, KNOCK CONTROL

89620

IGNITER ASSY

89629

BRACKET, IGNITER ASSY

9011906157

Крепеж

9011906198

Крепеж

9030111008

Крепеж

9043008252

Крепеж

9043012005

Крепеж

9043018007

Крепеж

9161140616

Крепеж

9161160816

Крепеж

9165140620

Крепеж

9165160616

Крепеж

Код

Описание

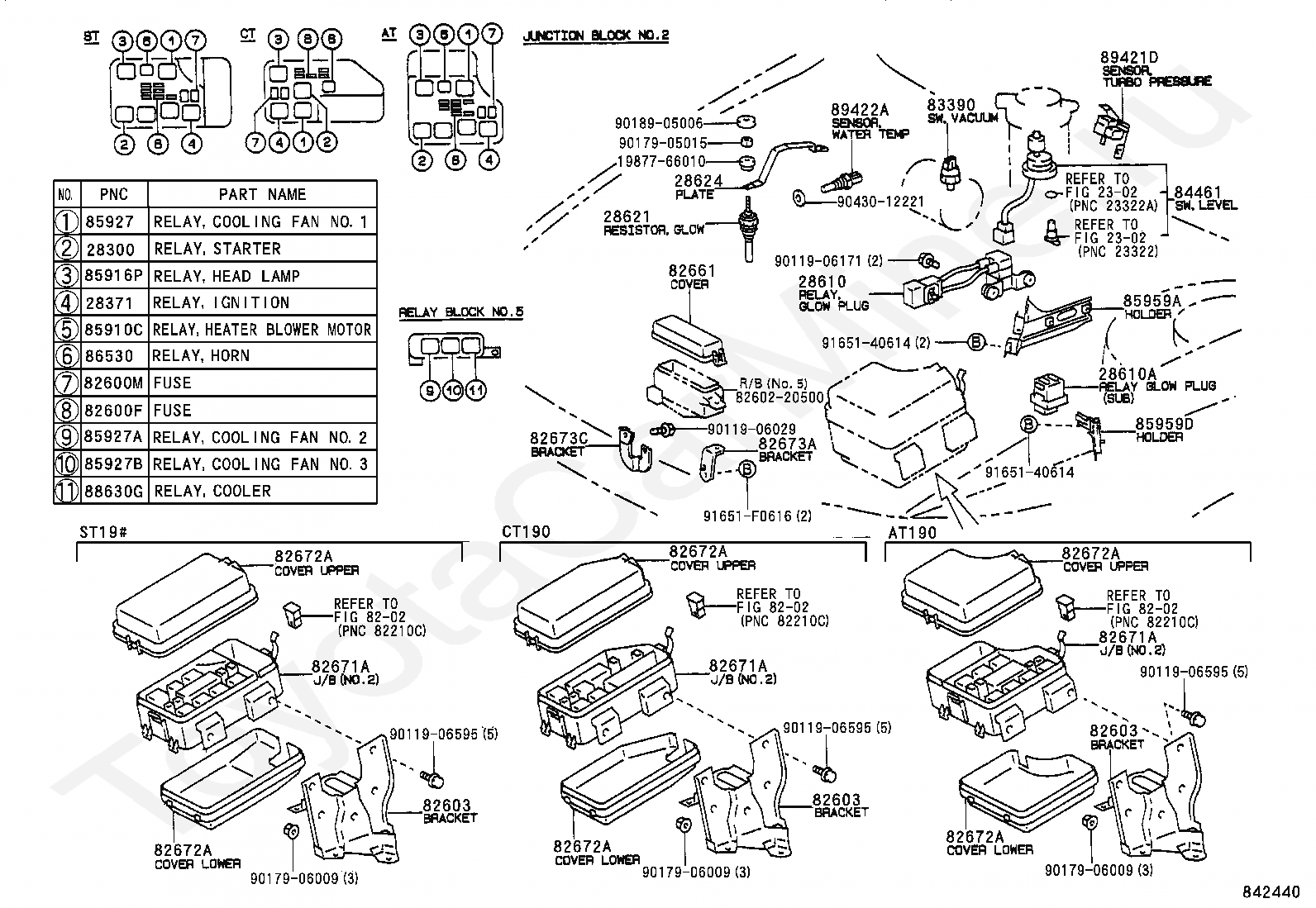

1987766010

Крепеж

2302

переход к группе запчастей

2302

переход к группе запчастей

28300

RELAY ASSY, STARTER

28371

RELAY, IGNITION, NO.1

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610A

RELAY ASSY, GLOW PLUG(SUB)

28621

RESISTOR, GLOW PLUG

28624

PLATE, CURRENT SENSOR

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82600M

FUSE, MEDIUM CURRENT

8260220500

Крепеж

82603

BRACKET SUB-ASSY, FUSIBLE LINK BLOCK

82603

BRACKET SUB-ASSY, FUSIBLE LINK BLOCK

82603

BRACKET SUB-ASSY, FUSIBLE LINK BLOCK

82661

COVER, RELAY BLOCK, NO.1

82671A

BLOCK, JUNCTION

82671A

BLOCK, JUNCTION

82671A

BLOCK, JUNCTION

82672A

COVER, JUNCTION BLOCK

82672A

COVER, JUNCTION BLOCK

82672A

COVER, JUNCTION BLOCK

82672A

COVER, JUNCTION BLOCK

82672A

COVER, JUNCTION BLOCK

82672A

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673C

BRACKET, JUNCTION BLOCK

83390

SWITCH ASSY, VACUUM WARNING

84461

SWITCH, LEVEL WARNING

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85916P

RELAY, HEADLAMP

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85927B

RELAY, COOLING FAN, NO.3

85959A

HOLDER, RELAY

85959D

HOLDER, RELAY

86530

RELAY ASSY, HORN

88630G

RELAY ASSY, COOLER

89421D

SENSOR, TURBO PRESSURE

89422A

SENSOR, WATER TEMPERATURE

9011906029

Крепеж

9011906171

Крепеж

9011906595

Крепеж

9011906595

Крепеж

9011906595

Крепеж

9017905015

Крепеж

9017906009

Крепеж

9017906009

Крепеж

9017906009

Крепеж

9018905006

Крепеж

9043012221

Крепеж

9165140614

Крепеж

9165140614

Крепеж

91651F0616

Крепеж

Код

Описание

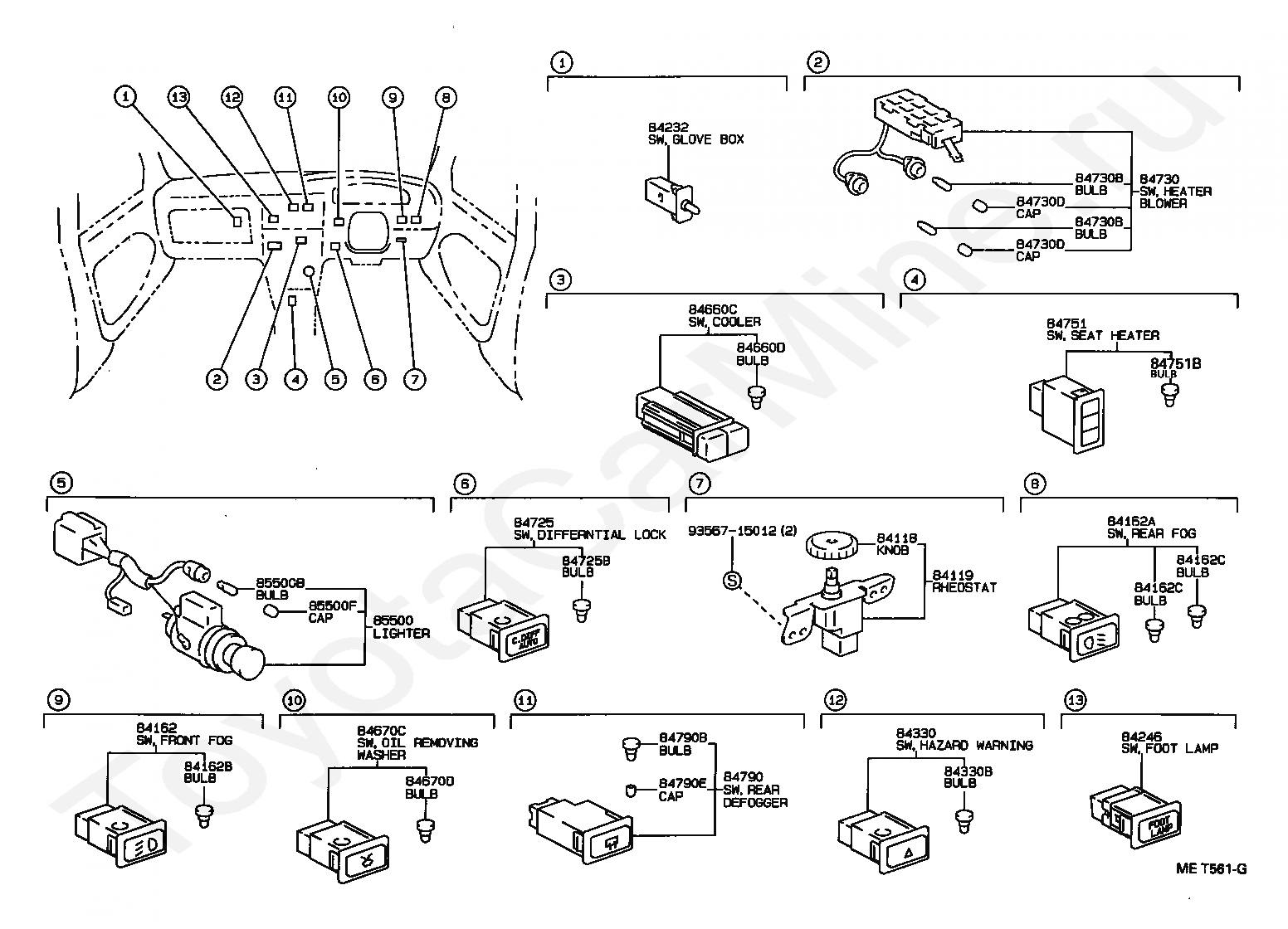

84118

KNOB, LIGHT CONTROL RHEOSTAT

84119

RHEOSTAT, LIGHT CONTROL

84162

SWITCH, FRONT FOG LAMP

84162A

SWITCH, REAR FOG LAMP

84162B

BULB, FOG LAMP SWITCH

84162C

BULB (FOR REAR FOG LAMP SWITCH)

84162C

BULB (FOR REAR FOG LAMP SWITCH)

84232

SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX)

84246

SWITCH, FOOT LAMP

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84660C

SWITCH, COOLER

84660D

BULB(FOR COOLER SWITCH)

84670C

SWITCH ASSY, OIL REMOVING WASHER

84670D

BULB(FOR WASHER SWITCH)

84725

SWITCH, CENTER DIFFERENTIAL LOCK

84725B

BLUB, DIFFERENTIAL LOCK SWITCH

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84730B

BULB, HEATER BLOWER SWITCH

84730D

CAP, HEATER BLOWER SWITCH BULB

84730D

CAP, HEATER BLOWER SWITCH BULB

84751

SWITCH, SEAT HEATER

84751B

BULB, SEAT HEATER SWITCH

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84790E

CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH)

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85500F

CAP, CIGARETTE LIGHTER BULB

9356715012

Крепеж

Код

Описание

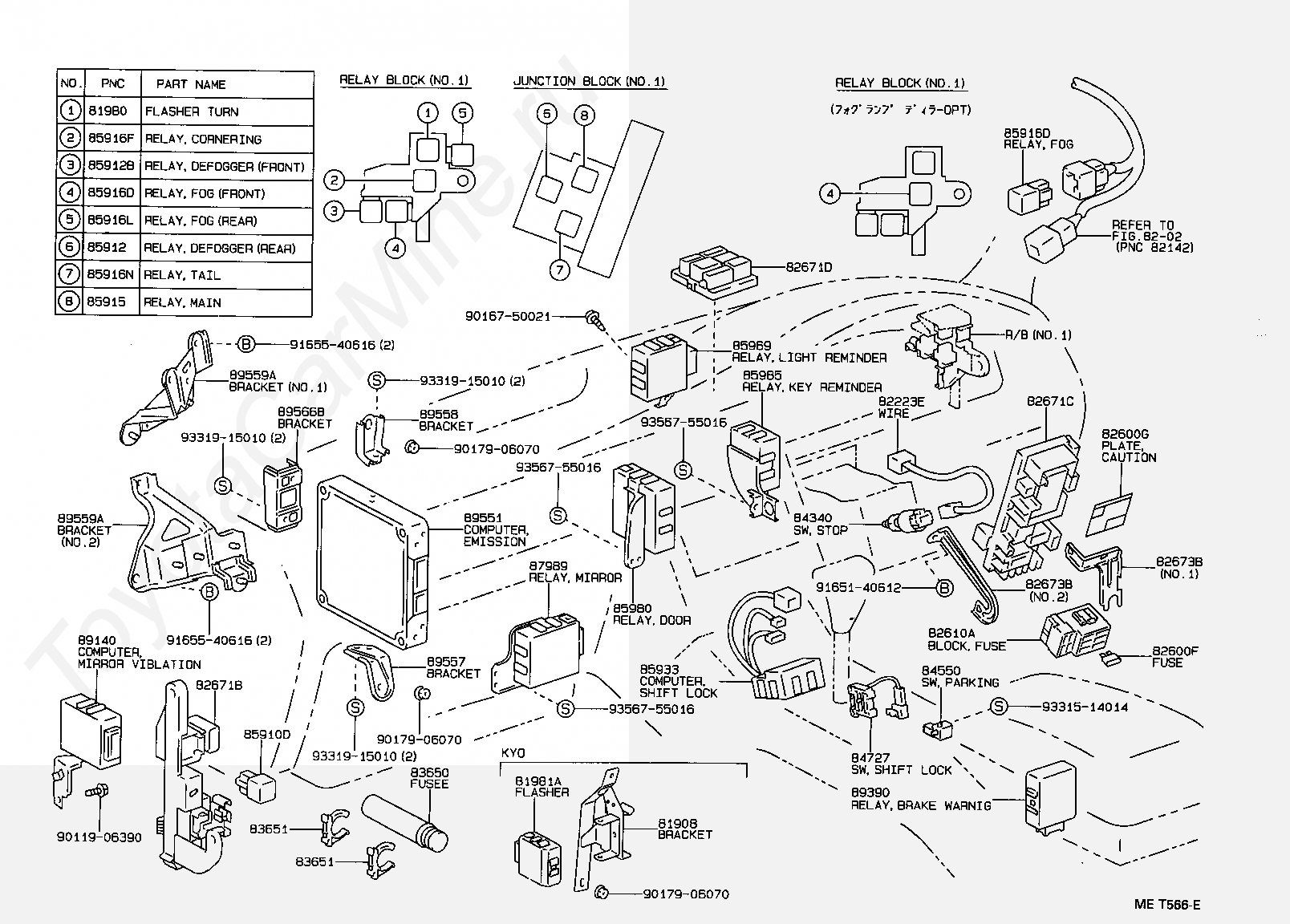

81908

BRACKET SUB-ASSY, FLASHER

81980

FLASHER ASSY, TURN SIGNAL

81981A

FLASHER, TURN SIGNAL

8202

переход к группе запчастей

82223E

WIRE, CLUTCH START SWITCH

82600F

FUSE, FUSE BLOCK

82600G

PLATE, CAUTION(FOR FUSE)

82610A

BLOCK ASSY, FUSE

82671B

BLOCK, JUNCTION

82671C

BLOCK, JUNCTION

82671D

BLOCK, JUNCTION

82673B

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

83650

FUSEE

83651

CLAMP, FUSEE

83651

CLAMP, FUSEE

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

84727

SWITCH, SHIFT LOCK CONTROL

85910D

RELAY (FOR HEATER IDLE UP)

85912

RELAY, DEFOGGER

85912B

RELAY, DEFOGGER(FOR FRONT WINDOW)

85915

RELAY, MAIN

85916D

RELAY, FOG LAMP

85916D

RELAY, FOG LAMP

85916F

RELAY, CORNERING LAMP

85916L

RELAY, REAR FOG LAMP

85916N

RELAY, TAIL LAMP

85933

COMPUTER, SHIFT LOCK CONTROL

85969

RELAY, LIGHT REMINDER

85980

RELAY ASSY, DOOR CONTROL

85985

RELAY, KEY REMINDER

87989

RELAY, MIRROR CONTROL

89140

COMPUTER,ASSY MIRROR VIBLATION CONTROL

89390

RELAY, BRAKE WARNING

89551

COMPUTER, EMISSION CONTROL

89557

BRACKET, EMISSION CONTROL COMPUTER, NO.1

89558

BRACKET, EMISSION CONTROL COMPUTER, NO.2

89559A

BRACKET, EMISSION CONTROL COMPUTER

89559A

BRACKET, EMISSION CONTROL COMPUTER

89566B

BRACKET, ENGINE CONTROL COMPUTER, NO.4

9011906390

Крепеж

9016750021

Крепеж

9017906070

Крепеж

9017906070

Крепеж

9017906070

Крепеж

9165140612

Крепеж

9165540616

Крепеж

9165540616

Крепеж

9331514014

Крепеж

9331915010

Крепеж

9331915010

Крепеж

9331915010

Крепеж

9356755016

Крепеж

9356755016

Крепеж

9356755016

Крепеж

Код

Описание

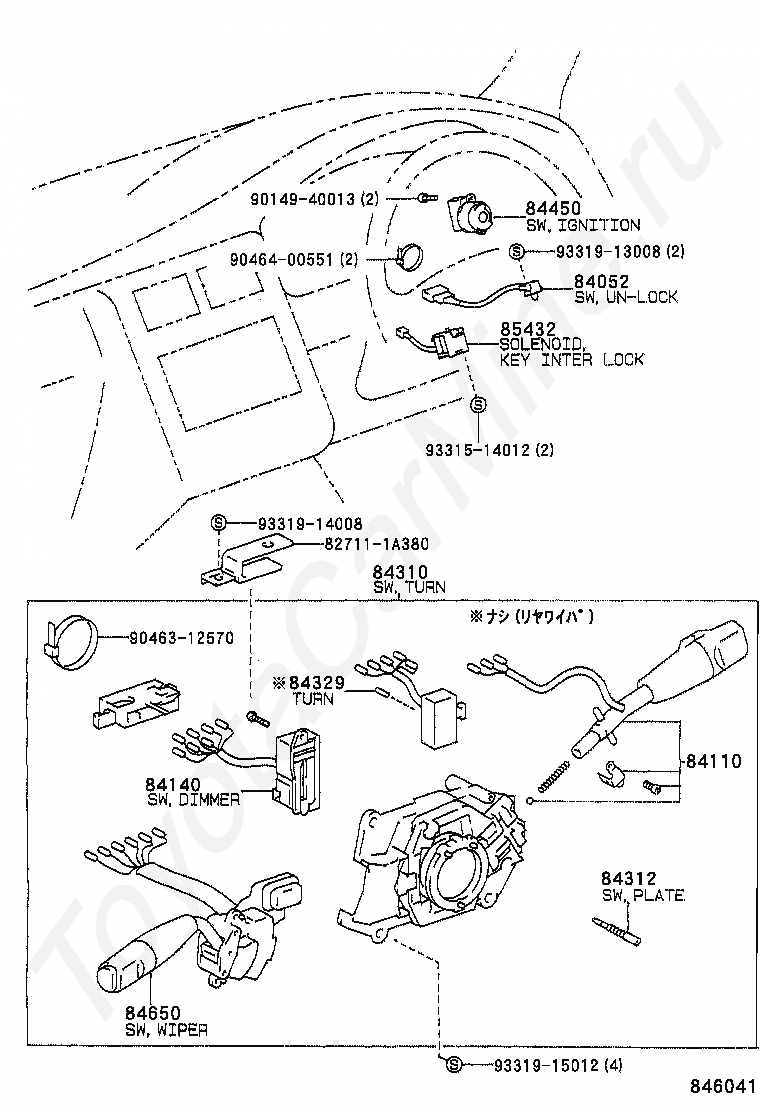

827111A380

Крепеж

84052

SWITCH ASSY, UN-LOCK WARNING

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84140

SWITCH ASSY, HEADLAMP DIMMER

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84329

SWITCH, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

9014940013

Крепеж

9046312570

Крепеж

9046400551

Крепеж

9331514012

Крепеж

9331913008

Крепеж

9331914008

Крепеж

9331915012

Крепеж

Код

Описание

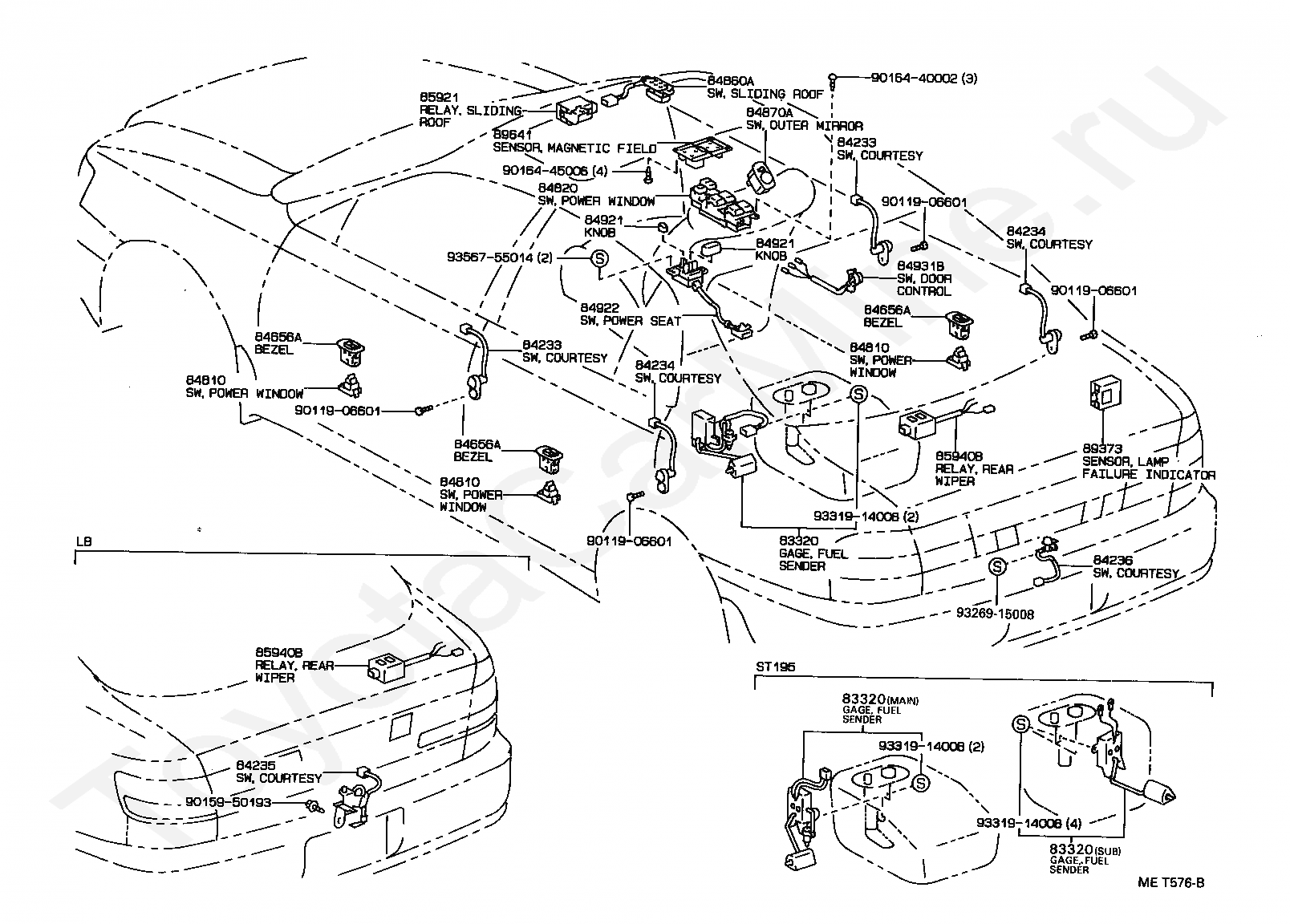

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84236

SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM)

84656A

BEZEL, SWITCH

84656A

BEZEL, SWITCH

84656A

BEZEL, SWITCH

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84860A

SWITCH ASSY, SLIDING ROOF

84870A

SWITCH ASSY, OUTER MIRROR

84921

KNOB, POWER SEAT SWITCH

84921

KNOB, POWER SEAT SWITCH

84922

SWITCH, FRONT POWER SEAT

84931B

SWITCH, DOOR CONTROL

85921

RELAY, SLIDING ROOF CONTROL

85940B

RELAY ASSY, REAR WIPER

85940B

RELAY ASSY, REAR WIPER

89373

SENSOR, LAMP FAILURE INDICATOR

89641

SENSOR, MAGNETIC FIELD

9011906601

Крепеж

9011906601

Крепеж

9011906601

Крепеж

9011906601

Крепеж

9015950193

Крепеж

9016440002

Крепеж

9016445006

Крепеж

9326915008

Крепеж

9331914008

Крепеж

9331914008

Крепеж

9331914008

Крепеж

9356755014

Крепеж
