2211
переход к группе запчастей

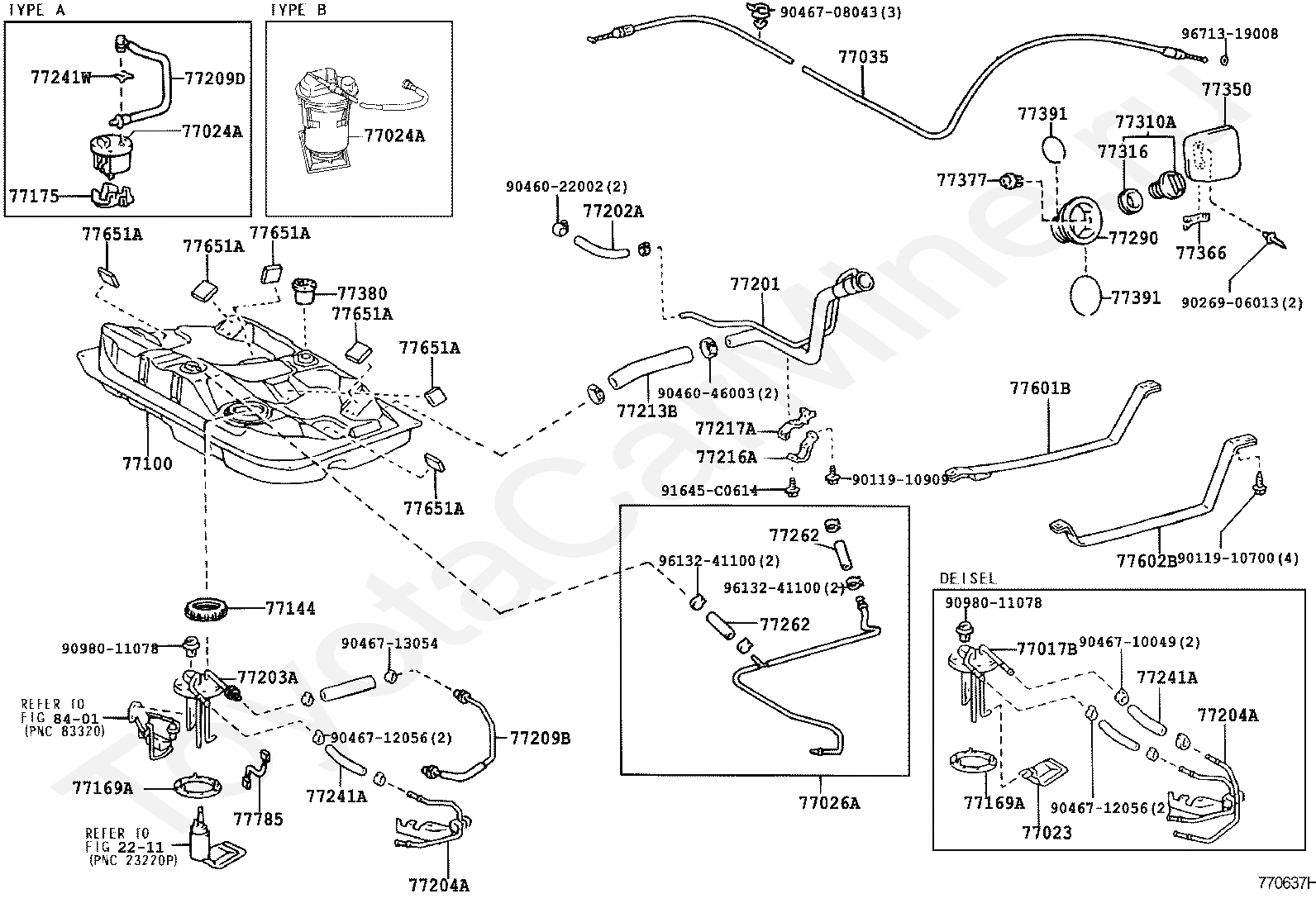

77017B
TUBE SUB-ASSY, FUEL TANK VENT
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77024A
PLATE SUB-ASSY, FUEL SUCTION
77024A
PLATE SUB-ASSY, FUEL SUCTION
77026A
TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77144
RETAINER, FUEL PUMP GAUGE
77169A
GASKET, FUEL SUCTION TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77175
SUPPORT, FUEL SUCTION, NO.2
77201
PIPE SUB-ASSY, FUEL TANK INLET
77202A
HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77203A
TUBE SUB-ASSY, FUEL SUCTION
77204A
TUBE, FUEL TANK RETURN
77204A
TUBE, FUEL TANK RETURN
77209B
TUBE SUB-ASSY, FUEL PUMP
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77262
TUBE, FUEL EMISSION, NO.2
77262
TUBE, FUEL EMISSION, NO.2
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77391
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
8401
переход к группе запчастей
