Ближний Восток

Модель

COROLLA/ALTIS

VIN

Дата

2014/05

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

J SPECIFICATION

Фрейм

ZRE172

КПП

механика МКПП, 6 скоростей

Опции

правый руль 4 двери HIGH EFFICIENCY TWIN CAM Индия 588W

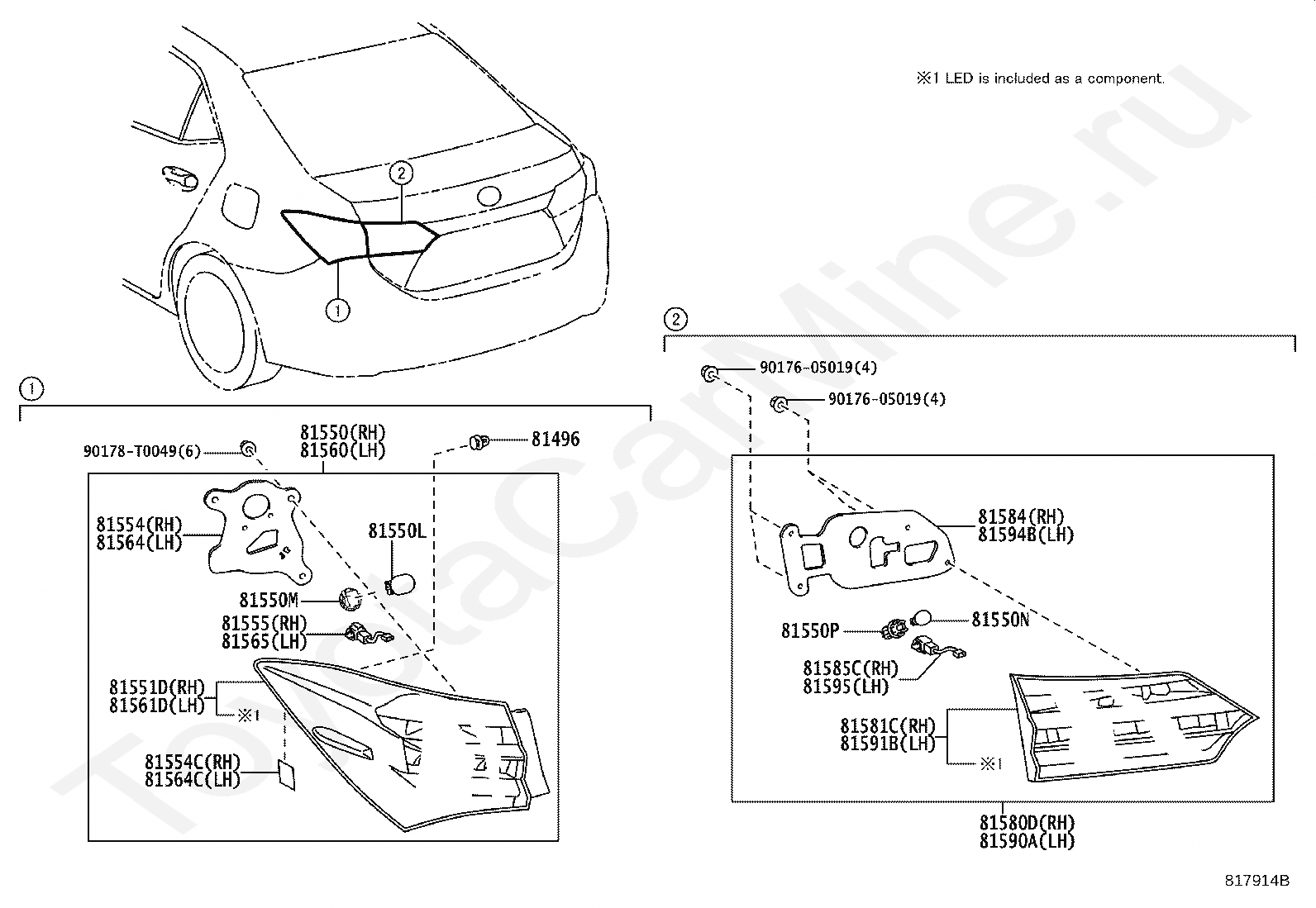

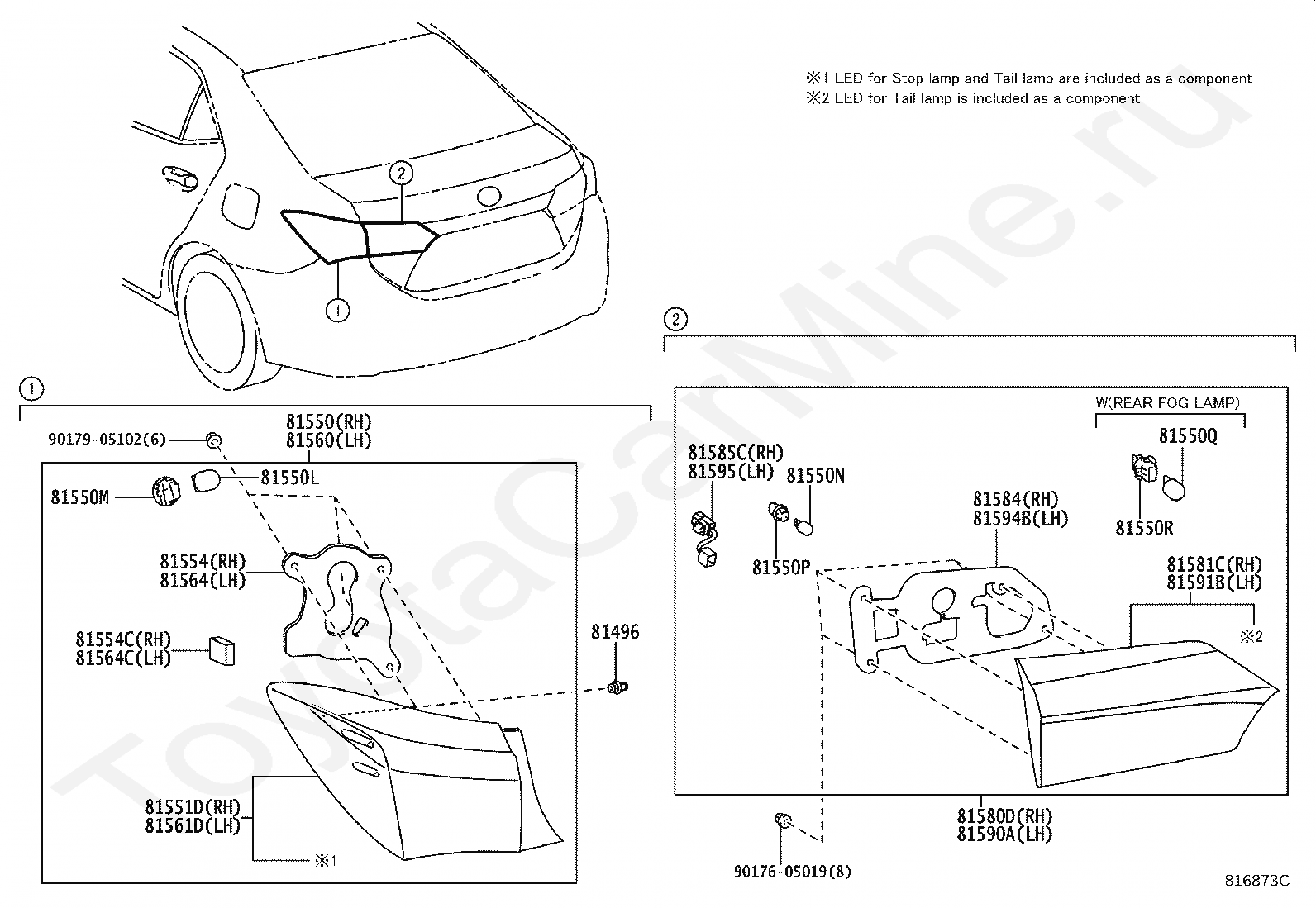

Задние фонари TOYOTA COROLLA/ALTIS

Код

Описание

81496

GUIDE, REAR COMBINATION LAMP

81550

LAMP ASSY, REAR COMBINATION, RH

81550L

BULB, REAR TURN SIGNAL LAMP

81550M

SOCKET, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81550P

SOCKET, BACK UP LAMP

81550Q

BULB, REAR FOG LAMP, NO.1

81550R

SOCKET, REAR FOG LAMP

81551D

LENS & BODY, REAR COMBINATION LAMP, RH

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81554C

PACKING, REAR COMBINATION LAMP BODY, RH

81560

LAMP ASSY, REAR COMBINATION, LH

81561D

LENS & BODY, REAR COMBINATION LAMP, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81564C

PACKING, REAR COMBINATION LAMP BODY, LH

81580D

LAMP ASSY, REAR, RH

81581C

LENS AND BODY, REAR LAMP, RH

81584

PACKING, REAR LAMP RH

81585C

SOCKET & WIRE, REAR LAMP, RH

81590A

LAMP ASSY, REAR, LH

81591B

LENS AND BODY, REAR LAMP, LH

81594B

PACKING, REAR LAMP LH

81595

SOCKET & WIRE, REAR LAMP, LH

9017605019

Крепеж

9017905102

Крепеж

Код

Описание

81496

GUIDE, REAR COMBINATION LAMP

81550

LAMP ASSY, REAR COMBINATION, RH

81550L

BULB, REAR TURN SIGNAL LAMP

81550M

SOCKET, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81550P

SOCKET, BACK UP LAMP

81550Q

BULB, REAR FOG LAMP, NO.1

81550R

SOCKET, REAR FOG LAMP

81551D

LENS & BODY, REAR COMBINATION LAMP, RH

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81554C

PACKING, REAR COMBINATION LAMP BODY, RH

81560

LAMP ASSY, REAR COMBINATION, LH

81561D

LENS & BODY, REAR COMBINATION LAMP, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81564C

PACKING, REAR COMBINATION LAMP BODY, LH

81580D

LAMP ASSY, REAR, RH

81581C

LENS AND BODY, REAR LAMP, RH

81584

PACKING, REAR LAMP RH

81585C

SOCKET & WIRE, REAR LAMP, RH

81590A

LAMP ASSY, REAR, LH

81591B

LENS AND BODY, REAR LAMP, LH

81594B

PACKING, REAR LAMP LH

81595

SOCKET & WIRE, REAR LAMP, LH

9017605019

Крепеж

9017905102

Крепеж

Код

Описание

81496

GUIDE, REAR COMBINATION LAMP

81550

LAMP ASSY, REAR COMBINATION, RH

81550L

BULB, REAR TURN SIGNAL LAMP

81550M

SOCKET, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81550P

SOCKET, BACK UP LAMP

81551D

LENS & BODY, REAR COMBINATION LAMP, RH

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81554C

PACKING, REAR COMBINATION LAMP BODY, RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81560

LAMP ASSY, REAR COMBINATION, LH

81561D

LENS & BODY, REAR COMBINATION LAMP, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81564C

PACKING, REAR COMBINATION LAMP BODY, LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

81580D

LAMP ASSY, REAR, RH

81581C

LENS AND BODY, REAR LAMP, RH

81584

PACKING, REAR LAMP RH

81585C

SOCKET & WIRE, REAR LAMP, RH

81590A

LAMP ASSY, REAR, LH

81591B

LENS AND BODY, REAR LAMP, LH

81594B

PACKING, REAR LAMP LH

81595

SOCKET & WIRE, REAR LAMP, LH

9017605019

Крепеж

9017605019

Крепеж

90178T0049

Крепеж
