Ближний Восток

Модель

COROLLA/ALTIS

VIN

Дата

2014/05

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

J SPECIFICATION

Фрейм

ZRE172

КПП

механика МКПП, 6 скоростей

Опции

правый руль 4 двери HIGH EFFICIENCY TWIN CAM Индия 588W

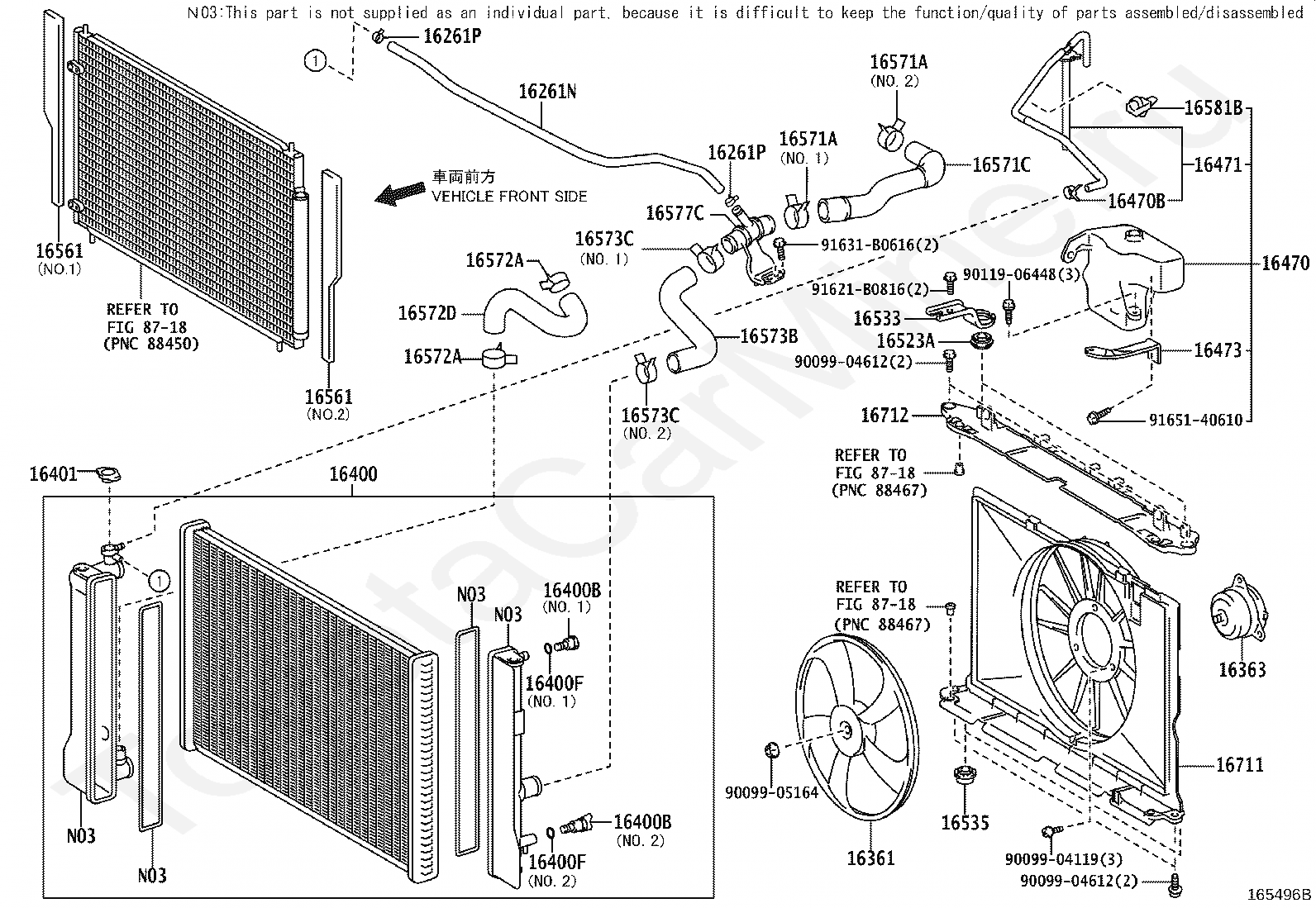

Радиатор и шланги TOYOTA COROLLA/ALTIS

Код

Описание

16261N

HOSE, WATER BY-PASS, NO.2

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16361

FAN

16363

MOTOR, COOLING FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16473

SUPPORT(FOR RADIATOR RESERVE TANK)

16523A

CUSHION, RADIATOR SUPPORT

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572D

HOSE, RADIATOR, NO.2

16573B

HOSE, RADIATOR, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16577C

PIPE, RADIATOR

16581B

CLAMP, HOSE(FOR RADIATOR HOSE)

16711

SHROUD, FAN

16712

SHROUD, FAN, NO.2

8718

переход к группе запчастей

8718

переход к группе запчастей

8718

переход к группе запчастей

9009904119

Крепеж

9009904612

Крепеж

9009904612

Крепеж

9009905164

Крепеж

9011906448

Крепеж

91621B0816

Крепеж

91631B0616

Крепеж

9165140610

Крепеж

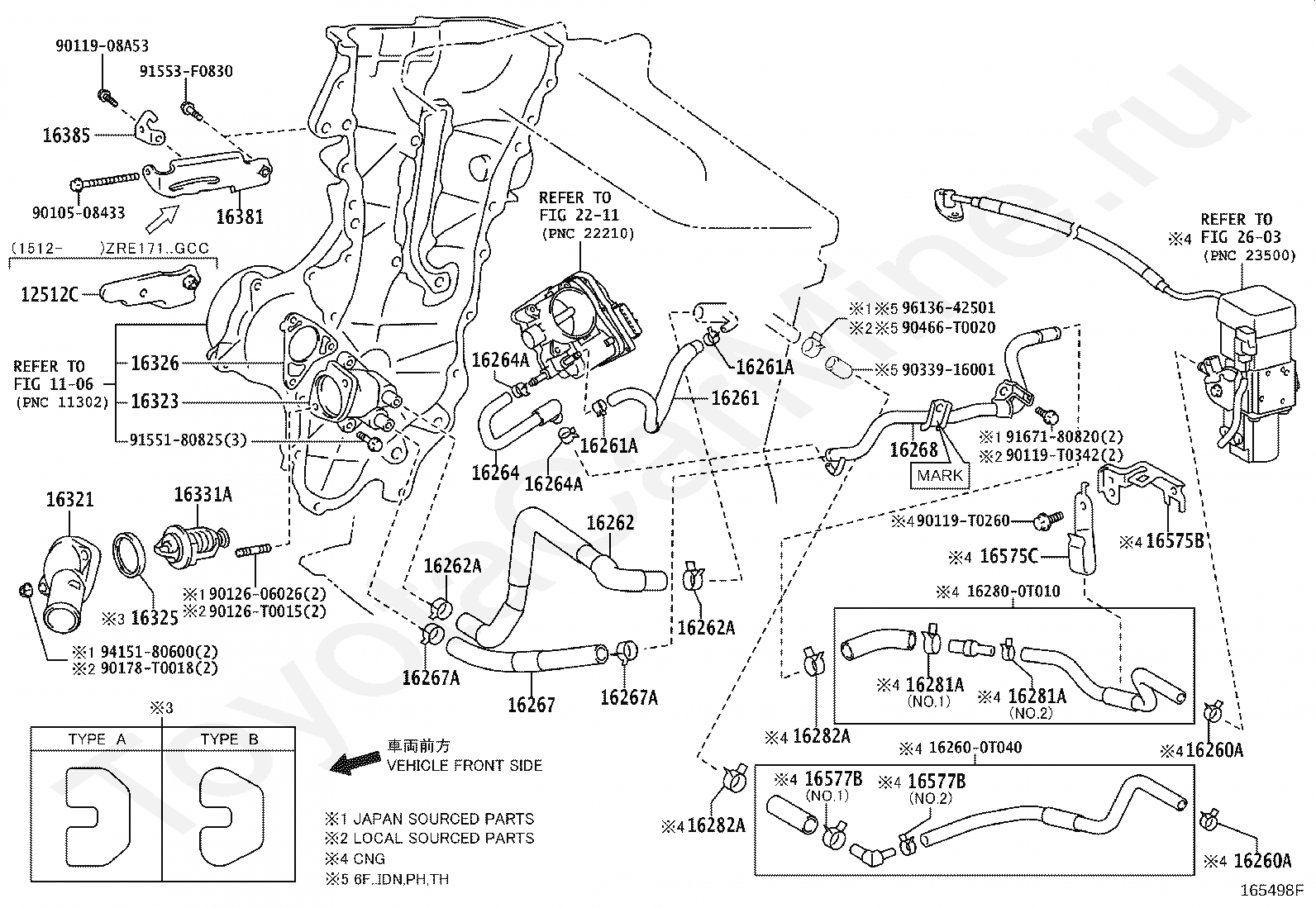

Код

Описание

1106

переход к группе запчастей

12512C

BRACKET, ALTERNATOR, NO.2

162600T040

Крепеж

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16262

HOSE, WATER INLET

16262A

CLIP(FOR WATER INLET HOSE)

16262A

CLIP(FOR WATER INLET HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

162800T010

Крепеж

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16321

INLET, WATER

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

16381

BAR, FAN BELT ADJUSTING

16385

SLIDER, FAN BELT ADJUSTING

16575B

BRACKET, WATER HOSE CLAMP, NO.2

16575C

BRACKET, WATER HOSE CLAMP, NO.1

16577B

CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)

16577B

CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)

2211

переход к группе запчастей

2603

переход к группе запчастей

9010508433

Крепеж

9011908A53

Крепеж

90119T0260

Крепеж

90119T0342

Крепеж

9012606026

Крепеж

90126T0015

Крепеж

90178T0018

Крепеж

9033916001

Крепеж

90466T0020

Крепеж

9155180825

Крепеж

91553F0830

Крепеж

9167180820

Крепеж

9415180600

Крепеж

9613642501

Крепеж

Радиатор и шланги TOYOTA COROLLA/ALTIS
