Ближний Восток

Модель

COROLLA

VIN

Дата

2013/08

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

STANDARD TYPE

Фрейм

ZRE172

КПП

механика МКПП, 6 скоростей

Опции

левый руль 4 двери HIGH EFFICIENCY TWIN CAM MEXICO 590W

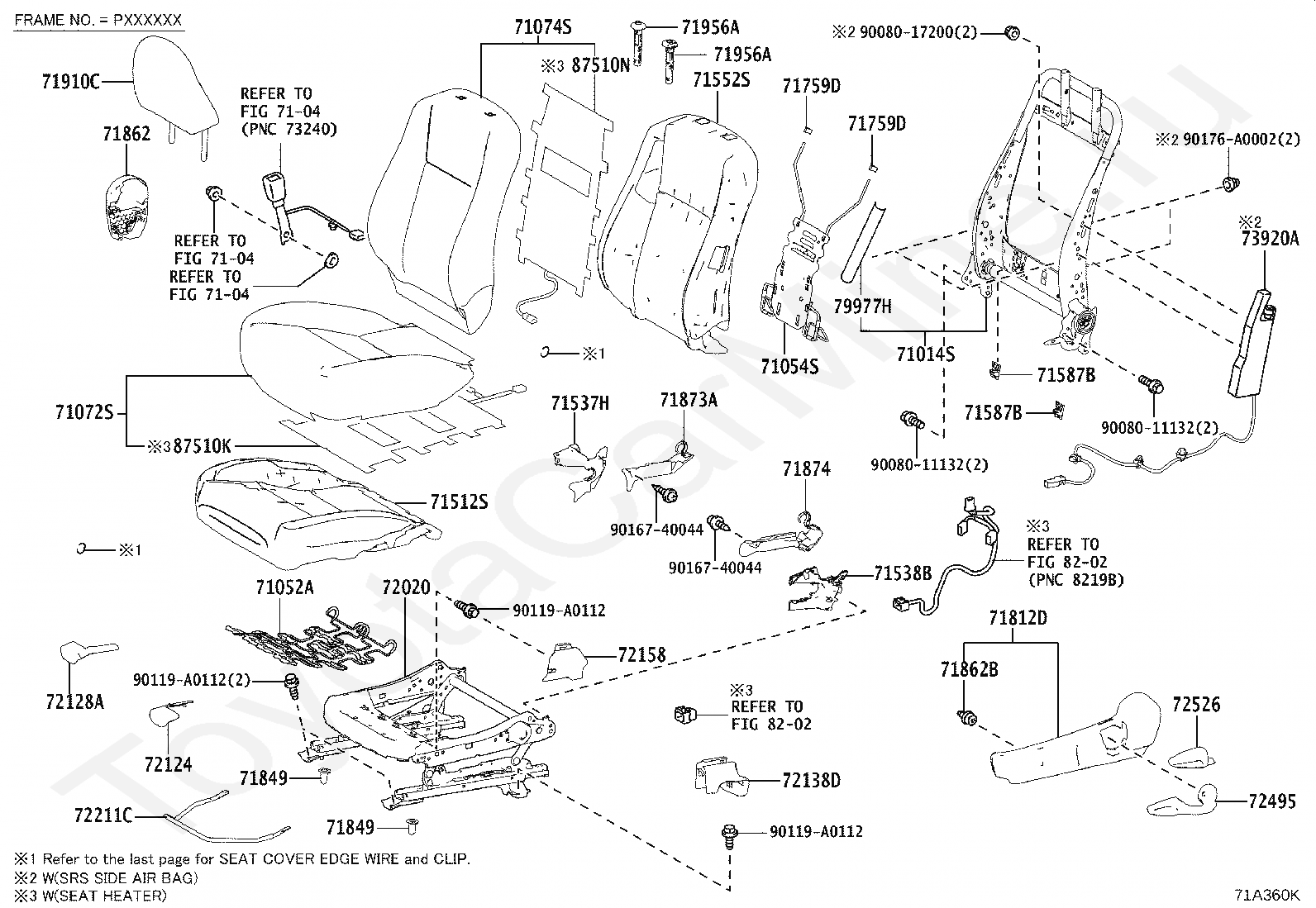

Передние кресла TOYOTA COROLLA







Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71759D

HOOK, FRONT SEAT BACK, NO.2

71759D

HOOK, FRONT SEAT BACK, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910C

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

71956A

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138D

COVER, SEAT TRACK, OUTER, LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72495

HANDLE, VERTICAL ADJUSTING, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977H

FELT, FRONT SEAT BACK, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9008011132

Крепеж

9008011132

Крепеж

9008017200

Крепеж

90119A0112

Крепеж

90119A0112

Крепеж

90119A0112

Крепеж

9016740044

Крепеж

9016740044

Крепеж

90176A0002

Крепеж

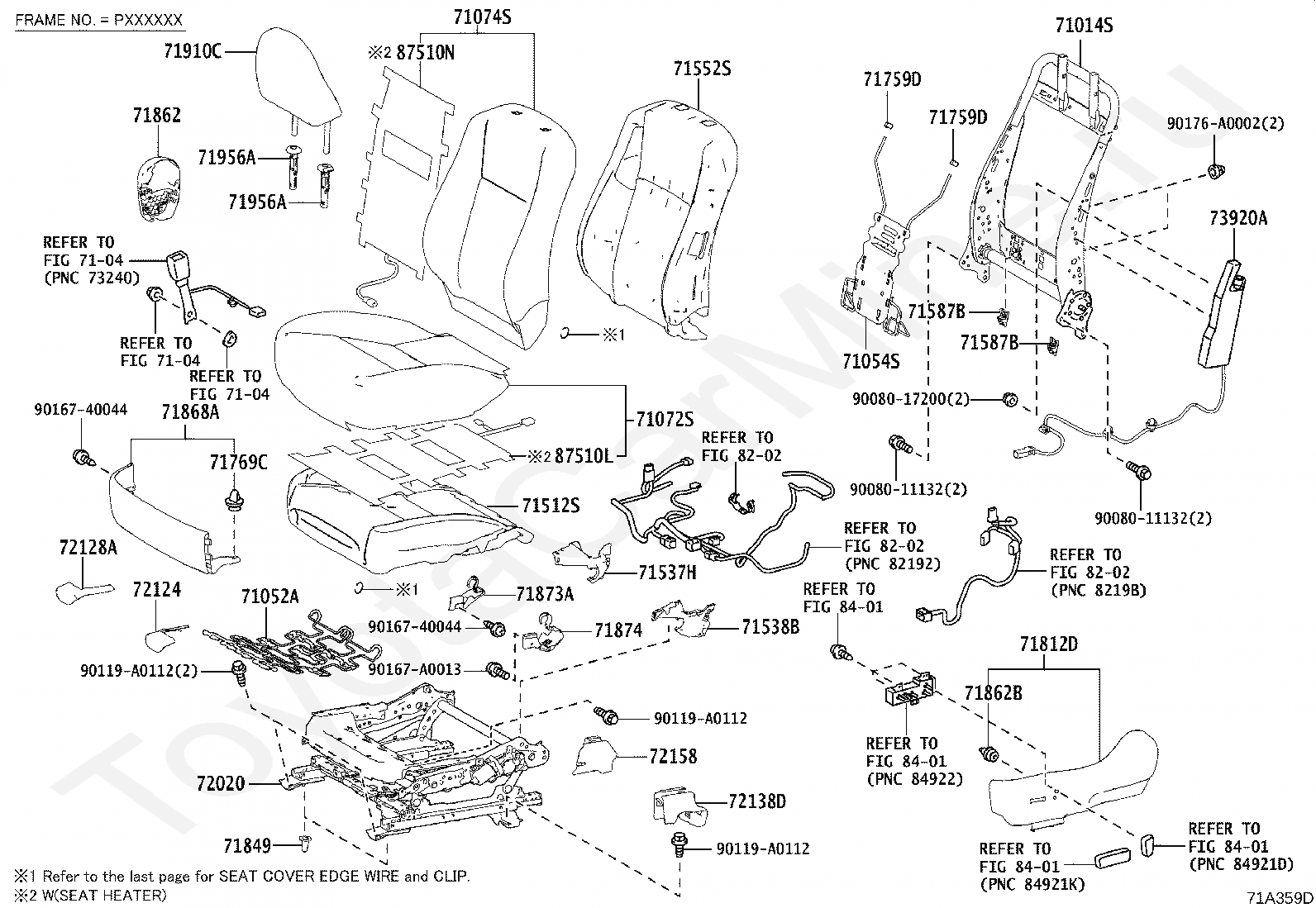

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71759D

HOOK, FRONT SEAT BACK, NO.2

71759D

HOOK, FRONT SEAT BACK, NO.2

71769C

CLIP, FRONT SEAT CUSHION COVER

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910C

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

71956A

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138D

COVER, SEAT TRACK, OUTER, LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9008011132

Крепеж

9008011132

Крепеж

9008017200

Крепеж

90119A0112

Крепеж

90119A0112

Крепеж

90119A0112

Крепеж

9016740044

Крепеж

9016740044

Крепеж

90167A0013

Крепеж

90176A0002

Крепеж

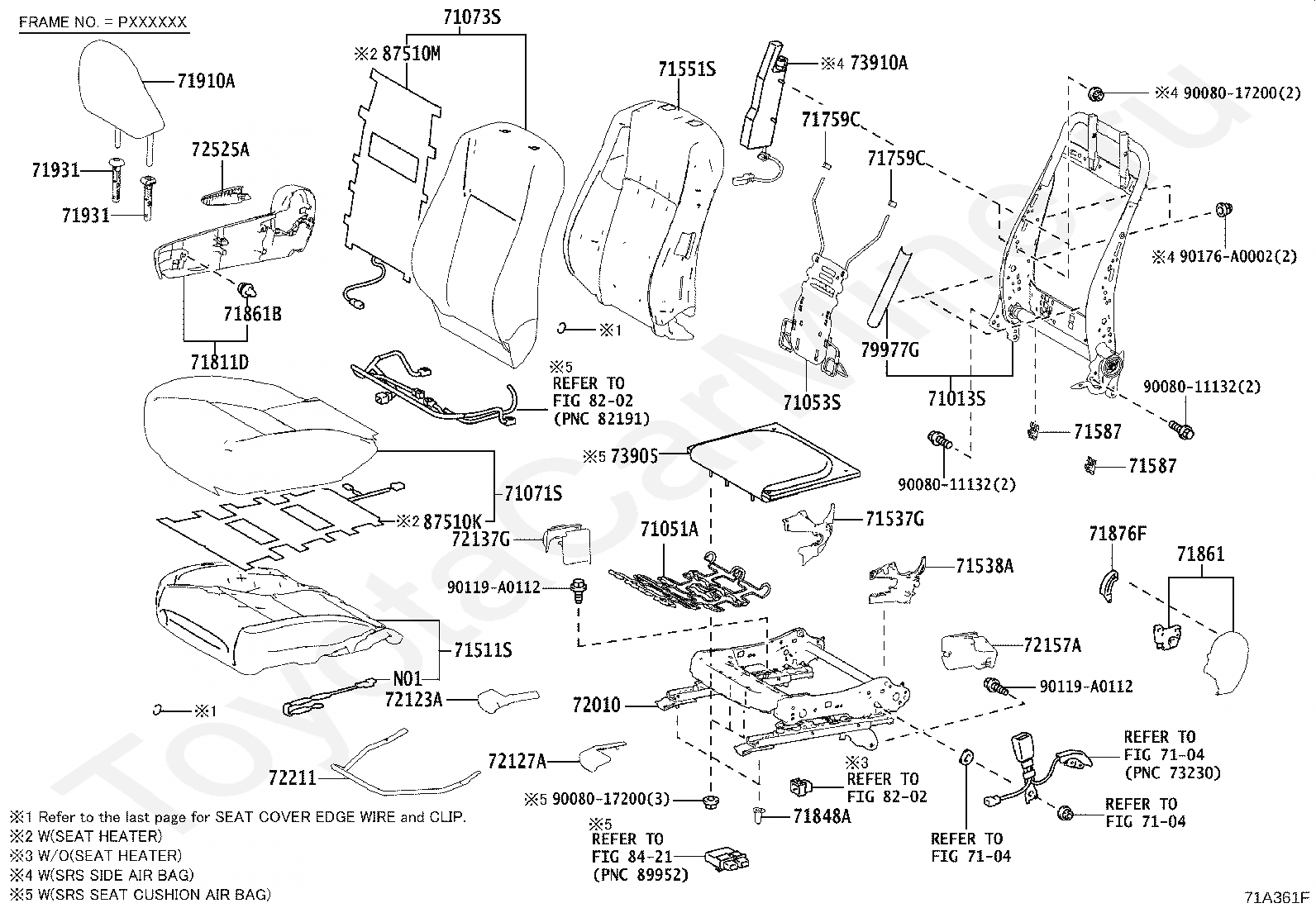

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71587

PROTECTOR, FRONT SEAT BACK EDGE

71759C

HOOK, FRONT SEAT BACK, NO.1

71759C

HOOK, FRONT SEAT BACK, NO.1

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137G

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72211

HANDLE, SEAT TRACK ADJUSTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

73905

AIR BAG SUB-ASSY, FRONT SEAT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

79977G

FELT, FRONT SEAT BACK, RH

8202

переход к группе запчастей

8202

переход к группе запчастей

8421

переход к группе запчастей

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9008011132

Крепеж

9008011132

Крепеж

9008017200

Крепеж

9008017200

Крепеж

90119A0112

Крепеж

90119A0112

Крепеж

90176A0002

Крепеж

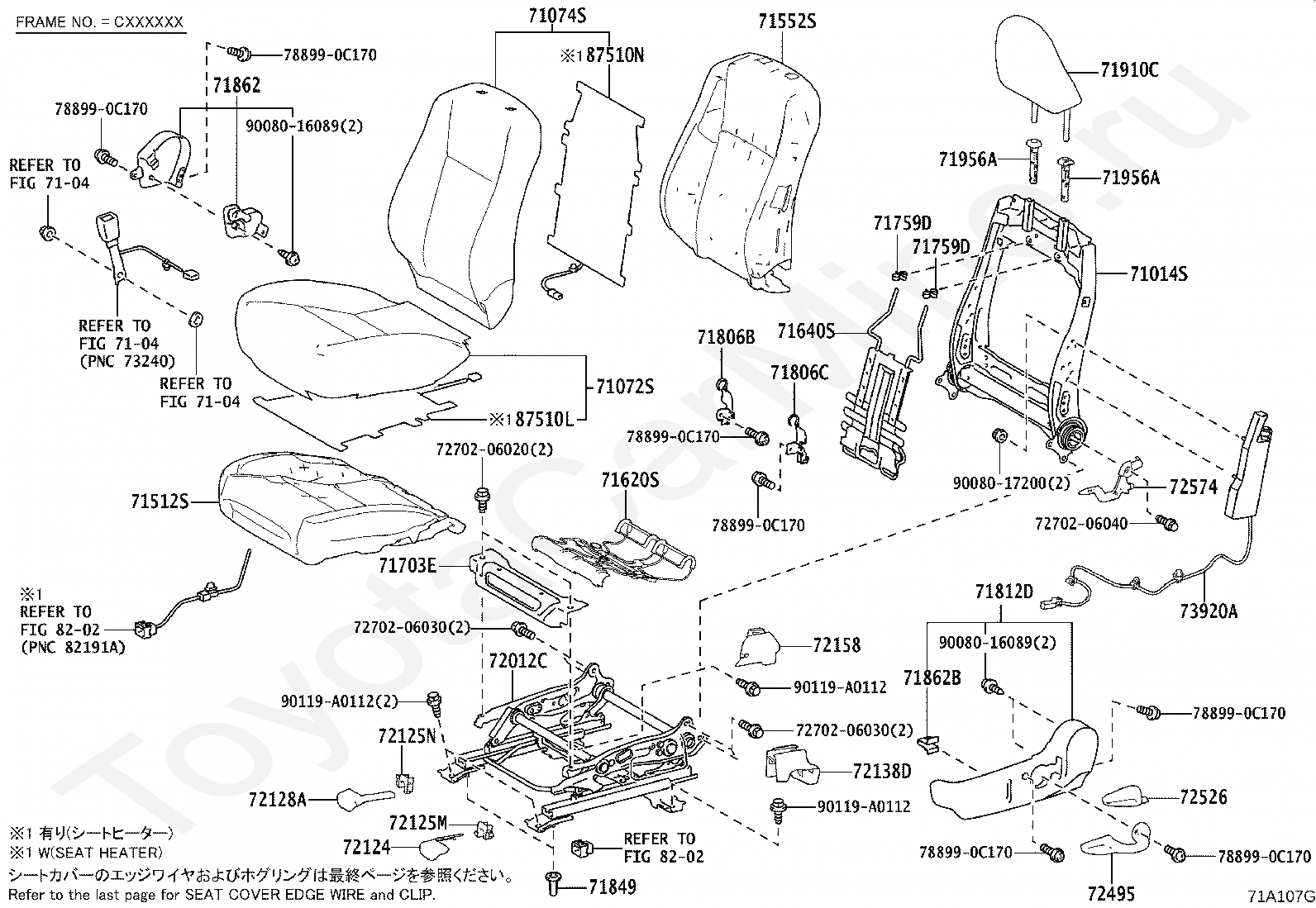

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71703E

PANEL SUB-ASSY, FRONT SEAT CUSHION, LH

71759D

HOOK, FRONT SEAT BACK, NO.2

71759D

HOOK, FRONT SEAT BACK, NO.2

71806B

SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.1

71806C

SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71910C

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

71956A

SUPPORT, FRONT SEAT HEADREST

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72125M

COVER, SEAT TRACK, UPPER NO.3

72125N

COVER, SEAT TRACK, UPPER NO.4

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138D

COVER, SEAT TRACK, OUTER, LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72495

HANDLE, VERTICAL ADJUSTING, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72574

LEVER, RECLINING CONTROL, LH

7270206020

Крепеж

7270206030

Крепеж

7270206030

Крепеж

7270206040

Крепеж

73920A

AIR BAG ASSY, FRONT SEAT, LH

788990C170

Крепеж

788990C170

Крепеж

788990C170

Крепеж

788990C170

Крепеж

788990C170

Крепеж

788990C170

Крепеж

788990C170

Крепеж

8202

переход к группе запчастей

8202

переход к группе запчастей

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9008016089

Крепеж

9008016089

Крепеж

9008017200

Крепеж

90119A0112

Крепеж

90119A0112

Крепеж

90119A0112

Крепеж

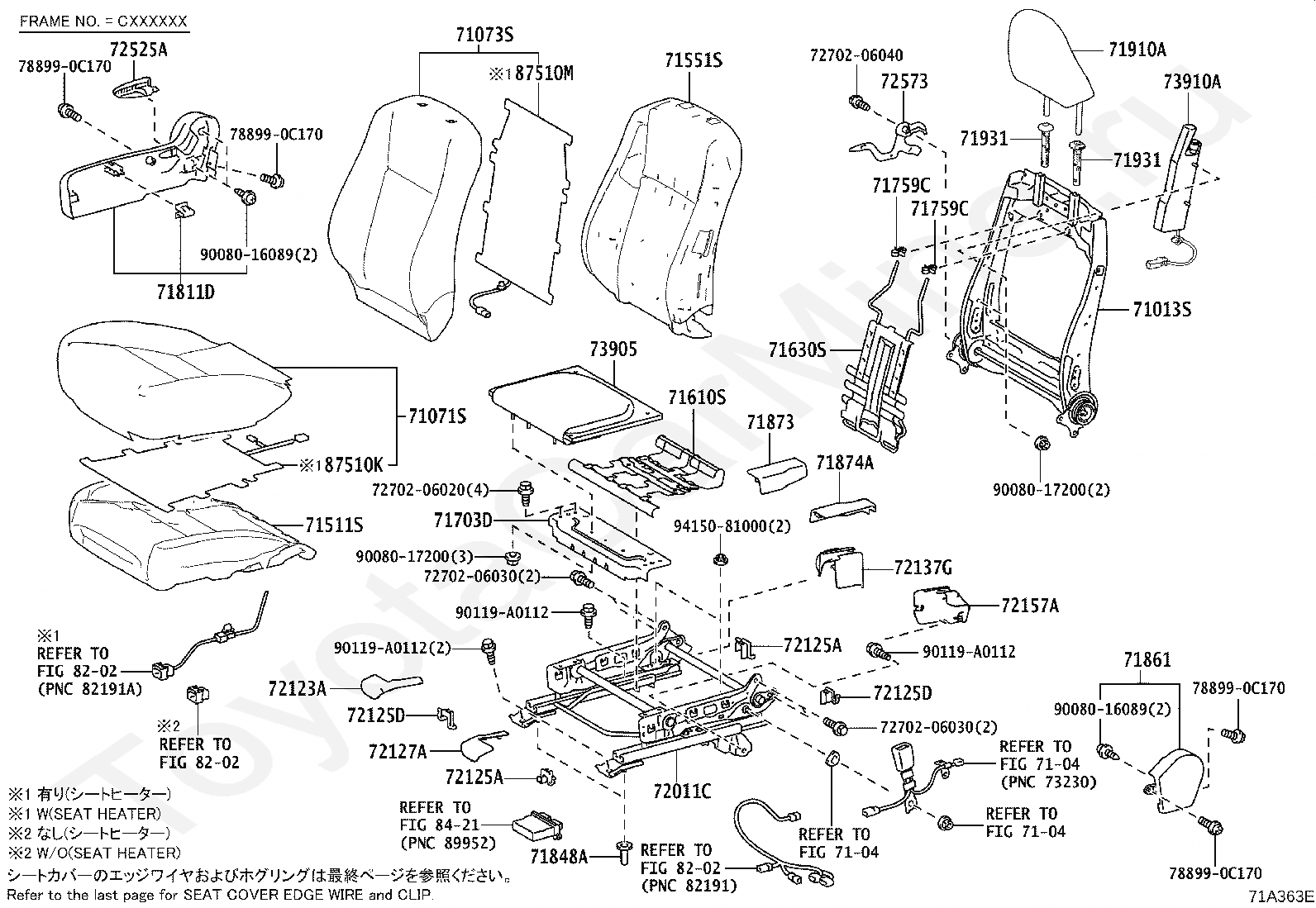

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71703D

PANEL SUB-ASSY, FRONT SEAT CUSHION, RH

71759C

HOOK, FRONT SEAT BACK, NO.1

71759C

HOOK, FRONT SEAT BACK, NO.1

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137G

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72573

LEVER, RECLINING CONTROL, RH

7270206020

Крепеж

7270206030

Крепеж

7270206030

Крепеж

7270206040

Крепеж

73905

AIR BAG SUB-ASSY, FRONT SEAT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

788990C170

Крепеж

788990C170

Крепеж

788990C170

Крепеж

788990C170

Крепеж

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

8421

переход к группе запчастей

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9008016089

Крепеж

9008016089

Крепеж

9008017200

Крепеж

9008017200

Крепеж

90119A0112

Крепеж

90119A0112

Крепеж

90119A0112

Крепеж

9415081000

Крепеж

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж

> Запчасти COROLLA > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
