Европа

Модель

COROLLA

VIN

Дата

1980/07

Двигатель

1,3 литра

Кузов

седан

Класс

STANDARD TYPE

Фрейм

KE70

КПП

механика МКПП, 4 ступени

Опции

правый руль 2 двери Южная Африка

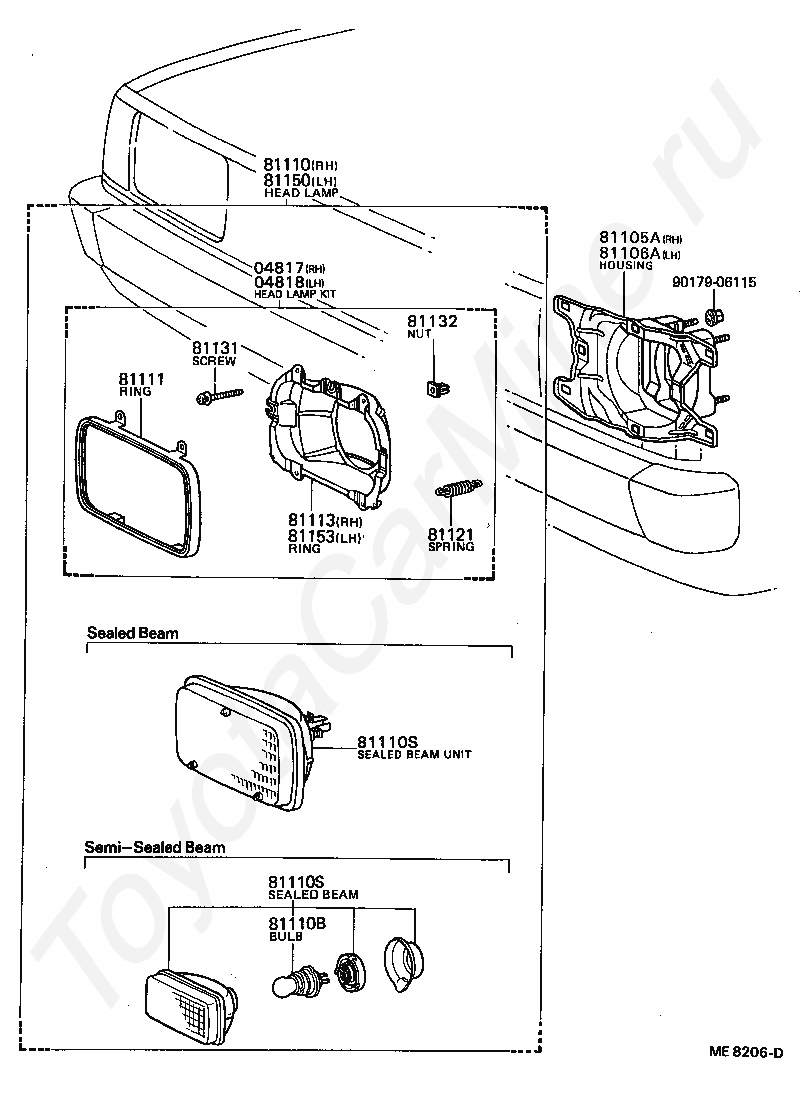

Фары TOYOTA COROLLA

Код

Описание

04817

HEADLAMP KIT, W/O SEALED BEAM, RH

04818

HEADLAMP KIT, W/O SEALED BEAM, LH

81105A

BRACKET SUB-ASSY, HEADLAMP, RH

81106A

BRACKET SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81111

RING, SEALED BEAM RETAINING

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81121

SPRING, HEADLAMP TENSION

81131

SCREW, HEADLAMP ADJUSTING

81132

NUT, HEADLAMP SELF LOCKING

81150

HEADLAMP ASSY, LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

9017906115

Крепеж

Код

Описание

04817

HEADLAMP KIT, W/O SEALED BEAM, RH

04818

HEADLAMP KIT, W/O SEALED BEAM, LH

81105A

BRACKET SUB-ASSY, HEADLAMP, RH

81106A

BRACKET SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81111

RING, SEALED BEAM RETAINING

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81121

SPRING, HEADLAMP TENSION

81131

SCREW, HEADLAMP ADJUSTING

81132

NUT, HEADLAMP SELF LOCKING

81150

HEADLAMP ASSY, LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

9017906115

Крепеж
