Европа

Модель

COROLLA

VIN

Дата

1980/07

Двигатель

1,3 литра

Кузов

седан

Класс

STANDARD TYPE

Фрейм

KE70

КПП

механика МКПП, 4 ступени

Опции

правый руль 2 двери Южная Африка

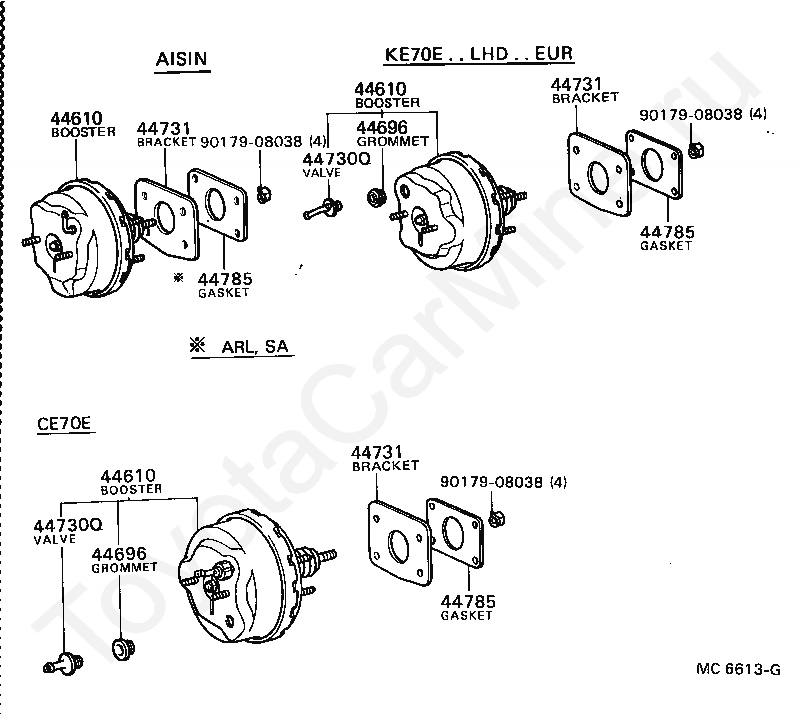

Вакуумный тормозной цилиндр TOYOTA COROLLA

Код

Описание

44610

BOOSTER ASSY, BRAKE

44610

BOOSTER ASSY, BRAKE

44610

BOOSTER ASSY, BRAKE

44696

GROMMET, CHECK VALVE

44696

GROMMET, CHECK VALVE

44730Q

VALVE ASSY, VACUUM CHECK, NO.2

44730Q

VALVE ASSY, VACUUM CHECK, NO.2

44731

BRACKET, BRAKE BOOSTER, FRONT

44731

BRACKET, BRAKE BOOSTER, FRONT

44731

BRACKET, BRAKE BOOSTER, FRONT

44785

GASKET, BRAKE BOOSTER

44785

GASKET, BRAKE BOOSTER

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

9017908038

Крепеж

9017908038

Крепеж

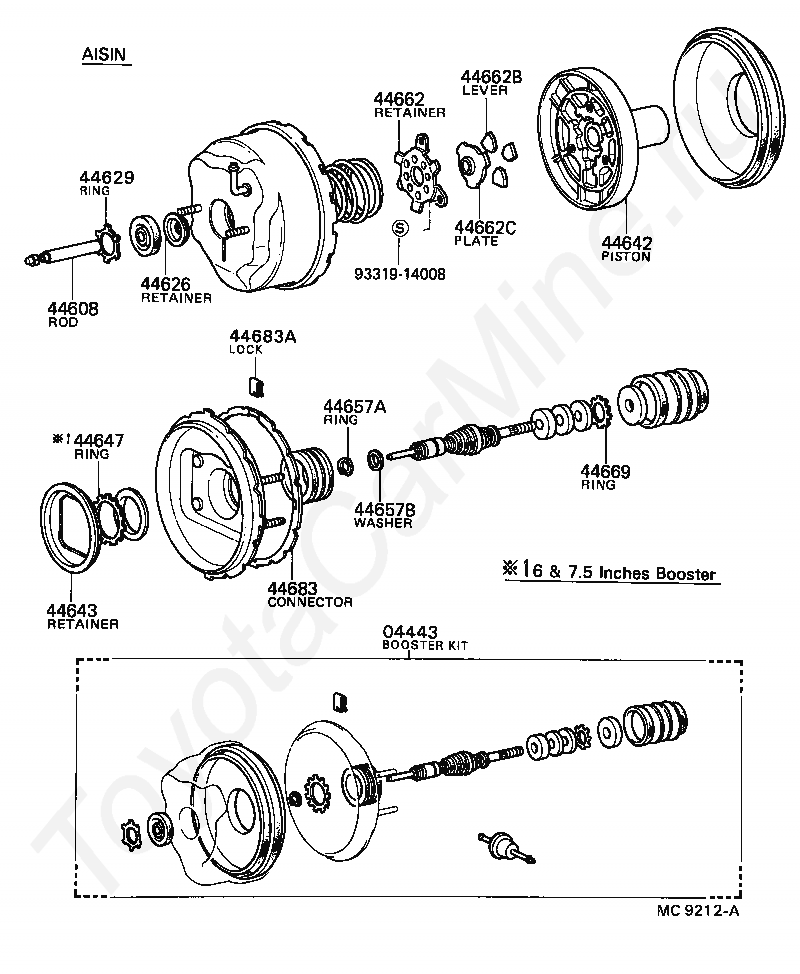

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44647

RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44657B

WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44683

CONNECTOR, BOOSTER BODY

44683A

LOCK, CONNECTOR

9331914008

Крепеж

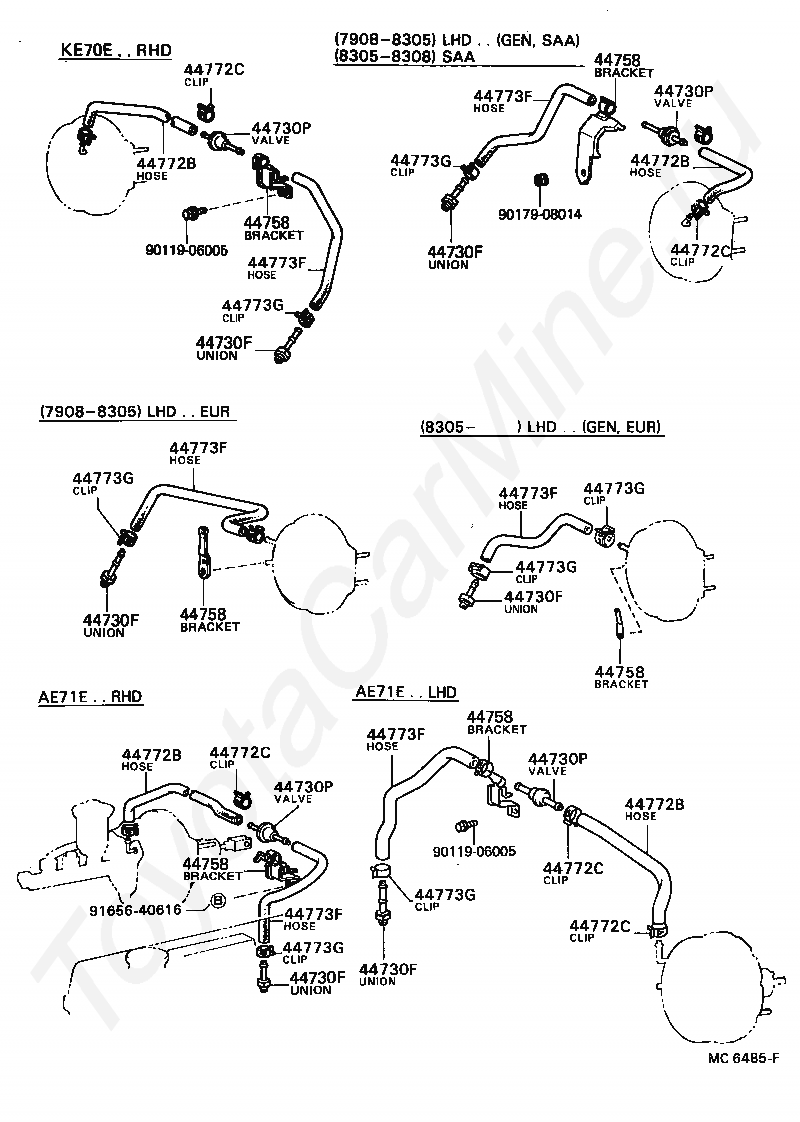

Код

Описание

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730P

VALVE ASSY, VACUUM CHECK, NO.1

44730P

VALVE ASSY, VACUUM CHECK, NO.1

44730P

VALVE ASSY, VACUUM CHECK, NO.1

44730P

VALVE ASSY, VACUUM CHECK, NO.1

44758

BRACKET, VACUUM CHECK VALVE

44758

BRACKET, VACUUM CHECK VALVE

44758

BRACKET, VACUUM CHECK VALVE

44758

BRACKET, VACUUM CHECK VALVE

44758

BRACKET, VACUUM CHECK VALVE

44758

BRACKET, VACUUM CHECK VALVE

44772B

HOSE, CHECK VALVE TO BRAKE BOOSTER

44772B

HOSE, CHECK VALVE TO BRAKE BOOSTER

44772B

HOSE, CHECK VALVE TO BRAKE BOOSTER

44772B

HOSE, CHECK VALVE TO BRAKE BOOSTER

44772C

CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

44772C

CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

44772C

CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

44772C

CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

44772C

CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

44773F

HOSE, UNION TO CHECK VALVE

44773F

HOSE, UNION TO CHECK VALVE

44773F

HOSE, UNION TO CHECK VALVE

44773F

HOSE, UNION TO CHECK VALVE

44773F

HOSE, UNION TO CHECK VALVE

44773F

HOSE, UNION TO CHECK VALVE

44773G

CLIP(FOR UNION TO CHECK VALVE HOSE)

44773G

CLIP(FOR UNION TO CHECK VALVE HOSE)

44773G

CLIP(FOR UNION TO CHECK VALVE HOSE)

44773G

CLIP(FOR UNION TO CHECK VALVE HOSE)

44773G

CLIP(FOR UNION TO CHECK VALVE HOSE)

44773G

CLIP(FOR UNION TO CHECK VALVE HOSE)

44773G

CLIP(FOR UNION TO CHECK VALVE HOSE)

9011906005

Крепеж

9011906005

Крепеж

9017908014

Крепеж

9165640616

Крепеж
